Norton Unitrol Hold Open Arm

Used on the Norton 1600, 8000 and 7500 door closers. Parallel Arm mounting only.

Norton # Door Size
6100-1 28-32"
6100-3 33-41"
6100-4 42-48"

Von Duprin 386NL Dummy Trim

This Von Duprin 386NL Night Latch Trim is just a pull handle. The bolt pattern of the trim plate lines up with the Von Durpin 33A on the inside so they are on conhesive unit. The base plate measures 7-15/16" by 1-5/8". The grip measures 8-1/2" by 4-5/16" with a 2-7/16" projection. This 386NL Night Latch Trim is handed. Uses a standard Rim Cylinder.

Norton Unitrol Non Hold Open Arm

Used on the Norton 1600, 8000 and 7500 door closers. Parallel Arm mounting only.

Norton # Door Size
6100-11 28-32"
6100-13 33-41"
6100-14 42-48"

The Adams Rite EX76 End Caps are for the Concealed Vertical Rod Devices. The package includes the hinge side and latching side covers, along with the mounting screws. The aluminum color is no longer available, only Black.

Penco Locker Two Person latch Bar for a Right handed Locker. Used 1970-1984, also known as 60861c.

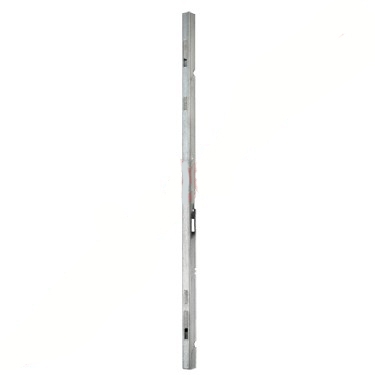

Republic Steel 30" dt Lock Bar-26-3/16" Length, Latch finger 701730 included, uses 700308-700309 handle assembly. Also known as 7627751, 75330, 2830, rs3026, lr230.

Latch finger 701730 & 786540 included, uses 853715 recess lifter.
7119174, LR130R.

Doromatic Exit Device 1590 Center Case Cover PB203

Covers the latch bolt assembly on the 1590 Rim Device.  Made of die cast metal and electrostatically painted black.

Doromatic Part # 4270106863 or PB203

International 7100 Concealed Vertical Rod Device

Modern flat touch bar Concealed Vertical Rod Device Panic exit device. This series offers durability, safety and meets the security demand and access control needs of today. Series 7300 Rim Panic exit devices are used with Narrow, Medium and Wide aluminum door and Hollow Metal and Wood Door applications. Series 7300 is non-handed, Field Reversible for LHRB or RHRB doors. Outside Unlatching and Dogging by Cylinder Key or Dogging by Hex Key in Touch Bar. Standard Units for 36” and 48” in widths (cut bar to fit). Can be used on 30” wide doors.

Republic Steel st 72" Lock Bar-59-7/8" Length, Latch finger 701730 included, uses 700308-700309 handle assembly.

ASI Porcelian Marker Whiteboard 9801 series are designed with businesses and schools in mind. Providing a super smooth writing surface that erase with ease, will not scratch, fade or stain as long as it is in use - guarenteed. All ASI porcelian boards will accept magnets. These boards are a great option when looking to replace existing cork and chalk boards. No removal is need for existing boards as this can be easily mount using L clips and hardware that come with the new board. Boards are available without Tray, with Angle Tray or with Flat Tray. ASI is a premiere provider for accessories for, schools, colleges, hospitals, and businesses looking to upgrade and improve their working environment.

Features

• Lifetime Warranty(on writing surfaces for the life of the building)
• Tray Options: Angle, Flat or Without
• Optimum erasability and easy to maintain
• High gloss white is Standard
• Can be written on with dry-erase markers
• Scratch, bacteria, chemical, and fire resistant—will not combust or release toxic fumes in the event of fire
• Colorfast wil not fade
• Safe and clean, releases no harmful chemicals into the environment
• Great color contrast
• Premium color finishes available
• Custom graphic boards available with music lines, graph coordinates and calander
• Available in Series 9100 Radius and Square, 9300, 9500 Elite Reveal and 9800

Available Sizes to ship out within 48 Business Hours

• 4'x4' (9800 Series): Without Tray, Angle Tray or Flat Tray
• 4'x6' (9800 Series): Without Tray, Angle Tray or Flat Tray
• 4'x8' (9800 Series): Without Tray, Angle Tray or Flat Tray

*** Important Notice: When ordering ASI Porcelian Marker Whiteboards with Tray, Boards and Trays will be in 2 Shipments. ***

Right hand or Left hand, 1972 to present. Actual size 13"x7-7/8". Also known as rs1136, lr40.

Dor-o-Matic 1790 NL/HB Cylinder Assembly. Converts a 1790EO to the Night Latch or Hold Back function

Doromatic Part # CYLASY.1151 or 179CA

1790 parts breakdown

Adams Rite 8700 / 8800 Mounting Base Kit

Replacement active head for the Adams Rite 8800 and Adams Rite 8700 Star Wheel Latching System.   Kit includes replacement rivets to reattach.

Adams Rite Part # 91-8800

Acorn Sweep Lock 2-1/4"

This sweep latch has a hole spaceing of 2-1/4" between screws. Also known as a Window Lock or Double Hung Window Lock. Acorn Sweep Lock.

White only

Norton 7700 Series Power Track

The Norton Power Track Closer-Holders combine the functions of a single point electromechanical door holder with the proven reliability of a 7700 Series Door Closer. The track assembly contains an arm slide and solenoid operated hold open mechanism and is available with or without an integral smoke detector. The closer is mounted on the door. The Power Track and hook-up box are mounted to the frame face for pull side installations or the frame soffit for push side installations.

Two versions, the Master Unit (PTDO) and the Support Unit (PTO). The PTDO has an integral smoke detector. The PTO can be plugged into the PTDO or into your existing fire alarm system. Both units can be mount pull side of the closed door, or the push side, please specify when ordering. Specify voltage (24 volt or 120 volt) and color (aluminum or dark brown). Dark Brown is a 3 week lead time, Aluminum is in stock.

The PTDO Master Unit is no longer available, they were discontinued in the 2024.

American Exit Device 60 Series Dogging Assembly

This is the assembly that keeps the latch bolt retracted when the hex key is tightened. This dogging assembly is also used on the Dorma 8000 Series devices.

Von Durpin 8827F Plunger Release Bracket

Used with the Fire Rated 8827 Top Latch.

Von Duprin  # 107765

Norton CloserPlus Non Hold Open Arm

This heavy duty Parallel Arm can be used with the Norton 1600, 9300, 8000 and 7500 door closers.

Aluminum is in stock, Dark Bronze is 2-3 week lead time.
Norton Part # 6770-5

LCN Drop Plate for Parallel Arm Mounting

The 18PA LCN Drop Plates are designed to lower the mounting holes on doors with glass at the top of the door. If your door has a narrow stile at the top of it surrounded by a metal frame, mount the door closer on this plate.

LCN Part #'s
1260-18PA
1460-18PA
4040-18PA
4040XP-18PA
4110-18PA

LCN Sentronic Roller

This LCN Sentronic Roller is used on all of the LCN Track Closers, and Sentronic Closers. Nylon wheel is 1-1/16" diameter by 3/8" thick. The shaft is has a 1/2" diameter by 1-1/8" long. LCN part # 4040SE-3034.

LCN Started using this Roller Assembly in December 2018.

Republic Steel upper locking bar for a two person locker. 700337 spring and 700338 latch included. 7-5/8" length. Prior to current. Facing the locker the hinges will be on the Left side. Also known as 75803, 2790, 70009, rs1124, lr803.

Republic Steel upper locking bar for a two person locker RH. 700337 spring and 700338 latch included. 7-5/8" length. Prior to current. Facing the locker the hinges will be on the Right side. Also known as 75703, 2719, 70010, rs1123, lr703.

Von Duprin 8827 Bottom Rod Connector.

Connects bottom rod to the bottom latch. The Bottom Rod Connector is included with the Von Durpin Bottom Rod.

Von Duprin Part # 050327
Old Part #960578

Sargent Exit Device 90 Series Mouse Trap Spring

Used on the Sargent 9898 Rim Device on the opposite side of the case as the latch bolt.

Sargent part # 98-2159

Norton PT24SOL 24 Volt Solenoid Assembly

If your Norton or Yale PowerTrack Door Closer is not holding the door open, this is usually the problem. To trouble shoot, first make sure you have voltage going to the solenoid. If you have voltage going in, and the door is still closing, then your solenoid is burned out. The solenoid is under constant voltage, so they do not last forever. The assembly measures 6-1/2" long by 1-1/8" wide with a height of 3/4". We sometime find the number F98024SH.1315 24 VDC on the solenoid.

Norton Part # PT24SOL

Dor-o-Matic 1690/1990 bottom rod. Connects panic bar to the bottom latch

Doromatic Part # 4270101825 PB25 and GPB25

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts Breakdown

Von Duprin 22 Control Link Pin

The control link pin is the connector pin, that connects the latch head assembly to the push bar assembly. When the push bar is pushed in it retracts the latch bolt and the pin connects the two pieces. This Control Link Pin is used on the Von Duprin 22, 33A, 98 and 99 Panic Devices.

VON DUPRIN PART # 050529
Old Von Duprin Part # 969520

The LCN 1370 was a door closer made in the late 1990's to 2006 or so. The closer had a special mounting plate that made installation very quick. Many people have this door closer in use and now they are starting to fail. The LCN 1370-18QF Quick Fix Plate converts the mounting holes of the 1370 to a standard template closer, which is 3/4" x 9-1/16". By using this plate you will not have to redrill holes in your door. The plate measures 2 by 10-1/4 inches with tapped holes that measure 3/4 x 9-1/16 inch.

Jackson Offset Arm package. Includes arm, track and mounting screws

Jackson Part # 20-900-LC

Von Duprin 8827 Top Rod Connector

Inserts into rod so the latch can connect to the rod. The top vertical rod does not ship with the top rod connector!

Von Duprin Part # 050279
Old Part # 960577
