Toilet Partition Double "H" Alcove Bracket Aluminum For 1" Panel to 1" Pilaster

Constructed of extruded anodized aluminum. Bracket is 2-1/2" high, 1-1/4" wide and 3" deep. Mounting thru holes 1-1/2" on center. The legs project out 1-3/16". Designed for 1" thick panels to 1" thick pilasters. This bracket is also known as a Double H Wall Bracket, Alcove Double H Bracket, Toilet Partition Double H Wall Bracket, or Bathroom Stall Alcove Double H Bracket. The manufacturers part number is 1734. The bracket ships with all the required fasteners.

Lyon Locker Catch Clip replaces the Nano Roller type. Also known as 6808. Used January 2013 to current. Replacement part that is used on the lock bar that catches the door frame to lock the door. 1/4" x 1/2" x 2-1/2" in length with spring included.

• For heavy weight doors
• High frequency usage
• 4 ball bearing
• Packed with wood and metal screws

Sold in boxes of 3 Hinges
Shown in brushed chrome

A.W. Anderberg 301ST Cadnium Plated Steel HInge

Usually used on commercial hopper windows. If you have a Casement Window, please see the 222SS or the 333SS Egress Window Hinges. This hinge has been discontinued, and is replaced by the 301SS hinge, which has the same hole spacing, length, and stack height.

29/32" wide x 5/8" stack height

Sold Individually, these hinges are non-handed. We recommend that you change both hinges when replacing.

Toilet Partition Continuous Toilet Partition Hinge 54" With Spring Close Stainless Steel, Rh Outswing, Lh Inswing

Stainless Steel Construction 16 gauge (.060" thick). Hinge is 3" wide when laid flat, by 54" long. Holes are 9/32" diameter, spaced every 10-1/4" or so. Hinge can be raised up 3/8" for emergency entry. Hinge pin is 1/8" diameter. This Continuous Hinge is for Right Hand Outswing, and Left Hand Inswing, see handing diagram under "More Views". Also known as a Full Length Bathroom Stall Continuous Hinge. Manufacturer part # 7969.

Concealed Partition Latch Keeper Bumper 1-1/4" Square Edge Cast Stainless Steel

Cast stainless steel construction. Keeper is 1-1/4" tall by 2-3/8" wide by 1-3/4" deep. The strike is a 1/2" thick and the slot is 7/16" deep. The opening to mount it on the square edge pilaster or post is 1-1/4" by 1-1/4" Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5963.

Shipped with screws for mounting.

Toilet Partition Stainless Steel Continuous U Bracket, 71", 7/8"x1-1/2" 18 Gauge.

Stainless Steel Construction 18 gauge. U bracket is for 7/8" wide partitions and is 1-1/2" height and 71" long. Holes are typically spaced every 13-1/2" vertically. This bracket is also known as a Full Length Toilet Partition Continuous U Bracket 71". Bracket has rounded edge radius. Designed to attach pilasters and/or panels to walls. Continuous brackets help eliminate sightline into stalls.

*Fasteners not Included *

Manufacture part # 204099

The classic look of Doromatic 1990 has a long history of reliable performance. It is equipped with hardened steel latches and adjustable strike to ensure safety, security and quiet operation.

Hand: Field reversible, non handed.
Dogging Feature: Hex dogging standard.Sizes: Field adjustable width, 41" crossbar standard fits 3' 8" x 7'
door, extra length cross bar available.

Replacement parts are also available

Shipped with all screws and strikes.

Extension Kit No.1901 for mounting of Built-in Combination Locks on 11/16" to 3/4" thick wood or laminate locker doors.

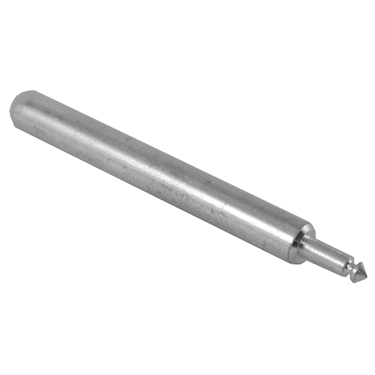

Global Partitions Top Hinge Pin

Zinc plated steel construction. The hinge pin is 3/8" diameter by 3-3/4" long. Also known as a Bathroom Stall Door Hinge Pin. Manufacture part # 98544.

The Cal-Royal CRCODE204 is for use with the 2200, 7700 and 9800 Rim and Surface Vertical Rod Devices. The Lever Mechanism features a Break Away Lever, for use with 1-3/4 inch to 2 inch thick doors, non-handed, Single Code User, Key Override, easy on the door code change, weather resistant, and more than 8000 non-sequential possible code combinations.

Installation and Programming Instructions

ASI Locker Coiled Spring used with ASI, Edsal, List Industries and Penco lockers. Manufactured in the USA for the past 25 + Years. Also known as 8650, 4120, 74015, pn3305, lp8828. This spring is used with the catch clip on a lock bar on the inside of the locker door that helps catch and release the door from being locked or unlocked.

The Adams Rite 4581 Universal Cam is used on the 4500 and 4700 Dead Latches.  The handing is easily switched between Right Hand and Left Hand. We ship the 4581-01 Cam for the 1-3/4" thick doors, if your door is more thick, please email us for a price quote.

• Not load-bearing
• Maintains door alignment
• Non-ferrous base metal
• 3/4"(19mm) offset
• Furnished with wood and machine screws

Handing diagram

1" diameter material
Establish the center to center dimension by subtracting the width of one stile from the width of the door. On solid doors, subtract 5" from the width of the door.

Please specify either wood or metal door, and its thickness; we'll supply
appropriate fasteners.

Please allow 3-4 weeks on Aluminum and Dark Bronze, and 2 weeks on the other finishes

Finishes

The Von Duprin 970323 299 Strike Adjustor is the piece that secures the placement of the Strike to the door frame or mullion.

American Sanitary Partitions Top Hinge Pin

Zinc plated steel construction. The hinge pin is 3/8" diameter by 3-3/4" long. Also known as a Bathroom Stall Door Hinge Pin. Manufacture part # 98544.

Sargent Exit Device 20/30/60 Bracket

Bracket holds exit device on the door, and plastic cover mounts to it.

Sargent part #68-2141

If your toilet partition (bathroom stall) wall bracket is stamped 1630, then chances are you have the Two Ear Wall Bracket for 7/8″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 3-1/2″ long with 2-3/4″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket is made of a die cast material that is then chrome plated. The bracket sometimes goes by the name Bathroom Stall (toilet partition) Two Ear Bracket or Wall Bracket.

Partition Continuous One Ear Wall Bracket For 1"Panel Aluminum

Constructed of extruded anodized aluminum. Base is 2-5/8" wide by 57-1/2" long, with screw holes every 13" or so. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs have a clearance of 1" for 1" thick panels. Sometimes known as Bathroom Stall Continuous One Ear Wall Bracket. The manufacturers part numbers are 2334, one ear 1" x 57, and 650-9750-58. These brackets are shipped with all the needed fasteners.

Toilet Partition Continuous One Ear Wall Bracket For 1 1/4" Panel Aluminum

Constructed of extruded anodized aluminum. Base is 2-5/8" wide by 57-1/2" long, with screw holes every 13" or so. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs have a clearance of 1-1/4" for 1-1/4" thick panels. Sometimes known as Bathroom Stall Continuous One Ear Wall Bracket. The manufacturers part numbers are 2354, and 650-9186-57. These brackets are shipped with all the needed fasteners.

Bobrick 1550 metro series plastic laminate in a corner partitions, Plastic laminate overhead braced floor mounted stalls. Standard stalls 36" x 60"depth (24" door), ADA stall 60" x 60" depth (36" door). All hardware included. Doors are either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must select (1) ADA 24", plus 1 standard stall for 1 complete 60 x 60 ada stall. To have an ADA stall & standard stall, you must select (2) standard stalls and (1) ADA stall 24". Plastic laminate Partitions ship in 1 week.

Bobrick 1550 plastic laminate color chart

Bobrick 1550 Instructions

Hager Parallel Arm Bracket

Hager Closer Std. Pa Bracket-52/53/54 Series

Hager Door Closer Standard Parallel Arm Bracket - 52/53/54 Series

Hager part # 5900

Accurate toilet partitions in stainless steel in a corner commercial stalls floor mounted overhead braced stalls with a smooth surface. Standard stalls 36" x 60" depth (24" door), ADA stall 60" x 60" depth (36" door). Standard chrome plated alloy hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Accurate color chart

Accurate Instructions

Accurate stainless steel free standing stalls floor mounted overhead braced stalls with a smooth surface. Standard stalls are 36" x 60" depth (24" door), ADA stall 60" x 60" depth (36" door). Standard chrome plated alloy hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Accurate color chart

Accurate Instructions

Emco 20-4 Portable Coat Rack System. This 48" floor coat rack includes 16 open hook hangers. Model shown with optional boot rack/umbrella holder. This Portable Coat Rack is 61" high, 18" deep, 48" wide.  The image shown is with the Boot Rack, use the drop down menus to see the product without the Boot Rack.

Toilet Partition Continuous Two Ear Wall Bracket For 1" Panel Aluminum

Constructed of extruded anodized aluminum. Base is 3-3/4" wide by 54" long, with screw holes every 13" or so. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs have a clearance of 1" for 1" thick panels. Sometimes known as Bathroom Stall Continuous Two Ear Wall Bracket. The manufacturers part numbers are 2868, and 650-8531-54. These brackets are shipped with all the needed fasteners.

Toilet Partition Stainless Steel Continuous Hinge, 71-1/2" Rh Inswing, Lh Outswing, 16 Gauge, 1/8" Pin

Stainless Steel Construction 16 gauge (.060" thick). Hinge is 3" wide when laid flat, by 71-1/2" long. Holes are spaced every 11" or so. The hinge pin is 1/8" diameter, and the mounting holes are 9/32" diameter. This hinge is also known as a Full Length Toilet Partition Continuous Hinge. The Bathroom Stall hinge can be raised up 3/8" for emergency entry. See "More Views" for handing information.

Manufacture part # 7759

Single Door; Easy-To-Use Pushpad for Quick Egress and ADA Compliance; Low Profile and Projection for Barrier-Free Code Compliance; No Projecting Parts to Inhibit Egress; Single Point Latching. School and University; Health Care; Government and Public; Commercial and Industrial; Office and Retail; Transportation and Utilities; Hotels and Conference Centers; Religious

For 36" doors, aluminum finish only.

Von Duprin 33A Exit Device Only

33A and 35A for all types of single and double doors with mullion, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. The 35A has a smooth mechanism case and the 33A has grooved case. 33A/35A fits door stiles as narrow as 1 3/4". Newly designed device has a one piece center case cover.

Bobrick B-212 clothes hook with bumper for toilet partition doors. This unit is solid aluminum casting with a matte finish. The hok projects out 3-3/4" x 1-1/2"w x 2"ht.

Napkin Disposal w/o Shelf Stainless Steel Surface mount 16 gauge utility shelf. Overall Size 7 1/2" x 10" x 3 7/8".  Surface Mounted Sanitary Napkin Disposal shall have top cover door and cabinet of 22 gauge type 304 stainless steel alloy 18-8. All exposed surfaces shall be satin finish and be protected during shipment with PVC film easily removable after installation. Capacity shall be 1.2 gal (4.5L). Top cover is attached to cabinet with a full length 3/16" diameter (Ø4.8) stainless steel multi-staked piano hinge. Structural assembly of body and door components shall be of welded construction. American Specialties 0852 stainless steel napkin disposal unit.

Global Partition Complete Solid Phenolic Free Standing Partitions, Overhead braced floor mounted stalls. Standard stalls 36"x60" depth (24" door), ADA stall 60"x60"depth (36" door). All Stainless Steel hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. Color Thru is 10 days and Black Core ship in 5 Days, 2-4 days travel.
Global Solid Phenolic Color Chart

Von Durpin 8827 surface mounted vertical rod devicesfor all types of single and double
doors, UL listed for accident hazard installations.Covers stock hollow metal doors
with 86 or 161 cutouts and fits door stiles as narrow as 3½" (90mm).

● Fully reversible
● Five popular finishes
● Field sizeable
● Hex key dogging
● 5/8"(16mm)throw latch bolt

Ships with all mounting screws and the 299, 304L and 248L-4 Strikes.

Concealed Latch Fix it Kits for Powder Coated Steel

For 1" Thick Doors- Round Edge for Powder Coated Steel
All Hardware included
