Right hand shown in picture. For locker hinges are on the right side facing. Also known as 30301, 3058, 76007, is4412r, lin380.

Bobrick 1550 metro series plastic laminate Ada Alcove partition configuration, Plastic laminate overhead braced floor mounted stalls. Standard stalls 36" x 60"depth (24" door), ADA stall 60" x 60" depth (36" door). All hardware included. Doors are either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must select (1) ADA 24", plus 1 standard stall for 1 complete 60 x 60 ada stall. To have an ADA stall & standard stall, you must select (2) standard stalls and (1) ADA stall 24". Plastic laminate Partitions ship in 1 week.

Bobrick 1550 plastic laminate color chart

Bobrick 1550 Instructions

Universal Handing Partition Hinge Stainless Steel Surface mounted. This hinge is universal which means this can be in or out swing and right or left hinged. This hinge is 1/8" thick, overall width is 3" x 3-3/8"ht. The hole spacing is 2" x 1-1/2" up and down. The manufacturer's part number is 650-8241, 7199. Hardware included for 1" door and 1-1/4" thick post.

Corbin Russwin ED4000/ED5000 Lever Spring

Same part as the Corbin Russwin Lever Trim Spring. Used on Yale and Corbin Russwin LHR or RH Doors. The spring has an 1-1/4" OD and 1-1/8" ID.

Yale Part # 60-7000-1225-999
Corbin Russwin # 651F61

Corbin Russwin ED4000/ED5000 Blue Lever Spring

Same part as the Corbin Russwin Lever Trim Spring. Used on Yale and Corbin Russwin RHR or LH Doors. The spring has an 1-1/4" OD and 1-1/8" ID.

Yale Part # 60-7000-1224-999
Corbin Russwin # 651F62

Replacement arm works with the Norton 1600, 9300, 7500, and 8000 series, along with the Yale 50, 2300, 3000 and 4400 friction hold open arms closers. Norton and Yale use the same arm for there Friction Hold Open arms.

Norton Part # 7701-3
Old Norton Part # 1620-3
Yale Part # 400-3

Chrome Plated Partition Keeper Bumper Flat Stop Outswing Door

Chrome plated Zamac die casting. The strike and keeper is 1-1/4" high by 1-3/4" deep by 1/8" thick. The stop is 1/2" deep by 1-1/4 wide with a rubber insert. Also known as a Bathroom Stall Strike and Keeper Outswing Flat. Manufacture part # 5640.

Shipped with mounting screws.

Hadrian HDPE Solid Plastic Corner Partitions, Solid Plastic (HDPE) Overhead braced floor mounted stalls. Standard stalls 36"x 60"depth(24" door), ADA stall 60"x60"depth(36" door). All standard aluminum brackets and hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All Hadrian partitions colors ship in 5 business days plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60.

Hadrian Solid Plastic Color Chart

Hadrian Partition Solid Plastic Instructions

Partition Top Hinge Casting

Unplated Zamac die cast construction. The outside dimensions of the top hinge casting are 3-7/16" high by 2-3/8" wide by 1-5/32" deep. The casting features four holes, two of them are 3/8" diameter, one is 7/32" diameter and the fourth is a threaded hole for a 5/16-18 screw. The two U channels have spacings of 13/16" and 1" on the other. Also known as a Bathroom Stall Door Insert - Top 1". Manufacture part # 4546. Used with AMPCO and Metpar Toilet Partitions.

General Keeper Bumper For Concealed 1-1/4" Round Edge

Polished chrome plate Zamac die casting construction. Strike and Keeper measures 1-1/4" high by 2-3/8" wide by 1-3/4" deep. Stop is 1/2" thick and projects out 1-1/8". The latching slot is 7/16" deep x 3/4" high. This Bathroom Toilet Door Keeper is designed for use on 1-1/4" thick round edge posts or pilasters. Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5510.

Shipped with mounting screws.

Sanymetal Toilet Partition Keeper Bumper For Concealed Latches 1-1/4" Round Edge Post

Polished chrome plate Zamac die casting construction. Strike and Keeper measures 1-1/4" high by 2-3/8" wide by 1-3/4" deep. Stop is 1/2" thick and projects out 1-1/8". The latching slot is 7/16" deep x 3/4" high. This Bathroom Toilet Door Keeper is designed for use on 1-1/4" thick round edge posts or pilasters. Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5510.

Shipped with mounting screws.

Left hand shown in picture. For locker hinges are on the left side facing. Also known as 30302, 3057, 76008, is4413l, lin381.

Von Duprin 22 Control Link Pin

The control link pin is the connector pin, that connects the latch head assembly to the push bar assembly. When the push bar is pushed in it retracts the latch bolt and the pin connects the two pieces. This Control Link Pin is used on the Von Duprin 22, 33A, 98 and 99 Panic Devices.

VON DUPRIN PART # 050529
Old Von Duprin Part # 969520

The Von Duprin 373L Lever Control Spring 090091 and 090092 are used on the 371, 373, 375 and 378 Lever Handles.  The spring is used to return the lever to the horizontal position.  Sold in packages of 4 springs.

Von Duprin Part #
090091 Left Hand Reverse
090092 Right Hand Reverse

The Von Duprin 98/99 Maintenance Kit includes all the parts and pieces you need to keep your 98 or 99 device running properly for years.  If you are interested we can email a list of the parts.

Von Duprin part # 050046

98/99 Maintenance Kit Instruction Manual

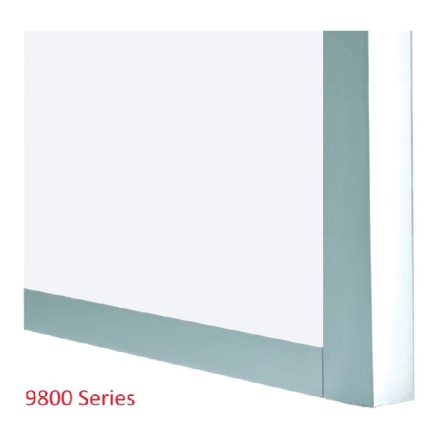

ASI Porcelian Marker Whiteboard 9801 series are designed with businesses and schools in mind. Providing a super smooth writing surface that erase with ease, will not scratch, fade or stain as long as it is in use - guarenteed. All ASI porcelian boards will accept magnets. These boards are a great option when looking to replace existing cork and chalk boards. No removal is need for existing boards as this can be easily mount using L clips and hardware that come with the new board. Boards are available without Tray, with Angle Tray or with Flat Tray. ASI is a premiere provider for accessories for, schools, colleges, hospitals, and businesses looking to upgrade and improve their working environment.

Features

• Lifetime Warranty(on writing surfaces for the life of the building)
• Tray Options: Angle, Flat or Without
• Optimum erasability and easy to maintain
• High gloss white is Standard
• Can be written on with dry-erase markers
• Scratch, bacteria, chemical, and fire resistant—will not combust or release toxic fumes in the event of fire
• Colorfast wil not fade
• Safe and clean, releases no harmful chemicals into the environment
• Great color contrast
• Premium color finishes available
• Custom graphic boards available with music lines, graph coordinates and calander
• Available in Series 9100 Radius and Square, 9300, 9500 Elite Reveal and 9800

Available Sizes to ship out within 48 Business Hours

• 4'x4' (9800 Series): Without Tray, Angle Tray or Flat Tray
• 4'x6' (9800 Series): Without Tray, Angle Tray or Flat Tray
• 4'x8' (9800 Series): Without Tray, Angle Tray or Flat Tray

*** Important Notice: When ordering ASI Porcelian Marker Whiteboards with Tray, Boards and Trays will be in 2 Shipments. ***

Plunger Type Holder / Stop FS1153

This plunger type door holder manufactured by H.B. Ives features a contemporary yet economical method of positive Hold-Open.  It is constructed in sturdy cast aluminum for years of service.  The spring operated plunger activates with minimal pressure, releasing instantly with a light tap on the plat-form lever.  The plunger offers a 1-5/8" throw for all types of doors.  The ribbed non-marring rubber shoe is securely fastened to unit with a screw and is easily replaced when worn.

Aluminum finish only

Ives Part # FS1153

Ordering online all solid plastic (HDPE) pilasters manufactured by global partitions, see color chart below. For other factory colors please call for pricing. All toilet partitions ship in 48-72 hours plus 2-4 days travel. Pilasters Include: floor mount hardware and Stainless Steel Shoes.Available for the following widths - 3, 4, 5, 6, 7, 8, 10, 12, 16, 18, 20, 22 and 24" x 82" ht for overheadbraced type.

Color Chart

Hadrian HDPE Solid Plastic Between Wall Partitions, Solid Plastic (HDPE) Overhead braced floor mounted stalls. Standard stalls 36"x 60"depth(24" door), ADA stall 60"x60"depth(36" door). All standard aluminum brackets and hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. Every color Hadrian offers will ship in 5 business days plus 2-4 days travel.

Hadrian Solid Plastic Color Chart

Hadrian Partition Solid Plastic Instructions

Complete Plastic Laminate Between 2 Walls Partitions, Plastic Laminate Overhead braced floor mounted stalls. Standard stalls 36"x 60" depth(24" door), ADA stall 60"x60" depth(36" door). All hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. Plastic laminate Partitions ship in 2 business days.  Color Chart

International 7300 Rim Device

Modern flat touch bar Rim Panic exit device. This series offers durability, safety and meets the security demand and access control needs of today. Series 7300 Rim Panic exit devices are used with Narrow, Medium and Wide aluminum door and Hollow Metal and Wood Door applications. Series 7300 is non-handed, Field Reversible for LHRB or RHRB doors. Outside Unlatching and Dogging by Cylinder Key or Dogging by Hex Key in Touch Bar. Standard Units for 36” and 48” in widths (cut bar to fit). Can be used on 30” wide doors.

LCN SEM7840-516 Magnet Core Assembly

Tri Voltage Magnet Core only. 35 pounds of holding force at nominal input voltage. Maximum current draw is .020 A @ 24 volt and 120 volt, and .030 A @ 12VDC. Cylinder is 1-3/4" diameter and projects out 7/8" out from the mounting plate.

LCN part number SEM7840-516

Truth Single Arm Window Operator. This new style replaces the older tradiational size shown in the diagrams.

To determine hand of operator, if your sash lock (window lock), is on the left, you would use a left hand operator. And if your sash lock is on the right, you would order the right hand operator.

We sometimes find the number 45251 cast on the housing, and 40049 and 40050 stamped on the arms.   This operator has a Nylon Wheel or Roller.

Left hand shown. The Wi11454 handle in matching color is included

The Norton PTO PowerTrack for 7705 is a replacement piece for the 7705PTO Door Closer.  The Track includes the Slider, Soleniod and new mounting screws.  The Track measures 21-1/4" long with a hole spacing of 19" on centers.   The PTO Track is for the Pull Side of the door, also known as the Hinge Side because you can see the hinges on that side. No longer available in 120 volt

Norton Part # PTO24

Bobrick 1550 metro series plastic laminate free standing partition configuration, Plastic laminate overhead braced floor mounted stalls. Standard stalls 36" x 60"depth (24" door), ADA stall 60" x 60" depth (36" door). All hardware included. Doors are either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must select (1) ADA 24", plus 1 standard stall for 1 complete 60 x 60 ada stall. To have an ADA stall & standard stall, you must select (2) standard stalls and (1) ADA stall 24". Plastic laminate Partitions ship in 1 week.

Bobrick 1550 plastic laminate color chart

Bobrick 1550 Instructions

Push Plate Plastic 90

1/8" thickness plastic

Norton Unitrol Hold Open Arm

Used on the Norton 1600, 8000 and 7500 door closers. Parallel Arm mounting only.

Norton # Door Size
6100-1 28-32"
6100-3 33-41"
6100-4 42-48"

Friction Ring Single Wheel Caster - 3" Wheel - 7/16" Stem Diameter, 1 3/8" stem length, 3" wheel diameter. Zinch finish with black rubber wheel. Available with tread for both carpet and non carpet floors.

KK5841 hard tread for carpet

KK5842 soft tread for non carpet

Scranton products solid plastic corner stalls traditionally called Hiny Hider Partitions are great for moisture and high traffic commercial buildings. All plastc material is 1" thick, doors are self closing by gravity 8" aluminum hinges or a continuous spring piano hinge, all hardware is standard aluminum brackets. Offering only Classic color collect on the website, all textures please submit drawings for us to quote with color you are looking for. All doors and panels are 55" ht, pilasters are 82" ht mounted to the floor and an overhead aluminum headrail running across the top to support the top of the pilasters. Up to 8 standard stalls total or 7 standard and 1 Ada stall. All Scranton partitions colors take 3 weeks from the time you place the order. To have an Ada stall you must select 1 Ada 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an Ada stall & standard stall, you must select 2 standard stalls and 1 Ada stall 24x60.

Scranton Color Chart

Scranton Bathroom Stall Instructions

Complete Plastic Laminate Free Standing Partitions, Plastic Laminate Overhead braced floor mounted stalls. Standard stalls 36"x 60"depth(24" door), ADA stall 60"x60" depth(36" door). All hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. Plastic laminate Partitions ship in 2 business days.  Color Chart

Norton Unitrol Non Hold Open Arm

Used on the Norton 1600, 8000 and 7500 door closers. Parallel Arm mounting only.

Norton # Door Size
6100-11 28-32"
6100-13 33-41"
6100-14 42-48"

Outswing Keeper Bumper, 1-1/4" Round Edge

Polished chrome plate Zamac die casting construction. Strike and Keeper measures 1-1/4" high by 2-3/8" wide by 1-3/4" deep. Stop is 1/2" thick and projects out 1-1/8". The latching slot is 7/16" deep x 3/4" high. This Bathroom Toilet Door Keeper is designed for use on 1-1/4" thick round edge posts or pilasters. Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5570.

Shipped with mounting screws.
