12" Kickdown Door Holder / Stop Grand Standard

No roll pin at pivot point
Mallable with a pair of pliers
Rubber shoe held on by a screw
American Made
Zinc plated steel

Another feature is their well constructed shoe can be adjusted down as the rubber wears making the holder last way longer than their competitors. Another use for them is as a door floor lock if mounted on the other side of the door. Once kicked down there's no entry possible unless you slide a flat item under the door to lift the door holder leg out of the way and push the door open. It can be opened from the inside as normal with your foot or hand. A very inexpensive security lock.

Made by Grand Specialties 612z

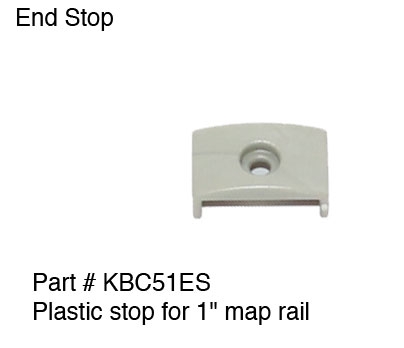

Claridge End Stop 1" for map rail. Plastic Construction.

Partition Keeper Flat Stop 1-1/2" Between Screws Cast Stainless Steel

Cast stainless steel construction. The strike and keeper measure 2-1/2" tall by 2-9/16" deep and is 1/8" thick. The stop projects out 3/4" and has a rubber insert. The mounting holes are 1-1/2" on center. Slots are 1/4" deep by 13/16" high. Also known as a Bathroom Stall Strike and Keeper - Inswing Flat. Flat backed for wall mounting. Manufacture part # 5283.

Shipped with mounting screws.

Product Description & Features
• Total Projection: 4-1/8" (105mm)
• Mounting Requirements:
1-1/2" (38mm) deep adapter housing
• UL listed door holder

The 591 manual flush bolt is for wood doors and is UL listed. It is constructed of solid brass. The face plate is 1 x 6-3/4 inches. The mortised body is 6 inches high by 1-3/8 deep by 1 inch thick. The screw spacing is 1/2 by 6-1/4 inches on centers.

Chrome Plated Toilet Partition Keeper Bumper Flat Stop 1-1/2" Between Screws

Polished chrome plated Zamac construction. The strike and keeper measure 2-1/2" high by 1-13/16" deep by 1/8" thick. The stop has a 3/4" projection and is 9/16' deep with a rubber insert. The mounting holes are 1-1/2" on center. The slot is for the concealed latch is 7/8" high by 7/16" deep. Also known as a Bathroom Stall Strike and Keeper Inswing/Outswing Flat. Manufacture part # 5240

Shipped with mounting screws.

The Falcon Dor-o-Matic 3049DS Dead Stop Hold Open Arm is used on their SC60, SC70 and SC80 Door closers only. This arm is non-hnaded, stamped, heavy duty, hold-opn parallel arm includes a positive mechanical stop and non-adjustable forearm assembly for high volume traffic and harsh conditions.

Select Color and Function (SC60, SC70 or SC80 Door Closer Model #)

International Door Closer 300 Series Adjustable Power

UL Listed, Barrier Free Operation to Comply with Federal Accessibility Standards (ADA) ANSI A117.1.   Spring Power adjustable for a range of sizes from 8-1/2 lbs t Medium Spring Tension, fully adjustable after installation.

Hydraulic Cylinder only

3000-B-310 105 with Hold Open
3000-B-311 105 with No Hold Open
3000-B-312 90 with Hold Open
3000-B-313 90 with No Hold Open

The Ives Universal Dome Floor Stop FS439 is constructed of cast zinc or stainless steel, depending on the finish.   The stop measures 1-1/2" high, with a base height of 1/4" and base diameter of 1-7/8".   The pad has a height of 1-1/8" from the floor.

Ives Part Number FS439

Floor Mounted Door Holder Heavy Duty 541

3" Diameter
3" Height
Includes the 4-1/2" lag bolt & lag shield.

Marsh 1" Combo. Hook/Clip for 1" map rail. Made of extruded aluminum. Use for displaying maps and visual aids in the classroom.

The Global Door Closer TC200 is recommended for use on all aluminum store front doors, wood or hollow metal commercial applications. It is a versatile utility closer that provides narrow styling and has a full selection of accessories to accomodate the requirement of any field installation.

In this series, our Global Door Closer TC201 is a multi-size spring model that offers adjustable power with a choice of range sizes 2-5 where high rates of closing force are required. Our TC201ADA model also offers adjustable spring power sizes 1-4 for use on interior doors requireing less than 5 lbs. of opening force and exterior doors requiring less than 8.5 lbs. This complies with ADA handicap codes and ANSI/BHMA standard requirements. Both models will retrofit most full size closers with a 9 1/16" industry standard hole patten to update any opening for code compliance.
Hole Spacing is 3/4" x 9-1/16"

Options: Specify when ordering:

• Finish - AL, DU
• Size 1-4 or 3-6

Ives Wall Mounted Door WS11X

• Constructed in heavy duty cast brass.
• Hexagon section on unit aids in fastening unit when expansion shield is used.
• Replaceable rubber bumpers features off-set shoulder and threaded shank
  that screws into body of unit.

Furnished with a threaded stud and expansion shield for
masonry type mounting. 2" diameter base by 3-3/4" projection.

Norton 7700/7705PT Hook-Up Boxes come in two voltages, 24 and 120, and two configurations Hinge Side and Stop Side. Hinge Side means the track is on the side of the door that you can see the Hinges, also know as the pull side.   Stop Side means the track is on the push side of the door.

Sargent 281 Powerglide Door Closer

ANSI/BHMA Grade 1 (A156.4)
• Meets Buy American Act
• Ten Year Warranty
• Versatile mounting applications permit
standard, top jamb, parallel and track
installations
• UL and cUL listed for use on fire doors
• Adjustable spring power allows 281
closers a size range of 1 through 6. They
are adjusted to Size 3 before leaving the
factory
• One door closer body for all applications,
non-handed

Replaces the older Sargent 1250 and 1251 door closers, mounting holes will match

Product Description & Features
• Total Projection: 1-13/16" (46mm)
• Mounting Requirements:
2" x 4" x 2-1/2" (51 x 102 x 64mm) outlet box
• Wall must be properly reinforced and outlet box
adequately fastened
• UL listed door holder

The Global Door Closer TC4361 is recommended for use on heavy duty commercial, architectrual and institutional applications. It is ideal for business, new construction and renovations. It has a full selection of accessories to accomodate the requirements of any field installation. It is tri-packed standard and comes with all fasteners, brackets and soffit plates for versatility. Closers with non-hold open arms are UL listed for "A" label fire doors. Fully compliant with opening force requirements for ADA and ANSI/BHMA standards.

Options: Specify when Ordering

• Finish - AL, DU

The hole spacing is 1" by 7-1/2"

The Ives Decorative Floor Stop FS410 is constructed of cast brass.   It measures 1-1/2" high with a 1-1/4" diameter.  Manufacture part FS410 x Finish.

Metal Door Flush Bolt FB458

The Ives FB458 is a UL Listed Flush Bolt for use on Fire Doors. The face plate measures 1" wide by 6-3/4" long with a depth of 1-1/8". Hole spacing is 1/2 inch by 6-1/4 inches on centers. The bolt has a 3/4" throw and is 1/2" diameter. This Flush Bolt is available in Polished Brass, Oil Rubbed Bronze (dark brown) and Brushed Chrome. We try to stock the 12" rods, which are standard, but we can also get 18", 24", 36" and 48"

Ives Part # FB458

Plunger Type Holder / Stop FS1153

This plunger type door holder manufactured by H.B. Ives features a contemporary yet economical method of positive Hold-Open.  It is constructed in sturdy cast aluminum for years of service.  The spring operated plunger activates with minimal pressure, releasing instantly with a light tap on the plat-form lever.  The plunger offers a 1-5/8" throw for all types of doors.  The ribbed non-marring rubber shoe is securely fastened to unit with a screw and is easily replaced when worn.

Aluminum finish only

Ives Part # FS1153

Global partitions door kit for plastic laminate material. The hinges and door stop are for 1" thick material only. We offer in a chrome finish or a stainless steel version. You will need to choose in or out swing and which finish you would like. These manufacturers numbers below. Used with Global and Accurate partitions.
See link for Instructions ***Plastic laminate hinge instructions

Chrome inswing 8512013
Chrome outswing 8512014

Stainless Steel Inswing 8262013
Stainless Steel outswing 8262014

All PR80 Closers are UL listed and warranted for ten years. Parallel Arm Brackets and mounting hardware are included with each closer permitting universal installation for regular, top jamb or parallel arm applications. The closer is supplied with a standard plastic slim style cover.

The closer is sized for 2 to 5 spring tension and will work on doors 24" to 54" Wide and 33 to 264 Lbs. This closer has a hole spacing of 3/4 x 9-1/16 inches.

Plunger Type Holder / Stop DH6000

Zinc Alloy Construction
Non-Marking Rubber Tip
7" Body Height
1.142" throw
Mounting Screws Included
Made by International Door Closer

Doromatic SC70 Door Closer - Same Hole Spacing as the Norton 7500 and Yale 4400
2-3/8" x 6-3/4" hole spacing

ANSI/BHMA A156.4, Grade 1
■ UL Listed
■ ADA compliant
■ 1-1/2” diameter piston
■ Hinge side, top jamb and parallel arm configuration standard with SC71 Rw/PA
■ Adjustable size 1-6
■ Single piece cast aluminum body
■ Staked valves
■ Separate adjustable general speed, latch speed, backcheck and backcheck position
■ Non-handed for left and right swinging doors
■ 10 year warranty

We ship the SC71 Rw/PA

International 8630S Surface Vertical Rod Device-Grade 1

DC 8000 Series Exit Devices are heavy duty and designed for heavy traffic applications. The devices are Underwriters Laboratory (UL, USA and ULC, Canada) listed for Panic Exit Hardware or Fire Exit Hardware, and are certified to ANSI A156.3-2001 Grade 1.

Non handed, 4-1/2" minimum stile width. Smooth Surface.

For doors 29" to 36" wide order the Size 30 to 36"
For doors 36" to 48" wide order the Size 48"

Von Duprin 22 Exit Device Only

Von Duprin 22 rim exit device for all types of single and double doors with mullion, UL listed for Panic Exit Hardware. Devices are ANSI A156.3, 2001, Grade 1. Covers stock hollow metal doors with 161* cutouts. Fits door stiles as narrow as 3 13/16"

Ships with all mounting screws and the 299 strike.

Right hand shown in picture.
Height: 1-5/8"
Width: 7/16"

4" Kickdown Door Holder / Stop Grand Standard

No roll pin at pivot point
Mallable with a pair of pliers
Rubber shoe held on by a screw
American Made

Made by Grand Specialties

Zinc plated steel or Brass plated

Another feature is their well constructed shoe can be adjusted down as the rubber wears making the holder last way longer than their competitors. Another use for them is as a door floor lock if mounted on the other side of the door. Once kicked down there's no entry possible unless you slide a flat item under the door to lift the door holder leg out of the way and push the door open. It can be opened from the inside as normal with your foot or hand. A very inexpensive security lock.

Marsh Mar-Kleen Cleaner.

one (1) 8 oz bottle

C-Fold, Multi-Fold Paper Towel Dispenser
22 gauge Type 304 Stainless Steel
Heavy duty door and piano hinge
Tumble lock on doors and waste receptacle
600 C-fold or 800 Multi-fold towel capacity
13"w x 26"h x 4"d

C-Fold, Multi-Fold Paper Towel Dispenser
22 gauge Type 304 Stainless Steel
Heavy duty door and piano hinge
Tumble lock on doors and waste receptacle
600 C-fold or 800 Multi-fold towel capacity
13"w x 26"h x 4"d

Standard 4110 series closer shipped with HOLD OPEN CUSH N STOP arm, standard plastic cover, 4110-201 FIFTH SCREW SPACER and self reaming and tapping screws. Sized cylinders adjustable for interior doors to 5’0” and exterior doors to 4’0”. Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”. Closer mounts parallel arm, specify right or left swinging door. 4111 cylinder meets ADA requirements. The cush hold open arm allows for a stop and hold open positions up to 110 degrees. "T" handle on arm will release door for closing, locking pin can be retracted for normal door closing operation.

We ship the 4111 HCUSH

Product Description & Features
• Total Projection: 2-5/8" (67mm)
• Mounting Requirements:
2" x 4" x 1-3/4" (51 x 102 x 45mm)
outlet box
• Wall must be properly reinforced and
outlet box adequately fastened
• UL listed door holder

Product Description & Features
• Total Projection: 3-5/8" (92mm)
• Mounting Requirements:
2" x 4" x 1-3/4" (51 x 102 x 45mm)
outlet box
• Wall must be properly reinforced and
outlet box adequately fastened
• UL listed door holder
