Yale 2300 Door Closer

• Spring size 2, 3, 4, 5
• Separate and independent valve for sweep speed and latch speed
• Adjustable backcheck standard
• Regular, top jamb, parallel mount
• 5-year limited warranty
• ANSI/BHMA A156.4 Grade 3

3/4" x 9-1/16" hole spacing

In April of 2023 Norton Yale have discontinued the 2300 and 9300.  The Norton 1600 will be sent in place of the 2300.   Same Hole Spacing, but adjustable spring tension.

Norton Door Closer Covers

Replacement Norton Door Closer Covers, made of impact resistance plastic.  Covers are available for the 1600, 7500, 8300, and 8500 Series Door Closers.

Standard new 4030 series closer is shipped with forged regular arm, metal cover and wood/self-tapping machine screw pack. Non-sized (1-4) 4031 cylinder for exterior doors to 36” (914 mm) and interior doors to 48” (1219 mm). Closer mounts hinge side, top jamb, and parallel arm, on either right or left
swinging doors. Closer meets ADA requirements.

Surface Mounted Slide Bolt Latch 3/8" Bar To Door Clearance

Zamac die cast construction, polished chrome finish. Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/4" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 3/8" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5030.

Shipped with mounting screws.

Product Description & Features
• Total Projection: 1-13/16" (46mm)
• Mounting Requirements:
2" x 4" x 2-1/2" (51 x 102 x 64mm) outlet box
• Wall must be properly reinforced and outlet box
adequately fastened
• UL listed door holder

Norton New Style Replacement Door Closer Springs

This is the replacement door closer spring for the Norton 78, and Yale 1900 Door Closers. Spring measures 2-11/16" diameter by 2" tall. This spring is identifiable by the number stamped on the band that holds the spring together. The band will be stamped either B/D 2/4, or E/F 5/6.

Norton 78 B/D and Yale 1902-4 use spring 24BD
Norton 78 E/F and Yale 1904-6 use spring 56EF

Norton Part # 24BD
Norton Part # 24EF

LCN Door Closer 4040SE Track Assembly 4040SE-3038

Complete replacement LCN Sentronic Track.
Replaces all Sentronic tracks for the 3130SE, 4010SE, 4110SE and 4040SE Closers.
Track includes the roller, 4040SE-3034 and new mounting screws. The replacement track measures 21-3/4" on center for the mounting screws, which may be different then the 3130SE, 4010SE, 4110SE and older 4040SE Tracks.
Specify voltage, and color when ordering.

LCN Part # 4040SE-3038

LCN Door Closer Regular Arm

Specify your current closers model number when ordering. Not all
of the LCN closers have the same shape spindle on the door closer
cylinder. The LCN Part #'s on this Regular Arm is: 1260-3077, 1460-3077, 4010-3077, 4020-3077, 4040-3077

LCN SEM7850-828 Armature for Magnetic Door Holder

LCN 4110 Fusible Link Door Closer

Standard 4110 series closer shipped with Fusible Link arm, standard plastic cover, 4110-201 FIFTH SCREW SPACER and self reaming and tapping screws. Sized cylinders adjustable for interior doors to 5’0” and exterior doors to 4’0”. Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”. Closer mounts parallel arm, specify right or left swinging door. 4111 cylinder meets ADA requirements.

We ship the 4111 FL

International Door Closer 853 Series
FEATURES

Two Adjustment Valves: Closing and Latching speeds controlled by separate regulating Valves,

Universal application Non-handed for standard top jamb or parallel arm installation. Ships with regular arm and parallel arm bracket.

Direct replacement for the older style Norton 1602 and 1603, and Yale 52 and 53

3/4" x 8-3/16" mounting holes

Partition Strike And Keeper For 3/4" Door, 1-7/8" Between Screws Stamped Stainless Steel

Stamped stainless steel .075" thick construction. The strike and keeper measure 2-7/8" high by 2" wide with a 1-7/8" hole spacing. The stop posts are 5/8" wide by 7/8" tall with rubber inserts. For use with 3/4" square edge posts. Also known as a Bathroom Stall Strike and Keeper Outswing 3/4". Manufacture part # 6379.

Shipped with mounting screws.

LCN 4810 Door Closer Pneumatically Operated

LCN 4820 Door Closer Pneumatically Operated

Partition Ada Door Handle 3-3/8" Projection X 5-1/2" Wide Cast Stainless Steel

Cast stainless steel construction. This handle a ADA compliant. The handle base is 2" diameter with 3 mounting holes on each base. The handle is made of 3/8" daimeter material. The under clearance for the handle is 3". Also known as a Bathroom Stall Door Pull. Manufacture part # 6253.

Standard 3030 series closer shipped with regular arm and wood and
machine screw pack. Sized cylinders for interior doors to 4’0”.
Handed for right or left swinging doors.
Closers to meet ADA requirements.

We ship the 3031 REG

Doromatic SC70 Door Closer - Same Hole Spacing as the Norton 7500 and Yale 4400
2-3/8" x 6-3/4" hole spacing

ANSI/BHMA A156.4, Grade 1
■ UL Listed
■ ADA compliant
■ 1-1/2” diameter piston
■ Hinge side, top jamb and parallel arm configuration standard with SC71 Rw/PA
■ Adjustable size 1-6
■ Single piece cast aluminum body
■ Staked valves
■ Separate adjustable general speed, latch speed, backcheck and backcheck position
■ Non-handed for left and right swinging doors
■ 10 year warranty

We ship the SC71 Rw/PA

International Door Closer 520 Main Arm

International Door Closer part # 520

Norton CloserPlus Hold Open Arm

This heavy duty Parellel Arm can be used with the Norton 1600, 9300, 8000 and 7500 door closers. The knob on the main are locks and unlocks the arm to hold your door open.

Aluminum is in stock, Dark Bronze is 2-3 week lead time.
Norton Part # 6870T-8

Norton / Yale Door Closer Regular Arm

Replacement arm works with the Norton Doors 9300, 1600, 7500, and 8000 series closers. And the Yale 2300, 50, 3000 and 4400 Door Closers

Norton Part # 1620-1 or 7701-1 and Yale 400-1

Toilet partition door hinge side sightline filler for 1-1/4" thick powder coated steel pilaster post. This product has a slight round edge specifically for this material. The demensions are 1-1/4"x 54-1/2", this product is brushed aluminum and can be cut in the field. This product will help block the gap on the toilet partition hinge side. Known as 560458 from Hadrian partitions and can be used with other factories.

Global partitions vault door kit for Phenolic material. Comes in a brushed steel finish and are for 3/4" thick material only. You will need to choose in or out swing when ordering. Can be used as right or left handed. See manufacturers numbers listed below. Used with Global and Accurate partitions.

Inswing Door Kit: 40-8571005

Outswing door Kit: 40-8571006

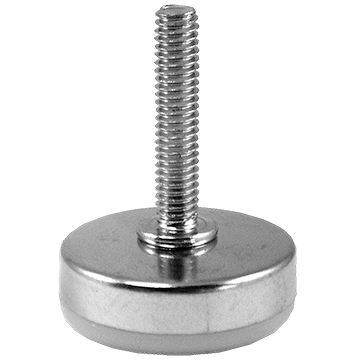

Heavy Duty Non-Swivel Leveler with nylon base table glide.   Has a thread of 1/4-20, base diameter of 1 5/8" and a stem length of 1 1/2". This heavy duty glide screws into a threaded hole in the leg or table to selected height. Use with a Tnut to install on a wooden leg.

Felt Based Glide Cap Protective Chair Tip

This Glide Cap has a felt based bottom to prevent your chairs from scratching your floors, while at the same time extending the life of your current glides. This cap will fit on all of our Metal and Nylon Based Swivel Glides.

This Glide Cap is designed for use with our SGR Glides, or Swivel Glides Round 1-1/4" bases.

International Door Closer 8052 Delayed Action

Same closer as the 8050 Series or 8051P, but with Delayed Action. Delayed Action is a function of the Door Closer hydrualic cylinder. The hydrualic cylinder will hold the door open for up to 30 seconds to allow physically challenged individuals time to get through the door way. Adjustable spring power with separate valves for closing, latching and delay

International Door Closer model # 8052-P DU or 8052-P AL

International Door Closer CI44 Series

1. Recommended for High Traffic doors
2. Rugged Cast Iron Body with forged steel arm
3. Double heat treated steel pinion
4. All weather fluid
5. Non-handed
6. Non-sized adjustable 1-6; standard with Backcheck

Direct replacement for the LCN 4040

The concealed 2030 Series Pacer® is a heavy duty closer designed to fit in a narrow, minimum 1 3/4” aluminum transom. The single lever arm and roller assembly provide smooth, quiet door control and the choice of finishes and track functions meet virtually all architectural requirements.

Specifications

• Standard 2030 series closer shipped with standard arm, standard track, mounting/finish plate, and wood and machine screw pack
• Sized cylinders for interior doors to 4’6” and exterior doors to 3’6”
• Handed for right or left swinging doors
• Aluminum frame requires minimum 1 3/4” (44 mm) x 4” (102 mm) tube
• Closers to meet ADA requirements
• Standard or optional custom powder coat finish
• Optional plated finish on arm, fasteners and finish plate

Surface Mounted Partition Slide Bolt Latch Chrome Plated 3/8" Bar To Door Clearance

Zamac die cast construction, polished chrome finish. Latch base is 4-1/2" high with 3-1/2" hole spacing. Latch bolt is 3-3/32" long by 1" wide by 3/16" thick. The latch bolt clearance is 5/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5060.

Shipped with mounting screws.

LCN Door Closer 1450 Rw/PA

This new LCN Door Closer is a direct replacement for the Norton 8000 and Yale 3000 Series Door Closers.  It features, a cast aluminum cylinder, 3/4” x 12” hole spacing, 25 year warranty, powder coated finishes, and stick on mounting template.  This door closer comes with the ability to mount on the push, pull or top jamb and is non handed.   The door closer meets Grade 1-ANSI A156.4, UL/cUL, ADA and the Buy American Act certifications.

Metal Door Flush Bolt FB458

The Ives FB458 is a UL Listed Flush Bolt for use on Fire Doors. The face plate measures 1" wide by 6-3/4" long with a depth of 1-1/8". Hole spacing is 1/2 inch by 6-1/4 inches on centers. The bolt has a 3/4" throw and is 1/2" diameter. This Flush Bolt is available in Polished Brass, Oil Rubbed Bronze (dark brown) and Brushed Chrome. We try to stock the 12" rods, which are standard, but we can also get 18", 24", 36" and 48"

Ives Part # FB458

Partition Strike/Keeper For 3/4" Door Inswing 1-7/8" Between Screw Stamped Stainless Steel

Stamped stainless steel .075" thickness construction. The strike and keeper measures 2-7/8" tall by 2" wide by 1-15/16" deep with a 1-7/8" hole spacing. The stop is 7/16" thick with a rubber insert. Also known as a Bathroom Stall Strike and Keeper Inswing 3/4". Manufacture part # 6469.

Shipped with mounting screws.

Handicap Door Pull 19

With this handle you are able to get a closed fist behind the pull, which makes it a great ADA Door Pull. Shipped with screws. Also known as a Handicap Grip, ADA Door Pull or Handle.

Finishes

Handicap Door Pull 119

With this handle you are able to get a closed fist behind the pull, which makes it a great ADA Door Pull. Shipped with screws and finish washers. Also known as a Handicap Grip, ADA Door Pull or Handle.

Finishes

Standard LCN 1460 series closer shipped with regular arm, a slim line plastic
cover, and self reaming and tapping screws. Non-sized (1-6) cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0”. Closer mounts hinge side, top jamb and parallel arm on either right or left
swinging doors.

We ship the 1461 Rw/PA

Door Pull 24

This door handle features a 6" center to center screw spacing. It ships with thru bolts and finish washers. Also known as a Door Handle or Door Grip.

1" diameter material
6" centers
8" overall
3/4" base diameter
2" projection

Finishes
