LCN SEM7850 Magnetic Door Holder

Doromatic Door Closer Hold Open Arm Only

Doromatic Door Closer Hold Open Arm. Includes everything is the image. Can be used to convert you regular non hold arm to a Hold Open Door Closer. Arm holds the door open when door is rotated open. The hold open postion is adjustable. This is the hold open arm for the SC61 Hw/PA, SC71 Hw/PA, and the SC81 Hw/PA.

Doromatic Part numbers:
SC60 - SC60-3049/PA , SC70 - SC70-3049/PA , SC80 - SC80-3049/PA

Function is the Door Closer Model

The Hands-Free/Foot Door Pull BM46 can be used as a ADA compliant hands-free door pull when mounted 42" above the finished floor. Or as foot pull when mounted at the bottom of the door. The Pull is 4" x 5" and is made of .090 thick stainless steel. Ships with sex bolts and screws for 1-3/4" door. Available in Brushed Stainless Steel, Flat Black Powder Coat and Dark Bronze Powder Coat.

10" Kickdown Door Holder / Stop Grand Standard

No roll pin at pivot point
Mallable with a pair of pliers
Rubber shoe held on by a screw
American Made
Zinc plated steel

made by Grand Specialties 610z

Another feature is their well constructed shoe can be adjusted down as the rubber wears making the holder last way longer than their competitors. Another use for them is as a door floor lock if mounted on the other side of the door. Once kicked down there's no entry possible unless you slide a flat item under the door to lift the door holder leg out of the way and push the door open. It can be opened from the inside as normal with your foot or hand. A very inexpensive security lock.

LCN SEM7820 Magnetic Door Holder

Norton 7500 Apollo Door Closer

• Rack-and-pinion design
• Cast aluminum body
• 2-1/8" (54mm) projection
• Staked valves
• Standard, separate and independent, latch, sweep and backcheck intensity valves
• Backcheck positioning valve
• NorGlide® fluid
• Molded plastic cover
• All standard arm applications allow doors to swing 180°, conditions permitting
• Self-drilling screws
• Full-size template
• 10-year limited warranty

We ship Norton 7501 which will work as a replacement for the 7501BF. This closer now meets ADA Handicap codes for Barrier Free Access.

Door Pull 22

This door pull features an opened end and a closed end pull. This Door Pull is also known as a Door Handle or Door Grip. The handle ships with thru bolts and finish washers. The dimensions are shown below.

3/8" x 1-1/4" handle cross section
8" centers
14" overall length
1" diameter base
1-7/8" projection

Finishes

Door Pull 15

This door handle features 7-1/2" centers on the mounting screws. With 2" diameter bases. The Grip has a 2-1/4" projection with a 1-5/8" clearance. Also known as a Door Handle or Door Grip. This handle ships with thru bolts and finish washers.

Finishes

Ordering Online All Powder Coated Metal Stall Integrated Privacy Doors are Manufactured by Global Partitions. All toilet partition door's ship in 48-72 hours plus 2-4 days travel. Note 24",26",34" & 36 doors are quick ship, 20", 22", 28", 30" & 32" ship out in 1 week. Standard Chrome Plated hardware included. Chrome Plated ***New style slide latch door kit included.

Color Chart

International Door Closer 3010-K Arm

International Door Closer 3010-K Arm, K type end loading top arm assembly (5/8" depth top rail). All screws included with package.

6" Kickdown Door Holder / Stop Grand Standard

No roll pin at pivot point
Mallable with a pair of pliers
Rubber shoe held on by a screw
American Made
Zinc plated steel or Brass plated

Made by Grand Specialties 606z and 606br
The 606BR is no longer manufactured

Another feature is their well constructed shoe can be adjusted down as the rubber wears making the holder last way longer than their competitors. Another use for them is as a door floor lock if mounted on the other side of the door. Once kicked down there's no entry possible unless you slide a flat item under the door to lift the door holder leg out of the way and push the door open. It can be opened from the inside as normal with your foot or hand. A very inexpensive security lock.

Norton Door Closer 9300

• Spring size 2, 3, 4, 5
• Separate and independent valve for sweep speed and latch speed
• Adjustable backcheck standard
• Regular, top jamb, parallel mount
• Friction hold open arm optional
• UL listed and compliant with UL10C for positive pressure
• 5-year limited warranty
• ANSI/BHMA A156.4 Grade 3

3/4" x 9-1/16" Hole Spacing

In April of 2023 Norton Yale have discontinued the 2300 and 9300.  The Norton 1600 will be sent in place of the 2300.   Same Hole Spacing, but adjustable spring tension.

The Global Door Closer TC200 is recommended for use on all aluminum store front doors, wood or hollow metal commercial applications. It is a versatile utility closer that provides narrow styling and has a full selection of accessories to accomodate the requirement of any field installation.

In this series, our Global Door Closer TC201 is a multi-size spring model that offers adjustable power with a choice of range sizes 2-5 where high rates of closing force are required. Our TC201ADA model also offers adjustable spring power sizes 1-4 for use on interior doors requireing less than 5 lbs. of opening force and exterior doors requiring less than 8.5 lbs. This complies with ADA handicap codes and ANSI/BHMA standard requirements. Both models will retrofit most full size closers with a 9 1/16" industry standard hole patten to update any opening for code compliance.
Hole Spacing is 3/4" x 9-1/16"

Options: Specify when ordering:

• Finish - AL, DU
• Size 1-4 or 3-6

Door Pull 46

12" overall
8" centers
1-1/2" x 1-1/2" base
2-3/8" projection

Finishes

Floor Mounted Door Stop FS18

Features:

• Security Door Stops designed for use in high vandalism areas.
• Molded from flame resistant, resilient material around a heavy-duty stud.
• Once grouted in concrete, leaves no exposed fasteners to be tampered with or removed.
• Ideal for jail or security cell areas where floor mounted stops are required.
• FS18L also ideal for concrete wall applications.
• Finish: Black, 2" Diameter

FS18S 1-1/2" Height
FS18L 3" Height

Toilet Partition Top Hinge Assembly For 7/8" Door To 1-1/4" Post Square Edge Cast Stainless Steel

Cast stainless steel hinge. Hinge mounts to 1-1/4" square edge post or pilaster, for use with 7/8" thick doors. Kit includes top hinges, pintle, pin and inserts. Also known as a Bathroom Stall Top Pivot Hinge Set. Manufacture part # 63023

Includes all screws.

Door Pull 47

7-3/4" overall
7" centers
3/4" x 1" base
2-3/8" projection

Finishes

LCN Sentronic Door Closer 4310ME

Standard LCN Sentronic Door Closer 4310ME series closer shipped with a 24V or 120V cylinder (please specify) on a mounting plate, metal cover, Swing-Free arm, track, track roller, and wood and machine screw pack. See 4310ME Series pages 23 & 24 for options. Sized cylinders for interior doors to 4’0”. Functions as full rack and pinion door closer when hold-open is not engaged or current is interrupted with Swing-Free arm engaged. Handed for right or left swinging door. Concealed or exposed electrical connections. Built-in “On/Off” switch controls hold-open function. Swing-Free arm allows door to be moved without door closer resistance. Interfaces with fire alarm systems. LCN Sentronic Door Closer 4310ME part are also available.

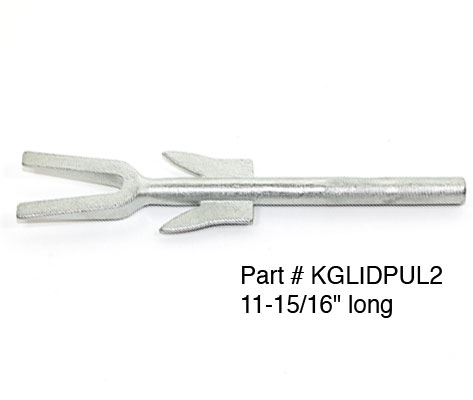

Swivel Glide Puller to speed the removal of old glides. This Glide remover provides a firm grip to remove your glides. Place the forked end on the glide and use a mallet to remove your old glide. Most commonly used to remove old school glides.

Global partitions vault door kit for Solid Plastic material. Comes in a brushed steel finish and are for 15/16" thick material only. You will need to choose in or out swing when ordering. Can be used as right or left handed. See manufacturers numbers listed below. Used with Global and Accurate partitions.

Inswing Door Kit: 40-8571007

Outswing door Kit: 40-8571008

Handicap Door Pull 18

With this handle you are able to get a closed fist behind the pull, which makes it a great ADA Door Pull. Shipped with screws. Also known as a Handicap Grip, ADA Door Pull or Handle.

Finishes

International Door Closer 883 Series
FEATURES

Three Adjustment Valves: Closing and Latching
speeds controlled by separate regulating Valves,
and back check

Universal application Non-handed for standard top
jamb or parallel arm installation.

Direct replacement for the older style Norton 1602 and 1603, and Yale 52 and 53

3/4" x 8-3/16" mounting holes

Sico Rubber Folding Table Glide for use on 3/8" outside diameter locking leg. Sico part number 177.

Standard 4110 series closer shipped with EXTRA DUTY HOLD OPEN arm, standard plastic cover, 4110-201 FIFTH SCREW SPACER and self reaming and tapping screws. Sized cylinders adjustable for interior doors to 5’0” and exterior doors to 4’0”. Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”. Closer mounts parallel arm, specify right or left swinging door. 4111 cylinder meets ADA requirements. The friction hold open arm allows for adjustable stop hold open positions up to 180 degrees.

We ship the 4111 HEDA

Norton / Yale Door Closer Arm Shoe Assembly

Replacement Shoe Assembly for Norton 1600, 9300, 7500 and 8000 series door closers. And Yale 50, 2300, 8000 and 4400 series.
Base measures 11/16" x 2-1/4" with 1-3/4" center to center screw hole mounting. Bracket projects out 15/16". The pin is 3/8" diameter.

Norton part # 7701AS or a Yale # 400-AS

Old Norton Part # 1620AS

The Berlin bleacher nylon glide P1501BE has an outside diameter of 3/4", a collar outside diameter of 1/2" and a inside diameter of 3/8", with a thickness of 3/8"

Standard 4020 series closer shipped with regular arm, standard plastic cover, and self reaming and tapping screws. Sized cylinders for interior doors to 5’0” and exterior doors to 4’0”. Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”. Closer mounts top jamb (push side), specify right or left swinging door. 4021 cylinder meets ADA requirements.

Door Pull 12

This handle has a 5-1/2" centers hole spacing and is 6" overall. It has 2" projection with 1-3/8" clearance and the base is 5/8" x 1-1/4". Also known as a Door Handle or Door Grip. Shipped with thru bolts and finish washers.

Finishes

LCN SEM7840 Magnetic Door Holder

Standard 4110 series closer shipped with EXTRA DUTY arm, standard plastic cover, 4110-201 FIFTH SCREW SPACER and self reaming and tapping screws. Sized cylinders adjustable for interior doors to 5’0” and exterior doors to 4’0”. Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”. Closer mounts parallel arm, specify right or left swinging door. 4111 cylinder meets ADA requirements.

We ship the 4111 EDA

Handing diagram

Partition Strike And Keeper For 1" Door, 1-7/8" Between Screws, Stamped Stainless Steel

Stamped stainless steel .075" thick construction. The strike and keeper measure 2-7/8" high by 2" wide with a 1-7/8" hole spacing. The stop posts are 5/8" wide by 7/8" tall with rubber inserts. For use with 1" square edge posts. Also known as a Bathroom Stall Strike and Keeper Outswing 1". Manufacture part # 6459.

Shipped with mounting screws.

Ives Floor Mounted Door Stop FS442

This Floor Mounted Door Stop used to go by the name Glynn Johnson GJFB19 or FB19. When Ingersoll Rand purchased H. B. Ives in the 1990's they brought it over under the Ives Floor Mounted Door Stop FS442. Features: Designed to blend well with all types of construction and provide a minimum of hindrance to cleaning efforts. Accommodates door undercut up to 2". Heavy-Duty cast brass or aluminum construction. Non-marring rubber bumper. This door stop has an overall height 2-7/8". Mounted shield and screws included.

Dorma 8916 Door Closer

we ship the Dorma Model # 8916-AF89P

2-1/8" x 5" hole spacing

LCN 4040XP Hold Open Door Closer

The same 4040XP Door Closer with the Hold Open Arm arm 4040XP-3049.

• Strongest Pinion Ever - At 3/4”, It’s The Super Hero Of Pinions
• Taller Bearings - 5/8”, Real Muscle Against Forced Openings And Closings
• An Overall 44% Increase In Maximum Load Capacity
• Tougher Teeth - Fight Wear And Tear
• V-Shield Seal With 20% Longer Life
• Better Wear Resistance From Sagging Doors And Warped Frames
• XP = eXtra Protection In Real-World Applications

We ship the 4041XP Hw/PA
