Metpar Partitions Bottom Door Insert For 7/8" Door

Chrome plated Zamac die cast construction. The door insert measures 2-5/16" wide by 1" wide by 1-3/16" high. The hex shaped hole is 5/8" and the round hole is 7/32" diameter. The material or rim is 5/16" high. Also known as a Bathroom Stall Door Insert Bottom 7/8". Manufacture part # 1530.

The Swivel Glide 5/8" Outside Diameter with Ferrule Outside Holding Clip is used on American Desk, Artco Bell, Carter Craft, Krueger, Peabody and Virco Chairs. Metal base glides are very popular in schools and institutions and move easily across smooth or carpeted floors.  Metal base glides are nickel plated and are extremely durable, but when they do wear out, they will scratch the floor.  The glide freely swivels beyond 30 degree angle. Glide grips leg with outside holding clip, meaning it grabs the out side of the leg, see more views for picture of outside holding clip.  This product will git all 5/8" outside diameter tubing.  The base has an 1-1/4".

Swivel Based Chair Glide for round tubing with measurements of 7/8" O.D. X 3/4" I.D. This chair glide does NOT feature a Ferrule, This glide has a clip that holds the glide on by going inside the chair leg. The Chair Glides Base diameter is 1 1/4".

Metal based Swivel Glide for round tubing. Measurements of the chair leg are  5/8" O.D. X 1/2" I.D. This glide comes with Ferrule. Used by Peabody and other manufacturers. Base of the glide is 1 1/4" metal.  Swivel glide, grips inside of leg, see "More View" for picture of clip.  Metal base glides are very popular in schools and institutions and move easily across smooth or carpeted floors.  Metal base glides are nickel plated and are extremely durable, but when they do wear out, they will scratch the floor.  The glide freely swivels beyond 30 degree angle. Glide grips leg with outside holding clip, meaning it grabs the outside of the leg, see more views for picture of outside holding clip.

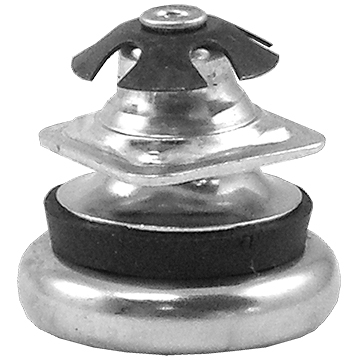

Swivel Glide for a Square tubing Leg  chair with a 1" O.D. X 7/8" I.D. 1 1/16" base diameter. This glide does not have a ferrule.

Adjustable Height Swivel Glide, Nickel Based for chair legs with a 5/8" outer diameter and a 1/2" inside diameter. The base of this glide is 1 1/4" in diameter. This glide helps level uneven chairs.

Norton 1600 Door Closer

• ANSI A156.4, Grade 1
• 10-year warranty
• Non-handed
• Rack-and-pinion design
• Cast aluminum body
• Standard, separate and independent, latch, sweep
  and backcheck intensity valves
• 2-7/8" (73mm) projection
• Tri-Packed- packed for regular arm, top jamb and
  parallel arm installations.

3/4" x 9-1/16" hole spacing

Older models may be stamped with Scoville or Eaton, which are the companies that used to own Norton.
We sometimes find 20-1624-4001, or 20-1604-4001 stamped on the back of the closer. If your door closer is stamped 20-1603-4001 or 20-1623-4001, you might want to double check the hole spacing. The 20-1603-4001 usually has a hole spacing of 3/4" x 8-3/16", you could use the International Door Closer 853 as a replacement.

We ship the 1601 Norton Door Closer, which is a non size (meaning you can adjust the spring tension), which will work in place of the 1603BC, 1604BC, 1605BC and 1606BC.

Square Leg Metal Swivel Glide with a 1-1/16" base diameter. This Chair Glide does not have ferrule. This swivel glide is for a square tubing chair leg with a 7/8" outer diameter and a 3/4" innner diameter.

Metal Swivel Glide for use with chair legs that have a  7/8" O.D. X 3/4" I.D. With Ferrule. The ferrule is 9/16" high and the base of the glide is 1 1/4" in diameter. Metal base glides are very popular in schools and institutions and move easily across smooth or carpeted floors.  Metal base glides are nickel plated and are extremely durable, but when they do wear out, they will scratch the floor.  The glide freely swivels beyond 30 degree angle. Glide grips leg with outside holding clip, meaning it grabs the outside of the leg, see more views for picture of outside holding clip.

Flush Metal Partitions Bottom Door Insert For 7/8" Door

Chrome plated Zamac die cast construction. The door insert measures 2-5/16" wide by 1" wide by 1-3/16" high. The hex shaped hole is 5/8" and the round hole is 7/32" diameter. The material or rim is 5/16" high. Also known as a Bathroom Stall Door Insert Bottom 7/8". Manufacture part # 1530.

Nylon Glide Caps-1-3/16". Fits over table and chair glides that have an outside diameter of 1-3/16".  Made of a natural white nylon, that will not color or scratch floors. Reduce noice from chairs moving and keep your floors from being scratched.

Norton 1600BF Barrier Free Door Closer

• ANSI A156.4, Grade 1
• 10-year warranty
• Non-handed
• Rack-and-pinion design
• Cast aluminum body
• Standard, separate and independent, latch, sweep
  and backcheck intensity valves
• 2-7/8" (73mm) projection
• Tri-Packed- packed for regular arm, top jamb and
  parallel arm installations.

3/4" x 9-1/16" hole spacing

Older models may be stamped with Scoville or Eaton, which are the companies that used to own Norton.
We sometimes find 20-1624-4001, or 20-1604-4001 stamped on the back of the closer. If your door closer is stamped 20-1603-4001 or 20-1623-4001, you might want to double check the hole spacing. The 20-1603-4001 usually has a hole spacing of 3/4" x 8-3/16", you could use the International Door Closer 853 as a replacement.

We ship the 1601 Norton Door Closer, which is a non size (meaning you can adjust the spring tension), which will work in place of the 1603BC, 1604BC, 1605BC and 1606BC.

Nylon based Metal Swivel Glide for a round chair leg with a 1-1/8" O.D. X 1" I.D. This glide does not have a ferrule. This glides base is 1 1/4" in diameter. Metal Furniture Feet for school and institution applications. Nylon base protects your floor as long as the bottom does not have grit and grime on it.

Partition Top Hinge Door Escutcheon For 7/8" Thick Door

Chrome plated Zamac die cast construction. The outside dimensions of the escutcheon are 1" deep by 1-5/8" high by 2-3/8" wide with two of the three holes with a diameter of 5/16" and one at 7/32". The inside dimensions of the U are 1" high by 2-1/16" wide. Also known as a Bathroom Stall Door Insert - Top 7/8". Manufacture part # 2740. Used on Metpar and AMPCO Toilet Partitions.

International Door Closer 9001 Series

1. ADA (Handicap) multi-sized closer with adjustable spring power
2. Adjustable spring power 1 through 6 (adjustable after installation)
3. Precision cast aluminum housing with forged steel arm
4. Stable hydraulic door check fluid for any climate operation. Using a fire resistant oil with an
operating range from -43.6°F (-42°C) to 140°F (60°C)
5. Standard sweep and latch speed
6. Standard adjustable backcheck or without backcheck
7. Two speed control valves allow closing and latching speeds to be controlled by separate
valves; fully adjustable after installation
8. Standard Tri-packed for regular arm, top jamb and parallel arm application
9. Numerous accessories are available to allow for special installations or adaptability
10. Finishes available in Aluminum (AL) and Duronodic (DU)

3/4" X 11-3/32" Hole Spacing

Detex EAX-300 Door Prop Alarm

The Detex EAX-300 Series is designed for applications where doors may be used for egress or ingress, but may not be held or propped open. Door open times from 1 second to 4 minutes (15 second default) are field selectable. The smaller size makes installation quick and easy.

Moritse Cylinder is not included
Powered by a 9 Volt Battery

Detex EAX-300 Installation Instructions

The 459 Flush Door Pull measures 3-3/8 x 4-3/4 x 1/8 inch.  The opening size is 1-3/4 by 3-1/2 inches.  The mortised pocket would need to be 3-3/4 by 2-13/16 and 11/16 deep. The flush pull ships with mounting screws in the matching finish.

Bathroom partition chrome plated inswing door kit for square edge doors and posts. For 7/8" doors and 1-1/4" post. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 17800.

Bathroom partition chrome plated outswing door kit for square edge doors and posts. For 7/8" doors and 1-1/4" post. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 27810.

Standard 4040 LCN series closer shipped with regular arm, standard plastic cover, and self reaming and tapping screws. Non-sized cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0”. Closer mounts hinge side, top jamb, and parallel arm w/PA Shoe on either right or left swinging doors. Closers to meet ADA requirements.

No longer made, the 4040XP will be shipped in its place.

Swivel Glide 5/8" O.D. X 1/2" I.D. W Ferrule-Nylon Base. Swivel glide, grips inside of leg, see "More View" for picture of clip. Used by Peabody and other manufacturers. These Metal furniture feet have a 1 1/4" in diameter base with nylon bottom. Metal base glides with nylon base are very popular in schools and institutions and move easily across smooth or carpeted floors.  Metal base glides are nickel plated and are extremely durable, but when they do wear out, they will scratch the floor.  These swivel base chair glides freely swivel beyond 30 degree angle. Glide grips leg with outside holding clip, meaning it grabs the outside of the leg, see more views for picture of outside holding clip.

Metal Swivel Glide for a chair with  1" O.D. X 7/8" I.D. leg. This Metal Glide also has a Ferrule on the top. Metal base swivel glides for round tubing, with 9/16" high ferrule. 1-1/4" base diameter on this glide. Metal base glides are very popular in schools and institutions and move easily across smooth or carpeted floors.  Metal base glides are nickel plated and are extremely durable, but when they do wear out, they will scratch the floor.  The glide freely swivels beyond 30 degree angle. Glide grips leg with outside holding clip, meaning it grabs the outside of the leg, see more views for picture of outside holding clip.

Dorma RTS88 Series overhead concealed door closer for both
single and double-acting doors. The RTS88 will consist of a steel
cam, rollers, and springs housed in a compact cast iron body.
Closers will be capable of being installed in minimum 1-3/4" x 4"
headers. RTS88 will have maximum door opening to 90º or 105º,
trim conditions permitting. Sweep and latch speed will be
controlled by two noncritical adjustment valves from 90º or 105º
to closed. Built-in pressure relief valve will protect the closer from
abuse caused by forced closing. A mechanical backcheck
combined with a positive stop at 90º or 105º will be provided to
protect the door and frame. The RTS88 closer will be available
with hold open at 90º or 105º, or without hold open. The product
shown here is just the replacement cylinder.

Metal Swivel Glide 1" O.D. X 7/8" I.D. W Ferrule-Nylon Base. Nylon based swivel glides are for round tubing chair legs. This swivel base chair glide is for chairs with an outside diameter of 1", inside diameter of 7/8" and the base of this chair glide is 1 1/4". Metal base glides are very popular in schools and institutions and move easily across smooth or carpeted floors.  Metal base glides are nickel plated and are extremely durable, but when they do wear out, they will scratch the floor.  The glide freely swivels beyond 30 degree angle. Glide grips leg with outside holding clip, meaning it grabs the out side of the leg, see more views for picture of outside holding clip.

Metal Swivel Chair Glide for a chair leg with a  3/4" O.D. X 5/8" I.D. This Swivel base chair glide features a Ferrule and Nylon Base. The base of this chair glide is 1 1/4" in diameter. Metal base glides are very popular in schools and institutions and move easily across smooth or carpeted floors.  Metal base glides are nickel plated and are extremely durable, but when they do wear out, they will scratch the floor.  The glide freely swivels beyond 30 degree angle. Glide grips leg with outside holding clip, meaning it grabs the out side of the leg, see more views for picture of outside holding clip.

The Swivel Glide 5/8" O.D. with Ferrule Outside Holding Clip Nylon Base is used on American Desk, Artco Bell, Carter Craft, Krueger, Peabody and Virco Chairs. Nylon or Plastic Base Glides slide easily across floors as long as the floor is free of grit and grime.  When you do have grit or grime on the floor, it gets impregnated in the nylon and will scratch the floor.  The top freely swivels beyond 30 degree angle. Glide grips leg with outside holding clip, meaning it grabs and holds on to the outside of the leg, see more views for picture of outside holding clip.  This glide is designed for 5/8" outside diameter legs, and the base is 1-1/4" in diameter.

Sargent 1130 Door Closer

The Sargent 1130 door closer is a non handed universal door closer. It can be mounted on the left, right, push, pull or top jamb. The hole spacing on this door closer is 3/4" x 9-1/16". We ship the Sargent 1131-RU model.

Metal Swivel Glide 3/4" O.D. X 5/8" I.D. W Ferrule. This metal glide has a 1-1/4" base diameter. Metal base glides are very popular in schools and institutions and move easily across smooth or carpeted floors.  Metal base glides are nickel plated and are extremely durable, but when they do wear out, they will scratch the floor.  The glide freely swivels beyond 30 degree angle. Glide grips leg with outside holding clip, meaning it grabs the outside of the leg, see more views for picture of outside holding clip.

Restroom Door Kit Outswing 7/8" Door & 1-1/4" Post Cast stainless steel. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 27813.

Detex EAX-300W Weatherized Door Prop Alarm

The Detex EAX-300W Series is designed for applications where doors may be used for egress or ingress, but may not be held or propped open. Door open times from 1 second to 4 minutes (15 second default) are field selectable. The smaller size makes installation quick and easy.  The Weatherized version is designed for doors that open to the outdoors or environments.

Moritse Cylinder is not included
Powered by a 9 volt battery

Detex EAX-300 Installation Instructions

International Door Closer 855 Series-Discontinued.   If you order this door closer the 885 will be sent, it is the same door closer but also features back check.

FEATURES
Two Adjustment Valves: Closing and Latching speeds controlled by separate regulating Valves, Universal application Non-handed for standard top jamb or parallel arm installation.

Ships with regular arm and parallel arm bracket.

3/4" x 9-1/16" mounting holes

International Door Closer 5000 Series

1. ADA (Handicap) multi-sized closer with adjustable spring power
2. Adjustable spring power 8 1/2 lbs to Size 5; Adjustable after installation
3. Rack and pinion mechanism is contained in a high tensile precision cast aluminum housing
4. Finishes available in Aluminum (AL), Hardware Bronze - Storefront Bronze (DU)

Ships with regular arm and parallel arm bracket

Hole spacing 3/4" x 12"

Chair Glide for a square leg chair with tubing outer diameter 3/4" and inner diameter of 5/8". 1 1/16" Base diameter. This glide does not have a ferrule.

Metal Based Chair Swivel Glide with a chair leg measurement of 7/8" O.D. X 3/4" I.D. This glide features a Nylon Base. Nylon base swivel glides are for round tubing. Metal base glides are very popular in schools and institutions and move easily across smooth or carpeted floors.  Metal base glides are nickel plated and are extremely durable, but when they do wear out, they will scratch the floor.  The glide freely swivels beyond 30 degree angle. Glide grips leg with outside holding clip, meaning it grabs the outside of the leg, see more views for picture of outside holding clip. 1 1/4" base diameter.

Chrome plated Zamac die cast construction. The door insert measures 2-5/16" wide by 1" wide by 1-3/16" high. The hex shaped hole is 5/8" and the round hole is 7/32" diameter. The material or rim is 5/16" high. Also known as a Bathroom Stall Door Insert Bottom 7/8". Manufacture part # 1530.
