Search results for: 'glide 8 doors being door hager'

Hager 5200 Series Door Closer

Hager 5200 Series Grade 1 door closer is ideal for schools, hospitals, and other high abuse and high traffic environments. It is constructed of an aluminum alloy and provides smooth door control. The 5200 Series door closer is easy to install and maintain­­ keeping your building safe and secure.

The Hager 5200 Door Closer body has a hole spacing of 3/4" x 12"

Hager 5100 Series Door Closer

Hager 5100 Series Grade 1 door closer is constructed of cast iron, which makes it ideal for heavy duty, high use and abusive environments. Hager door closers are the only closers in the industry that are both BHMA certified and backed by a lifetime warranty.

The 5100 matches the hole spacing of the LCN 4040 or 4040XP

Hager 5300 Series Door Closer

Hager 5300 Series Grade 1 door closer is ideal for schools, hospitals, and other high abuse and high traffic environments. It is constructed of an aluminum alloy and provides smooth door control. The 5300 Series door closer is easy to install and maintain­­ keeping your building safe and secure.

The Hager 5300 Series Door Closer body has a hole spacing of 3/4" x 9-1/6".

Hager 5400 Series Door Closer

This Hager Door Closer is a Grade 2 closer.  The hole spacing is 3/4" x 9-1/16" center to center.  The closer comes with the ability to go left or right, push, pull or top jamb mounting.

We ship the 5400MLT04, aluminum is in stock, Dark Bronze has a 3 week lead time

Hager Parallel Arm Bracket

Hager Closer Std. Pa Bracket-52/53/54 Series

Hager Door Closer Standard Parallel Arm Bracket - 52/53/54 Series

Hager part # 5900

8" Kickdown Door Holder / Stops Grand Standard

No roll pin at pivot point
Mallable with a pair of pliers
Rubber shoe held on by a screw
American Made
Zinc plated steel

Made by Grand Specialties 608z

Another feature is their well constructed shoe can be adjusted down as the rubber wears making the holder last way longer than their competitors. Another use for them is as a door floor lock if mounted on the other side of the door. Once kicked down there's no entry possible unless you slide a flat item under the door to lift the door holder leg out of the way and push the door open. It can be opened from the inside as normal with your foot or hand. A very inexpensive security lock.

Door Pull 21

This handle has a cross section dimension of 1/2" x 1" and is made of half round (underside is round) stock. The handle projects out 2-1/8" with a clearance of 1-5/8". This handle is available in 6" and 8" center to center mounting holes, but can be made in different Center to Center dimensions. This product is also known as a Door Handle or Door Grip. The handle ships with thru bolts and matching finish washers.

Finishes

Global partitions 8" wrap door kit for Solid Plastic material. Comes in anodized aluminum finish and are for 1" thick material only. You will need to choose in or out swing when ordering. Can be used as right or left hand as hinges are field reversible. This is done by taking the 3 pieces apart and reconfiguring the opposite swing. See manufacturers numbers listed below. Used with Global and Accurate partitions.

Inswing Door Kit: 40-8441007

Outswing door Kit: 40-8441008

Door Pull 26 1" Diameter

This door handle is made of 1" round stock in either solid, aluminum, brass or stainless steel. It comes standard with thru bolts and finish washers, but can be special ordered if you would like the handle mounted back to back or surface mounted. Also known as a Door Handle or Door Grip.

1" diameter material
2-3/4" projection

Finishes

8" GDP810
10" GDP101
12" GDP121

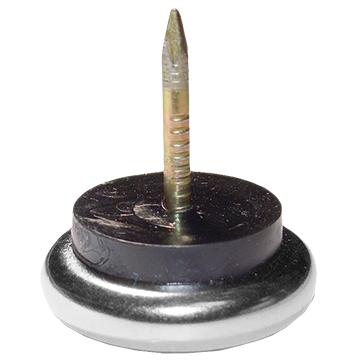

7/8" Nail On Glide-Nickel Base

Nail on furniture glide, 7/8" diameter metal base

Norton Door Closer Rod and Shoe

The Norton Rod and Shoe 7701-11 and 7701-11A come in two different lengths, 8-7/8" anc 12-1/2".  The length is measured from the end of the bar to the center of the eyelet.

Norton Part #'s:
8-7/8" Long  7701-11
12-1/2" Long 7701-11A

LCN Door Closer Rod And Shoe

This piece fits into the female part of all LCN Regular Arms. The old style had two concave set screws and a ball pressed into the rod. If the door over rotated the ball would pull out of the concave set screws. The new version has a pin holding the rod to the shoe which is designed to fail if the door is over rotated. This piece will work on the LCN 1260, 1460, 4010, 4020, 4030 and 4040 door closers with regular arms. Some of the really old models have multiple threaded holes, so you might have to drill a hole in the female tube. Part #'s 4040-79, 4040-79LR and 4040-79ELR. The 1260, 1460, 4010, or 4020 could replace the 4040 in those part numbers, they are the same.

Ives Dome Door Stop 1-3/8" FS438

Features:

• For doors with threshold or undercut doors.
• Heavy-Duty Cast Dome Stops constructed of brass, bronze or aluminum.
• Gray, non-marring rubber bumper.

Overall hgt 1-3/8"
Base Hgt 9/16"
Base Diameter 1-3/4" x 2" Oval

Krueger Swivel Glide for 5/8" Inside Diameter and 3/4" Outside Diameter Tubing

Plastic swivel glide for use on Krueger Chairs and Desks.

Door Pull Offset 3/4" Diameter 29

This door handle is made of 3/4" round stock in either solid, Aluminum, Brass or Stainless Steel. It comes standard with thru bolts and finish washers, but can be special ordered if you would like the handle mounted back to back or surface mounted. Also known as a Door Handle or Door Grip.

3/4" diameter material
2-1/2" projection
2-1/2" offset

Finishes

Non-Swivel Leveler Threaded Stem Glide with metal base. Thread is 3/8-16, Base Diameter is 1 1/4" and the stem length is 1 1/2". This glide screws into a 3/8" threaded leg hole to put a selected height. Use this product to stop wobbling on an uneven floor.

7/8" diameter Nylon based Nail On furniture glide. Protect hardwood, ceramic tile, linoleum & hard surfaces from mars & scratches by using this nail on glide.

Specify your current closers model number when ordering. Not all
of the LCN closers have the same shape spindle on the door closer
cylinder. Model Available here are the:

1260-3048
1260-3048L
1460-3048
1460-3048L
4010-3048
4010-3048L
4020-3048
4020-3048L
4040-3048
4040-3048L

The size is the tube length.

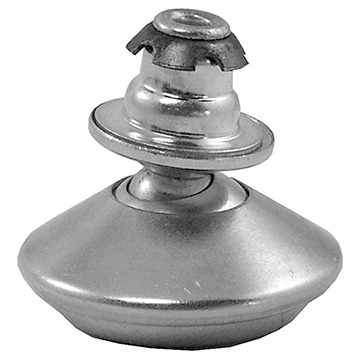

Metal Based Swivel Chair Glide for a round tubing chair leg with a  5/8" O.D. X 1/2" I.D. This glide has a clip that holds the glide on by going inside the chair leg. The Chair Glides Base diameter is 1 1/4".

LCN Door Closer Head and Tube

The LCN Door Closer Head and Tube comes in two versions.  One is 5-3/4" long and the other is 8-5/8".  The square hole is 5/8",   This part usually goes by the part number 4040-78H, 4040-78HL, 1260-78H, 1260-78HL, ect.,.

Metal Swivel Based Chair Glide with a round tubing leg measurements of  3/4" O.D. X 5/8" I.D. This chair glide does NOT feature a Ferrule, This glide has a clip that holds the glide on by going inside the chair leg. The Chair Glides Base diameter is 1 1/4".

Metal based glide that nails into wooden furniture, 1 1/8" diameter base glide. .

Door Pull 25 With 3/4" Diameter Handle

This door handle is made of 3/4" round stock in either solid, Aluminum, Brass or Stainless Steel. It comes standard with thru bolts and finish washers, but can be special ordered if you would like the handle mounted back to back or surface mounted. Also known as a Door Handle or Door Grip.

3/4" diameter
2-3/8" projection
1-5/8" clearance

Finishes

Leveler Glide with Metal Swivel Base. 1/4-20 thread metal base swivel glide. Stops the wobble of an uneven floor. 1 1/4" base diameter and 1 1/8" stem length. Can also be used with a t-nut to install in wooden legs. Use a spring clip to install in hollow legs.

Hadrain Partitions 8" wrap door kit for Solid Plastic material. Comes in anodized aluminum finish and are desgned for 1" thick material only. You will need to choose In or Out swing when ordering. Can be used as right or left hand as hinges are field reversible. To hand handing, this can be done by taking the 3 pieces apart and reconfiguring the opposite swing. See Hadrians part numbers/ known as numbers listed below. Also used with Comtec-Hiny Hiders-Scranton.

Inswing: 261005 and 261025

Outswing: 621006 and 261026

Standard 4110 series closer shipped with HOLD OPEN CUSH N STOP arm, standard plastic cover, 4110-201 FIFTH SCREW SPACER and self reaming and tapping screws. Sized cylinders adjustable for interior doors to 5’0” and exterior doors to 4’0”. Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”. Closer mounts parallel arm, specify right or left swinging door. 4111 cylinder meets ADA requirements. The cush hold open arm allows for a stop and hold open positions up to 110 degrees. "T" handle on arm will release door for closing, locking pin can be retracted for normal door closing operation.

We ship the 4111 HCUSH

Door Pull Offset 1" Diameter 39

This door handle is made of 1" round stock in either solid, alumunum, brass or stainless steel. It comes standard with thru bolts and finish washers, but can be special ordered if you would like the handle mounted back to back or surface mounted. Also known as a Offset Door Handle or Door Grip, and Storefront door handle.

1" diameter material
2-3/4" projection
2-3/4" offset

Finishes
