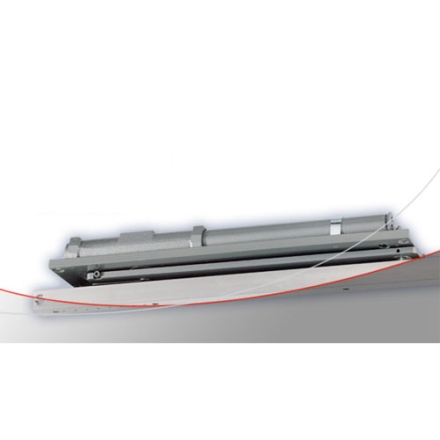

The concealed 2030 Series Pacer® is a heavy duty closer designed to fit in a narrow, minimum 1 3/4” aluminum transom. The single lever arm and roller assembly provide smooth, quiet door control and the choice of finishes and track functions meet virtually all architectural requirements.

Specifications

• Standard 2030 series closer shipped with standard arm, standard track, mounting/finish plate, and wood and machine screw pack
• Sized cylinders for interior doors to 4’6” and exterior doors to 3’6”
• Handed for right or left swinging doors
• Aluminum frame requires minimum 1 3/4” (44 mm) x 4” (102 mm) tube
• Closers to meet ADA requirements
• Standard or optional custom powder coat finish
• Optional plated finish on arm, fasteners and finish plate

Partition Ada Door Handle 3-3/8" Projection X 5-1/2" Wide Cast Stainless Steel

Cast stainless steel construction. This handle a ADA compliant. The handle base is 2" diameter with 3 mounting holes on each base. The handle is made of 3/8" daimeter material. The under clearance for the handle is 3". Also known as a Bathroom Stall Door Pull. Manufacture part # 6253.

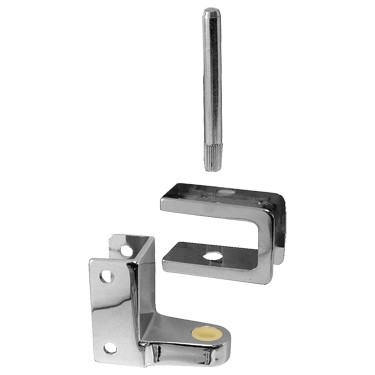

TH1112 Offset Pivots are used for both flush face frame installation and 1/8" recessed door applications. Pivots replace most major door manufactures. Suitable for aluminum doors weighing up to 125 pounds. These pivots are engineered and designed for durability, style and are easy to install. To order pivot: For LHRB door order RH pivot For RHRB door order LH pivot Specifications * 3/4" offset pivots for aluminum doors and frames * For flush door / frame and 1/8" recessed door applications * Weather resistant * Aluminum case construction * Vertical adjustment 1/8" * Full race ball bearing and design, provides smooth operation on bottom pivot door portion * No sag, entire weight of doors rests on floor mounted pivot portion * Completely temper proof, yet easily removable, replaceable in unlocked position * All pivots are handed- specify LH, RH * Finish: AL-Aluminum, DU-Duronotic

TH1100 Offset Pivots are used for both flush face frame installation and 1/8" recessed door applications. Pivots replace most major door manufactures. Suitable for aluminum doors weighing up to 125 pounds. These pivots are engineered and designed for durability, style and are easy to install. To order pivot: For LHRB door order RH pivot For RHRB door order LH pivot Specifications * 3/4" offset pivots for aluminum doors and frames * For flush door / frame and 1/8" recessed door applications * Weather resistant * Aluminum case construction * Vertical adjustment 1/8" * Full race ball bearing and design, provides smooth operation on bottom pivot door portion * No sag, entire weight of doors rests on floor mounted pivot portion * Completely temper proof, yet easily removable, replaceable in unlocked position * All pivots are handed- specify LH, RH * Finish: AL-Aluminum, DU-Duronotic

Handing diagram

TH1118-B Offset Pivots are used for both flush face frame installation and 1/8" recessed door applications. Pivots replace most major door manufactures. Suitable for aluminum doors weighing up to 125 pounds. These pivots are engineered and designed for durability, style and are easy to install. To order pivot: For LHRB door order RH pivot For RHRB door order LH pivot Specifications * 3/4" offset pivots for aluminum doors and frames * For flush door / frame and 1/8" recessed door applications * Weather resistant * Aluminum case construction * Vertical adjustment 1/8" * Full race ball bearing and design, provides smooth operation on bottom pivot door portion * No sag, entire weight of doors rests on floor mounted pivot portion * Completely temper proof, yet easily removable, replaceable in unlocked position * All pivots are handed- specify LH, RH * Finish: AL-Aluminum, DU-Duronotic

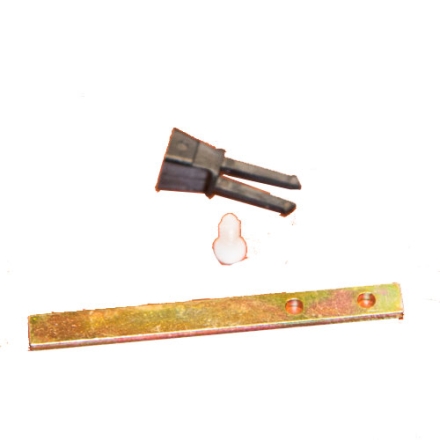

Von Duprin 230L Tailpiece Auxiliary Kit

The Von Duprin 230L Tailpiece Auxiliary Kit includes the Tailpiece, Tailpiece Guide, and the Pine Tree Clip.

Von Duprin Part # 900894

Corbin Russwin DC6210 Door Closer

Corbin Russwin’s history combines high-quality product and innovative design. That tradition continues with the new Grade 1 DC6000 Series door closer, designed and engineered with quality features such as captured valves and a complete range of new arms. The DC6000 series is the perfect closer for high-use openings or openings that must meet ADA requirements, such as schools, office buildings, health care facilities, and retail complexes. The series also meets UL and UL10C positive pressure requirements for fire openings.
Uses the same mounting bracket as the 100,110, 120 and 2800, 2810 and 2820 series and also the , DC220, DC2400, and DC2600

Older models may have SL72 or MS93 cast on the cylinders.
You may also find Clarksdale, MS cast on the cylinder also.

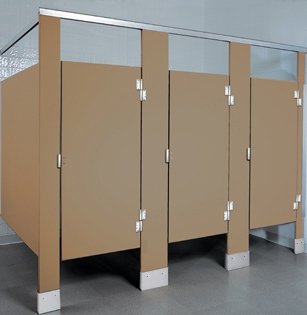

Complete HDPE Solid Plastic in a Corner Partitions, Solid Plastic (HDPE) Overhead braced floor mounted stalls. Standard stalls 36"x 60"depth(24" door), ADA stall 60"x60"depth(36" door). All hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60.
Color Chart

Complete HDPE Solid Plastic Between 2 Wall Partitions, Solid Plastic (HDPE) Overhead braced floor mounted stalls. Standard stalls 36"x 60"depth(24" door), ADA stall 60" x 60"depth(36" door). All hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60.
Color Chart

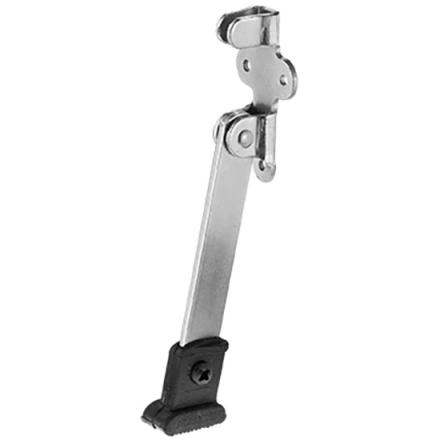

5" Kickdown Door Holder / Stop Grand Standard

No roll pin at pivot point
Mallable with a pair of pliers
Rubber shoe held on by a screw
American Made
Zinc plated steel or Brass plated

made by Grand Specialties 605z 605b

Another feature is their well constructed shoe can be adjusted down as the rubber wears making the holder last way longer than their competitors. Another use for them is as a door floor lock if mounted on the other side of the door. Once kicked down there's no entry possible unless you slide a flat item under the door to lift the door holder leg out of the way and push the door open. It can be opened from the inside as normal with your foot or hand. A very inexpensive security lock.

Corbin Russwin DC8210 Door Closer
Applications
High-quality products and innovative designs are the foundation for the long
history and reputation of Corbin Russwin Architectural Hardware. That tradition
continues with the Grade 1 DC8000 Series door closer, the perfect choice for
high-use openings and doors that must meet ADA requirements. A variety of
arms, finishes and quality features make the easy-to-install DC8000 ideal for
schools, office buildings, health care facilities and retail complexes.

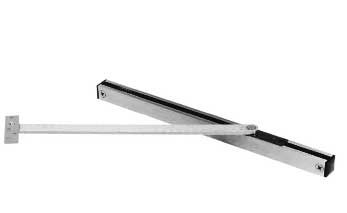

Rixson Checkmate Overhead Door Holder 9 Series

Product Description & Features
• Doors are single acting
• Non-handed
• Slide track design
• Recommended for high traffic, heavy
abuse installations
• Heavy shock absorber spring provides
5-7° compression before deadstop

Size is the Door Width

6" Kickdown Door Holder / Stop Grand Standard

No roll pin at pivot point
Mallable with a pair of pliers
Rubber shoe held on by a screw
American Made
Zinc plated steel or Brass plated

Made by Grand Specialties 606z and 606br
The 606BR is no longer manufactured

Another feature is their well constructed shoe can be adjusted down as the rubber wears making the holder last way longer than their competitors. Another use for them is as a door floor lock if mounted on the other side of the door. Once kicked down there's no entry possible unless you slide a flat item under the door to lift the door holder leg out of the way and push the door open. It can be opened from the inside as normal with your foot or hand. A very inexpensive security lock.

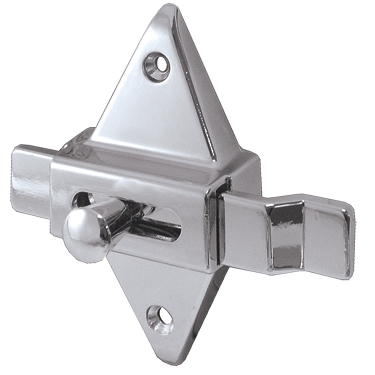

Surface Mounted Slide Bolt Latch 3/8" Bar To Door Clearance

Zamac die cast construction, polished chrome finish. Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/4" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 3/8" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5030.

Shipped with mounting screws.

Napkin Disposal w/o Shelf Stainless Steel Surface mount 16 gauge utility shelf. Overall Size 7 1/2" x 10" x 3 7/8".  Surface Mounted Sanitary Napkin Disposal shall have top cover door and cabinet of 22 gauge type 304 stainless steel alloy 18-8. All exposed surfaces shall be satin finish and be protected during shipment with PVC film easily removable after installation. Capacity shall be 1.2 gal (4.5L). Top cover is attached to cabinet with a full length 3/16" diameter (Ø4.8) stainless steel multi-staked piano hinge. Structural assembly of body and door components shall be of welded construction. American Specialties 0852 stainless steel napkin disposal unit.

ASI Porcelian Marker Whiteboard 9801 series are designed with businesses and schools in mind. Providing a super smooth writing surface that erase with ease, will not scratch, fade or stain as long as it is in use - guarenteed. All ASI porcelian boards will accept magnets. These boards are a great option when looking to replace existing cork and chalk boards. No removal is need for existing boards as this can be easily mount using L clips and hardware that come with the new board. Boards are available without Tray, with Angle Tray or with Flat Tray. ASI is a premiere provider for accessories for, schools, colleges, hospitals, and businesses looking to upgrade and improve their working environment.

Features

• Lifetime Warranty(on writing surfaces for the life of the building)
• Tray Options: Angle, Flat or Without
• Optimum erasability and easy to maintain
• High gloss white is Standard
• Can be written on with dry-erase markers
• Scratch, bacteria, chemical, and fire resistant—will not combust or release toxic fumes in the event of fire
• Colorfast wil not fade
• Safe and clean, releases no harmful chemicals into the environment
• Great color contrast
• Premium color finishes available
• Custom graphic boards available with music lines, graph coordinates and calander
• Available in Series 9100 Radius and Square, 9300, 9500 Elite Reveal and 9800

Available Sizes to ship out within 48 Business Hours

• 4'x4' (9800 Series): Without Tray, Angle Tray or Flat Tray
• 4'x6' (9800 Series): Without Tray, Angle Tray or Flat Tray
• 4'x8' (9800 Series): Without Tray, Angle Tray or Flat Tray

*** Important Notice: When ordering ASI Porcelian Marker Whiteboards with Tray, Boards and Trays will be in 2 Shipments. ***

DR-CT DIAGONAL RIB CARPET TILES
An attractive and functional entrance matting alternative; heavy duty modular carpet tile with excellent scraping and dirt removal properties for high traffic areas. Designed for interior use in entrances, vestibules, lobbies, between double doors, on ramps or in elevators.

Install in a recess or on the surface. Our easy release adhesive allows you to remove worn or damaged tile which is easily re-adhered. Tile can be switched to decrease traffic patterns; lasts longer, looks better. Vinyl or Aluminum beveled edging available.

3/8" thick; 19-11/16" x 19-11/16" square tile; diagonal rib pattern woven of 100% polypropylene pile yarn with a bitumen backing.

SPECIFICATIONS--No. DR-CT

DR-CT Diagonal Rib Carpet Tiles made of 100% polypropylene pile yarn with a bitumen backing in areas as indicated on drawings. Tile shall be of first quality commercial grade carpet, free of surface defects. Install tile in an alternating rib parquet pattern in indicated recess with recommended easy release adhesive, (or on surface area using vinyl edging or aluminum beveled frame). Tile shall be 3/8" thick, 19-11/16" x 19-11/16" square carpet tile. Select from standard carpet colors of Cranberry, Blue, Beige, Teal, Gray, Chocolate or Charcoal.

one DR-CT Diagonal Rib Carpet Tile covers 2.69 square feet

INTERNATIONAL DOOR CLOSER 1802 - FIXED SPRING CLOSER

• Factory tested to meet or exceed ANSI 156.4 Grade 1
• Narrow design permits installation on most modern glass and aluminum doors without adapters
• Two Adjustment Valves: Closing and Latching speeds controlled by separate regulating valves, adjustable after installation.
• Standard application for regular arm and Top Jamb installation; optional parallel arm installation (requires optional PA bracket.)
• Slim Plastic Cover or Full Cover (optional)
• Ranges of Sizes
  Back-Check: 1802, 1803, 1804, and 1805
• 5 year warranty
• All Weather Fluid

3/4" X 9-1/16" Hole Spacing

PLACE AN ORDER HERE FOR THE 1802BC

Complete HDPE Solid Plastic Alcove Partitions, Solid Plastic overhead braced floor mounted stalls. Alcove stall includes 36" door, 2 pilasters and panel. Stall doors can be either in or out swing. All Hardware included. All toilet partitions ship in 48-72 hours plus 2-4 days travel.
Color Chart

The 4310HSA SENTRONIC is an electrically controlled closer/holder designed to provide easy passage for groups of pedestrians through high traffic doors. Pedestrians, moving through the doorway, trigger the built-in scanner. When the door is opened to 80° or more, the door is electrically held open to minimize wear and tear on applied door hardware. After the last pedestrian in a group passes through the doorway, the system timer releases the hold-open, closing the door under control of the heavy duty closer. Single lever (track) arm closer is specifically designed for pull side mounting. Choice of finishes and accessories meet virtually all high traffic installation requirements.

The 4410HSA SENTRONIC® is an electrically controlled closer/holder designed to provide easy passage for groups of pedestrians through high traffic doors. Pedestrians, moving through the doorway, trigger the built-in scanner. When the door is opened to 80° or more, the door is electrically held open to minimize wear and tear on applied door hardware. After the last pedestrian in a group passes through the doorway, the system timer releases the hold-open, closing the door under control of the heavy duty closer. Double lever arm closer is specifically designed for push side mounting. Choice of finishes and accessories meet virtually all high traffic installation requirements.

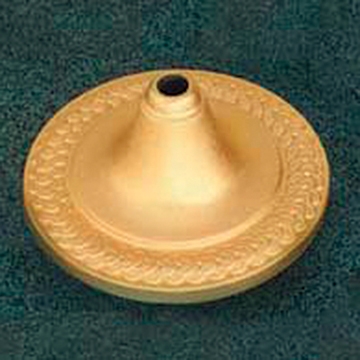

Indoor Flag Stand - 1 3/8". These cast stands are designed to compliment any flag set. Easily movable, these are the most practical stands for general use. This flag pole base is 12" diameter and 6" high. This flag stand weighs 15 pounds.

Complete HDPE Solid Plastic Free Standing Partitions, Solid Plastic (HDPE) Overhead braced floor mounted stalls. Standard stalls 36"x 60"depth(24" door), ADA stall 60"x60"depth(36" door). All hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60.
Color Chart

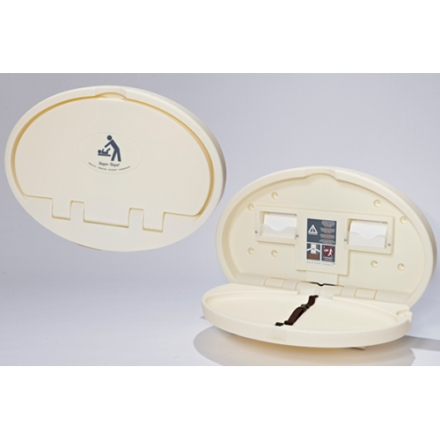

• Attractive, Durable, safe, affordable
• Combines durability with long lasting looks
• Universal Safety instructions
• 4" depth closed, 20" depth open, 34" wide
• Fully hidden gas shock
• Shelf for personal changing items
• Safe strap safety belt
• Molded in hook for purse or diaper bag
• Concave bed
• Includes industrial grade hardware kit for easy installation
• 5 year warrantee

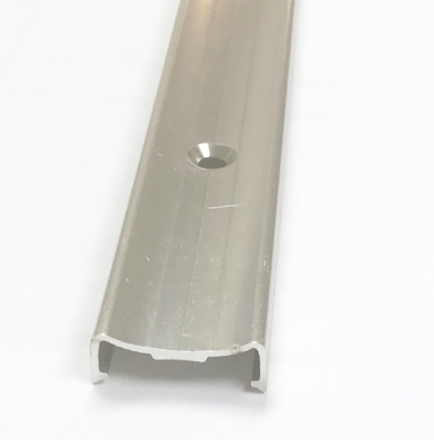

Toilet partition door hinge side sightline filler for 1-1/4" thick powder coated steel pilaster post. This product has a slight round edge specifically for this material. The demensions are 1-1/4"x 54-1/2", this product is brushed aluminum and can be cut in the field. This product will help block the gap on the toilet partition hinge side. Known as 560458 from Hadrian partitions and can be used with other factories.

Wall Guard’s brushed stainless steel units measure 31.5”x15.5”x.06” and are designed to be installed under hand dryers. Provides protection for wall and makes clean up simple. Wall Guard can be used many different applications other than just under a hand dryer. Can be mounted around sinks, on restroom stalls or anywhere where to help prevent water damage. Known as World Dryers part number 37-10457K.

• Unit Size: 31.5”x15.5”x.06”
• Brushed Stainless Steel
• Mounted using Heavy Duty Double-Sided Adhesive Strips(Included)
• Easy Cleaning
• Modern Design

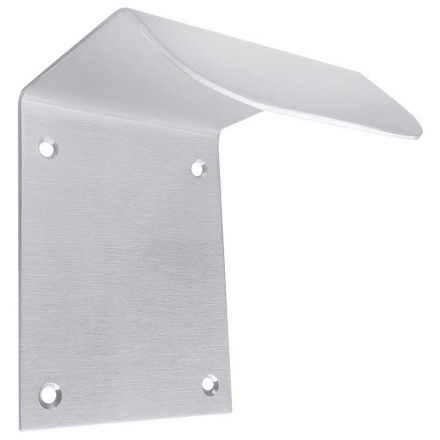

The Hands-Free/Foot Door Pull BM46 can be used as a ADA compliant hands-free door pull when mounted 42" above the finished floor. Or as foot pull when mounted at the bottom of the door. The Pull is 4" x 5" and is made of .090 thick stainless steel. Ships with sex bolts and screws for 1-3/4" door. Available in Brushed Stainless Steel, Flat Black Powder Coat and Dark Bronze Powder Coat.

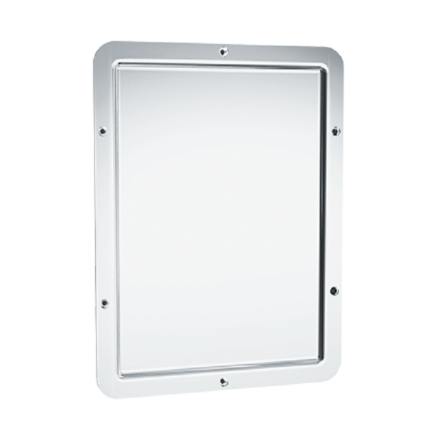

Single Piece Mirror, type 304 stainless steel formed mirror #8 mirror polished finish. Fabricated with Rounded corners, integral frame and 6 dimpled mounting holes. Front mount with Torx screws included. Designed in mind for Behavioral Health and Detention Centers.

Dimension

12” x 16” x 1/4” (305 x 406 x 6 mm)

Mirror Gauge

107-14 (20 Gauge)

Global partitions vault door kit for Solid Plastic material. Comes in a brushed steel finish and are for 15/16" thick material only. You will need to choose in or out swing when ordering. Can be used as right or left handed. See manufacturers numbers listed below. Used with Global and Accurate partitions.

Inswing Door Kit: 40-8571007

Outswing door Kit: 40-8571008

Product Description & Features
• Total Projection: 1-13/16" (46mm)
• Mounting Requirements:
2" x 4" x 2-1/2" (51 x 102 x 64mm) outlet box
• Wall must be properly reinforced and outlet box
adequately fastened
• UL listed door holder

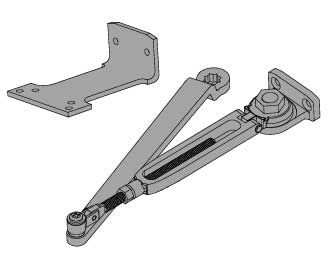

Doromatic Door Closer Hold Open Arm Only

Doromatic Door Closer Hold Open Arm. Includes everything is the image. Can be used to convert you regular non hold arm to a Hold Open Door Closer. Arm holds the door open when door is rotated open. The hold open postion is adjustable. This is the hold open arm for the SC61 Hw/PA, SC71 Hw/PA, and the SC81 Hw/PA.

Doromatic Part numbers:
SC60 - SC60-3049/PA , SC70 - SC70-3049/PA , SC80 - SC80-3049/PA

Function is the Door Closer Model

Indoor Flag Stand - 1 1/8". These cast stands are designed to compliment any flag set. Easily movable, these are the most practical stands for general use. This flag pole base is 12" diameter, 6" high and weighs 14 pounds. Display your American Flags using this beautiful flag stand.

Yale 2300 Door Closer

• Spring size 2, 3, 4, 5
• Separate and independent valve for sweep speed and latch speed
• Adjustable backcheck standard
• Regular, top jamb, parallel mount
• 5-year limited warranty
• ANSI/BHMA A156.4 Grade 3

3/4" x 9-1/16" hole spacing

In April of 2023 Norton Yale have discontinued the 2300 and 9300.  The Norton 1600 will be sent in place of the 2300.   Same Hole Spacing, but adjustable spring tension.

Wall Guard’s white acrylic units measure 31.5”x15.5”x.06” and are designed to be installed under hand dryers. Provides protection for wall and makes clean up simple. Wall Guard can be used many different applications other than just under a hand dryer. Can be mounted around sinks, on restroom stalls or anywhere where to help prevent water damage. Known as World Dryers part number 37-10455K.

• Unit Size: 31.5”x15.5”x.06”
• White(Antimicrobial Acrylic-PVC Composite)
• Mounted using Heavy Duty Double-Sided Adhesive Strips(Included)
• Easy Cleaning
• Modern Design

Wall Mounted Door Stop WS33

• Constructed in a durable cast brass and then brushed chrome plated.
• Replaceable rubber bumper with offset shoulder screws into cavity on body to prevent loss or theft.
• Sloping design discourages vandalism

WS33 is furnished with wood screws for drywall mounting.
