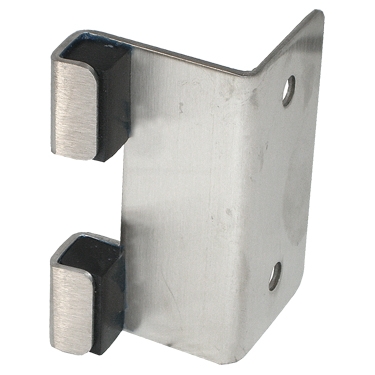

Partition Strike And Keeper For 1" Door, 1-7/8" Between Screws, Stamped Stainless Steel

Stamped stainless steel .075" thick construction. The strike and keeper measure 2-7/8" high by 2" wide with a 1-7/8" hole spacing. The stop posts are 5/8" wide by 7/8" tall with rubber inserts. For use with 1" square edge posts. Also known as a Bathroom Stall Strike and Keeper Outswing 1". Manufacture part # 6459.

Shipped with mounting screws.

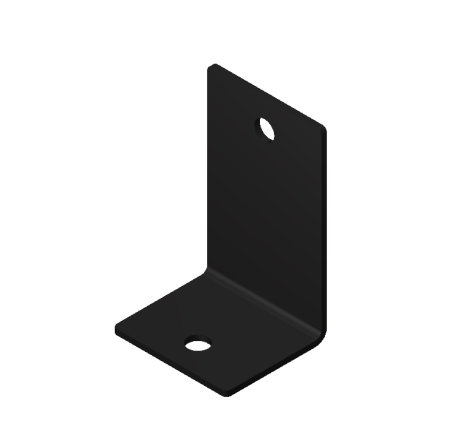

The Matte Black Hadrian L Bracket is constructed of stainless steel and measures 1-1/2"Wx1-1/4"Hx2-1/2"L. It is recommended that 3 bracket be used for panels of 58" height. These are not designed to be through bolted together. Designed to be mounted on the inside of a partitions stall so hardware is not visible from the outside. Bracket comes with fasteners to install. Known as manufacturers part number 673411-BLK.

The Jackson 1095P Paddle Exit Device is designed for use on narrow style aluminum storefront doors.  It features the same housing as the Jackson 1095, but with a paddle instead of a cross bar.  This peice is designed for aluminum or steel doors, it will not work on wood doors.   The device mounts on surface studs that need to be drilled and tapped on the door, if the door is wood, the threads will simply pull out.

The Adams Rite 8600EL Electric latch Retraction Concealed Vertical Rod is designed for narrow stile aluminum framed glass doors.  The device will fit on stile widths of 2" or more.   The EL version We recommend this device for replacement or upgrading your current 8600 to Latch Retraction, modifying your existing door to this exit device will be labor intensive.  The 8611EL would be for the aluminum finish and the 8622EL would be or the dark bronze finish.

This device is Electrified, please see the 8600 for the non Electric Device.

The Falcon OHC100 and OHC101 Door Closer Body Only are designed for a wide variety of Doors.   The OHC100 is for use on larger exterior doors and has spring size adjustments of 3-5.   The OHC101 is designed for smaller or interior vestibule doors, with an adjustable spring size of 1-3.

Hadrian HDPE Solid Plastic Free Standing Partitions, Solid Plastic (HDPE) Overhead braced floor mounted stalls. Standard stalls 36"x 60"depth(24" door), ADA stall 60"x60"depth(36" door). All standard aluminum brackets and hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All Hadrian partitions colors ship in 5 business days plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60.

Hadrian Solid Plastic Color Chart

Hadrian Partition Solid Plastic Instructions

Brackets designed to mount plexiglass/acrylic sheets to desk top or work surface when creating separation/barrier. Brackets are adjustable for thickness from 1/8" to 3/8". It is recommended for use of 1/4" Thick material. Sold as a Pair. Made of Aluminum Alloy. Screws and inserts included. Uses a 5mm/3/16" Allen Key(Not Included) to install screws These are available in either Silver or Black Finish. Silver Finish are readily available while Black Finish may have an extended leadtime depending on quantities being ordered.

Measurements

Height: 2-1/2"

Width:1-3/4"

Depth: 5/8"

Weight:About .6lb

Toilet Partition Bottom Hinge Assembly For 7/8" Door To 1-1/4" Pilaster Square Edge Cast Stainless Steel

Cast stainless steel hinge. Hinge mounts to 1-1/4" square edge post or pilaster, for use with 7/8" thick doors. Kit includes bottom hinge, pintle, pin and insert. Also known as a Bathroom Stall Bottom Pivot Hinge Set. Manufacture part # 63013

Includes all screws.

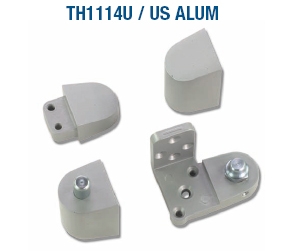

TH1114U US Alum Offset Pivots are used for both flush face frame installation and 1/8" recessed door applications. Pivots replace most major door manufactures. Suitable for aluminum doors weighing up to 125 pounds. These pivots are engineered and designed for durability, style and are easy to install. To order pivot: For LHRB door order RH pivot For RHRB door order LH pivot Specifications * 3/4" offset pivots for aluminum doors and frames * For flush door / frame and 1/8" recessed door applications * Weather resistant * Aluminum case construction * Vertical adjustment 1/8" * Full race ball bearing and design, provides smooth operation on bottom pivot door portion * No sag, entire weight of doors rests on floor mounted pivot portion * Completely temper proof, yet easily removable, replaceable in unlocked position * All pivots are handed- specify LH, RH * Finish: AL-Aluminum, DU-Duronotic

TH1114KM Pitco Style Offset Pivots are used for both flush face frame installation and 1/8" recessed door applications. Pivots replace most major door manufactures. Suitable for aluminum doors weighing up to 125 pounds. These pivots are engineered and designed for durability, style and are easy to install. To order pivot: For LHRB door order RH pivot For RHRB door order LH pivot Specifications * 3/4" offset pivots for aluminum doors and frames * For flush door / frame and 1/8" recessed door applications * Weather resistant * Aluminum case construction * Vertical adjustment 1/8" * Full race ball bearing and design, provides smooth operation on bottom pivot door portion * No sag, entire weight of doors rests on floor mounted pivot portion * Completely temper proof, yet easily removable, replaceable in unlocked position * All pivots are handed- specify LH, RH * Finish: AL-Aluminum, DU-Duronotic

International Door Closer 855 Series-Discontinued.   If you order this door closer the 885 will be sent, it is the same door closer but also features back check.

FEATURES
Two Adjustment Valves: Closing and Latching speeds controlled by separate regulating Valves, Universal application Non-handed for standard top jamb or parallel arm installation.

Ships with regular arm and parallel arm bracket.

3/4" x 9-1/16" mounting holes

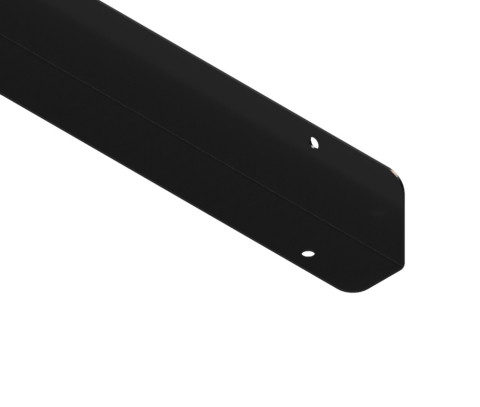

The Matte Black Hadrian Continuous L Bracket is constructed of stainless steel and measures 1-1/2"Wx1-1/4"Hx57-1/2"L. These are not designed to be through bolted together. Designed to be mounted on the inside of a partitions stall so hardware is not visible from the outside. Bracket comes with fasteners to install. Known as manufacturers part number H60358-BLK.

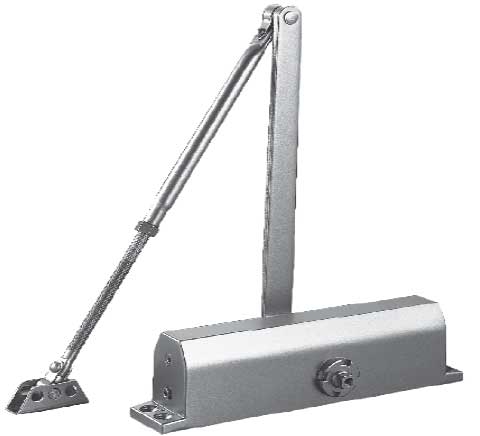

INTERNATIONAL DOOR CLOSER 1803 - FIXED SPRING CLOSER

• Factory tested to meet or exceed ANSI 156.4 Grade 1
• Narrow design permits installation on most modern glass and aluminum doors without adapters
• Two Adjustment Valves: Closing and Latching speeds controlled by separate regulating valves, adjustable after installation.
• Standard application for regular arm and Top Jamb installation; optional parallel arm installation (requires optional PA bracket.)
• Slim Plastic Cover or Full Cover (optional)
• Ranges of Sizes
  Back-Check: 1802, 1803, 1804, and 1805
• 5 year warranty
• All Weather Fluid

3/4" X 9-1/16" Hole Spacing

PLACE AN ORDER HERE FOR THE 1803

INTERNATIONAL DOOR CLOSER 1805BC - FIXED SPRING CLOSER

• Factory tested to meet or exceed ANSI 156.4 Grade 1
• Narrow design permits installation on most modern glass and aluminum doors without adapters
• Two Adjustment Valves: Closing and Latching speeds controlled by separate regulating valves, adjustable after installation.
• Standard application for regular arm and Top Jamb installation; optional parallel arm installation (requires optional PA bracket.)
• Slim Plastic Cover or Full Cover (optional)
• Ranges of Sizes
  Back-Check: 1802, 1803, 1804, and 1805
• 5 year warranty
• All Weather Fluid

3/4" X 9-1/16" Hole Spacing

PLACE AN ORDER HERE FOR THE 1805BC

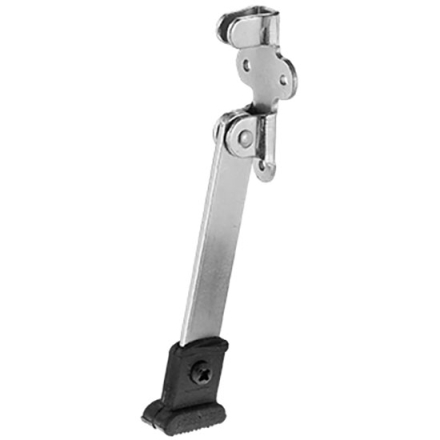

12" Kickdown Door Holder / Stop Grand Standard

No roll pin at pivot point
Mallable with a pair of pliers
Rubber shoe held on by a screw
American Made
Zinc plated steel

Another feature is their well constructed shoe can be adjusted down as the rubber wears making the holder last way longer than their competitors. Another use for them is as a door floor lock if mounted on the other side of the door. Once kicked down there's no entry possible unless you slide a flat item under the door to lift the door holder leg out of the way and push the door open. It can be opened from the inside as normal with your foot or hand. A very inexpensive security lock.

Made by Grand Specialties 612z

Partition Strike And Keeper For 3/4" Door, 1-7/8" Between Screws Stamped Stainless Steel

Stamped stainless steel .075" thick construction. The strike and keeper measure 2-7/8" high by 2" wide with a 1-7/8" hole spacing. The stop posts are 5/8" wide by 7/8" tall with rubber inserts. For use with 3/4" square edge posts. Also known as a Bathroom Stall Strike and Keeper Outswing 3/4". Manufacture part # 6379.

Shipped with mounting screws.

Door Finger Protector - Exterior Push Side

This model is specifically designed for exterior doors on the push side of the door. This patented Finger-Gard product is designed for both exterior and interior doors and thus will operator in very cold and very hot tempetures. Flexible to minus 40 degrees. They are made of a special rubber that is resistant to harsh sunlight. They will allow the door to swing up to 180 degrees. This product is available in Brown or White, 78" or 83" lenghts

Our part # on this is GFG5 for the 78" length, and GFG5+ for the 83" length.

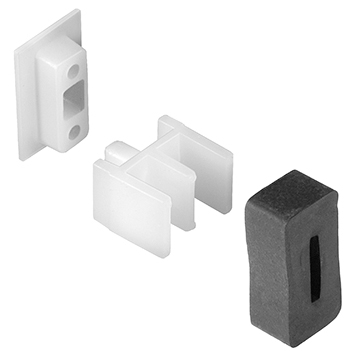

Republic Steel Locker Plastic Guide Assembly. 3-piece assembly, Used in recess lock bars. Also known as 786540.

The Yale 2701 is a non handed door closer that can be mounted push, pull or top jamb. The closer is adjustable 1-6 sizing, so it will work on any size door, interior or exterior.  The closer ships with a full cover, and all the mounting screws. This a Grade 1 closer, which is the highest rating possible. The mounting is 3/4 x 12 inches on centers.

Standard 4040 LCN series closer shipped with regular arm, standard plastic cover, and self reaming and tapping screws. Non-sized cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0”. Closer mounts hinge side, top jamb, and parallel arm w/PA Shoe on either right or left swinging doors. Closers to meet ADA requirements.

No longer made, the 4040XP will be shipped in its place.

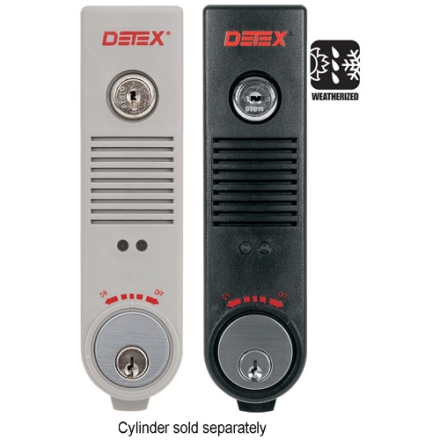

Detex EAX-500W Weatherized Door Exit Alarm

The Detex EAX-500W Series is designed for applications requiring a battery-powered alarm on secured doors. The alarm, with approximately 100dB, will sound when an unauthorized exit occurs. The redesigned shape and smaller size of the EAX-500W makes it the ideal choice for quick and easy installations on emergency exit and restricted doors.  The Weatherized version of the EAX-500 is designed for out swinging doors that may get wet, or damp environments.

Gray Only

Mortise cylinder sold separately
Powered by a 9 volt battery

Detex EAX-500 Installation Instructions

1085/1285/2086 Jackson Top Bolt Trip

The Jackson Top Bolt Trip Assembly is the piece that triggers the Top Bolt Guide Assembly and allows the rods to extend.

Jackson Part # 30-824-

Toilet Partition Top Hinge Assembly For 7/8" Door To 1-1/4" Post Square Edge Cast Stainless Steel

Cast stainless steel hinge. Hinge mounts to 1-1/4" square edge post or pilaster, for use with 7/8" thick doors. Kit includes top hinges, pintle, pin and inserts. Also known as a Bathroom Stall Top Pivot Hinge Set. Manufacture part # 63023

Includes all screws.

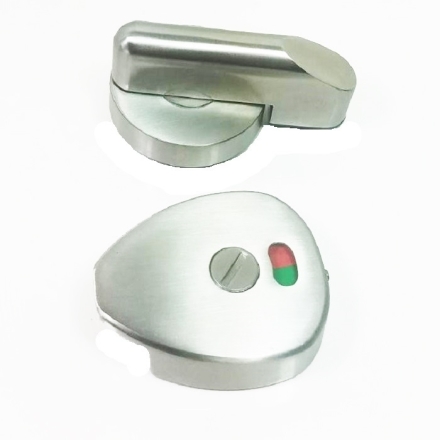

Occupancy Indicator Handle Set, European Design, Stainless Steel Construction. This product offers the European style with a sleek and modern feel. Features the capability of being installed on partitions with thickness of either 3/4" or 1", Built-In Handle, and Emergency unlatching access on front face of indicator, make this an extremely versatile option for restroom partitions. Traditionally these are designed for partitions that have routed edges to create a no-sightline system but can be used with non-routed edge partitions with addition hardware under related products.

INTERNATIONAL DOOR CLOSER 1804BC - FIXED SPRING CLOSER

• Factory tested to meet or exceed ANSI 156.4 Grade 1
• Narrow design permits installation on most modern glass and aluminum doors without adapters
• Two Adjustment Valves: Closing and Latching speeds controlled by separate regulating valves, adjustable after installation.
• Standard application for regular arm, Top Jamb installation and Parallel arm installation.
• Slim Plastic Cover or Full Cover (optional)
• Ranges of Sizes
  Back-Check: 1802, 1803, 1804, and 1805
• 5 year warranty
• All Weather Fluid

3/4" X 9-1/16" Hole Spacing

PLACE AN ORDER HERE FOR THE 1804BC-P

Rixson Checkmate Overhead Door Holder 10 Series

Product Description & Features
•Single acting doors
•Non-handed
•Slide track design
•Recommended for medium traffic,
medium weight doors

Detex EAX-500 Door Exit Alarm

The Detex EAX-500 Series is designed for applications requiring a battery-powered alarm on secured doors. The alarm, with approximately 100dB, will sound when an unauthorized exit occurs. The redesigned shape and smaller size of the EAX-500 makes it the ideal choice for quick and easy installations on emergency exit and restricted doors.

Mortise cylinder sold separately
Powered by a 9 volt battery

Detex EAX-500 Installation Instructions

Hadrian HDPE Solid Plastic Corner Partitions, Solid Plastic (HDPE) Overhead braced floor mounted stalls. Standard stalls 36"x 60"depth(24" door), ADA stall 60"x60"depth(36" door). All standard aluminum brackets and hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All Hadrian partitions colors ship in 5 business days plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60.

Hadrian Solid Plastic Color Chart

Hadrian Partition Solid Plastic Instructions

TH1110 Arch/Vista Wall Offset Pivots are used for both flush face frame installation and 1/8" recessed door applications. Pivots replace most major door manufactures. Suitable for aluminum doors weighing up to 125 pounds. These pivots are engineered and designed for durability, style and are easy to install. To order pivot: For LHRB door order RH pivot For RHRB door order LH pivot Specifications * 3/4" offset pivots for aluminum doors and frames * For flush door / frame and 1/8" recessed door applications * Weather resistant * Aluminum case construction * Vertical adjustment 1/8" * Full race ball bearing and design, provides smooth operation on bottom pivot door portion * No sag, entire weight of doors rests on floor mounted pivot portion * Completely temper proof, yet easily removable, replaceable in unlocked position * All pivots are handed- specify LH, RH * Finish: AL-Aluminum, DU-Duronotic

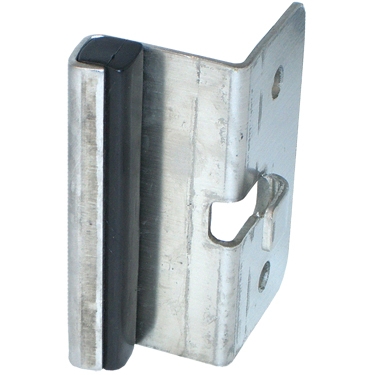

Partition Strike/Keeper For 3/4" Door Inswing 1-7/8" Between Screw Stamped Stainless Steel

Stamped stainless steel .075" thickness construction. The strike and keeper measures 2-7/8" tall by 2" wide by 1-15/16" deep with a 1-7/8" hole spacing. The stop is 7/16" thick with a rubber insert. Also known as a Bathroom Stall Strike and Keeper Inswing 3/4". Manufacture part # 6469.

Shipped with mounting screws.

Door Finger Protector - Exterior Pull Side

This model is specifically designed for exterior doors on the pull side of the door. This patented Finger-Gard product is designed for both exterior and interior doors and thus will operator in very cold and very hot tempetures. Flexible to minus 40 degrees. They are made of a special rubber that is resistant to harsh sunlight. They will allow the door to swing up to 180 degrees. This product is available in Brown or White, 78" or 83" lenghts

Our part # on this is GFG7 for the 78" length, and GFG7+ for the 83" length.

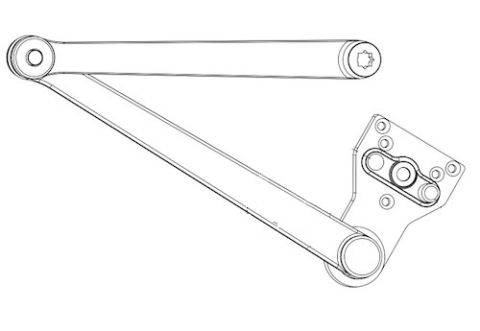

Norton CloserPlus Non Hold Open Arm

This heavy duty Parallel Arm can be used with the Norton 1600, 9300, 8000 and 7500 door closers.

Aluminum is in stock, Dark Bronze is 2-3 week lead time.
Norton Part # 6770-5

4" Kickdown Door Holder / Stop Grand Standard

No roll pin at pivot point
Mallable with a pair of pliers
Rubber shoe held on by a screw
American Made

Made by Grand Specialties

Zinc plated steel or Brass plated

Another feature is their well constructed shoe can be adjusted down as the rubber wears making the holder last way longer than their competitors. Another use for them is as a door floor lock if mounted on the other side of the door. Once kicked down there's no entry possible unless you slide a flat item under the door to lift the door holder leg out of the way and push the door open. It can be opened from the inside as normal with your foot or hand. A very inexpensive security lock.

Ordering Online All Plastic Laminate Doors Manufactured by Global Partitions, see color chart below. For other factory colors please call for pricing. All toilet partitions ship in 48 hours, 2-4 days travel. Plastic Laminate Doors Include: Standard Chrome Plated Hinges for 1" square edge pilaster and Bumper Keeper and Slide Bolt latching. Available for the following door opening widths (actual door size is 3/8" narrower that the opening) - 22, 24, 26, 28, 30, 32, 34, 36". Specify - Part # 9TDL-XX (where XX is door opening width) Pilaster type - Standard Square edge.

Global Plastic Laminate color chart

Hadrian HDPE Solid Plastic Between Wall Partitions, Solid Plastic (HDPE) Overhead braced floor mounted stalls. Standard stalls 36"x 60"depth(24" door), ADA stall 60"x60"depth(36" door). All standard aluminum brackets and hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. Every color Hadrian offers will ship in 5 business days plus 2-4 days travel.

Hadrian Solid Plastic Color Chart

Hadrian Partition Solid Plastic Instructions

10" Kickdown Door Holder / Stop Grand Standard

No roll pin at pivot point
Mallable with a pair of pliers
Rubber shoe held on by a screw
American Made
Zinc plated steel

made by Grand Specialties 610z

Another feature is their well constructed shoe can be adjusted down as the rubber wears making the holder last way longer than their competitors. Another use for them is as a door floor lock if mounted on the other side of the door. Once kicked down there's no entry possible unless you slide a flat item under the door to lift the door holder leg out of the way and push the door open. It can be opened from the inside as normal with your foot or hand. A very inexpensive security lock.
