Hadrain Partitions 8" wrap door kit for Solid Plastic material. Comes in anodized aluminum finish and are desgned for 1" thick material only. You will need to choose In or Out swing when ordering. Can be used as right or left hand as hinges are field reversible. To hand handing, this can be done by taking the 3 pieces apart and reconfiguring the opposite swing. See Hadrians part numbers/ known as numbers listed below. Also used with Comtec-Hiny Hiders-Scranton.

Inswing: 261005 and 261025

Outswing: 621006 and 261026

Heavy-duty 9/64" staked piano hinge adds to the robust construction. Drawn one piece seamless door of 22 gauge type 304 stainless steel with a satin finish. 1 gal. (3.7 L) waste capacity. wall opening 11-3/8"tall x 9-5/8"wide x 4"deep. Same as 20470 but mounts through partitions up to 1 1/4" thick. Expandable steel waste can ensures a perfect fit for thicker partitions. This for 2 stalls with a common partition divider.

The Global Partitions stainless steel Ada latch knob & cover, with Screw, are a concealed latch that is held together by a screw.  They are constructed of cast stainless steel metal that is then brushed and polished.  The 9G3370 meets ADA compliance codes. The manufacturer part number is 40-8263370. This was used up until October 2021.

The Cal Royal 4400 Thumbpiece Trim is for use on the 4400 Rim Device only. The plate measures 3-1/2 by 16 inches. The key locks or unlocks the thumbpiece. This plate ships with a 6 pin solid brass "C" keyway rim cylinder. And only comes in brushed chrome and dark bronze finishes.

Partition Door Kit Inswing 1" Door & Post Cast Stainless Steel. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 11303.

Stainless Steel Partition Support Brace U Shape, Cut Adjustable Height. Constructed of 13 Gauge Stainless Steel with Satin finish. Used to support/brace the bottom of partitions and is mounted to the restroom floor. Designed to work with partition panels or pilasters to create stability. Available for material thickness of 3/4", 7/8", 1" and 1-1/4". These partitions support braces are field adjustable by cutting the tube. Ships as standard size 12-1/2" (Max Size) and can be cut down to as small as 3"(Min Size) to create floor clearance. Features a press fit bushing to set the height for the support brace. Ships with fastners. Should you have any questions about this item please let us know. Known as part numbers 135009, 135019, 135029 and 135039.

Notes

• Only Available in U Shape Design
• Field Cut Adjustable: Ships at 12-1/2"(Max) and cuttable down to 3"(Min.)
• Thickness Available Sizes: 3/4", 7/8", 1" and 1-1/4"

Partition Anti-Grip Headrail 1" X 95" Type B Aluminum

Extruded anodized aluminum construction. The cross section measures 2-3/4" high by 1-3/32" by 95" long. The part that fits on top of the pilaster is 1" wide by 3/4" deep. The wall thickness on this part is 3/64". Also known as a Bathroom Stall Headrail. Manufacture part # 80042.

This product is usually used on Solid Plastic (HDPE) Toilet Partitions.

Global aluminum slide latch for solid plastic partitions typically. This latch has a brushed look to it. The hole spacing is 2-3/4". This products manufacture is global 8442899. Security screws included. The bolt extends 1" out from the edge.

Half Mortise 4-1/2" Door Hinge-Box of 3

Steel construction, five knuckle, two bearing, square edge, Half Mortise 4-1/2" Door Hinge.  Sold in boxes of 3 hinges, ships from California.   Available in Brushed Chrome and Paint Primed (gray).

Full Surface 4-1/2" Door Hinge-3 per box

Full Surface, steel construction, five knuckle, two bearing butt hinge.  Sold 3 in a box with wood and machine screws.   Available in Brushed Chrome and Paint Primed.  Ships from California.

Accurate Partitions Stainless Steel Ada Alcove Compartments. Stainless steel overhead braced floor mounted stalls are most commonly used. Alcove stall includes 36" door, 2 pilasters and panel. Doors can be either in or out swing. Standard chrome plated alloy hardware included. All toilet stalls ship in 48-72 hours plus 2-4 days travel. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Accurate color chart

Accurate Instructions

Two Ear Stainless Steel Partition Bracket for 1/2" Panel. This is used with a 1/2" thick panel only. The hole spacing is 1-1/2" and height is 3", and sticks out from the wall 2-1/2". The overall width is 3-1/4". The screw holes are 1/4" diameter at 8 places. This is also known as 2209. The stainless steel is flat and rolled to form a two ear partition bracket.

The Partition Double Door Pull 5-1/2" stainless steel come as two handles for mounting back to back handles on an one inch thick door.  The handles have 5-7/8" center to center hole spacing, and the screws included are for a 1" thick door. This is constructed of cast brushed stainless steel. The manufacturer part number on this part is 900112. Overall width is 6-3/4"

Metal Door Flush Bolt FB458

The Ives FB458 is a UL Listed Flush Bolt for use on Fire Doors. The face plate measures 1" wide by 6-3/4" long with a depth of 1-1/8". Hole spacing is 1/2 inch by 6-1/4 inches on centers. The bolt has a 3/4" throw and is 1/2" diameter. This Flush Bolt is available in Polished Brass, Oil Rubbed Bronze (dark brown) and Brushed Chrome. We try to stock the 12" rods, which are standard, but we can also get 18", 24", 36" and 48"

Ives Part # FB458

Partition Anti-Grip Headrail 1-1/4" X 62" Type B Aluminum

Extruded anodized aluminum construction. The cross section measures 2-3/4" high by 1-11/32" by 65" long. The part that fits on top of the pilaster is 1-1/4" wide by 3/4" deep. The wall thickness on this part is 3/64". Also known as a Bathroom Stall Headrail. Manufacture part # 80052.

Also know as Part# 9THS621-1/4, 9THSSXX, and 9THLXX.

Universal Handing Partition Hinge Stainless Steel Surface mounted. This hinge is universal which means this can be in or out swing and right or left hinged. This hinge is 1/8" thick, overall width is 3" x 3-3/8"ht. The hole spacing is 2" x 1-1/2" up and down. The manufacturer's part number is 650-8241, 7199. Hardware included for 1" door and 1-1/4" thick post.

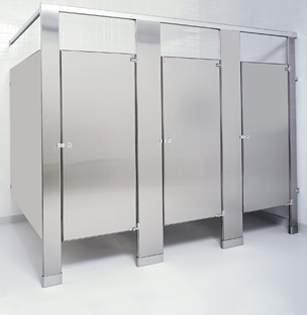

Accurate stainless steel free standing stalls floor mounted overhead braced stalls with a smooth surface. Standard stalls are 36" x 60" depth (24" door), ADA stall 60" x 60" depth (36" door). Standard chrome plated alloy hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Accurate color chart

Accurate Instructions

ADA Partition Slide Latch with Occupied Symbol. Stainless steel door lock surface mounted for 1" doors, this can be used for doors less than 1" if the rod is cut down between the two pieces. All hardware included for installation. This manufactures part number is 50553. Hole spacing is 3-1/2".

Truth Maxim Dual Arm Window Operator 50.10

The Truth 50.10 Maxim Dual Arm is one of the more popular new style operators. This operator is the same as the 50.00, but without the painted steel cover riveted to it. Some numbers we find on this operator are 41011 and 31876.

Left Hand Operator shown in picture.

Bobrick B-7120/B-7128 series hand dryers are a durable 22 gauge type 304 satin finish stainless steel cover option or a zinc plated steel with white epoxy cover with black plastic trim. Choices are 115 volt or 230 volt.

Toilet Partition SS L Channel 2-1/2" X 57" are great for extra privacy in the bathroom toilet stalls. This product can be used for any thickness material by using two units. This product is also known as 2689. Security screws included.

Partition Anti-Grip Headrail 1-1/4" X 95" Type B Aluminum. Extruded anodized aluminum construction. The cross section measures 2-3/4" high by 1-11/32" by 95" long. The part that fits on top of the pilaster is 1-1/4" wide by 3/4" deep. The wall thickness on this part is 3/64". Also known as a Bathroom Stall Headrail. Manufacture part # 80052.

Magnet Door Stop

Hands-free magnetic door stop/holder. All you need to do is open the door and a strong maget will keep it open until you close it. Mounts horizontally or vertically. Includes fasteners plus 1 concrete and 3 hollow wall anchors.

Not for use on doors with spring hinges or door closers.

Cast Stainless Steel Construction

40-8562307

Flush Metal Partitions Bottom Door Insert For 7/8" Door

Chrome plated Zamac die cast construction. The door insert measures 2-5/16" wide by 1" wide by 1-3/16" high. The hex shaped hole is 5/8" and the round hole is 7/32" diameter. The material or rim is 5/16" high. Also known as a Bathroom Stall Door Insert Bottom 7/8". Manufacture part # 1530.

Toilet partition continuous door stop for powder coated steel partitions, this has a slight round edge for attaching. The length is 57" and is used on a 1-1/4" slight round edge pilaster for mounting. Used with 1" doors and has a concealed turn latch with the pin coming out the center edge of the door. The hole spacing for the slot is 28-1/2" dead center of unit. The slot for the bolt to lock to is 7/16" wide x 5/8"ht. This helps with blocking the door gaps on the locking side of the door. This is made of brushed aluminum material and is used with in or out swing doors. Also known as Hadrian partitions part number 560058.

Cast Stainless Steel Construction

40-8562305

Global Complete ADA Door Kit . This door kit includes all you see and the security screws. Also known as 40-8513512. Chrome Plated. For complete door kit add 9G4000 kit. This was used up until October 2021.

Outswing For 1" Square Edge is designed for out swinging doors with a 1" thick square edged pilaster post.  It is constructed of cast stainless steel.  The manufactures part number is 40-8562308.

Von Duprin 88 Dummy Trim

The plate measures 3" wide by 14-3/16" long.

Von Duprin part # 880DT-R

Von Duprin Exit Device 55 Center Case

Von Duprin Part # 111936

The Hands-Free/Foot Door Pull BM46 can be used as a ADA compliant hands-free door pull when mounted 42" above the finished floor. Or as foot pull when mounted at the bottom of the door. The Pull is 4" x 5" and is made of .090 thick stainless steel. Ships with sex bolts and screws for 1-3/4" door. Available in Brushed Stainless Steel, Flat Black Powder Coat and Dark Bronze Powder Coat.

Toilet Partition Top & Bottom Hinge Assembly For 1" Door, 1-1/4" Pilaster Square Edge. Polished chrome plated zamac die cast construction. Kit includes Bottom & Top Hinges, Pintle, Nylon Cam, Top Pin and Bottom & Top Hinge Door Inserts. Hinges measures 2-1/4" high by 1-1/4" wide with screw spacing of 1-1/2". Manufacture part number 63130 kit. The top hinge wall to center of the 3/8" diameter hole is 1-1/4" which is known as a 3790 hinge. The bottom hinge wall is also 1-1/4" to the center of the 5/16" hole and known as 3290 hinge. The Top Pin is 3/8" x 3-1/2". Screws are also included.

The 460 ADA Flush Pull measures 5 inches by 5 inches  and is made of 1/8 inch material.  The opening size is 3-1/2 inches by 3 inches. The pull is fastened to the door with 10-24 by 5/8 inch security torx with barrel nuts.  The pull is designed for 1-3/4 thick doors, please specify if your door is thicker than 1-3/4 inches.  Available in Brushed and Polished Stainless Steel and also Powder Coated Flat Black and Dark Bronze.

Von Duprin 8827 replacement latch covers

Latch covers come with matching screws

Von Duprin Part # 050464
Old Part # 960548
