Corner Guard CG-20 2" x 2"

90 degree 2” x 2” vinyl corner guard with aluminum retainer.  Vinyl flex action absorbs impact, and is .085” thick, the aluminum retainer is .062 thick.  Each corner guard includes the end caps.  Available in 4, 8 and 9 foot lengths.  Corner guards are shipped with a top and bottom end cap.

Multi-User Built-In Locks. Best Used For: Health & Recreation Facility Lockers School, Employee, & Athletic Lockers Product Features: Allows a locker user to set their own temporary 3-digit combination for the duration of visit, eliminating the need for system charting Designed for standard, lift handle lockers with hinges on the right Manual spring locking Solid zinc housing provides durability for multiple uses on a daily basis Secure, easy to use resettable combination lock offers up to 1,000 different combinations Control key for supervisory access; specify key to match existing system or factory assigned Extension kit available for use on wooden doors with a thickness of 11/16" to 3/4". Known as 3631.

Ordering Online All Plastic Laminate Panels Manufactured by Global Partitions, see color chart below. For other factory colors please call for pricing. All toilet partitions ship in 48 hours, 2-4 days travel. Panels Includes: 4 standard chrome brackets. Available for the following widths - 16, 18, 22, 28, 34, 40, 46, 52, 55, 58, 60, 65, 70, 76". Actual width is 1/2" less. Specify - Part # 9TPL-XX (where XX is door opening width) Reinforcing for grab bars available.

Global Plastic Laminate color chart

General Partition Concealed Latch Knob & Cover

Zamac die cast construction with polished chrome plating. Outside diameter of the knob and cover are 1-5/8" with the inner ring diameter of 1-1/4". Also known as a Bathroom Stall Concealed Latch Cover and Knob Assembly. Manufacture part # 1390, 6140.

Truth Telescoping Pole Hook Only

Replacement Pole Hook Drive for the Wi10637 for the Truth Telescoping Pole Crank.  The Hook Adapter measures 1" wide, overall length is 2-3/8" including female insert that fits into pole.  The insert spline is 11/32" with a 1/2" diameter.

Truth Part # 10453

Ives RL30 and RL1152 Nylon Roller RLPART.1025

This replacement Nylon Roller and Rivet Package is for the Ives RL30 and RL1152 Roller Latches.  The Roller measures 3/4" high by 5/8" diameter.  The Rivet measures 1-1/16" long and is threaded on one side.

Ives Part # RLPART.1025

Interkal riser combo roller & bracket. The black plastic roller dimension is 1-1/4" diameter by 1-5/16" by 1/2" center hole. The plate is 1-7/8" by 3-3/4" long and the two hole dimensions are 5/16". Used with Interkal bleachers known as 176383.

The 1010R Rubber Stair Tread features a Rib Design, with grooves all along the fall line.   The round nose is not tapered or adjustable.  The nose is 1/8" thick and tapers to 3/32" at the very back.  The radius of the nose is 3/4". They are designed for interior use.

Chrome Plated Two Ear Urinal Bracket For 1" X 1-1/2" X 3-1/2

This bracket is usually used on Urinal Screens, which are the walls between men's urinals, to hold the partitions to the wall. The bracket is made of a zamac casting that is then chrome plated. The bracket base measures 1-1/2" x 4", with a 3" center to center hole spacing. The bracket projects out 3-1/2", with the mounting holes at 2-1/8" and 3-1/8" from the base. The holes used to mount the bracket to the wall and to the urinal are 1/4" diameter. The 1280 Bracket is sometimes called a Bathroom Stall Bracket, Toilet Partition Bracket, Two Wing Bracket, or Urinal Screen Bracket.

For 1" thick panels

Chrome Plated Two Ear Urinal Bracket For 1-1/4" X 1-1/2" X 3-1/2

This bracket is constructed of zamac die cast material that is then polished chrome plated. The base is 1-1/2" wide x 4" long, with two screws 3" on center. The legs project out 3-1/2" with the thru screws at 3-1/8" and 2-1/8" from the base. The 6 holes are 1/4" diameter. This bracket is also known as a Toilet Partiton Bracket, Bathroom Stall Bracket, Two Ear Extra Long Bracket, Two Wing Bracket, Urinal Screen Bracket X-Long. The manufacturers part # are 1330, and 650-6449. The bracket includes all the fasteners.

This bracket is for a 1-1/4" thick panel

892 Mop and Broom Holder - 18 gauge type 304 stainless steel channel projects 3-1/4" from the wall, fitted with spring-loaded, serrated rubber cams to hold mop and broom handles from 7/8" to 1-1/4".

4 holders

The 520S Rubber Stair Tread has a 1/4" nose thickness which tapers down to 1/8" at the back.  The nose drops down 1-9/16", and the nose is not adjustable and is not tapered. They are designed for interior use.

Bottom Partition Hinge For 1-1/4" Round Edge Post Or Pilaster

Chrome plated Zamac die cast construction. The hinge measures 1-1/4" deep by 2-1/8" high by 1-7/16" wide. The U part of the hinge measures 2-1/8" high by 1-1/4" deep with a slot depth of 11/16". The hole spacing is 1-1/2". The lug projects out 1-3/32" and is 1/2" thick with a 5/16" diameter hole. Also known as a Bathrrom Stall Pivot Hinge - Bottom 1-1/4". Manufacture part # 4040. Used on Ampco and Metpar Metal Partitions.

Shipped with mounting screws.

A=1-7/16"

The 605CR Rubber Coved Riser goes in the back of the step and acts as a kick plate in the matching color of your stair treads.  The Riser is 7" tall and features a 5/8" cove to aid in cleaning of the back of the step.

Fiat Partition Laminate Door Top Hinge 1-1/4" Square Edge, Uses 7/16" Pin

Chrome plated Zamac die cast construction. The hinge U channel measures 2-1/4" high by 1-1/4" deep with a insert depth of 1-5/16". The hole spacing is 1-1/2" on centers. The hinge lug projects out 1-11/16" and is 1/2" thick. The lug hole diameter is 19/32". Also known as a Fiat Bathroom Stall Pivot Hinge - Top 1-1/4". Manufacture part # 3630.

Ships with mounting screws.

a=1-11/16"

The Truth Encore 51.10 Awning Operator is used on windows that open from the bottom and swing out, like a one piece garage door.  When in the closed position, the arms have an approximate length of 15 inches.  The operator ships with the 31879 detach clip, but does not include the 11647 Maxim Slide Shoe.  The slide shoe is the piece that slides in the track at the bottom of the window.   A common number we find on this operator is 41013.  The housing is constructed of die cast metal, and arms are steel.   The complete assembly is electro statically painted.

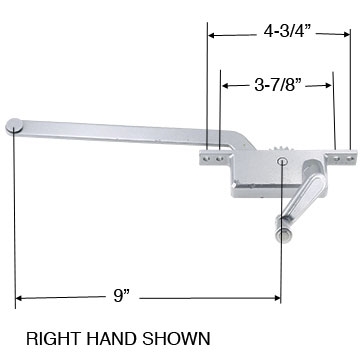

Casement Window Operator 9" Arm

Replacement Casement Window Operator is made of a die cast housing and steel arm. The window operator housing has 4 mounting holes, 4-3/4" are the outside dimensions of the outside screws and 3-7/8" on the inside screws.

Right Hand Operator Shown in picture

Truth 22.17 Awning Window Operator

Surface mounted Truth Awning Window Operator.  The arms span 13-1/4” from rivet to rivet.  The mounting holes measure 6-7/8” on the outside screws center to center, and 6” center to center on the two inside mounting screws.

Truth Part # 22.17

Flush Metal Partitions Concealed Latch Housing

Zamac die cast construction. The latch body measures 3-3/8" deep by 1-15/16" high. The face plate is 3-1/4" high. The latch bolt is 11/32" diameter and has a travel of 7/16". Also known as a Flush Metal Bathroom Stall Concealed Latch Housing. Manufacture part # 6606. This part has a 1-1/4" diameter.

B-40 Bobrick surface mounted soap dispenser in a two tone black and grey color. Valve dispenses all purpose soaps. No lock with easy refills. Translucent container provides a visible soap level. The capacity is 40 fl oz and can mount to a mirror if needed. The unit is 5-13/16"w x 6-7/8"h x 3-3/16" depth to push button.

Dor-o-Matic 1990 repair kit. The kit includes the following:
4 Mounting Studs
1 Hex Key 7/32"
1 Allen Key 1/8"
1 Pinion
1 Cylinder Bushing
2 Rod Bushings
1 Retractor
1 Traveller Assy

Doromatic part # 4270902091 or PBX-2

1990 parts breakdown

Truth Awning Operator Guide Bar Clip

This plastic clip was used to hold the older version Guide Bar or Track. The piece measures 3/4" wide, by 5/8" high, with an 11/16" projection. The clip is made of plastic.

Part # Wi39947

Truth 13.14 Awning Window Hinge.

The track measures 14" long, and is 11-16" wide. The stack height is 1/2". The arm marked 30128 is 6-3/4" long. And the arm stamped 30127 is 8" long. This hinge is constructed of steel that is powder coated in a tanish gray color. The common numbers found stamped on this hinge are 30128 and 30127

Sold in pairs

A.W. Anderberg 201SS 4 bar window hinge, stainless steel construction.

Usually found on light commercial or residential buildings with hopper windows.

23/32" track width x 1/2" stack height.

If you have a casement window with a 16" track length, please see 222SS Egress Window Hinge.

Sold individually, these hinges are non handed, we recommend that you change both hinges when you are replacing them.

Roval Semi Recessed Removable Waste Receptacle. 20458 Easy maintenance — removable stainless steel waste receptacle locks into cabinet with a tumbler lock for security. Capacity 11.2 gal. (42.6 L). Fabricated of 20 gauge type 304 stainless steel with satin finish. Wall Opening: 15 5/8" W x 26 5/16" H x 4" D

The Von Duprin QEL Baseplate Conversion Kit is for use on the 33A, 35A, 98, and 99 exit devices. The size is the size of the exit device.  The 98/99 device 36" would be 33" wide device and the 48" would be for the 45" device.  The 33A/35A the 36" would be for the 35-3/8" wide device and the 48" would be for the 47-3/8" wide device.

Von Duprin Part # 958003 3' Device
Von Durpin Part # 040065 4' Device

The Command Access MLRK-VD Motorized Latch Retraction is for use on the 33,35, 98 or 99 Von Duprin Exit Devices. This motor is 24 to 28 volts and has a Standard : 900 mA (Avg Current Peak); 215 mA (Avg Current Hold). This unit requires 18 ga wire.  And ships with (1) Motor Mount with MM5; (2) 40002 - 8/32 x 1/4 inch Phillips Head Screw; (1) 50030 8/Lead with vd Connector; (1) 50944 Molex Pigtail; (1) 40144 Dogging Hole Cap; (1) 50991 Fire Rated Drilling Template; (1) Replacement Dogging Tail Piece.

The MLRK1-VD is a cost-effective and straightforward way to upgrade your Von Duprin 33/35 & 98/99 series device to motor-driven latch retraction in the field. For AX devices, see the MLRK1-VDAX listed on the cutsheet below. UL Listed + 3 Year Warranty

The 620D Rubber Stair Tread comes in two versions, Square Nose and Round Nose.  This page is for the Square Nose, Search 620DRN for the Round Nose Version.   This tread offers an 1/8" nose thickness, has an adjustable and tapered nose. They are designed for interior use.

The Detex V40 ValueSeries Rim Device is their economical exit device.  The device only comes in powder coated aluminum or black. The standard 36 inch model measures 32-7/8 inches wide.  The unit ships with strike all the mounting screws and a hex dog key.

Hadrian Headrail End Plug for Metal and Stainless Steel Partitions. This is used to close off the end of the partition headrail at the top of your partitions. This goes over the 1"x1-5/8"ht outside edge of headrail opening. Known as part number 607220 and used only with Hadrian Partition Company.

Bobrick B-4369 recessed paper towel dispenser with waste receptacle in a satin finish stainless steel. The unit holds 350 c-fold towel or 475 multifold towels. Leak-proof waste container has a 3 gal. capacity. Removable front panel for cleaning. Wall opening 11-38"w x 26-5/8"ht x 4" minimum depth.

Shower Room Pedestal Dove Gray Color 8" x 16-1/4" Sold Individually. Heavy duty Bench Pedestals shall consist of steel tubing with 10 gauge steel flanges welded to each end. The overall height of pedestal shall be 16-1/4". Pedestals are to be finished to match the lockers in  Dove Gray color.

Von Duprin 360L Lever Trim

The Von Durpin 360L Lever Trim has a base measurement of 7-1/2" high by 1-11/16" wide and 7/8" thick. The lever is 4-1/2" and projects out 3". This lever Trim uses a 1-1/4" Mortise Straight Cam Cylinder.

Von Duprin Part # 360L

The Monarch / Dor-O-Matic / Falcon 600339 NL Spring Package converts the 179L , 712L, 712K, 912l and 911K to an NL function.   The NL function is  one were the Lever Handle can not be unlocked and left in the unlocked position when the key is removed.   Spring has a 5/8" diameter.  See attached instructions.

Shower Curtain - 10 Ga. White Vinyl, Order 8 Hooks Separately - 48"W X 72"H

Flame-resistant, anti-bacterial, 10 gauge white vinyl fabric with standard height of 72". Curtain should be 6" wider than opening up to 54" and 12" wider than opening exceeding 54".

Shower curtain should be attached with hooks (not provided, order separately) to rod (not provided, order separately). Known as 10-1200-V48 by American Specialties.
