Gravity Door Coordinator Nylon Wheel and Screw

Nylon wheel measures 7/8" outside diameter by 3/8" inside diameter by 1/4" thick. Screw measures 5/8" overall lenth by 3/8" shaft diamter by 1/4-26 thread with a 1/2" hex head.

Ives part # CORPART.1024

Square Plastic Chair Tips for Square Tubing chair leg with a 3/4" Outside Diameter X 5/8" Inside Diameter Legs. Square tips for a slanted leg chair. Available in Black.

STAIR TREAD MOUNTING TAPE

Speeds installation of vinyl stair treads without the mess! Tape is sold in 4" wide rolls of 164 feet.

We recommend two strips of tape per tread. One on the nose and one at the back. As an example for the 36" tread you would need 72" or 6' of tape.

The Berlin bleacher nylon glide P1501BE has an outside diameter of 3/4", a collar outside diameter of 1/2" and a inside diameter of 3/8", with a thickness of 3/8"

Metal Swivel based Chair Glides for Heywood Wakefield Chairs. This Chair glide is used on a round tubing chair leg with a  9/16" O.D. x 7/16" I.D. This glide is With Out a Ferrule. The base of this glide is 1 1/4". This glide has a clip that holds the glide on by going inside the chair leg.

Truth 22.17 Awning Window Operator

Surface mounted Truth Awning Window Operator.  The arms span 13-1/4” from rivet to rivet.  The mounting holes measure 6-7/8” on the outside screws center to center, and 6” center to center on the two inside mounting screws.

Truth Part # 22.17

Casement Window Operator 11" Arm

Die cast housing with steel arm. The hole spacing of the window operator housing is 4-3/4" on the outside screws and 3-7/8" on the inside two screws. The arm is 11" from the roller to the center of the window operator housing. This operator uses a 5/16" spline operator, part #Ro169516.

Non swivel chair glides for round tubing

7/8" outside diameter
3/4" inside diameter
1-1/16" base diameter
Nickel plated metal base

Jackson 1085 Lever Arms

Replacement Lever Arm for the Jackson 1085 Housings, both sides.  And the Jackson 1095 Inactive (hinge side) Housings.  Handing is determined by standing inside and looking out, if the arm in on the right hand side of the door, it is a right hand lever that you would order.

Jackson Part # RH 30-1242/LH 30-1243

Hussey Power Tractor Replacement Pads, overall with 8"x 1-1/2"
screw post, outside 6-5/8"
inside post 4-5/8"

Plastic Chair Tips for  Round Tubing chair legs with a  7/8" Outside Diameter X 3/4" Inside Diameter. Available in Black only.

Black Plastic Chair Tips for  Round Tubing with a chair leg 7/8" Outside Diameter X 13/16" Inside Diameter. Available in Black.

Plastic Chair Tips for Square Tubing chair leg with a 3/4" Outside Diameter X 5/8" Inside Diameter. Available in Black only.

Bobrick Partitions Nylon Cam

Natural nylon construction. The nylon cam head diameter is 7/8" with an inside diameter of 11/16". The cylinder diameter is 3/4" and has an overall length of 1-11/32". For use with a 5/8" diameter pintle. Also known as a Bathroom Stall Door Hinge Cam. Manufacture part # 98245.

Window Pole Hook

Cast white bronze construction. 3/4 inch inside diameter x 3-1/2 inch long, for use on elevated windows. Pole not included.

Sico New Style Square Post Stool Tops. The new style Sico Stool Tops measure 13" diameter x 7/8" Square inside diameter.

KTSICNCU-Dark Blue
KTSICNCR-Red
KTSICNCA-Black

Sico Part # 4012-xxx

Square Plastic Chair Tips for Square Tubing chair legs with a 1" Outside Diameter X 15/16" Inside Diameter chair Leg. This tip is a rocker style tip for use with slanted square chair legs and comes in black only.

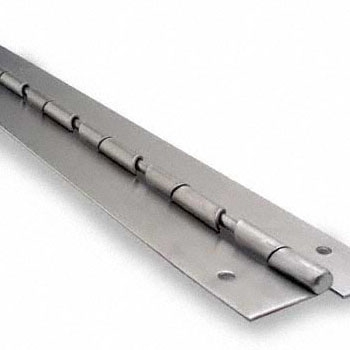

Toilet Partition Continuous Hinge, 57" Long Non Handed,14 Gauge Stainless Steel ,1/4" Diameter Pin, Cam Close. The hinges must be mounted flat when door is shut. For inside swing the hinges are mounted on the inside of the stall. For the outside they must be mounted on the outside.

This is the most Heavy Duty Continuous Full Length Hinge we sell. 14 gauge (.075" thick) stainless steel construction with a 1/4" diameter hinge pin. The hinge leafs are angle cut so your door will close with the camming action. The hinge is 3" wide when laid flat, and 57" long. Screws are spaced 11" apart and the holes are 9/32" diameter and has 6 sets of holes. Hinge can be raised up 3/8" for emergency entry. Also known as a Bathroom Toilet Stall Full Length Continuous Hinge. Manufacturer part #7789, 160029, 650-9400.

Casement Window Handle-2-3/8"

The hole spacing is 2-3/8" between screws and has a 1/2" lock up (distance between inside of cup to back of handle). Cast white bronze with a brushed nickel finish.

Right hand shown

Brunswick Chair Replacement Caps. Metal cap measures 1-1/16" outside diameter by 1" inside diameter by 3/8" tall. This Chair Tip is designed to be used on Brunswick Chairs.

2-1/4" knob pinned to a straight spindle. The inside kob is attached
with two case hardened set screws. 3/8-20 tread on knob and spindle.

Round Black Plastic Chair Tips Round Tubing for 1" Outside Diameter X 7/8" Inside Diameter Chair Legs, available in black only.

Window Lock Keeper

1-3/4" hole spacing x 1/2" deep x 13/16" inside lock up

White bronze construction, satin nickel plated

Bobrick Partition Bottom Door Insert For 1" Door

Chrome plated Zamac die casting. The door insert outside measurements are 2-5/16" wide by 1-5/32" deep by 1-3/16" tall. The inside dimensions are 1" and the hex hole measures 3/4". The round hole measures 5/16". Also known as a Bathroom Stall Door Insert - Bottom 1". Manufacture part # 2490

Rocker Type Plastic Chair Tips for Square Tubing with a 1" Outside Diameter X 7/8" Inside Diameter Legs. This tip is used on slated square legs and available in black.

Truth Nylon Tie Bar Guide 41157

This nylon guide is used when you have multiple sash locks on your window.  Inside the window, or sometimes on the surface these  nylon guides keep the connecting rods in place, so you only have to actuate one lock to lock multiple locks.

Truth Nylon Tie Bar Guide 45141

This nylon guide is used when you have multiple sash locks on your window.  Inside the window, or sometimes on the surface these  nylon guides keep the connecting rods in place, so you only have to actuate one lock to lock multiple locks.

Von Duprin Strike 385A

The Von Duprin 385A Strike is used on the floor for the Von Duprin 2227, 8827, 9827 and 9927 Surface Vertical Rods. The strike face plate outside dimensions are 2-1/4" x 2-1/4" with an inside dimension of 1-1/8" by 1". This floor strike features a bolt that can be cemented into the floor. Zinc plated finish.

The Matte Black Hadrian Continuous L Bracket is constructed of stainless steel and measures 1-1/2"Wx1-1/4"Hx57-1/2"L. These are not designed to be through bolted together. Designed to be mounted on the inside of a partitions stall so hardware is not visible from the outside. Bracket comes with fasteners to install. Known as manufacturers part number H60358-BLK.

Friction Ring Plastic Inserts For Square Chair Legs for 7/16" diameter friction ring casters only.

Tubing Inside diameter / Part #'s

5/8" KK5A41
3/4" KK5A42
7/8" KK5A44
1" KK5A46
1-1/8" KK5A48

Non swivel chair glides for round tubing

3/4" outside diameter
9/16" and 5/8" inside diameter
1-1/16" base diameter
Nickel plated metal base

Metal Based Swivel Glide for round tubing.  9/16" O.D. X 7/16" I.D. With Ferrule. Heywood Wakefield replacement chair feet. Metal chair foot with a 1 1/4" diameter base. Metal base glides are very popular in schools and institutions and move easily across smooth or carpeted floors.  Metal base glides are nickel plated and are extremely durable, but when they do wear out, they will scratch the floor.  The glide freely swivels beyond 30 degree angle. Glide grips the inside of hollow legs with a holding clip, meaning it grabs the inside of the leg.

Roto Casement Operator

This Roto Casement Operator features a hole spacing of 3-1/2" on thee outside mouting holes and 1-7/8" on the two inside mouting holes.  The housing is contructed of die case metal that is electro-statically painted.   The housing is 5-1/2" wide.  The optional handle fits the 5/16" Hex Shaft.

Left Hand Shown in picture

Square Plastic Chair Tips for Straight Square Tubing chair legs with a  3/4" Outside Diameter X 5/8" Inside Diameter. Available in black only.

The 7020 is a smooth surface rubber stair tread.   These treads come in Square and Round Nose, this page is for the Square Nose, for Round Nose search 7020RD. The treads are 1/4" thick at the nose and taper to 3/16" at the rear.  For the Grit Stripped version you would order the 2020. They are designed for interior use.

Swivel Based Chair Glide for round tubing with measurements of 7/8" O.D. X 3/4" I.D. This chair glide does NOT feature a Ferrule, This glide has a clip that holds the glide on by going inside the chair leg. The Chair Glides Base diameter is 1 1/4".
