EM 17 Ball Top Hanger

Heavily plated hanger of 3/16" wire, shaped, and securely formed to take maximum abuse, available in open hook, ball top and closed loop.

Materials: 3/16" Wire

EMCO

The Von Duprin 090076 Spring is located in top latch of the Surface Vertical Rod.  It is used on the 2227, 3327A, 3427A, 9827 and 9927 models. It is number 18 in the attached diagram. They are sold in packages of 10.

Von Duprin 9927 Top Vertical Rod

Please call if your door is higher than 7'1", The rod is field adjustable for doors up to 7'1". For larger doors, we have to order a Rod Extension which we do not show online yet.

Old Von Duprin part # 110573
New Von Duprin part # 050512

Medart Bleacher Top Bar Only for front row truck assembly.

Flush Metal Partitions Top Hinge Escutcheon For 7/8" Thick Door

Chrome plated Zamac die casting. Top hinge insert outside dimensions are 2-3/8" by 1" wide by 1-5/8". Two of the three holes are 13/32" diameter and the third is 7/32". Also known as a Bathroom Stall Door Inser Top 7/8". Manufacture part # 1540.

Bobrick also used this insert.

The Dorma RTS88 Top Arm 8835 is for use on Double or Single Acting doors that have a 1" top rail.  This is the standard arm on the RST07 and RST10 packages.

Dorma Part # 8835

Flush Metal Partitions Top Hinge Casting For Metal

Unplated Zamac die casting construction. The outside dimensions of the top hinge casting are 5-1/8" high by 2-5/8" deep by 25/32" wide. Two of the three holes are 3/8" diameter, and the other hole is threaded for a 5/16-18 screw. Also known as a Bathroom Stall Door Insert - Top 1". Manufacture part # 4556.

Penco Locker Tops or Bottoms for replacement. They are only used for the very top and Bottom of the lockers and as a divider. Made of 24 gage steel only available in 073 champagne. 4-6 weeks delivery.

Fiat Partitions Top Door Insert For 1"

Chrome plated Zamac die cast construction. The hinge U insert has outside dimesions of 2-3/16" wide by 1-1/2" by 1" deep with tow holes 1/2" diameter. The inside distance between the U's is 1-1/16". Also known as a Fiat Bathroom Stall Door Insert Top 1". Manufacture part # 4800.

Penco Locker Top Cam assembly for double door lockers.

Toilet Partition Top Hinge Assembly For 1" Thick Door, 1-1/4" Pilaster Square Edge Chrome Plated

Polished chrome plated zamac die cast construction. Kit includes Top Hinge, Top Hinge Pin, and Top Hinge Door Insert. Top hinge measures 2-1/4" high by 1-1/4" wide with screw spacing of 1-1/2". Mounting lug projects out 1-1/4". Also known as a Bathroom Stall Top Hinge Kit. Manufacture part number 63720.

Screws are also included.

• Standard top pivot for heavy-duty offset
pivot sets
• Heavy-duty needle bearings are standard
• Non-ferrous base metal
• 3/4"(19mm) offset (measured from
centerline of pivot to face of door)
• Furnished with wood and machine screws

Handing diagram

Partition Top Hinge Casting

Unplated Zamac die cast construction. The outside dimensions of the top hinge casting are 3-7/16" high by 2-3/8" wide by 1-5/32" deep. The casting features four holes, two of them are 3/8" diameter, one is 7/32" diameter and the fourth is a threaded hole for a 5/16-18 screw. The two U channels have spacings of 13/16" and 1" on the other. Also known as a Bathroom Stall Door Insert - Top 1". Manufacture part # 4546. Used with AMPCO and Metpar Toilet Partitions.

Need extra brackets for your Secuity Latches, you can order them here.  The are sold individually.  Constructed of welded steel and this then powder coated black.

Von Duprin 33/3547A/48A Adjustable Top Rod

Replacement Von Duprin 33/3547A/48A Adjustable Top Rod for 6'8" to 8'4" doors.

Von Duprin Part # 050519

Sargent Exit Device 90 Series Mouse Trap Spring

Used on the Sargent 9898 Rim Device on the opposite side of the case as the latch bolt.

Sargent part # 98-2159

Von Duprin 98/9947 Adjustable Top Rod

Von Duprin 98/9947 Adjustable Top Rod for 6'8" to 8'4" doors.  This rod is used on the 9847, 9847-F, 9947 and 9947-F

Von Dupin Part # 050574
Old Part #110375

Partitions Toilet Top or Bottom Hinge for plastic laminate doors used for top or bottom for 1 1/4" square edge post. The hinge mounts to the post to support the door. Chrome plated Zamac die cast construction. The hinge measures 2-1/4" high by 1-1/4" deep with a slot depth of 1-5/16" and 1-1/2" between screws on center. Hinge lug projects out 1-11/16" and is 1/2" thick with a 5/8" diameter hole. Also known as a Bathroom Stall Pivot Hinge Top/Bottom 1-1/4". Manufacture part # 3540. Same as 9G631A on our website.

Rubber Crutch Tips For 3/4" Round Chair Legs. This rubber chair tip fits a chair leg with a 3/4" outside diameter. Protect your floors from damage by using Rubber Chair Crutch Tips. Available in black or tan. Other sizes available. Easy to install, simply slide over your chair leg tubing. Great to use on chair legs, stools, tables and other applications where a heavy duty chair tip is needed.

CRT75B BLACK

CRT75 TAN

American Sanitary Partitions Top Hinge Door Insert For 1"

Chrome plated Zamac die cast construction. The hinge insert outside dimensions are 2-3/16" wide by 1-5/32" deep by 1-13/16" high. The two holes have a diameter of 13/32". Also known as a Bathroom Stall Door Insert Top 1". Manufacture part # 2400.

Knickerbocker Partitions Top Hinge

Chrome plated Zamac die cast construction. The wrap around dimension is 1-1/4" wide by 1-3/4" high and 11-16" deep.The hole spacing is 1-1/8" on center. The lug projects out 1-3/8" to center hole with a 1/4" bushing diameter. Also known as a Bathroom Stall Pivot Hinge - Top 1-1/4". Manufacture part # 3910.

a=1-11/16"

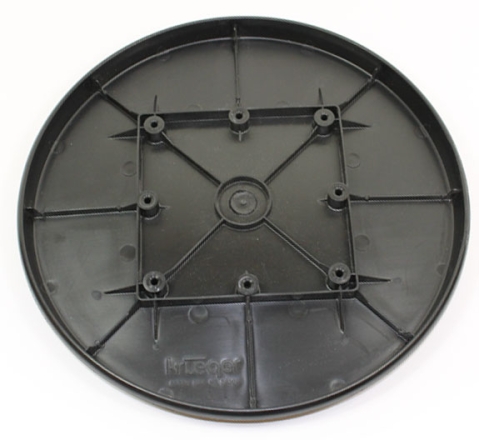

Krueger Stool Tops. This replacement stool top measure 12-3/4" diameter x 7" diagonally between holes. The stool seats come in red, sand, black and blue.

KTKRR-Red
KTKRS-Sand
KTKRA-Black
KTKRU-Blue

Metpar Partitions Top Pin 3/8" Diameter By 3-1/4" Long For Laminate Partitions

Threaded steel construction. The top pin measures 3/8" diameter by 3-1/4" long with 5/16-18 threads. It has a screw driver flat slot on one end. Also known as a Bathroom Stall Door Top Hinge Pin. Manufacture part # 98584.

Global Partitions Top Hinge Pin

Zinc plated steel construction. The hinge pin is 3/8" diameter by 3-3/4" long. Also known as a Bathroom Stall Door Hinge Pin. Manufacture part # 98544.

Von Duprin 8827 Top Vertical Rod, rod measures 35-1/2 inches.

Hamilton Stool Tops. The Hamilton Stool Top measures 12-3/4" diameter x 7" diagonally between screws. This School Cafeteria table seats are available in Black, Burgundy, Marine Blue, Red and Royal Blue.

KTHAMBU-Burgundy
KTHAMA-Black
KTHAMU-Royal Blue
KTHAMR-Red
KTHAMMB-Marine Blue

Toilet Partition Top Hinge Assembly For 1"Door,1-1/4"Pilaster Square Edge Cast Stainless Steel

Cast stainless steel construction. Set includes top hinge, pin and door insert. Also known as a Bathroom Toilet Stall Top Hinge Kit. Manufacture part #63043.

Shipped with mounting screws.

Von Duprin 2227 Top Vertical Rod.

The standard top rod will fit a 7'1" door, if your door is higher than 7'1", you will need to top rod extension. The top rod is field adjustable to fit any door less than 7'1". Please call if your door is higher than 7'1"

Von Duprin part # 109361

Double Door Latch for doors without a center post. Shown with out lock. Optional lock is just to prevent theft.

The Dorma RTS88 Top Arm 8831is for use on Single and Double Acting doors.  This is the standard arm in the RST01 and RST02 Packages.

Dorma Part # 8831

Von Duprin 5654 / 5754 Top Fitting and Cover

THe Von Duprin 050135 Top Fitting and Cover for the 5654 and 5754 Mullions.   Package includes the Top Fitting and Cover, and all of the fasteners.

Von Duprin Part # 050135

American Sanitary Partitions Top Hinge Pin

Zinc plated steel construction. The hinge pin is 3/8" diameter by 3-3/4" long. Also known as a Bathroom Stall Door Hinge Pin. Manufacture part # 98544.
