Door Pull 22

This door pull features an opened end and a closed end pull. This Door Pull is also known as a Door Handle or Door Grip. The handle ships with thru bolts and finish washers. The dimensions are shown below.

3/8" x 1-1/4" handle cross section
8" centers
14" overall length
1" diameter base
1-7/8" projection

Finishes

Truth 11.16 Awning Window Operator.

24-3/4" spread when in the closed position.

The Wi11454 handle in matching color is included with the operator.

Metal Swivel Glide 1" O.D. X 7/8" I.D. W Ferrule-Nylon Base. Nylon based swivel glides are for round tubing chair legs. This swivel base chair glide is for chairs with an outside diameter of 1", inside diameter of 7/8" and the base of this chair glide is 1 1/4". Metal base glides are very popular in schools and institutions and move easily across smooth or carpeted floors.  Metal base glides are nickel plated and are extremely durable, but when they do wear out, they will scratch the floor.  The glide freely swivels beyond 30 degree angle. Glide grips leg with outside holding clip, meaning it grabs the out side of the leg, see more views for picture of outside holding clip.

International Door Closer 3010-PT Arm

International Door Closer 3010-PT Arm, PT type end loading top arm assembly (7/8" depth top rail). All screws included with package.

International Door Closer 3020-VO Arm and Track

International Door Closer 3020-VO Arm and Track for Offset Top Arm Assembly Mortised Type (7/8" Depth of Top Rail). Track measures 12-5/8" long by 1/2" high by 1-1/4" wide.

LCN Door Closer 4050 Rw/PA

This new LCN Door Closer is a direct replacement for the Norton 7500 and Yale 4400 Door Closers.  It features, a cast aluminum cylinder, 2-3/8” x 6-3/4” hole spacing, 25 year warranty, powder coated finishes, and stick on mounting template.  This door closer comes with the ability to mount on the push, pull or top jamb and is non handed.   The door closer meets Grade 1-ANSI A156.4, UL/cUL, ADA and the Buy American Act certifications.

Metal Swivel Glide for a chair with  1" O.D. X 7/8" I.D. leg. This Metal Glide also has a Ferrule on the top. Metal base swivel glides for round tubing, with 9/16" high ferrule. 1-1/4" base diameter on this glide. Metal base glides are very popular in schools and institutions and move easily across smooth or carpeted floors.  Metal base glides are nickel plated and are extremely durable, but when they do wear out, they will scratch the floor.  The glide freely swivels beyond 30 degree angle. Glide grips leg with outside holding clip, meaning it grabs the outside of the leg, see more views for picture of outside holding clip.

Door Pull 46

12" overall
8" centers
1-1/2" x 1-1/2" base
2-3/8" projection

Finishes

International Door Closer 851 Series

FEATURES

Two Adjustment Valves: Closing and Latching speeds controlled by separate regulating Valves,

Universal application Non-handed for standard top jamb or parallel arm installation. Ships with regular and parallel arm bracket

3/4" x 6-3/8" mounting holes

International Door Closer 852 Series
FEATURES

Two Adjustment Valves: Closing and Latching
speeds controlled by separate regulating Valves,

Universal application Non-handed for standard top jamb or parallel arm installation. Shipped with regular and parallel arm bracket.

3/4" x 7-3/8" mounting holes

Truth 10.11 Lever Operated Awning Operator.

Handle assembly projects less than 2"

Partition Surface Mounted Stainless Steel Slide Bolt Latch 1-7/8" Screws. Stamped stainless steel construction. Base is 2-7/8" high by 1-3/8" wide by 5/32" thick. Latch bolt is 2-1/4" long x 13/16" wide x 1/8" thick, and the slide distance is 25/32". Also known as a Bathroom Stall Stainless Steel Slide Latch and Toilet Partition Locks. Manufacture part # 6309. Shipped with mounting screws.

LCN 4040XP Door Closer

• Strongest Pinion Ever - At 3/4”, It’s The Super Hero Of Pinions
• Taller Bearings - 5/8”, Real Muscle Against Forced Openings And Closings
• An Overall 44% Increase In Maximum Load Capacity
• Tougher Teeth - Fight Wear And Tear
• V-Shield Seal With 20% Longer Life
• Better Wear Resistance From Sagging Doors And Warped Frames
• XP = eXtra Protection In Real-World Applications

We ship the 4041XP Rw/Pa (Regular Arm with Parellel Arm Bracket)

Truth Entrygard Cover and Handle

Features the Truth Wi1510COV (10341) cover and Truth Wi11454 (11454) handle, packaged in a convenient package.

Complete Plastic Laminate in a Corner Partitions, Plastic Laminate Overhead braced floor mounted stalls. Standard stalls 36"x 60"depth (24" door), ADA stall 60"xx60" depth(36" door). All hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. Plastic laminate Partitions ship in 2 business days. Global Plastic Laminate color chart

Cal Royal 2000 and 5000 Knob Trim

Floor Saver Glide Cap Protective Chair Tip

This Glide Cap has a raised ring on bottom to prevent your chairs from scratching your floors, while at the same time extending the life of your current glides. The raised ring will push the dirt that is on the floor away so it will not scratch the floor. This cap will fit on all of our Metal and Nylon Based Swivel Glides.

This Glide Cap is designed for use with our SGR Glides, or Swivel Glides Round 1-1/4" bases.

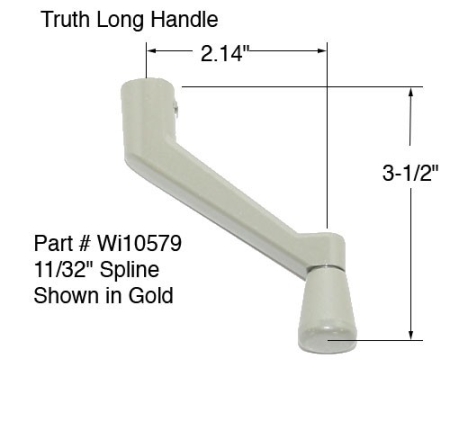

Truth 10579 Window Operator Handle

11/32" spline, we some times find the number 45054 stamped on the back side of this handle.

Truth part # 10579.xx where xx is the color code

LCN SEM7840-516 Magnet Core Assembly

Tri Voltage Magnet Core only. 35 pounds of holding force at nominal input voltage. Maximum current draw is .020 A @ 24 volt and 120 volt, and .030 A @ 12VDC. Cylinder is 1-3/4" diameter and projects out 7/8" out from the mounting plate.

LCN part number SEM7840-516

International Door Closer 3010-K Arm

International Door Closer 3010-K Arm, K type end loading top arm assembly (5/8" depth top rail). All screws included with package.

Norton PT24SOL 24 Volt Solenoid Assembly

If your Norton or Yale PowerTrack Door Closer is not holding the door open, this is usually the problem. To trouble shoot, first make sure you have voltage going to the solenoid. If you have voltage going in, and the door is still closing, then your solenoid is burned out. The solenoid is under constant voltage, so they do not last forever. The assembly measures 6-1/2" long by 1-1/8" wide with a height of 3/4". We sometime find the number F98024SH.1315 24 VDC on the solenoid.

Norton Part # PT24SOL

Door Pull 47

7-3/4" overall
7" centers
3/4" x 1" base
2-3/8" projection

Finishes

Partition Door Hook & Bumper Stop Inswing Stamped Stainless Steel

Stamped stainless steel 1/16" thick construction. The hook and stop measures 5/8" wide by 2-3/4" high by 3-1/16" projection with a 1" hole spacing. There is a rubber bumper on the end of the 3-1/16" projection. Also known as a Bathroom Stall Hook. Manufacture part # 4009

Door Pull 12

This handle has a 5-1/2" centers hole spacing and is 6" overall. It has 2" projection with 1-3/8" clearance and the base is 5/8" x 1-1/4". Also known as a Door Handle or Door Grip. Shipped with thru bolts and finish washers.

Finishes

Truth Entrygard 10341 Cover.

Replacement cover, fits all of the Truth Entrygard Operators. The cover is 5-1/4" wide by 1-1/8" deep by 1-1/4" high.

Truth Part # 10341

Plastic Construction

Cal Royal 2000 Dummy Trim

3" X 7-3/4"

Cal Royal Part # 2200DTP

The LCN Fusible Link melts at 165 degrees to release the hold open mechanism.   Link measures 1-3/8 long by a 1/2" wide, the center to center distance on the holes is 15/16".

LCN Part Numbers:
4010-28
4110-30
4020-31

Sargent Exit Device 20/30/60 Bracket

Bracket holds exit device on the door, and plastic cover mounts to it.

Sargent part #68-2141

Truth 15.39 Single Arm Window Operator.

6" long arm. Ships with matching handle.

Bronze, white or gold only.

Pro-Rite® Markerboards
BEST QUALITY!

PR-Series boards available with 1" maprail at no extra charge. Magnetic porcelain steel surface available in white or black. Trim and full-length shelf tray available in satin anodized aluminum or solid oak.

Marsh Advantage

Marker packet sent with each markerboard. Installation hardware sent with board. M-Class Packaging System offers the best protection in the industry during shipping. Custom Pro-Rite® sizes available, call with specifications.

International Door Closer 883 Series
FEATURES

Three Adjustment Valves: Closing and Latching
speeds controlled by separate regulating Valves,
and back check

Universal application Non-handed for standard top
jamb or parallel arm installation.

Direct replacement for the older style Norton 1602 and 1603, and Yale 52 and 53

3/4" x 8-3/16" mounting holes

Dorma 8916 Door Closer

we ship the Dorma Model # 8916-AF89P

2-1/8" x 5" hole spacing

Door Pull 15

This door handle features 7-1/2" centers on the mounting screws. With 2" diameter bases. The Grip has a 2-1/4" projection with a 1-5/8" clearance. Also known as a Door Handle or Door Grip. This handle ships with thru bolts and finish washers.

Finishes

Handicap Door Pull 18

With this handle you are able to get a closed fist behind the pull, which makes it a great ADA Door Pull. Shipped with screws. Also known as a Handicap Grip, ADA Door Pull or Handle.

Finishes

LCN SEM7850-828 Armature for Magnetic Door Holder
