Toilet Partition Continuous One Ear Wall Bracket For 1 1/4" Panel Aluminum

Constructed of extruded anodized aluminum. Base is 2-5/8" wide by 57-1/2" long, with screw holes every 13" or so. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs have a clearance of 1-1/4" for 1-1/4" thick panels. Sometimes known as Bathroom Stall Continuous One Ear Wall Bracket. The manufacturers part numbers are 2354, and 650-9186-57. These brackets are shipped with all the needed fasteners.

Door Pull 4" Centers Chrome Plated. Chrome Plated die cast handle. 4-3/8" wide x 7/8" projection, also known as 9a0171.

Knickerbocker Hinge Pin For Metal 1/4" Diameter 2-3/4" Long, Known as part number 216.

Rubber Crutch Tips For 3/4" Round Chair Legs. This rubber chair tip fits a chair leg with a 3/4" outside diameter. Protect your floors from damage by using Rubber Chair Crutch Tips. Available in black or tan. Other sizes available. Easy to install, simply slide over your chair leg tubing. Great to use on chair legs, stools, tables and other applications where a heavy duty chair tip is needed.

CRT75B BLACK

CRT75 TAN

LCN Sentronic Door Closer 4310ME

Standard LCN Sentronic Door Closer 4310ME series closer shipped with a 24V or 120V cylinder (please specify) on a mounting plate, metal cover, Swing-Free arm, track, track roller, and wood and machine screw pack. See 4310ME Series pages 23 & 24 for options. Sized cylinders for interior doors to 4’0”. Functions as full rack and pinion door closer when hold-open is not engaged or current is interrupted with Swing-Free arm engaged. Handed for right or left swinging door. Concealed or exposed electrical connections. Built-in “On/Off” switch controls hold-open function. Swing-Free arm allows door to be moved without door closer resistance. Interfaces with fire alarm systems. LCN Sentronic Door Closer 4310ME part are also available.

The Von Dupin PS902 is used to supply power to their MEL Exits, along with the Dor-O-Matic, Falcon and Monarch MEL Exits. Standard features are UL294 Listed for Access Control, Class 2 Rated Power Input, Regulated and filtered DC Outputs.  The PS902 is a 2A @ 12 or 24 VDC.  We ship the PS902-2RS, which has 2 Relay board output.

3/4" x 9-1/16" Hole Spacing,
Non-handed, Tri Pack Mounting- push-pull or top jamb mount.

Angle Base Kawneer Window Handle 1-1/4"

Cast white bronze, with brushed nickel finish.

Used on Kawneer Windows.

Steel Flag Bracket - 1-1/4". Zinc plated steel construction. The flag bracket projects out at a 45 degree angle. For use with 1-1/4" diameter staffs.

Doromatic SC80 Door Closer

3/4" x 12" Hole Spacing,
Non-handed, Tri Pack Mounting- push-pull or top jamb mount.
Adjustable Closing, Latching, Backcheck and Power Adjustments
Grade 1 Closer

We ship the SC81 Rw/PA

Knurled steel construction. Hinge pin is 3-1/4" long by 1/4" diameter. Also known as a Bathroom Stall Hinge Pin. Manufacture part # 99585.

The Doromatic Latch Screw PB17 is also known as the SCREW.1029.  The screw is a 10-32-1/4" with an undercut head.  This screw is used to hold the top and bottom latches on the door for the 1690 and 1990 series devices.

projects 1-3/4", 1-3/8"ht

3/4" center to center hole spacing

General Keeper Bumper For Concealed 1-1/4" Round Edge

Polished chrome plate Zamac die casting construction. Strike and Keeper measures 1-1/4" high by 2-3/8" wide by 1-3/4" deep. Stop is 1/2" thick and projects out 1-1/8". The latching slot is 7/16" deep x 3/4" high. This Bathroom Toilet Door Keeper is designed for use on 1-1/4" thick round edge posts or pilasters. Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5510.

Shipped with mounting screws.

Partition Anti-Grip Headrail 1-1/4" X 62" Type B Aluminum

Extruded anodized aluminum construction. The cross section measures 2-3/4" high by 1-11/32" by 65" long. The part that fits on top of the pilaster is 1-1/4" wide by 3/4" deep. The wall thickness on this part is 3/64". Also known as a Bathroom Stall Headrail. Manufacture part # 80052.

Also know as Part# 9THS621-1/4, 9THSSXX, and 9THLXX.

Stacking Chair Bumpers 3/4" Diameter, available in Clear Plastic only. 1/4" stem diameter, 7/16" stem length, 3/16" base height, 3/4" base diameter.

General Toilet Partitions Top Hinge For 1-1/4" Square Edge Pilaster Or Post

Chrome plated Zamac die cast construction. The hinge measures 2-1/4" high by 1-1/4" wide. The U channel is 2-1/4" by 1-1/4" by 1" deep. The lug projects out 1-5/8" by 1/2" thick with a 3/8" diameter bushing. Also known as a General Bathroom Stall Pivot Hinge Top 1-1/4". Manufacture part # 3790

A=1-5/8"

Bleacher Bolt Fastener Type J, 1/4-20 X 1-3/4" Long.

Truth 40097 4" handle extension. Great for use with blinds.

11/32" spline

Claridge Tackboards-Nucork Surface. 800 Series Type Co - 5/8" Face Trim. This item ships by truck.

Door Stop, Pilaster Mounted, 2-1/2" X 4-1/4", Stainless Steel.

Cast Stainless Steel construction. The door stop base is 3" wide by 1-1/4" high with a 2-5/16" hole spacing. The stop projects out 2-1/2" and has a rubber insert in it. This door stop is usually mounted on the pilaster or post. Also known as a Bathroom Stall Door Stop. Manufacture part # 4153.

Toilet Partition Bracket One Ear For 1-1/4" Panel Aluminum

Constructed of extruded anodized aluminum. The base is 2-5/8" wide x 1-1/2" high, with the two mounting screws 1-3/8" on center. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The distance between the legs is 1-1/4". It is designed for 1-1/4" thick panels. The 4 screw holes are 1/4" diameter. This bracket is also known as a One Ear Wall Bracket, 1844 One Ear Wall Bracket, Toilet Partitoin One Ear Bracket, or Bathroom Stall One Ear Bracket. The bracket is shipped with all the mounting screws.

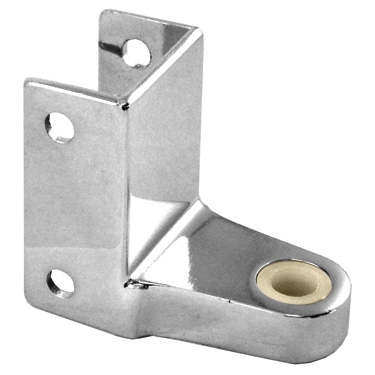

Chrome plated Zamac die cast construction. The hinge mounting U channel measures 2-1/4" high by 1-1/4" deep with an insert depth of 1-5/16". The hole spacing is 1-1/2" on centers. The hinge lug projects out 1-11/16" by 1/2" thick with a 1/4" bushing diameter. Also known as a AMPCO Bathroom Stall Pivot Hinge - Top 1-1/4". Manufacture part # 3610.
Ships with mounting screws.

projects 2-3/4", 4-1/2"ht

Sweep Lock 1-1/4" NuPrime

This window sweep lock is made of chrome plated die cast material. The hole spacing on this window lock is 1-1/4".  On this sweep latch we find the numbers D209812, D123,676, and Patent Nos. 3,449,862.  We also find NUPRiME by Season-All

Brunswick Bleacher Floor Pad 3/4" X 2" dia. Note hole 3/16", outer 7/16"x1/4" depth

American Seating 540 Classmate Chair Back 6-3/4" X 16-1/2". THE SEAT MEASURES 6-3/4" HIGH X 16-1/2" HIGH. SHOWN IN PARCHMENT. CORAL OR PARCHMENT COLORS available.

Toilet Partition Aluminum Square Post 1-3/4" X 10'

Extruded anodized aluminum. 1-3/4" x 1-3/4" x 10' long. Also known as a Bathroom Stall Aluminum Square Post. Manufacture part # 40-5443400G. Oversized part, has to ship Truck.

Reinforced Rubber Chair Tips For 3/4"Outside Diameter Round Legs

One of the biggest problems with rubber chair tips is the metal leg punching through the rubber feet. This happens because the metal chair legs are sharp and blunt. By installing a chair tube cap first, the rubber chair leg has more of a surface area to displace the weight.

Part # - Color
RCT75BTC - Black
RCT75GTC - Gray

Saddle Threshold 424 - 4" Wide By 1/2" High

Extruded aluminum construction. The thresholds are shipped with mounting screws (#10 x 1-1/2" FH zinc plated wood screws), Milled aluminum finish. This is considered a Handicap Saddle Threshold.

Other sizes and finishes are available, call for more information.

Air shipment is not available on this product. Please allow 7-10 days for delivery.

Plate Top Single Wheel Caster - Non Swivel (Rigid)- 4" Wheel, 1-3/4" x 3" Hole Spacing. Zinc finish with black rubber wheel. Available with a tread for carpet and a tread for non carpet areas.

KKAC51 hard tread for carpet

KKAC52 soft tread for non carpet surface

Roller Bumper Straight Arm 4" RB471

Features:

• Constructed in heavy-duty cast brass.
• RB471 is ideal for use in situations where doors meet each

other at approximate right angles (back to back).

3/8 inch square spindle unthreaded, 4 inches long with 6 holes tapped to a 10-24 thread.

Actuator 4-3/4" square, with blue engraved lettering with text.

projects 3-1/4", 2" dia
