Search results for: 'super stainless steel bracket for detex'

Occupancy Indicator Latch Handle is constructed of cast stainless steel with a satin finish. Latch handle is designed for 3/4" Doors and is through mounted to the occupancy indicator. Features a 4-1/2" length handle that is tapered at one end to engage with keeper for locking. Features emergency unlatching access on front of indicator. Shipped with fasteners for mounting occupancy indicator to door and pilaster. Known as manufacturer part number 4993.

Cast Stainless Steel Slide Bolt Latch W/Indicator. For 3/4" or 1" Door, 2-3/4" between screws. Also known as 8563009. This latch is Ada approved. There is no exact replacement available.

Sorry no longer available, see links for options

https://www.robertbrooke.com/bathroom/partition-parts/latches/chrome-plated.html

https://www.robertbrooke.com/bathroom/partition-parts/latches/cast-stamped-stainless-steel.html

Cast Stainless Steel Top Hinge for 1-1/4" Sq Edge

Cast Stainless Steel construction. The hinge measures 2-1/4" high by 1-1/4" wide. The U channel is 2-1/4" by 1-1/4" by 1" deep. The lug projects out 1-5/8" by 1/2" thick with a 3/8" diameter bushing. Also known as a Bathroom Stall Pivot Hinge Top 1-1/4". Manufacture part # 3793

a=1-11/16"

also known as general, american sanitary, flush, fiat

Stainless Steel Torque Head Barrel Nut Shoulder Screw for 1/2" - 3/4" Gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread, stainless steel unplated and uses a 6 lobe  head torque. Both pieces included.

• Ideally suited for use with rose or escutcheon 2-3/4" wide or less.
• For use with Type 86 Mortise and Type 161 Cylindrical Locks
  (ANSI 156.13 Series 1000 and ANSI 156.2 Series 4000).
• No exposed fasteners on face of unit.
• Unique design provides maximum security, virtually eliminating the
  opening between door and frame at the latch point.
• Available in 13 Gauge Stainless Steel or 12 Gauge Steel.

2-1/2" Wide x 9-1/2" High
Stud center to center: 8-1/2"

Push Plate 70

.125" thick with 4 beveled edges. Base material is either aluminum, brass, bronze or stainless steel depending on the finish. This would be considered a premium push plate.

Finishes

Stainless Steel #14 x 5/8" Screw 6 Lobe(T-27), 7/16" diameter head, also known as 92199. This uses a Torx bit to drive screw.

Toilet Partition Continuous Toilet Partition Hinge 57-1/2" With Spring Close Stainless Steel
Rh Inswing or Lh Outswing See Diagram

16 gauge (.060" thick) stainless steel with 4 springs. 3" wide when laid flat x 57-1/2" long. 1/8" diameter hinge pin. Mounting screws are located every 11" or so. Can be raise up 3/8" for emergency entrance. Also known as a Bathroom Stall Piano Hinge, or Full Length Stainless Steel Continuous Piano Hinge. Manufacture part # 7659.

Shipped with all the fasteners

Toilet Partition Continuous Toilet Partition Hinge 57-1/2" With Spring Close Stainless Steel
Lh Inswing or Rh Outswing See Diagram

16 gauge (.060" thick) stainless steel with 4 springs. 3" wide when laid flat x 57-1/2" long. 1/8" diameter hinge pin. Mounting screws are located every 11" or so. Can be raise up 3/8" for emergency entrance. Also known as a Bathroom Stall Piano Hinge, or Full Length Stainless Steel Continuous Piano Hinge. Manufacture part # 7669.

Shipped with all the fasteners

Stainless Steel Double Door Pull made for 3/4” and 1” thick doors. Measurements for the handle 6-5/8" width, 5-1/2" hole to hole spacing, 5" interior opening and 2" height. Constructed of stainless steel with though bolts for mounting back to back on partition doors.Commonly known as part number 189373. This double door pull kit comes with fasteners and Torx Bit(T-20) for 3/4" and 1" thck doors.

The 460 ADA Flush Pull measures 5 inches by 5 inches  and is made of 1/8 inch material.  The opening size is 3-1/2 inches by 3 inches. The pull is fastened to the door with 10-24 by 5/8 inch security torx with barrel nuts.  The pull is designed for 1-3/4 thick doors, please specify if your door is thicker than 1-3/4 inches.  Available in Brushed and Polished Stainless Steel and also Powder Coated Flat Black and Dark Bronze.

Stainless Steel #10 x 5/8" Long Screw 6 Lobe(T-27), 7/16" diameter head, Also known as 90969. This uses a Torx bit to drive the screw.

The PBB Horizontal Floor Spring is similar to the Boomer 7811.  Available in Black, Dark Bronze, Stainless Steel, and Satin Nickel.

Toilet Partition Stainless Steel Continuous Hinge, 71-1/2" Rh Inswing, Lh Outswing, 16 Gauge, 1/8" Pin

Stainless Steel Construction 16 gauge (.060" thick). Hinge is 3" wide when laid flat, by 71-1/2" long. Holes are spaced every 11" or so. The hinge pin is 1/8" diameter, and the mounting holes are 9/32" diameter. This hinge is also known as a Full Length Toilet Partition Continuous Hinge. The Bathroom Stall hinge can be raised up 3/8" for emergency entry. See "More Views" for handing information.

Manufacture part # 7759

Toilet Partition Heavy Duty Vault Hinge Set Stainless Steel For 3/4" Or 1" Thick Doors

Stainless steel construction. For 3/4" to 1" thick doors and 3/4" to 1" posts and pilasters. Also known as a Bathroom Stall Roller Bearing Hinge Set. Used by all of the Toilet Partition manufactures on there Solid Plastic (HDPE) Restroom dividers. Manufacture part # 7813.

Shipped with screws.

The C Shaped Offset Pull has 12 inch centers and has a 13 inches overall lenght. The clearance is 1-1/2 inches with a 2-1/2 inch projections. The handle is constructed on 1 inch diameter stock, the offset is 7 inches. The base is 7/8 inch round stock. The handle is furnished with thru bolts and finish washers.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

Stainless Steel Torque Head Barrel Nut Shoulder Screw for 1-3/16" - 1-3/8" gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread stainless steel unplated and uses a 6 lobe head torque. Both pieces included.

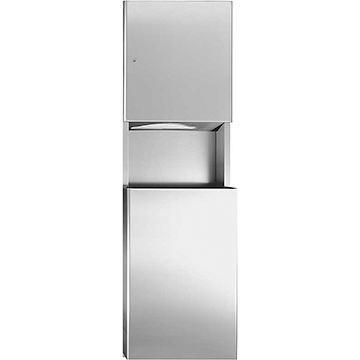

C-Fold, Multi Fold Towel Dispenser and Waste Receptacle
22 gauge Type 304 Stainless Steel
Heavy duty door and piano hinge
Tumble lock on doors and waste receptacle
600 C-fold or 800 Multi-fold towel capacity
12 gallon waste receptacle
15"w x 54"h x 4"d

LCN 4040XP Door Closer

• Strongest Pinion Ever - At 3/4”, It’s The Super Hero Of Pinions
• Taller Bearings - 5/8”, Real Muscle Against Forced Openings And Closings
• An Overall 44% Increase In Maximum Load Capacity
• Tougher Teeth - Fight Wear And Tear
• V-Shield Seal With 20% Longer Life
• Better Wear Resistance From Sagging Doors And Warped Frames
• XP = eXtra Protection In Real-World Applications

We ship the 4041XP Rw/Pa (Regular Arm with Parellel Arm Bracket)

Cast Stainless Steel Bottom Hinge for 1-1/4" Sq Edge

Cast stainless steel construction. The hinge measures 2-1/4" high by 1-1/4" wide and the hole spacing is 1-1/2". The U channel is 2-1/4" by 1-1/4" by 1" deep. The lug projects out 1-5/8" by 1/2" thick with a 5/16" diameter bushing. Also known as a General Bathroom Stall Pivot Hinge Bottom 1-1/4". Manufacture part # 3293.

Shipped with mounting screws.

a=1-5/8"

This is a replacement for the Zamac Die Cast hinges for General, American Sanitary, Flush Metal and Fiat Partitions.

Solid offset door pull 1-1/4 inch diameter round stock.  Handle has a 4 inch offset with a 2 inch clearance and 3 1/4" projection. Available in 12 or 18 inch centers.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

Stainless Steel Torque Head Barrel Nut Shoulder Screw for 7/8" - 1-3/16" gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread stanless steel unplated and uses a 6 lobe head torque. Both pieces included.

Toilet Partition Stainless Steel Continuous Hinge, 71-1/2"Lh Inswing ,Rh Outswing ,16 Gauge ,1/8" Pin

Stainless Steel Construction 16 gauge (.060" thick). Hinge is 3" wide when laid flat, by 71-1/2" long. Holes are spaced every 11" or so. The hinge pin is 1/8" diameter, and the mounting holes are 9/32" diameter. This hinge is also known as a Full Length Toilet Partition Continuous Hinge. The Bathroom Stall hinge can be raised up 3/8" for emergency entry. See "More Views" for handing information.

Manufacture part # 7769

C-Fold, Multi Fold Towel Dispenser and Waste Receptacle
22 gauge Type 304 Stainless Steel
Heavy duty door and piano hinge
Tumble lock on doors and waste receptacle
600 C-fold or 800 Multi-fold towel capacity
12 gallon waste receptacle
15"w x 54"h x 4"d

Toilet Partition Stainless Steel Continuous Hinge, 71", Non-Handed, 14 Gauge, 1/4" Pin

Stainless Steel Construction 14 gauge (.075" thick). Hinge is 3" wide when laid flat, by 71" long. Holes are typically spaced every 14". The hinge pin is 1/4" diameter, and the mounting holes are 9/32" diameter. This hinge is also known as a Full Length Toilet Partition Continuous Hinge. Hinge had rounded edge 3/8" radius and is cam (gavity) self closing. Designed to be zero degree hold so that door will close flush with partition surface. The Bathroom Stall hinge can be raised up 3/8" for emergency entry.

*Fasteners not Included *

Manufacture part # 160799

Black Occupancy Indicator Latch Handle is constructed of cast stainless steel with black finish. Latch handle is designed for 3/4" Doors and is through mounted to the occupancy indicator. Features a 4-1/2" length handle that is tapered at one end to engage with keeper for locking. Features emergency unlatching access on front of indicator. Shipped with fasteners for mounting occupancy indicator to door and pilaster. Known as manufacturer part number 4995.

Monarch 24 / 25 Series Channel End Cap Kit

This end cap is used on the Falcon 24 and 25 series devices.  Used to go by then number 600270, but the factory is now using the number 650294.  Includes bracket, screws and end cap.

Falcon Part # 650294

Corbin Russwin ED5400 Exit Device

Handing
Device is handed but easily field reversible.
Lever trim is handed.
Bar Length
Easily field cut to size.
Standard: 36" (914mm) bar fits 30"- 36" door.
Door Thickness
1-3/4" (44mm) standard.
Stile
Minimum width 4-1/2" (114mm).
Door Height
Standard top rod for 7' door.

Replacement parts are also available

Cast Stainless Steel Slide Bolt Latch 1-1/2"W X 3-1/4"L, 2-3/4" Between Screws. Used on Accurate and Global Toilet Partitions. Cast stainless steel, also known as 40-256300, 40-8562899, 8698. This latch is Ada approved.

Need extra brackets for your Secuity Latches, you can order them here.  The are sold individually.  Constructed of welded steel and this then powder coated black.

Toilet Partition Stainless Steel Continuous Hinge, 71", Non-Handed, 14 Gauge, 1/4" Pin

Stainless Steel Construction 14 gauge (.075" thick). Hinge is 3" wide when laid flat, by 71" long. Holes are typically spaced every 14". The hinge pin is 1/4" diameter, and the mounting holes are 9/32" diameter. This hinge is also known as a Full Length Toilet Partition Continuous Hinge. Hinge had rounded edge 3/8" radius and is cam (gavity) self closing. Designed to be 20 degree hold so that door will close and rest at 20 degress from being flush with partitions surface but can be pulled flush. The Bathroom Stall hinge can be raised up 3/8" for emergency entry.

*Fasteners not Included *

Manufacture part # 160809

stainless steel
for both liquid and lotion soaps
ADA horizontal soap dispenser
8" w x 5" h x 5"d
40 oz. capacity
Bulk Fill

Toilet Partition Alcove Clip Set, 2 Pieces, For 1" To 1-1/4" Panel Stainless Steel Plated

These clips are 1-1/2" tall x 2-1/4" wide. The screws are 1-1/2" on center, with 1/4" diameter holes. The clip is constructed of cast stainless steel material. This part is also know as Bathroom Stall Alcove Clip Set, or Toilet Partition Alcove Clip. The manufacturers part number is 8343. These clips are sold in sets with the fasteners. They are used to connect a 1" panel to a 1-1/4" panel.

The Door Pull Offset #39 Handle is constructed of either solid aluminum, brass or stainless steel. The handle is 1" diameter tubing with a 2-3/4" offset and 2-3/4" projection. This is the most common type of handle you use today.  Just about every aluminum framed storefront door has a version of this handle. This handle is available in 8", 10", 12" and 18" centers on the mounting holes. The back to back mounting is for Metal or Wood Doors that are 1-3/4 thick. Included fastener is threaded into one of the handles, and the Stud End has fits into the inside handle and is held in place by a set screw on the handle.

Package includes two offset pull handles and fastening hardware. Shown in Polished Stainless Steel with 12 inch centers.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks.

C-Fold, Multi Fold Towel Dispenser and Waste Receptacle
22 gauge Type 304 Stainless Steel
Heavy duty door and piano hinge
Tumble lock on doors and waste receptacle
600 C-fold or 800 Multi-fold towel capacity
12 gallon waste receptacle
h15"w x 54" x 4"d hole opening
17-1/4"x56"ht x 4" overall dimension.

Yale 7100 Exit Device

Door Opening Width:
-36 for 30" - 36" (762 - 914mm) doors
-48 for 36-1/2" - 48" (927 - 1219mm) doors
Door Thickness: 1-3/4" (44mm) standard.
Minimum Stile Width: 4-1/2" (114mm)
Projection: 3-1/4" (83mm) active, 2-3/4" (70mm) dogged
Latchbolt: 3/4" (19mm) deadlocking stainless steel Pullman-type
Strike: 757 (panic),
