Metpar concealed Ada lever latch knob with cover. Zamac die cast construction with polished chrome plating. Outside diameter of the knob and cover are 1-3/4" with the inner ring diameter of 1-7/32". The latch bolt is 11/32" diameter by 2-21/32" long, the square box has a height of 3/4". Also known as a bathroom stall concealed ADA lever latch cover and knob assembly or a barrier free concealed latch knob, Cover and pin. Manufacture part # 6080.

Global Top Hinge Pin For Laminate Partitions

Threaded steel construction. The top pin measures 3/8" diameter by 3-1/4" long with 5/16-18 threads. It has a screw driver flat slot on one end. Also known as a Bathroom Stall Door Top Hinge Pin. Manufacture part # 98584.

General Partitions Top Hinge

Chrome plated Zamac die cast construction. The wrap around dimension is 1-1/4" wide by 1-3/4" high and 11-16" deep. The hole spacing is 1-1/8" on center. The lug projects out 1-3/8" and is 1/2" thick with a 1/4" bushing diameter. Also known as a Bathroom Stall Pivot Hinge - Top 1-1/4". Manufacture part # 3910.

a=1-11/16"

Monarch 19-24-25-XX Latch Cover 3781

This Latch Cover is used on the Monarch Falcon 19, XX, 24 and 25 series devices.  Used to go by then number 3781, but the factory is now using the number 650202.

Falcon Part # 650202
Old Monarch Part # 3781

Accurate Standard Turn Latch with Screw. This version started January 2013 for all accurate partition doors and ended September 2021. This old style is the exact same as Global's version, except the name on the cover latch part. Also known as 40-8513300. Chrome plated finish.

This turn latch will not replace previous version of Accurates old style turn latches that are no longer available.

Ives Roller Latch RL30

The Ives Roller Latch RL30 is constructed of Forged Brass and Plated to your finish.   Furnished with a Nylon Roller.   Body measures 1" wide by 3-3/8" high by 1-11/16" deep. The roller has a maximum projection of 3/8" and is easily adjustable.

Plate Top Single Wheel Caster - Swivel - 3" Wheel, 1-3/4" x 3"" Hole Spacing. Ball Bearing Swivel. Black finish with black rubber wheel. Available with tread for both carpet and non carpet areas.

KK9C41 hard tread for carpet

KK9C42 soft tread for non carpet surface

The 882 Low Profile Landing Tile is designed for use with the 820R Stair Treads.   The tiles measure 19-11/16" x 19-11/16".

Size:  19-11/16" x 19-11/16"
Overall Thickness:  1/8"

Fiat Toilet Partitions Top Hinge For 1-1/4" Square Edge Pilaster Or Post

Chrome plated Zamac die cast construction. The hinge measures 2-1/4" high by 1-1/4" wide. The U channel is 2-1/4" by 1-1/4" by 1" deep. The lug projects out 1-5/8" by 1/2" thick with a 3/8" diameter bushing. Also known as a Fiat Bathroom Stall Pivot Hinge Top 1-1/4". Manufacture part # 3790

A=1-5/8"

Chrome Plated Slide Bolt Latch 1-1/2" Wide X 3-1/4" High, 2-3/4" Between Screws. Die cast construction and polished chrome plated. Used on Accurate Toilet Partition and Global Toilet Partitions. Also known as a Surface Mounted Bathroom Stall Slide Latch and Toilet Partition Locks. Known as 40-8512899. Shipped with mounting screws. This latch is Ada approved.

Global Partitions Top Hinge For Flat Surface Mounting. Chrome plated Zamac die cast construction. Used with powder coated steel and stainless steel partition doors. Pivot hinge is 2-3/16" tall by 1-1/2" wide. The hole spacing is 1-1/2" on center. The lug projects out 1-1/2" and is 1/2" thick. The bushing on the lug is 3/8" diameter. Manufacturer part # 135580. Same part for Flush Metal and General Partitions. Shipped with mounting screws. A=1-7/6". Also used with Accurate Partition doors after January 2013.

Toilet Partition Slide Bolt Latch Stainless Steel

Cast stainless steel construction. Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5023.

Shipped with mounting screws.

also known as 9F0302SS

Plate Top Single Wheel Caster - Swivel - 5" Wheel, 1-3/4" x 3"" Hole Spacing. Ball bearing swivel, zinc finish with a black rubber wheel. Hard tread and soft tread caster available for both carpet and non carpet areas.

KK9C61 hard tread for carpet

KK9C62 soft tread for non carpet surface

Zamac die cast construction, polished chrome finish. Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch. Manufacture part # 5020.

Shipped with mounting screws.

Plastic chair tip for 5/8" diameter round tubing chair legs. Protect your floors against scratches and marks. These chair tips are available in tan, gray and black in a variety of sizes. Chair tips help prevent chair legs from coming through and damaging your floors. For Krueger Chairs, Tables and other furniture where the leg has a 5/8" outside diameter.

Available in Tan, Gray, and Black

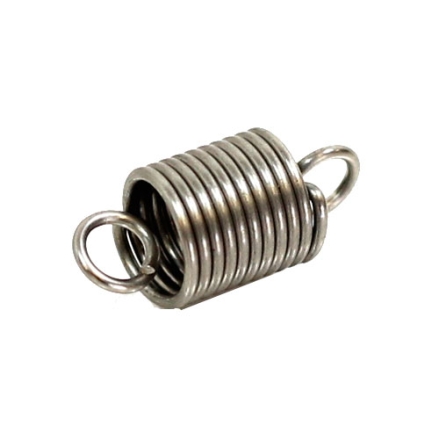

Sargent Latch Bolt Spring.

Used to put tension on the latch bolt of the 20, 30, 60, and 80 Series Sargent exit devices

Sargent Part # 98-0028

Sico Plastic table glide, for use on heavy table have a 1" outside diameter leg.

Aurora Steel Product Locker Latch Only. Also known as 20501, 7220, 81016, au6606.

Plate Top Single Wheel Caster - Non Swivel (Rigid)- 5" Wheel, 1-3/4" x 3" Hole Spacing. Zinc finish with black rubber wheel. Tread for both carpet and non carpet areas available.

KKAC61 hard tread for carpet

KKAC62 soft tread for non carpet surface

Accurate stainless steel ADA turn latch with screw. This version started January 2013 for all accurate partition doors and end September 2021. This old style is the exact same as Global's version, except the name on the cover latch part. Also known as 40-8263350. Cast stainless steel finish.

This turn latch will not replace previous version of Accurates old style turn latches that are no longer available.

Flush Metal Top Hinge Pin For Laminate Partitions

Threaded steel construction. The top pin measures 3/8" diameter by 3-1/4" long with 5/16-18 threads. It has a screw driver flat slot on one end. Also known as a Bathroom Stall Door Top Hinge Pin. Manufacture part # 98584.

Jackson Exit Device replacement 1295 Latch Assembly.

Jackson Part # 302679

Lyon Folding Chair Rear Leg Foot, base is 1 1/4" x 13/16" and the insert measurement is 3/8" x 3/4". This is Lyon part number 1593.

Plate Top Single Wheel Caster - Non Swivel (Rigid)- 3" Wheel, 1-3/4" x 3" Hole Spacing. Zinc finish with black rubber wheel. Available with a tread for both a carpet and non carpet area.

KKAC41 hard tread for carpet

KKAC42 soft tread for non carpet surface

Toilet Partition Surface Mounted Ada Slide Bolt Latch Inswing Latch & Keeper Stainless Steel

Stamped stainless steel construction. Latch is 2" wide by 2-7/8" tall. Latch bolt is 2-3/4" long by 13/16" wide by 1/8" thick and has a throw of 25/32". The keeper is 1-1/2" by 1-1/2" by .075" thick, and projects out 7/16". Commonly called a Bathroom Stall Latch for inswinging doors and Toilet Partition Locks. Manufacture part # 6409 and 6539.

Shipped with mounting screws.

Dor-o-Matic top strike.

Used on the Dor-o-Matic 1490, 1690, 1990 and 2390 Concealed Vertical Rod Exit and Panic Devices. The plate measures 1" x 1-1/16" with 4 holes. The mounting holes are 11/16" x 11/16" on center. The diameter of the pin is 7/16" and projects out 5/32". Ships with mounting screws and 3 shim plates.

Doromatic part # PB48

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts Breakdown

Window Spring Latch

This spring latch features 1-3/8" hole spacing. They are used on older transom windows. White Bronze casting, nickel plated and then brushed

Cast Stainless Steel Slide Bolt Latch W/Indicator. For 3/4" or 1" Door, 2-3/4" between screws. Also known as 8563009. This latch is Ada approved. There is no exact replacement available.

Sorry no longer available, see links for options

https://www.robertbrooke.com/bathroom/partition-parts/latches/chrome-plated.html

https://www.robertbrooke.com/bathroom/partition-parts/latches/cast-stamped-stainless-steel.html

The Cal-Royal 227 Top Strike is used on the 7700, 9800, 6600, and 2200 Series Surface Vertical Rod Devices. The strike is Nylon Black Coated.

Doromatic SC80 Door Closer

3/4" x 12" Hole Spacing,
Non-handed, Tri Pack Mounting- push-pull or top jamb mount.
Adjustable Closing, Latching, Backcheck and Power Adjustments
Grade 1 Closer

We ship the SC81 Rw/PA

Global Partitions Top Hinge For 1-1/4" Round Edge Post

Chrome plated Zamac die cast construction. Pivot hinge is 2-3/16" tall by 1-1/4" wide. The slot that wraps around the post is 1-1/4" wide and 11-16" deep. The hole spacing is 1-1/2" on center. The lug projects out 1-1/2" and is 1/2" thick. The bushing on the lug is 3/8" diameter. Also known as a Bathroom Stall Pivot Hinge Top 1-1/4". Manufacture part # 3510.

Shipped with mounting screws.

A=1-7/6"
