Corbin Russwin ED5200 Exit Device

Handing
Device is non-handed.
Lever trim is handed.
Bar Length
Easily field cut to size.
Standard: 36" (914mm) bar fits 30"- 36" door.
Stile
Minimum width 4-1/2" (114mm).

Replacement parts are also available

1" diameter material
Establish the center to center dimension by subtracting the width of one stile from the width of the door. On solid doors, subtract 5" from the width of the door.

Please specify either wood or metal door, and its thickness; we'll supply
appropriate fasteners.

Please allow 3-4 weeks on Aluminum and Dark Bronze, and 2 weeks on the other finishes

Finishes

Ives Roller Latch RL30

The Ives Roller Latch RL30 is constructed of Forged Brass and Plated to your finish.   Furnished with a Nylon Roller.   Body measures 1" wide by 3-3/8" high by 1-11/16" deep. The roller has a maximum projection of 3/8" and is easily adjustable.

Stainless Steel global slide latch with indicator and emergency access. Overall dimension 2-3/4" x 1-1/2" with 2-1/4" hole spacing. Used with new style doors 10/1/21 to current. Used with a 1 inch door. Security screws included. Manufactures part number 40-8263010.

Toilet Partition Surface Mounted Ada Slide Latch Set W/ Indicator

Stamped stainless steel construction. Slide lock measures 4-3/16" long by 1-1/8" tall by 15/32" thick. The mounting plate has mounting screws 1-1/4" on center and is 2-15/32" long. The lock projects out 1-3/16" from the face of the door. The indicator is 2" in diameter and 13/32" thick. The keeper is 3/4" wide by 1-7/16" tall by 1/16" thick. Commonly known as a Bathroom Stall Surface Mounted ADA Slide Lock and Toilet Partition Locks. Manufacturer part # 6069. For 1" thick doors.

Shipped with mounting screws.

Concealed Latch Keeper Bumper Inswing For 1-1/4" Square Edge Post Cast Stainless Steel

Cast stainless steel construction. Keeper is 1-1/4" tall by 2-3/8" wide by 2-9/16" deep. The strike is a17/32" thick and the slot is 7/16" deep. The opening to mount it on the square edge pilaster or post is 1-1/4" by 1-1/4" Also known as a Bathroom Stall Strike and Keeper for Inswing 1-1/4". Manufacture part # 5983

Shipped with screws for mounting.

1636mkada Master Lock Built-in lock for ADA Lift Handle Latch Lockers, right hand hinged door, with Master key enabling. Includes 2 student keys with ADA key heads. Order Master Key separately. Replaces 1630

ADA Automatic Locking Bolt
For Lockers with handles and automatic locking bars
Locking bolt moves vertically
RH Only, We will need your master key number if adding to your existing system.

1-2 week lead time

Concealed Partition Latch Keeper Bumper 1" Square Edge Cast Stainless Steel

Cast stainless steel construction. The strike and keeper measures 2-1/2" tall by 1-15/16" wide by 1-17/32 deep. The mounting holes are 1-1/2" on center. The stop measures 7/8" wide by 17/32" deep with a rubber insert bumper. Also known as a Bathroom Stall Strike and Keeper Inswing/Outswing 1". Manufacture part # 5733.

Shipped with mounting screws.

Chrome Plated Slide Bolt Latch 1-1/2" Wide X 3-1/4" High, 2-3/4" Between Screws. Die cast construction and polished chrome plated. Used on Accurate Toilet Partition and Global Toilet Partitions. Also known as a Surface Mounted Bathroom Stall Slide Latch and Toilet Partition Locks. Known as 40-8512899. Shipped with mounting screws. This latch is Ada approved.

ADA Partition Slide Latch with Occupied Symbol. Stainless steel door lock surface mounted for 1" doors, this can be used for doors less than 1" if the rod is cut down between the two pieces. All hardware included for installation. This manufactures part number is 50553. Hole spacing is 3-1/2".

1" diameter materal
Offset Door Handle
Establish the center to center dimension by subtracting the width of one stile from the width of the door. On solid doors, subtract 5" from the width of the door.

Please specify either wood or metal door, and its thickness; we'll supply
appropriate fasteners.

Please allow 3-4 weeks on the Dark Bronze and Aluminum, and 2 weeks on the other finishes

Finishes

Corbin Russwin ED4200 Narrow Stile Exit Device
This device is designed for use with a narrow framed glass door, and is recommend for use in high traffic, abusive areas.

Device
non-handed.
Trim handed.
Easily field cut to size.
Standard: 36" bar fits 30"- 36"
914mm) door.

Stile
Minimum width 2" (51mm).

Replacement parts are also available

General Ada Concealed Latch Cover Knob w/ Offset Pin

Zamac die cast construction with polished chrome plating. Outside diameter of the knob and cover are 1-3/4" with the inner ring diameter of 1-7/32". The ADA Barrier Free Lever is 3-3/4" long. The off set pin has a diameter of 11/32" and 2-11/16". Also known as a Bathroom Stall Concealed Latch Cover and Knob Assembly. Manufacture part # 8190. Typically used with powder coated steel toilet partitions.

Aurora Steel Product Locker Latch Only. Also known as 20501, 7220, 81016, au6606.

Window Spring Latch

This spring latch features 1-3/8" hole spacing. They are used on older transom windows. White Bronze casting, nickel plated and then brushed

Toilet Partition Surface Mounted Black ADA Slide Latch Set W/ Indicator

Stamped stainless steel construction with a Black Finish. Slide lock measures 4-3/16" long by 1-1/8" tall by 15/32" thick. The mounting plate has mounting screws 1-1/4" on center and is 2-15/32" long. The lock projects out 1-3/16" from the face of the door. The indicator is 2" in diameter and 13/32" thick. The keeper is 3/4" wide by 1-7/16" tall by 1/16" thick. Commonly known as a Bathroom Stall Surface Mounted ADA Slide Lock and Toilet Partition Locks. Manufacturer part # 6065. For 1" thick doors.

Shipped with mounting screws.

Chrome Plated Partition Keeper Bumper For Throw Latch, For Inswing Flat Stop

Chrome plated Zamac die casting. The strike and keeper is 1-1/4" high by 2-1/2" deep by 1/8" thick. The stop is 1/2" deep by 1-1/4 wide with a rubber insert. The slots are 1/4" deep. Also known as a Bathroom Stall Strike and Keeper Inswing Flat. Manufacture part # 5650.

Shipped with mounting screws.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

Concealed Partition Latch Keeper Bumper Outswing 1-1/4" Round Edge Cast Stainless Steel

Cast stainless Steel Construction. The outside dimensions are 2-3/8" wide by 1-1/4" high by 1-3/4" deep. Stop projects out 1-1/8" by 1/2" thick with a rubber insert. Designed for an 1-1/4" thick post round edge. Also known as a Bathroom Stall Strike and Keeper Outswing 1-1/4". Manufacture part # 5573.

Shipped with mounting screws.

Toilet Partition Keeper For Throw Latch Inswing Flat

Polished chrome plated Zamac construction. Keeper base is 2-1/2" high by 1-3/16" wide with a 1-1/2" hole spacing. Strike is 2-1/2" tall by 7/8" deep. The material 1/8" thick. The slot is 13/16" high by 1/4". Also known as a Bathroom Stall Keeper Inswing Flat. Manufacture part # 5180.

Shipped with mounting screws.

Corbin Russwin 650F738 Upper Latch used on the ED4800 Narrow Stile Concealed Vertical Rod devices.

1695mkada Master Lock, Built-in lock for ADA single point latch lockers designed for Wrap Around Latch Technology, automatic deadbolt locking, right-hand hinged door, with Master key enabling. Includes 2 student keys with ADA key head. Order Master Key separately.
ADA For Single Point Lockers. Spring latch locks automatically.
RH Only
1-2 week lead time

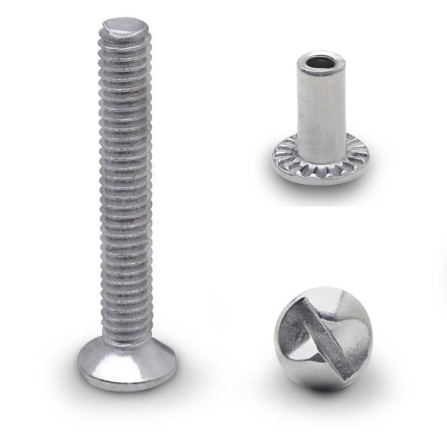

The 8-32 screw set for the diamond shaped latches. This thread is special to the chrome or stainless steel diamond shape looking surfacemount latch. Note the screw length is 1-1/8" and is a one way screw, the female portion is included and is slotless head. This is for a 1" door.

Republic Storage Handle Latch Stud Only. Also known as 72009, 2575, 70015, rs1120.

Chrome Plated Partition Keeper Bumper For Throw Latch Inswing Flat Stop

Chrome plated Zamac die casting. The strike and keeper measure 2-1/2" tall by 2-9/16" deep and is 1/8" thick. The stop projects out 3/4" and has a rubber insert. The mounting holes are 1-1/2" on center. Slots are 1/4" deep by 13/16" high. Also known as a Bathroom Stall Strike and Keeper - Inswing Flat. Flat backed for wall mounting. Manufacture part # 5280

Shipped with mounting screws.

Concealed Latch Keeper Bumper Outswing Cast Stainless Steel

Cast Stainless Steel casting. The strike and keeper is 1-1/4" high by 1-3/4" deep by 1/8" thick. The stop is 1/2" deep by 1-1/4 wide with a rubber insert. Also known as a Bathroom Stall Strike and Keeper Outswing Flat. Manufacture part # 5643.

Shipped with mounting screws.

Concealed Partition Latch Keeper Bumper 1-1/4" Square Edge Cast Stainless Steel

Cast stainless steel construction. The keeper and strike is 2-1/2" tall by 1-7/8" wide. The stop is 17/32" thick and projects out 3/4". The mounting holes are 1-1/2" on center. The locking slot is 7/16" deep. Generally used with concealed latches. Also known as a Bathroom Stall Strike and Keeper - Inswing/Outswing 1-1/4". Manufacture part # 5233.

Shipped with mounting screws.

Yale 7110 Bottom Latch 60-7010-0054-000

Truth 17.32 Sweep Latch

This Truth Trimline Cam Lock features a 2-1/16" hole spacing, and the distance from the center of the screw hole and the lock face is 3/8". This sweep lock is also known as a Window Cam Lock, or Double Hung Window Lock.

Republic Steel Handle Latch Washer only. Also known as 71701, 2570, 70017, rs1118.
