Fiat Partitions Bottom Door Insert For 1" Doors

Chrome plated Zamac die cast construction. The bottom door insert measures 2-1/8" by 1" by 13/16". The insert has one hole, which is 7/32" diameter. The square hole is 29/32" wide by 1". Also known as a Fiat Bathroom Stall Door Insert Bottom 1". Manufacture part # 4700.

For use on metal frames featuring
pneumatic design that, once installed,
forms an air pocket to absorb sound and
reduce noise of door closing.

Diameter: 1/2"
Thickness: 1/8"

Cal Royal 400 Series Door Closer

Adjustable closing and latcting speeds
Powder Coated Painted Finishes
5 year warranty

Size 420 3/4" x 6-5/8" hole spacing
Size SM 430P 3/4" x 6-1/2" hole spacing
Size 430P 3/4" x 8-3/16" hole spacing
Size 440P 3/4" x 8-3/16" hole spacing

Cal Royal 400 Series Catalogue

• For 1-3/4" (44mm) doors standard
• Through-bolted with 3 mortise nuts
• Pulls project 1-1/2" (38mm) from door face
• GTB Design trim will cover a 161 cutout

Partition Door Pull 5" Between Screws Stamped Stainless Steel

Stamped stainless steel construction, 3/32" thick. The door pull measures 5-21/32" wide by 5/8" high by 1-11/16" projection with a 5" on center hole spacing. Also known as a Bathroom Stall Door Pull. Manufacture part # 6419.

Shipped with mounting screws.

The Detex ECL-230X Panic Device is a single point deadbolt device. One size fits 36 to 48 inch doors. The dead bolt has a 1 inch throw and is saw resistant. Locking and unlocking dead bolt always arms and disarms alarm.  The alarm is 100 decibels and is powered by a 9 volt battery. Email for more information.

Glynn-Johnson 90 Series Overhead Door Holder Surface Mounted

Glynn-Johnson 90 series holders and stops are the most rugged models available for heavy-duty applications. The channel is surface-mounted to the door, most often with barrel nuts, and the jamb bracket is surface mounted to the jamb, requiring minimal door and frame preparation.

GJ90 Catalogue

The HES 5000 Series Electric Strike Complete Pack is a compact, high performance electric strike designed for low profile openings where there is limited space behind the jamb. Its strength is derived from a unique keeper pin locking design, enabling the 5000 to exceed the ratings of the frame, door and locking hardware. This field selectable fail secure/fail safe unit is easy to install and accommodates latch bolts up to 5/8" throw.

Current style Global chrome plated door catch includes screws for mounting. This is used with the 9g600 latch in ss. Product part number is 40-8212360. This part has a 3/8" gap for the catch and is 2-1/8" in length, 1-5/8" hole spacing and is 3/4" wide.

The Global Door Closer TC200 is recommended for use on all aluminum store front doors, wood or hollow metal commercial applications. It is a versatile utility closer that provides narrow styling and has a full selection of accessories to accomodate the requirement of any field installation.

In this series, our Global Door Closer TC201 is a multi-size spring model that offers adjustable power with a choice of range sizes 2-5 where high rates of closing force are required. Our TC201ADA model also offers adjustable spring power sizes 1-4 for use on interior doors requireing less than 5 lbs. of opening force and exterior doors requiring less than 8.5 lbs. This complies with ADA handicap codes and ANSI/BHMA standard requirements. Both models will retrofit most full size closers with a 9 1/16" industry standard hole patten to update any opening for code compliance.
Hole Spacing is 3/4" x 9-1/16"

Options: Specify when ordering:

• Finish - AL, DU
• Size 1-4 or 3-6

Pull Plate 5020

The plate is constructed of .050" wrought metal, in either solid aluminum, brass or stainless steel, with Door Pull GHE20 -8" center. Handles come with thru bolts, finish washers and the plates come with sheet metal screws that fit the countersunk holes.

Finishes

Standard 4110 series closer shipped with HOLD OPEN CUSH N STOP arm, standard plastic cover, 4110-201 FIFTH SCREW SPACER and self reaming and tapping screws. Sized cylinders adjustable for interior doors to 5’0” and exterior doors to 4’0”. Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”. Closer mounts parallel arm, specify right or left swinging door. 4111 cylinder meets ADA requirements. The cush hold open arm allows for a stop and hold open positions up to 110 degrees. "T" handle on arm will release door for closing, locking pin can be retracted for normal door closing operation.

We ship the 4111 HCUSH

Metpar Partitions Top Pin 3/8" Diameter By 3-1/4" Long For Laminate Partitions

Threaded steel construction. The top pin measures 3/8" diameter by 3-1/4" long with 5/16-18 threads. It has a screw driver flat slot on one end. Also known as a Bathroom Stall Door Top Hinge Pin. Manufacture part # 98584.

Current style Global stainless steel door catch includes screws for mounting. This is used with the 9g700 latch in ss. Product part number is 8262360. This part has a 3/8" gap for the catch and is 2-1/8" in length, 1-5/8" hole spacing and is 3/4" wide.

The 8-32 screw set for the diamond shaped latches. This thread is special to the chrome or stainless steel diamond shape looking surfacemount latch. Note the screw length is 1-1/8" and is a one way screw, the female portion is included and is slotless head. This is for a 1" door.

Corbin Russwin Adjusting Nut 483F35-8

This Corbin Russwin Adjusting Nut is used on the Corbin Russwin Mortise Lever Locks. It threads into the end of the spindle. 2-3/8" overall length, 9/16" thread length, 1-15/16" bolt length. The threads are 1/4-28.

Corbin Russwin part # 483F35-8

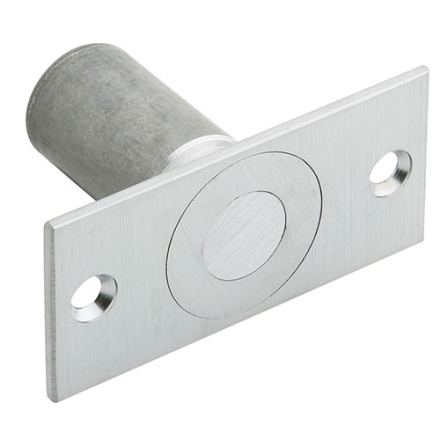

• Designed for use with the bottom bolt of all flush bolts.
• Spring-loaded plunger returns to floor or threshold level anytime
  flush bolt is retracted, eliminating need to clean standard
  floor strikes.
• Strike hole is 3/4" Diameter and 1-1/8" Deep

DP2 Face Plate: 1-5/8" W x 3-1/2" L x 1/8" Thick
Body: 1-3/16" Diameter x 1-7/8" Deep

Ives Floor Mounted Door Holder FS42

Features:
• Automatic door holders ideal for heavy-traffic situations that require a simple,
fool-proof, Hold-Open device.
• Forged from brass.
• Unit is activated automatically when door is opened. A firm pull on door releases
the mechanism.
• Strikes accommodate different door to floor clearances.
• Model numbers are determined by strike/door-to-floor clearances.
• Holder position on door is adjustable.

Door to Floor Clearance 1-1/8" to 1-9/16"
Holder Dimensions 3" Wide x 3-11/16" High

Doromatic SC90 Door Closer

3/4" x 6-3/8" Hole Spacing,
Non-handed, Tri Pack Mounting- push-pull or top jamb mount.
Adjustable Closing, Latching and Power valves.
Grade 3 Closer

We ship the SC91 Rw/PA

The Partition Double Door Pull 5-1/2" stainless steel come as two handles for mounting back to back handles on an one inch thick door.  The handles have 5-7/8" center to center hole spacing, and the screws included are for a 1" thick door. This is constructed of cast brushed stainless steel. The manufacturer part number on this part is 900112. Overall width is 6-3/4"

Von Durpin 8827 surface mounted vertical rod devicesfor all types of single and double
doors, UL listed for accident hazard installations.Covers stock hollow metal doors
with 86 or 161 cutouts and fits door stiles as narrow as 3½" (90mm).

● Fully reversible
● Five popular finishes
● Field sizeable
● Hex key dogging
● 5/8"(16mm)throw latch bolt

Ships with all mounting screws and the 299, 304L and 248L-4 Strikes.

Standard 4020 series closer shipped with regular arm, standard plastic cover, and self reaming and tapping screws. Sized cylinders for interior doors to 5’0” and exterior doors to 4’0”. Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”. Closer mounts top jamb (push side), specify right or left swinging door. 4021 cylinder meets ADA requirements.

Standard 4110 series closer shipped with EXTRA DUTY arm, standard plastic cover, 4110-201 FIFTH SCREW SPACER and self reaming and tapping screws. Sized cylinders adjustable for interior doors to 5’0” and exterior doors to 4’0”. Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”. Closer mounts parallel arm, specify right or left swinging door. 4111 cylinder meets ADA requirements.

We ship the 4111 EDA

Handing diagram

Yale 3300 Door Closer

• Adjustable spring sizes 1 thru 6
• Rack-and-pinion design
• 1-1/4" (32mm) diameter piston
• 5/8" (16mm) diameter pinion journals
• Cast aluminum body
• Standard, separate and independent, latch,
  sweep and backcheck intensity valves
• Staked valves
• Molded plastic cover standard

This door closer replaces the older 3301BF closers. The new version is Barrier Free Complaint.
3/4" x 12" hole spacing, the cylinder is sometimes cast 20-3301-1001 on the back of the cast aluminum
cylinder.

Norton Door Closer Covers

Replacement Norton Door Closer Covers, made of impact resistance plastic.  Covers are available for the 1600, 7500, 8300, and 8500 Series Door Closers.

Global Top Hinge Pin For Laminate Partitions

Threaded steel construction. The top pin measures 3/8" diameter by 3-1/4" long with 5/16-18 threads. It has a screw driver flat slot on one end. Also known as a Bathroom Stall Door Top Hinge Pin. Manufacture part # 98584.

Yale 3500 Door Closer

• Adjustable spring sizes 1 thru 6
• Rack-and-pinion design
• 1-1/4" (32mm) diameter piston
• 5/8" (16mm) diameter pinion journals
• Cast aluminum body
• Standard, separate and independent, latch,
  sweep and backcheck intensity valves
• Staked valves
• Molded plastic cover standard

We ship the model # 3501, this closer replaces the 3501BF. The new version meets the Barrier Free compliance codes.

• For 1-3/4" (44mm) doors standard
• Through-bolted with 3 mortise nuts
• Pulls project 1-1/2" (38mm) from door face
• GTB Design trim will cover a 161 cutout

Standard 4110 series closer shipped with EXTRA DUTY HOLD OPEN arm, standard plastic cover, 4110-201 FIFTH SCREW SPACER and self reaming and tapping screws. Sized cylinders adjustable for interior doors to 5’0” and exterior doors to 4’0”. Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”. Closer mounts parallel arm, specify right or left swinging door. 4111 cylinder meets ADA requirements. The friction hold open arm allows for adjustable stop hold open positions up to 180 degrees.

We ship the 4111 HEDA

Concealed Latch Fix it Kits for Plastic Laminate Doors

For 1" Square edge for Plastic Laminate
All Hardware included

Concealed Latch Fix it Kits for Powder Coated Steel

For 1" Thick Doors- Round Edge for Powder Coated Steel
All Hardware included

Republic Steel Locker Handle #11 Assembly Right Hand. Comes with lift,case and screws.Our replacement Republic Storage Handles are based on the version they produced in the 1970″s, which means more material on the legs (lugs). The extra material makes them much more heavy duty then the ones they are producing today. We sell the Republic Storage #11 Locker Handle three ways, just the lift, just the case or the complete assembly. The case and the assembly come with the mounting screws. The Republic Storage #11 handle, also goes by Republic Steel #11 handle, and Berger #11 handle. The #11 handle has been produced since the 1962-1965. Also known as 70107, 2040, 70035, rs1107, lr306.

Sanymetal Partitions Door Stop For Inswing/Outswing Flat

Polished chrome plated Zamac construction. The strike and keeper measure 2-1/2" high by 1-7/8" deep by 1/8" thick. The stop has a 3/4" projection and is 9/16' deep with a rubber insert. The mounting holes are 1-1/2" on center. Also known as a Bathroom Stall Strike and Keeper Inswing/Outswing Flat. Manufacture part # 5170.

Shipped with mounting screws.

Concealed Latch Fix it Kits for Plastic Laminate Doors

For 1" Thick Doors- Square Edge for Plastic Laminate
All Hardware included
