Dorma 8916 Door Closer

we ship the Dorma Model # 8916-AF89P

2-1/8" x 5" hole spacing

8" Kickdown Door Holder / Stops Grand Standard

No roll pin at pivot point
Mallable with a pair of pliers
Rubber shoe held on by a screw
American Made
Zinc plated steel

Made by Grand Specialties 608z

Another feature is their well constructed shoe can be adjusted down as the rubber wears making the holder last way longer than their competitors. Another use for them is as a door floor lock if mounted on the other side of the door. Once kicked down there's no entry possible unless you slide a flat item under the door to lift the door holder leg out of the way and push the door open. It can be opened from the inside as normal with your foot or hand. A very inexpensive security lock.

Hager 5200 Series Door Closer

Hager 5200 Series Grade 1 door closer is ideal for schools, hospitals, and other high abuse and high traffic environments. It is constructed of an aluminum alloy and provides smooth door control. The 5200 Series door closer is easy to install and maintain­­ keeping your building safe and secure.

The Hager 5200 Door Closer body has a hole spacing of 3/4" x 12"

Hager 5100 Series Door Closer

Hager 5100 Series Grade 1 door closer is constructed of cast iron, which makes it ideal for heavy duty, high use and abusive environments. Hager door closers are the only closers in the industry that are both BHMA certified and backed by a lifetime warranty.

The 5100 matches the hole spacing of the LCN 4040 or 4040XP

Hager 5300 Series Door Closer

Hager 5300 Series Grade 1 door closer is ideal for schools, hospitals, and other high abuse and high traffic environments. It is constructed of an aluminum alloy and provides smooth door control. The 5300 Series door closer is easy to install and maintain­­ keeping your building safe and secure.

The Hager 5300 Series Door Closer body has a hole spacing of 3/4" x 9-1/6".

Rubber Shoe For Grand Standard Kickdown Door Stops / Holders

Replacement shoe for the GJ604, 605, 605,
606, 608, 610, and 612 Grand door stops.
Includes screw

Hager 5400 Series Door Closer

This Hager Door Closer is a Grade 2 closer.  The hole spacing is 3/4" x 9-1/16" center to center.  The closer comes with the ability to go left or right, push, pull or top jamb mounting.

We ship the 5400MLT04, aluminum is in stock, Dark Bronze has a 3 week lead time

5" Kickdown Door Holder / Stop Grand Standard

No roll pin at pivot point
Mallable with a pair of pliers
Rubber shoe held on by a screw
American Made
Zinc plated steel or Brass plated

made by Grand Specialties 605z 605b

Another feature is their well constructed shoe can be adjusted down as the rubber wears making the holder last way longer than their competitors. Another use for them is as a door floor lock if mounted on the other side of the door. Once kicked down there's no entry possible unless you slide a flat item under the door to lift the door holder leg out of the way and push the door open. It can be opened from the inside as normal with your foot or hand. A very inexpensive security lock.

Hager Parallel Arm Bracket

Hager Closer Std. Pa Bracket-52/53/54 Series

Hager Door Closer Standard Parallel Arm Bracket - 52/53/54 Series

Hager part # 5900

4" Kickdown Door Holder / Stop Grand Standard

No roll pin at pivot point
Mallable with a pair of pliers
Rubber shoe held on by a screw
American Made

Made by Grand Specialties

Zinc plated steel or Brass plated

Another feature is their well constructed shoe can be adjusted down as the rubber wears making the holder last way longer than their competitors. Another use for them is as a door floor lock if mounted on the other side of the door. Once kicked down there's no entry possible unless you slide a flat item under the door to lift the door holder leg out of the way and push the door open. It can be opened from the inside as normal with your foot or hand. A very inexpensive security lock.

Dorma part # 7414ARP689

3/4" X 10-1/4" Hole Spacing

10" Kickdown Door Holder / Stop Grand Standard

No roll pin at pivot point
Mallable with a pair of pliers
Rubber shoe held on by a screw
American Made
Zinc plated steel

made by Grand Specialties 610z

Another feature is their well constructed shoe can be adjusted down as the rubber wears making the holder last way longer than their competitors. Another use for them is as a door floor lock if mounted on the other side of the door. Once kicked down there's no entry possible unless you slide a flat item under the door to lift the door holder leg out of the way and push the door open. It can be opened from the inside as normal with your foot or hand. A very inexpensive security lock.

12" Kickdown Door Holder / Stop Grand Standard

No roll pin at pivot point
Mallable with a pair of pliers
Rubber shoe held on by a screw
American Made
Zinc plated steel

Another feature is their well constructed shoe can be adjusted down as the rubber wears making the holder last way longer than their competitors. Another use for them is as a door floor lock if mounted on the other side of the door. Once kicked down there's no entry possible unless you slide a flat item under the door to lift the door holder leg out of the way and push the door open. It can be opened from the inside as normal with your foot or hand. A very inexpensive security lock.

Made by Grand Specialties 612z

6" Kickdown Door Holder / Stop Grand Standard

No roll pin at pivot point
Mallable with a pair of pliers
Rubber shoe held on by a screw
American Made
Zinc plated steel or Brass plated

Made by Grand Specialties 606z and 606br
The 606BR is no longer manufactured

Another feature is their well constructed shoe can be adjusted down as the rubber wears making the holder last way longer than their competitors. Another use for them is as a door floor lock if mounted on the other side of the door. Once kicked down there's no entry possible unless you slide a flat item under the door to lift the door holder leg out of the way and push the door open. It can be opened from the inside as normal with your foot or hand. A very inexpensive security lock.

Dorma 8616 Door Closer

we ship the Dorma Model # 8616-AF89P

3/4" x 12" hole spacing

The Dorma RTS88 Top Arm 8831is for use on Single and Double Acting doors.  This is the standard arm in the RST01 and RST02 Packages.

Dorma Part # 8831

Dorma RTS88 Series overhead concealed door closer for both
single and double-acting doors. The RTS88 will consist of a steel
cam, rollers, and springs housed in a compact cast iron body.
Closers will be capable of being installed in minimum 1-3/4" x 4"
headers. RTS88 will have maximum door opening to 90º or 105º,
trim conditions permitting. Sweep and latch speed will be
controlled by two noncritical adjustment valves from 90º or 105º
to closed. Built-in pressure relief valve will protect the closer from
abuse caused by forced closing. A mechanical backcheck
combined with a positive stop at 90º or 105º will be provided to
protect the door and frame. The RTS88 closer will be available
with hold open at 90º or 105º, or without hold open. The product
shown here is just the replacement cylinder.

The Dorma RTS88 Offset Slide Arm 8812 is used on in the RST31, RST30, RTS29, RST28, RST27, RTS26 and RTS25 packages.  This arm is used on Single Acting Doors.

Dorma Part # 8812

Replacement Chassis Cover for the Dorma 9300 Rim Device

Replacement Dorma 9000 Series End Cap, sometimes know as the EC9

Shown in Dark Bronze

The Dorma 8400 Center Case Cover is used the 8000 Series Surface Vertical Rod Devices.  The cover is black plastic, the screws are not included.   Dorma Part # CHCOV84

The Dorma RTS88 Top Arm 8835 is for use on Double or Single Acting doors that have a 1" top rail.  This is the standard arm on the RST07 and RST10 packages.

Dorma Part # 8835

The Dorma 9DRKIT Dogging Assembly is used on the 5000 and 9000 Series non Fire Rated hardware.

Escutcheon with R Lever Trim for Dorma 9300 Rim Device, Classroom Function, Key Locks or Unlocks Lever.

The Dorma RTS88 Top Arm with Channel 8832 is for use on Double and Single Acting Doors.   It is the standard arm in the RST04, RST05 and RST06 packages.

Dorma Part # 8832

The Dorma 4 Loop Torsion Spring is used on the 9000 Series Exit Device Escutheon Lever Trims. Spring measures 1 inch diameter by 5/16 thick.

Dorma Part # 780367270 or 6000-717-500

The Dorma 8300 Center Case Cover is used the 8000 Series Rim Devices.  The cover is black plastic, the screws are not included.   Dorma Part # 18002177

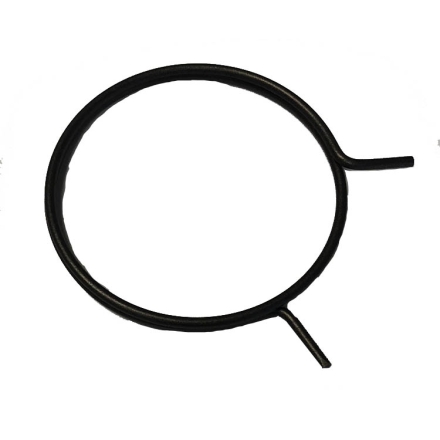

The Dorma 95059481 Lever Trim Return Spring is used on the 8000 series Lever Handles.   The spring has a 2-3/16" diameter.

Dorma 8400 Surface Vertical Rod Exit Device minimize forced entry while offering a low-cost solution to life safety requirements. Certified/listed to ANSI/BHMA 156.3 Grade 1 for exit devices. 5 year limited warranty.
