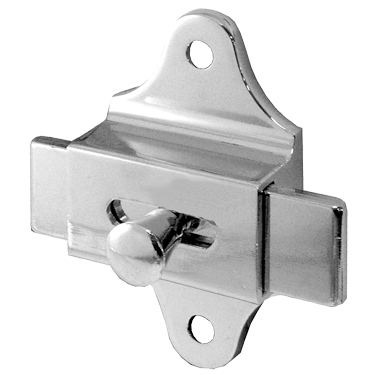

Chrome Plated Slide Bolt Latch 9/16" Bar To Door Clearance

In stock
Part #
9S7431
$12.65

Chrome Plated Slide Bolt Latch 9/16" Bar To Door Clearance

Zamac die cast construction with polished chrome plating. Base is 3-3/8" high with 2-5/8" hole spacing. Latch bolt is 3-1/8" long by 7/8" wide by 3/16" thick with a 9/16" dimension from the door to the under side of the latch bolt. The latch projects out 1-1/2" when installed on the door. Also known as a Bathroom Toilet Stall Door Slide Latch and Toilet Partition Locks. Manufacture part # 6540.

Shipped with mounting screws.

Chrome Plated Slide Bolt Latch 9/16" Bar To Door Clearance

Zamac die cast construction with polished chrome plating. Base is 3-3/8" high with 2-5/8" hole spacing. Latch bolt is 3-1/8" long by 7/8" wide by 3/16" thick with a 9/16" dimension from the door to the under side of the latch bolt. The latch projects out 1-1/2" when installed on the door. Also known as a Bathroom Toilet Stall Door Slide Latch and Toilet Partition Locks. Manufacture part # 6540.

Shipped with mounting screws.

More Information
Part # 9S7431
Availability In Stock
Manufacturer Sanymetal Toilet Partition
Short Description

Chrome Plated Slide Bolt Latch 9/16" Bar To Door Clearance

Zamac die cast construction with polished chrome plating. Base is 3-3/8" high with 2-5/8" hole spacing. Latch bolt is 3-1/8" long by 7/8" wide by 3/16" thick with a 9/16" dimension from the door to the under side of the latch bolt. The latch projects out 1-1/2" when installed on the door. Also known as a Bathroom Toilet Stall Door Slide Latch and Toilet Partition Locks. Manufacture part # 6540.

Shipped with mounting screws.

Description

Chrome Plated Slide Bolt Latch 9/16" Bar To Door Clearance

Zamac die cast construction with polished chrome plating. Base is 3-3/8" high with 2-5/8" hole spacing. Latch bolt is 3-1/8" long by 7/8" wide by 3/16" thick with a 9/16" dimension from the door to the under side of the latch bolt. The latch projects out 1-1/2" when installed on the door. Also known as a Bathroom Toilet Stall Door Slide Latch and Toilet Partition Locks. Manufacture part # 6540.

Shipped with mounting screws.
