Doors | Powder Coated Flat Black

The M422 with M49D are constructed of 1-1/4 inch solid stock, with the material determined by the finish (color). The push bar has a clearance of 1-1/2 and the handle has a clearance of 1-1/2 inches. The projection is 2-3/4 on the push bar and 2-3/4 inches on the handle. The pull handle is 12 inches on center, with a 7 inch offset. The set comes with two 5/16-18 thru bolts and one 5/16 back to back conehead.

The 422 with 49D are constructed of 1 inch solid stock, with the material determined by the finish (color). The push bar has a clearance of 1-1/8 and the handle has a clearance of 1-1/2 inches. The projection is 2-1/8 on the push bar and 2-1/2 inches on the handle. The pull handle is 12 inches on center, with a 7 inch offset. The set comes with two 5/16-18 thru bolts and one 5/16 back to back conehead.

The M422 x M422 Push Bar Set is constructed of 1-1/4 inch diameter solid stock, and is shipped to your specified center to center dimensions. The push bar has a 1-1/2 clearance and 2-3/4 inch projection. The set ships with back to back fasteners.

The 422 x 422 Push Bar Set is constructed of 1 inch diameter solid stock, and is shipped to your specified center to center dimensions. The push bar has a 1-1/8 clearance and 2-1/8 inch projection. The set ships with back to back fasteners.

1-1/4" diameter materal
Offset Door Handle
Establish the center to center dimension by subtracting the width of one stile from the width of the door. On solid doors, subtract 5" from the width of the door.

Please specify either wood or metal door, and its thickness; we'll supply
appropriate fasteners.

Please allow 3-4 weeks on the Dark Bronze and Aluminum, and 2 weeks on the other finishes

Finishes

The Burns 618 Locking Pocket Door Latch is 2-3/4 inches tall by 2-1/2 inches deep. The mortise dimensions are 2-5/16 inches tall by 1-7/8 inch deep. Base metal is Brass or Aluminum depending on the finish.

The Burns 617 Non-Locking Pocket Door Pull Set is 2-3/4 inches tall by 2-1/2 inches deep. The mortise dimensions are 2-5/16 inches tall by 1-7/8 inch deep. Base metal is Brass or Aluminum depending on the finish.

The C Shaped Offset Pull has 12 inch centers and has a 13-1/4 inches overall length. The clearance is 1-1/2 inches with a 2-3/4 inch projections. The handle is constructed on 1-1/4 inch diameter stock, the offset is 7-1/2 inches. The base is 1 inch round stock. The handle is furnished with 5/16-18 thru bolts and finish washers.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

The Offset 60 degree Door Pull is available in 12 and 18 inch centers. The handle is constructed of 1-1/4 inch solid material, with the base metal determined by the finish (color). It features 1-1/2 clearance, 2-3/4 projection and has a 3-1/2 inch offset. The fasteners are 5/16-18 thru bolts with a finish washer. Please specify the door thickness when ordering.

The Offset 60 degree Door Pull is available in 8, 10 and 12 inch centers. The handle is constructed of 1 inch solid material, with the base metal determined by the finish (color). It features 1-1/8 clearance, 2-1/8 projection and has a 2 inch offset. The fasteners are 5/16-18 thru bolts with a finish washer. Please specify the door thickness when ordering.

The 460 ADA Flush Pull measures 5 inches by 5 inches  and is made of 1/8 inch material.  The opening size is 3-1/2 inches by 3 inches. The pull is fastened to the door with 10-24 by 5/8 inch security torx with barrel nuts.  The pull is designed for 1-3/4 thick doors, please specify if your door is thicker than 1-3/4 inches.  Available in Brushed and Polished Stainless Steel and also Powder Coated Flat Black and Dark Bronze.

The 459 Flush Door Pull measures 3-3/8 x 4-3/4 x 1/8 inch.  The opening size is 1-3/4 by 3-1/2 inches.  The mortised pocket would need to be 3-3/4 by 2-13/16 and 11/16 deep. The flush pull ships with mounting screws in the matching finish.

This Barn Door Pull Set features back to back handles that are thru-bolt mounted for a hassle-free setup.  The Grip is 6 inches on centers and is constructed of 3/4 inch round stock, and projects out 2-3/8 inch. The flush pull face dimensions are 2-1/2 by 7 inches. The mortise size of the flush pull are 2 x 7/8 deep x 1/4 inch.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

ADA Sliding and Barn Door Push/Pull Set. Pull handle is 3/4" round stock with 6" center to centers and 2-1/2 inch clearance.  The flush pull is 4" x 7" x 1-1/8 inch ADA.

The offset door pull 44 is 5 inches by 12 inches.  It offers a 2 inch clearance with a 2-1/8 inch projection.  The mounting holes are 10 inches on centers.  The base block is 1 inch by 12 inches.

The Detex DN Trim is built like their exit devices, extreme durable. Designed with a break-away lever to prevent permanent damage from vandalism or abuse. Escutcheon plate measures 1-7/8 by 8-1/4 inches, the plate is 7/8 inch thick. We ship the classroom function, key locks and unlocks the lever. The levers are field reversible.

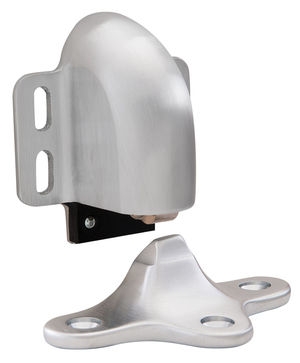

Automatic Floor Type Holder and Stop

Cast brass construction, and then chrome plated. Measures 3-11/16" high by 3" wide with a 1-15/16" projection. The strike is 1-3/16" high. Spring loaded brass roller, rolls over the the strike to lock the door in the open position. To release, just give the door a tug.

The Detex 40 Series rim exit device is a supper heavy duty panic device for use on narrow stile doors. Device features an angled end cap to deflect damage away from the unit. This device is designed for years of trouble free service in high use, high abuse enviroments.

Back to Back mounted Off-Set Door Pull featuring 1-1/4 inch stock diameter stock. Handle has a 4 inch offset with a 2 inch clearance and 3 1/4" projection. Available in 12 or 18 inch centers. Sold as sets, 2 handles and 3/8-24 thread stud.

Back to Back fasteners are for a 1-3/4 inch thick door, if your door is a different thickness, please let us know in the comments.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

The Door Pull Offset #39 Handle is constructed of either solid aluminum, brass or stainless steel. The handle is 1" diameter tubing with a 2-3/4" offset and 2-3/4" projection. This is the most common type of handle you use today.  Just about every aluminum framed storefront door has a version of this handle. This handle is available in 8", 10", 12" and 18" centers on the mounting holes. The back to back mounting is for Metal or Wood Doors that are 1-3/4 thick. Included fastener is threaded into one of the handles, and the Stud End has fits into the inside handle and is held in place by a set screw on the handle.

Package includes two offset pull handles and fastening hardware. Shown in Polished Stainless Steel with 12 inch centers.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks.

Solid offset door pull 1-1/4 inch diameter round stock.  Handle has a 4 inch offset with a 2 inch clearance and 3 1/4" projection. Available in 12 or 18 inch centers.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

The C Shaped Offset Pull has 12 inch centers and has a 13 inches overall length. The clearance is 1-1/2 inches with a 2-1/2 inch projections. The handle is constructed on 1 inch diameter stock, the offset is 7 inches. The base is 7/8 inch round stock. The handle is furnished with thru bolts and finish washers.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

Back to Back mounted 1 inch diameter stock.  One handle will be threaded and the other will be a female fitting that snugs the handle with a set screw.  The standard Stud that ships with the handle is for an 1-3/4 thick door.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

Back to Back mounted handles constructed of 3/4 inch round stock.  One handle will be threaded and the other will have a stud mounting that is secured by a set screw. The connecting stud is for 1-3/4 inch thick doors, if you door is a different thickness let us know in the Comments Section of the Check out process, or email us.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

The 80 Series Push Plate is similar to the 70 series, but has a round bevel on the top and bottom of the plate. There is no bevel on the sides. These plates are  an 1/8 inch thick and are available many different finishes and size.  Custom sizes are available, and they ship with the matching finish mounting screws.

The 524T has 1-1/4 inch diameter by 2-1/2 inches tall. It is constructed of brass and then powder coated flat black or brushed chrome plated. This stop ships with a lead anchor, 12-24 x 1 inch machine screw, #12 x 1-1/2 inch SMS with plastic anchor.

The Burns Manufacturing 455 Adjustable Push/Push units consists of 2 454 push bars and and 1 453 pull bar. They are adustable up to 36". The tubes are 1 inch round and the bases are 2 inch diameter by 2-1/2 inch projection. The base metal is brass.

The Detex D Lever Trim is used on the 10, 20, 21 and 27 Series exit devices. The D Lever is designed to be as heavy duty as their exit devices. It features a break-away lever to prevent damage. The escutcheon measures 2-3/4 x 9-1/16 inches, with a plate thickness of 7/8 inch. We ship the classroom function, which locks and unlocks the lever.

The 590 is made of solid brass and ships with matching screws.  The faceplate measures 1 x 6-3/4 inches, the strike is 15/16 x 2-1/4 inches and comes standard with a 12 inch rod.  The mountng screws are 1 x 6-1/4 inches on centers.

The Detex BN ValueSeries Lever Trim measures 1-29/32 wide by 8-1/4 inches tall, and the escutcheon is 15/16 inches thick.  We ship the Classroom Function where the keys locks and unlocks the lever, other functions are available. The Lever trim does not ship with the Mortise Cylinder.

The 591 manual flush bolt is for wood doors and is UL listed. It is constructed of solid brass. The face plate is 1 x 6-3/4 inches. The mortised body is 6 inches high by 1-3/8 deep by 1 inch thick. The screw spacing is 1/2 by 6-1/4 inches on centers.

The Handicap Hands-Free Door Pull BM4511 is an ADA compliant. You can hook your forearm/wrist into the open end to open a non-latching door. The pull is constructed of stainless steel and is available in brushed stainless steel, powder coated flat black or powder coated dark bronze. The plate measures 4 x 16 inches and the grip is tack-welded to the plate and also has a 5/16-18 thread for thru bolting. The grip is 1-1/4 diameter by 8 inches. Ships with 6 mounting screws and one 5/16-18 thru bolt with finished washer in matching finish.

The Hands-Free/Foot Door Pull BM46 can be used as a ADA compliant hands-free door pull when mounted 42" above the finished floor. Or as foot pull when mounted at the bottom of the door. The Pull is 4" x 5" and is made of .090 thick stainless steel. Ships with sex bolts and screws for 1-3/4" door. Available in Brushed Stainless Steel, Flat Black Powder Coat and Dark Bronze Powder Coat.

The Detex V40xNS is designed for Narrow Stile Doors with a stile width of at least 2". The 36 inch is 34-7/8 inches wide overall, and the 48 inch device is 46-7/8 overall.

The Detex V40 ValueSeries Rim Device is their economical exit device.  The device only comes in powder coated aluminum or black. The standard 36 inch model measures 32-7/8 inches wide.  The unit ships with strike all the mounting screws and a hex dog key.

The Concealed Mount Push and Pull Plate Sets feature an 1/8 inch push plate with a 1/20 inch plate plate. The handle is surface mounted with thru mounted studs. 8 inch center handles are 3/4 inch diameter, 10 in and 12 inch center handles are 1 inch diameter.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.
