Door Trim
Door Trim, Door Kick Plates, Door Molding, Corner Guards, Pull Plates
Make sure you click on the Image or Text for more
dimensional and pricing information.
-
Handicap Door Pull 19
Handicap Door Pull 19
With this handle you are able to get a closed fist behind the pull, which makes it a great ADA Door Pull. Shipped with screws. Also known as a Handicap Grip, ADA Door Pull or Handle.
Product Name: Cast Double Arm Pull Mounting Options: Security Fastener 1/4-20 × 2-1/2" Machine Screw Overall: 8-3/4" Base: 1-1/2" × 1-5/8" Projection: 3-1/4" ANSI: J401 Standard Fastener: Type 1 -1/4-20 X 2-1/4 Thru Bolt & Finish Washer (1-3/4" door) GHP000- -
Concealed Mount Push and Pull Plate Sets
The Concealed Mount Push and Pull Plate Sets feature an 1/8 inch push plate with a 1/20 inch plate plate. The handle is surface mounted with thru mounted studs. 8 inch center handles are 3/4 inch diameter, 10 in and 12 inch center handles are 1 inch diameter.
Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.
G74X5325B -
Hands-Free/Foot Door Pull BM46
The Hands-Free/Foot Door Pull BM46 can be used as a ADA compliant hands-free door pull when mounted 42" above the finished floor. Or as foot pull when mounted at the bottom of the door. The Pull is 4" x 5" and is made of .090 thick stainless steel. Ships with sex bolts and screws for 1-3/4" door. Available in Brushed Stainless Steel, Flat Black Powder Coat and Dark Bronze Powder Coat.
GBM46- -
Handicap Hands-Free Door Pull BM4511
The Handicap Hands-Free Door Pull BM4511 is an ADA compliant. You can hook your forearm/wrist into the open end to open a non-latching door. The pull is constructed of stainless steel and is available in brushed stainless steel, powder coated flat black or powder coated dark bronze. The plate measures 4 x 16 inches and the grip is tack-welded to the plate and also has a 5/16-18 thread for thru bolting. The grip is 1-1/4 diameter by 8 inches. Ships with 6 mounting screws and one 5/16-18 thru bolt with finished washer in matching finish.
GBM4511- -
Pull Plate 5026
Pull Plate 5026
The plate is a solid .050" wought plate of solid aluminum, brass or stainless steel depending on the finish. The Door Pull GHE26 has 8" centers and is constructed of solid aluminum, brass or stainless steel, and is 1" in diameter, handles come with thru bolts. The plate come predrilled with counter sunk holes and sheet metal screws in matching finiish.
GPL26BW- -
Pull Plate 5025
Pull Plate 5025
The plate is a solid .050" wought plate of solid aluminum, brass or stainless steel depending on the finish. The Door Pull GHE25 has 6" centers and is constructed of solid aluminum, brass or stainless steel, and is 3/4" in diameter, handles come with thru bolts. The plate come predrilled with counter sunk holes and sheet metal screws in matching finiish.
GPL25A- -
Pull Plate 5010
Pull Plate 5010
The plate is .050" wought solid aluminum, stainless steel, or brass depending on the finish. The Door Pull GHE10, handles come with thru bolts. The plate has counter sunk holes and sheet metal screws in matching finish.
3" x 12" GPL312
3.5" x 15" GPL315
4" x 16" GPL416GPL10 -
-
Door Pull Offset 1" Diameter 39
Door Pull Offset 1" Diameter 39
This door handle is made of 1" round stock in either solid, alumunum, brass or stainless steel. It comes standard with thru bolts and finish washers, but can be special ordered if you would like the handle mounted back to back or surface mounted. Also known as a Offset Door Handle or Door Grip, and Storefront door handle.
1" diameter material
2-3/4" projection
2-3/4" offsetGHE39 -
Door Pull Offset 3/4" Diameter 29
Door Pull Offset 3/4" Diameter 29
This door handle is made of 3/4" round stock in either solid, Aluminum, Brass or Stainless Steel. It comes standard with thru bolts and finish washers, but can be special ordered if you would like the handle mounted back to back or surface mounted. Also known as a Door Handle or Door Grip.
3/4" diameter material
2-1/2" projection
2-1/2" offsetGHE29 -
Door Pull 26 1" Diameter
Door Pull 26 1" Diameter
This door handle is made of 1" round stock in either solid, aluminum, brass or stainless steel. It comes standard with thru bolts and finish washers, but can be special ordered if you would like the handle mounted back to back or surface mounted. Also known as a Door Handle or Door Grip.
1" diameter material
2-3/4" projection8" GDP810
10" GDP101
12" GDP121GHE26 -

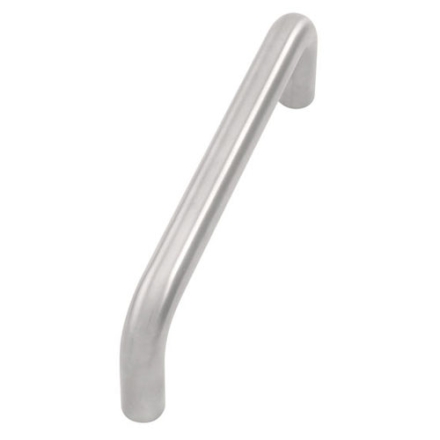

Door Pull 25 3/4 Inch Diameter
Door Pull 25 With 3/4" Diameter Handle
This door handle is made of 3/4" round stock in either solid, Aluminum, Brass or Stainless Steel. It comes standard with thru bolts and finish washers, but can be special ordered if you would like the handle mounted back to back or surface mounted. Also known as a Door Handle or Door Grip.
3/4" diameter
2-3/8" projection
1-5/8" clearance
GHE25 -
Door Pull 10
Door Pull 10
This door pull has 5-1/2" center to center screw spacing. The base is 3/4" diameter, the overall lenght is 6-1/4". The projection is 2" and the clearance is 1-1/2". Also known as a Door Handle or Door Grip. This handle ships with thru bolts and finish washers.
GHE10- -
Push Bar Adjustable 454
Push Bar Adjustable 454
Finishes:
US26/625 polished chrome
US26D/626 brushed chrome
US3/605 polished brass
US4/606 brushed brassMaterial: Brass
Material Size: 1" round tube adjustable up to 36"
Base: 2" round x 2-1/2"
Clearance: 1-1/2"
Projection: 2-1/2"Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.
454- -
Push Bar Adjustable 453
Finishes: US4/606 brushed brass
US26D/626 brushed chrome
US26/625 polished chrome
US3/605 polished brassMaterial: Brass Material Size: 1" Rd Tube Adjustable up to 36" Base: 2" Rd x 2-1/2" Clearance: 1-1/2" Projection: 2-1/2" Notes: Cast end brackets. (2) Horizontal and (1) Vertical Pull Fasteners: Option: Type 2 Surface Mount
Standard: Type 1 Thru Bolt MSAluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.
453- -
Push Bar Adjustable 452
Finishes: US26/625 polished chrome
US26D/626 brushed chrome
US3/605 polished brass
US4/606 brushed brass
US5/609 antique brass
US10/612 brushed bronze
US10B/613 dark bronzeMaterial: Brass Material Size: 5/8" Rd Tube Adjustable up to 36" Base: 5/8" × 8-1/2" Clearance: 1/2" Projection: 1-1/8" Fasteners: Surface Mount Only Metal Door 8-32 × 3/4 OHMS
Surface Mount Only Wood Door #8 × 3/4 OHSMS452- -
Push Bar W/Offset Grip 422X39
1" diameter materal
Offset Door Handle
Establish the center to center dimension by subtracting the width of one stile from the width of the door. On solid doors, subtract 5" from the width of the door.
Please specify either wood or metal door, and its thickness; we'll supply
appropriate fasteners.Please allow 3-4 weeks on the Dark Bronze and Aluminum, and 2 weeks on the other finishes
422X39 -
Push Bar With Offset Grip M422XM39
1-1/4" diameter materal
Offset Door Handle
Establish the center to center dimension by subtracting the width of one stile from the width of the door. On solid doors, subtract 5" from the width of the door.
Please specify either wood or metal door, and its thickness; we'll supply
appropriate fasteners.Please allow 3-4 weeks on the Dark Bronze and Aluminum, and 2 weeks on the other finishes
M422xM39 -
Push Bar w/Handle 422X26
1" diameter material
Establish the center to center dimension by subtracting the width of one stile from the width of the door. On solid doors, subtract 5" from the width of the door.
Please specify either wood or metal door, and its thickness; we'll supply
appropriate fasteners.Please allow 3-4 weeks on Aluminum and Dark Bronze, and 2 weeks on the other finishes
422x26 -
Push Bar 1' Diameter 422
Push Bar 1' Diameter 422
Bar is made of solid aluminum, Stainless Steel or Bronze. The bar comes with thru bolts for mountingMaterial Size 1 " round
Base 1" Round
Clearance 1-1/8"
Projection 2-1/8"Please allow 4 weeks on Aluminum, Polished Brass, and Oil Rubbed Bronze. Stainless Steel and Polished Stainless Steel take about 2 weeks.
422 -
Back to Back Mounted Handles 3/4 Inch Diameter
Back to Back mounted handles constructed of 3/4 inch round stock. One handle will be threaded and the other will have a stud mounting that is secured by a set screw. The connecting stud is for 1-3/4 inch thick doors, if you door is a different thickness let us know in the Comments Section of the Check out process, or email us.
Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.
GHE25x25 -
Back to Back Mounted Handle 1 Inch Diameter
Back to Back mounted 1 inch diameter stock. One handle will be threaded and the other will be a female fitting that snugs the handle with a set screw. The standard Stud that ships with the handle is for an 1-3/4 thick door.
Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.
GHE26x26 -
C Shaped Offset Pull
The C Shaped Offset Pull has 12 inch centers and has a 13 inches overall lenght. The clearance is 1-1/2 inches with a 2-1/2 inch projections. The handle is constructed on 1 inch diameter stock, the offset is 7 inches. The base is 7/8 inch round stock. The handle is furnished with thru bolts and finish washers.
Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.
G49D- -
Door Pull Offset 1.25 Diameter M39
Solid offset door pull 1-1/4 inch diameter round stock. Handle has a 4 inch offset with a 2 inch clearance and 3 1/4" projection. Available in 12 or 18 inch centers.
Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.
GHEM39- -
Offset Pull Handles mounted Back to Back
The Door Pull Offset #39 Handle is constructed of either solid aluminum, brass or stainless steel. The handle is 1" diameter tubing with a 2-3/4" offset and 2-3/4" projection. This is the most common type of handle you use today. Just about every aluminum framed storefront door has a version of this handle. This handle is available in 8", 10", 12" and 18" centers on the mounting holes. The back to back mounting is for Metal or Wood Doors that are 1-3/4 thick. Included fastener is threaded into one of the handles, and the Stud End has fits into the inside handle and is held in place by a set screw on the handle.
Package includes two offset pull handles and fastening hardware. Shown in Polished Stainless Steel with 12 inch centers.
Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks.
GHE39x39 -
Back to Back Offset Door Pull 1.25 inch
Back to Back mounted Off-Set Door Pull featuring 1-1/4 inch stock diameter stock. Handle has a 4 inch offset with a 2 inch clearance and 3 1/4" projection. Available in 12 or 18 inch centers. Sold as sets, 2 handles and 3/8-24 thread stud.
Back to Back fasteners are for a 1-3/4 inch thick door, if your door is a different thickness, please let us know in the comments.
Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.
GHEM39xM39 -
Barn Door Pull Set
This Barn Door Pull Set features back to back handles that are thru-bolt mounted for a hassle-free setup. The Grip is 6 inches on centers and is constructed of 3/4 inch round stock, and projects out 2-3/8 inch. The flush pull face dimensions are 2-1/2 by 7 inches. The mortise size of the flush pull are 2 x 7/8 deep x 1/4 inch.
Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.
G2525A
