Cal Royal 300 Series Door Closer
Adjustable for sizes 3-6 or Barrier Free sizes 1-4
3/4" x 9-1/16" hole spacing
5 Year Warranty

Cal Royal 300 Series Catalogue

Cal Royal 400 Series Door Closer

Adjustable closing and latcting speeds
Powder Coated Painted Finishes
5 year warranty

Size 420 3/4" x 6-5/8" hole spacing
Size SM 430P 3/4" x 6-1/2" hole spacing
Size 430P 3/4" x 8-3/16" hole spacing
Size 440P 3/4" x 8-3/16" hole spacing

Cal Royal 400 Series Catalogue

Cal Royal 700 Series Door Closer

Adjustable closing and latching speeds
3/4" x8-3/16" for sizes 2 and 3, and 3/4 x 9-1/16" for size 4 holes spacing
Powder Coated Painted Finishes
5 year warranty

Cal Royal 900 Series Door Closer

Pull or Push side, or Top Jamb mounting, Meduim Duty Door Closer, Powder Coated Painted Finishes, 5 year warranty

3/4" x 11-1/8" cylinder hole spacing

Cal Royal 900 Series Catalogue

Cal Royal Door Closer CR440
Uses the same templating as the LCN 4040
Door Closer with substantial savings.
Part # CR4040

Cal Royal CR4040 Catalogue

Cal Royal A2200 Series Rim Device

Grade 1
Non handed
3/4" latch bolt throw
Heavy gauge steel, painted

Devices available for 32" and 24" wide doors. Please call 1-800-642-2403 for more information

Cal Royal A2200V Surface Vertical Rod

Grade 1
Non handed-field reversible
Heavy gauge steel, painted
4-1/2" minimum stile width

24" wide x 84" high, and 32" wide and 84" high also available in aluminum only.

Cal Royal 2200 Escutcheon Lever Trim

2-5/16" X 8-1/2"

Cal Royal 2000 Series Thumb Pc Trim

2-5/8" X 16"

Cal Royal part # THP00

Cal Royal 5000 Lever Trim

Cal Royal Part # 8000/L

Cal Royal 2000 and 5000 Knob Trim

Cal Royal 2000 Dummy Trim

3" X 7-3/4"

Cal Royal Part # 2200DTP

Cal Royal 2000 Night Latch Trim

3" X 7-3/4"

Cal Royal Part # 2200NL

Cal Royal 2000 Alarmed Exit Device
Alarm units has an internal horn. When the push rail is depressed, the horn sounds to provide an audible means of signaling that the door has been opened and violated. The unit has changeable 2 minute alarm cutoff or manual reset. Preset at factory for 2 minute alarm cut off. Jumper cable is provided to swich to continuous alarm. The key switch to turn the alarm off is a standard 1” cylinder with “C” keyway. The alarm operates on one standard 9 volt transistor battery. When battery is weak the horn will emit an intermittent signal. Alarmed units are supplied with two switches. One switch monitors the push rail and the other switch monitors the latch bolt for full proof security.

Unit includes “EMERGENCY EXIT ONLY. ALARM WILL SOUND” decal for application on door or unit.

Cal Royal 5000 Surface Vertical Rod

Grade 2 exit device

Cal Royal 2000 Series Exit Device Lever Trim

Non-handed Grade 1 (Clutch Style)
Cylindrical body hardened steel heavy duty tailpiece. For
1¾” and 2 ¼” doors. Prefix THI before part # for 2 ¼” door
thickness. Available for fire and non fire rated rim and
vertical rod exit devices.
Rose diameter 3 ½”, lever length 4 ¾”.

Cal Royal 800 Door Closer

CAL-ROYAL’S FINEST DOOR CLOSER SERIES
MEETING THE HIGHEST INDUSTRY STANDARDS, GRADE 1
HEAVY-DUTY DOUBLE LEVER ARM WITH EXTRA SMOOTH
ACTION FULL FEATURE MULTI-SIZE COMMERCIAL DOOR
CLOSER FOR USE IN OFFICE BUILDINGS, SHOPPING
CENTERS AND OTHER COMMERCIAL

CR801S - SLIM COVER

CR801 - FULL COVER

Please allow one week lead time

Replacement End Cap and Bracket for the Cal-Royal 2200 Rim and Vertical Rod Exit Devices

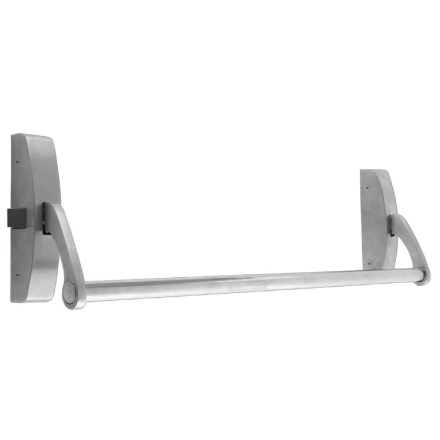

The Cal-Royal 45 Narrow Stile Rim Device is part of the new 4500 Series.  They are designed for Narrow Stile doors with a minimum of an 1-3/4" stile width.  This is a Grade 1 Exit Device, which is the highest traffic rating possible. Exit device ships with strike and mounting screws.

Shown is Left Hand Reverse
Opposite would be Right Hand Reverse

The Cal-Royal 45 Narrow Stile Surface Vertical Rod is part of the new 4500 Series. They are designed for Narrow Stile Doors with a Stile width of at least 1-3/4 inches. The device is rated as a Grade 1, which is the heaviest traffic rating possible. They ship with all mounting hardware and strikes.  This device is non handed and uses a Allen Type dogging system.

The Cal-Royal 6600 Rim Device is a Grade 1 exit device.  It is designed for doors that have at least a 4-1/2 inch stile width. The 36 inch device has a 32 inch actual length and can cut down 6" (24 inch actual). The 48 inch device has an actual length of 44 inches and can be cut down 12 inch (34 inch actual).  Devices ships with 938 Strike and all the mounting screws.

The Cal-Royal 6660 Surface Vertical Rod Device is a Grade 1 exit device.  It is designed for doors that have at least a 3-3/4 inch stile width. The 36 inch device has a 32 inch actual length and can cut down 6" (24 inch actual). The 48 inch device has an actual length of 44 inches and can be cut down 12 inch (34 inch actual).  Devices ships with 938 Strike and all the mounting screws.

The ESC6600 are non handed, with a Grade 1 thru bolted design. It features a clutch mechanism, double heavy duty spring support to prevent sagging and a hardened stell heavy duty spindle. Entrance function, key locks or unlocks lever, operates as a Classroom Function. Ships with mounting screws and a 6-Pin Schlage Mortise Cylinder.
