Global Top Hinge For Flat Surface Stainless Steel
Description

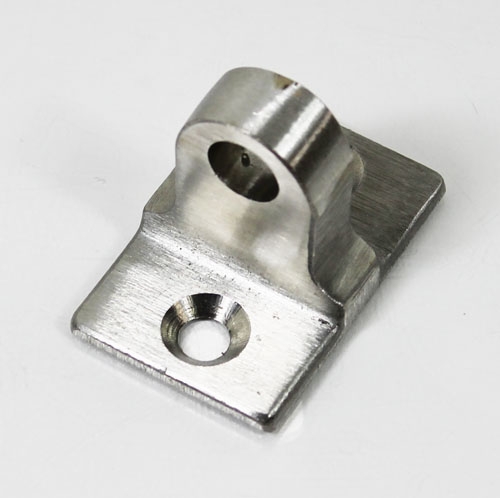

Global Partitions Top Hinge For Flat Surface Mounting. Stainless Steel die cast construction. Used with powder coated steel and stainless steel partition doors. Pivot hinge is 2-3/16" tall by 1-1/2" wide. The hole spacing is 1-1/2" on center. The lug projects out 1-1/2" and is 1/2" thick. The bushing on the lug is 3/8" diameter. Manufacturer part # 135580, 111723. Same part for Flush Metal and General Partitions. Shipped with mounting screws. A=1-7/6". Also used with Accurate Partition doors after January 2013.
Global Partitions Top Hinge For Flat Surface Mounting. Stainless Steel die cast construction. Used with powder coated steel and stainless steel partition doors. Pivot hinge is 2-3/16" tall by 1-1/2" wide. The hole spacing is 1-1/2" on center. The lug projects out 1-1/2" and is 1/2" thick. The bushing on the lug is 3/8" diameter. Manufacture part # 135580, 111723. Same part for Flush Metal and General Partitions. Shipped with mounting screws. A=1-7/6".
| Part # | 9G0203 |
|---|---|
| Availability | In Stock |
| Manufacturer | Accurate Toilet Partition, Global Toilet Partition |
| Description | Global Partitions Top Hinge For Flat Surface Mounting. Stainless Steel die cast construction. Used with powder coated steel and stainless steel partition doors. Pivot hinge is 2-3/16" tall by 1-1/2" wide. The hole spacing is 1-1/2" on center. The lug projects out 1-1/2" and is 1/2" thick. The bushing on the lug is 3/8" diameter. Manufacturer part # 135580, 111723. Same part for Flush Metal and General Partitions. Shipped with mounting screws. A=1-7/6". Also used with Accurate Partition doors after January 2013. |
| Detailed Description | Global Partitions Top Hinge For Flat Surface Mounting. Stainless Steel die cast construction. Used with powder coated steel and stainless steel partition doors. Pivot hinge is 2-3/16" tall by 1-1/2" wide. The hole spacing is 1-1/2" on center. The lug projects out 1-1/2" and is 1/2" thick. The bushing on the lug is 3/8" diameter. Manufacture part # 135580, 111723. Same part for Flush Metal and General Partitions. Shipped with mounting screws. A=1-7/6". |
