Yale

Yale 1500 Dogging Piece

Yale Part # 60-1500-6185

Yale 7100 Latch Cover

This latch cover is used on the Yale 7110 Surface Vertical Rod Device.  We stock these in Brushed Stainless Steel, other finishes will take longer.

Yale Part # 60-7010-7040

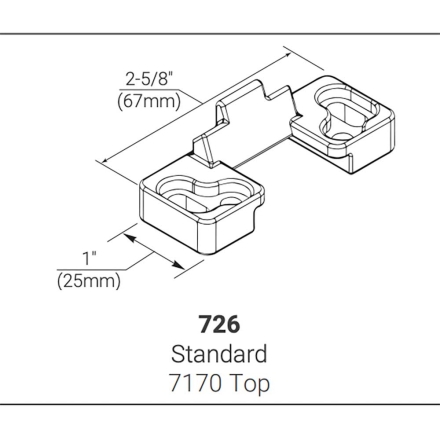

Yale Strike 726

Used on the Yale 7170 Series Vertical Rod Exit Devices. Used as the Top Strike.

Yale Part # 726

The Yale Series 1900 Traditional Surface Closers represent a combination of traditional styling and modern closer features. All closer sizes are contained within a single size aluminum alloy shell. Templates for installing this closer are the same for all closer sizes.

Yale Part # 1902/4

Handing diagram

Yale 2300 Door Closer

• Spring size 2, 3, 4, 5
• Separate and independent valve for sweep speed and latch speed
• Adjustable backcheck standard
• Regular, top jamb, parallel mount
• 5-year limited warranty
• ANSI/BHMA A156.4 Grade 3

3/4" x 9-1/16" hole spacing

In April of 2023 Norton Yale have discontinued the 2300 and 9300.  The Norton 1600 will be sent in place of the 2300.   Same Hole Spacing, but adjustable spring tension.

Yale 3300 Door Closer

• Adjustable spring sizes 1 thru 6
• Rack-and-pinion design
• 1-1/4" (32mm) diameter piston
• 5/8" (16mm) diameter pinion journals
• Cast aluminum body
• Standard, separate and independent, latch,
  sweep and backcheck intensity valves
• Staked valves
• Molded plastic cover standard

This door closer replaces the older 3301BF closers. The new version is Barrier Free Complaint.
3/4" x 12" hole spacing, the cylinder is sometimes cast 20-3301-1001 on the back of the cast aluminum
cylinder.

Yale 3500 Door Closer

• Adjustable spring sizes 1 thru 6
• Rack-and-pinion design
• 1-1/4" (32mm) diameter piston
• 5/8" (16mm) diameter pinion journals
• Cast aluminum body
• Standard, separate and independent, latch,
  sweep and backcheck intensity valves
• Staked valves
• Molded plastic cover standard

We ship the model # 3501, this closer replaces the 3501BF. The new version meets the Barrier Free compliance codes.

Yale 4400 Door Closer

• Non-handed
• Rack-and-pinion design
• Cast aluminum body
• 2-1/8" (54mm) projection
• 1-1/2" (38mm) diameter piston
• 5/8" (16mm) diameter pinion journals
• Staked valves
• Standard, separate and independent, latch, sweep and
  backcheck intensity valves
• Backcheck positioning valve
• NorGlide® fluid
• Molded plastic cover
• All standard arm applications allow doors to swing 180°,
  conditions permitting
• Self-drilling screws
• Full-size template
• 10-year limited warranty

2-3/8" x 6-3/4" hole spacing. This door closer replaces the 4400BF. This newer version is Barrier Free Compliant.

Yale 50 Series Door Closer

• ANSI A156.4, Grade 1
• 10-year warranty
• Non-handed
• Rack-and-pinion design
• Cast aluminum body
• 1-3/8" (35mm) diameter piston
• 5/8" (16mm) diameter pinion journals
• Standard, separate and independent, latch, sweep
  and backcheck intensity valves
• 2-7/8" (73mm) projection
• Tri-Packed- packed for regular arm, top jamb and
  parallel arm installations.
• All standard arm applications allow

Older models may be stamped with Scoville or Eaton, which are the companies that used to own Norton
We some times find 20-0054-4001 or 20-0254-4001 stamped on the back of the closer

Corbin Russwin 677F08-5 Spring Retainer Hub, this is also known as the Yale 60-7000-6217-082 Hub, Lever.

The Yale 7000 Cylinder Dogging Sub Assembly is used on non Fire Rated Yale and Corbin Russwin panic devices.   Like the Hex Key Sub Assembly, this one is for use with a Key Cylinder.

Yale Part # 60-7000-0407-999
Corbin Russwin Part # 650F968

Yale Door Closer Covers

Replacement Yale Door Closer Covers, made of impact resistance plastic.  Covers are available for the 4400, 3300, and 3500 Series Door Closers.

Detex EAX Yale Mortise Cylinder

Mortise cylinder for the EAX300 and EAX500 Door Alarms. Brushed Chrome Finish.
