Metpar Bottom Cam Housing Unplated

In stock
Part #
9C0140
$15.18

Metpar Partitions Bottom Cam Housing Unplated

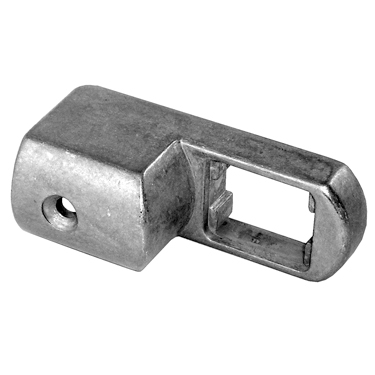

Unplated Zamac die cast construction. The housings outside dimensions are 3-1/8" wide by 1-5/32" deep by 1-7/16" high. The screw hole is 7/32" diameter. The square slot is 1" by 15/16". The square bulge were the screw is located is 1-1/2" by 1-5/32". Also known as a Bathroom Stall Door Insert - Bottom 1". Manufacture part # 4066

Metpar Bottom Cam Housing Unplated is available to buy in increments of 1

Metpar Partitions Bottom Cam Housing Unplated

Unplated Zamac die cast construction. The housings outside dimensions are 3-1/8" wide by 1-5/32" deep by 1-7/16" high. The screw hole is 7/32" diameter. The square slot is 1" by 15/16". The square bulge were the screw is located is 1-1/2" by 1-5/32". Also known as a Bathroom Stall Door Insert - Bottom 1". Manufacture part # 4066

More Information
Part # 9C0140
Description

Metpar Partitions Bottom Cam Housing Unplated

Unplated Zamac die cast construction. The housings outside dimensions are 3-1/8" wide by 1-5/32" deep by 1-7/16" high. The screw hole is 7/32" diameter. The square slot is 1" by 15/16". The square bulge were the screw is located is 1-1/2" by 1-5/32". Also known as a Bathroom Stall Door Insert - Bottom 1". Manufacture part # 4066

Short Description

Metpar Partitions Bottom Cam Housing Unplated

Unplated Zamac die cast construction. The housings outside dimensions are 3-1/8" wide by 1-5/32" deep by 1-7/16" high. The screw hole is 7/32" diameter. The square slot is 1" by 15/16". The square bulge were the screw is located is 1-1/2" by 1-5/32". Also known as a Bathroom Stall Door Insert - Bottom 1". Manufacture part # 4066

Availability In Stock
Manufacturer Metpar Toilet Partition
