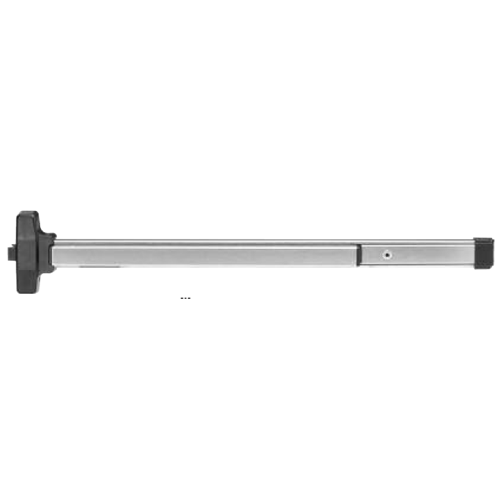

Monarch 19-R Exit Device
Description
Monarch 19-R Exit Device
Hand: Non-Handed.
Functions: All functions built into “EO” device.
Finishes: Powder-coated aluminum–SP28; powder-coated duranodic–SP313;
Latchbolt: Stainless steel, 3⁄4" throw.
Deadlocking Latchbolt: Standard.
Dogging Feature: 1⁄2 turn hex dogging standard. No threaded parts to wear out.
Stock Sizes: 3'0" and 4'0"
Doors: 1-3⁄4" thick, wood or metal. Specify thickness if other than 1-3⁄4".
Projection: 2-1⁄2" maximum; 1-7⁄8" dogged.
36" device is only 33-1/2" wide
48" device is only 43-1/2" wide
Monarch 19-R Exit Device
Hand: Non-Handed.
Functions: All functions built into “EO” device.
Finishes: Powder-coated aluminum–SP28; powder-coated duranodic–SP313;
Latchbolt: Stainless steel, 3⁄4" throw.
Deadlocking Latchbolt: Standard.
Dogging Feature: 1⁄2 turn hex dogging standard. No threaded parts to wear out.
Stock Sizes: 3'0" and 4'0"
Doors: 1-3⁄4" thick, wood or metal. Specify thickness if other than 1-3⁄4".
Projection: 2-1⁄2" maximum; 1-7⁄8" dogged.
36" device is only 33-1/2" wide
48" device is only 43-1/2" wide
| Part # | G19EO- |
|---|---|
| Availability | 1 to 2 Days |
| Return Policy | With Restocking Fee |
| Manufacturer | Monarch Exit Devices |
| Description | Monarch 19-R Exit Device Hand: Non-Handed. 36" device is only 33-1/2" wide |
| Detailed Description | Monarch 19-R Exit Device Hand: Non-Handed. 36" device is only 33-1/2" wide |
