Top Hinge 1-1/4" Round Edge

In stock
Part #
9C3503
$16.13

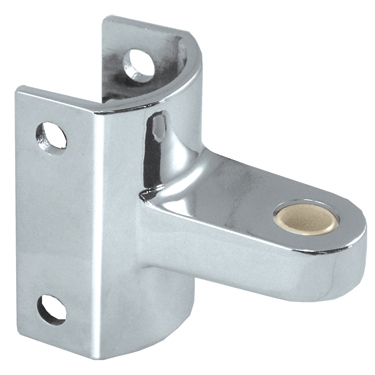

Top Partition Hinge For 1-1/4" Round Edge Post Or Pilaster

Chrome plated Zamac die cast construction. The outside dimensions of the hinge are 1-1/4" deep by 2-1/2" high by 1-7/16" wide. The U mounting channel is 2-1/8" high by 1-1/4" deep with a slot depth of 11/16". The mounting holes are 1-1/2" apart on center. The lug projects out 1-3/32" by 13/32" thick with a 3/8" diameter bushing. Also know as a Bathroom Stall Pivot Hinge - Top 1-1/4". Manufacture part # 4530. Used on Ampco and Metpar Metal Partitions.

Shipped with mounting screws.

A=1-7/16"

Top Hinge 1-1/4" Round Edge is available to buy in increments of 1

Top Partition Hinge For 1-1/4" Round Edge Post Or Pilaster

Chrome plated Zamac die cast construction. The outside dimensions of the hinge are 1-1/4" deep by 2-1/2" high by 1-7/16" wide. The U mounting channel is 2-1/8" high by 1-1/4" deep with a slot depth of 11/16". The mounting holes are 1-1/2" apart on center. The lug projects out 1-3/32" by 13/32" thick with a 3/8" diameter bushing. Also know as a Bathroom Stall Pivot Hinge - Top 1-1/4". Manufacture part # 4530. Used on Ampco and Metpar Metal Partitions.

Shipped with mounting screws.

A=1-7/16"

More Information
Part # 9C3503
Description

Top Partition Hinge For 1-1/4" Round Edge Post Or Pilaster

Chrome plated Zamac die cast construction. The outside dimensions of the hinge are 1-1/4" deep by 2-1/2" high by 1-7/16" wide. The U mounting channel is 2-1/8" high by 1-1/4" deep with a slot depth of 11/16". The mounting holes are 1-1/2" apart on center. The lug projects out 1-3/32" by 13/32" thick with a 3/8" diameter bushing. Also know as a Bathroom Stall Pivot Hinge - Top 1-1/4". Manufacture part # 4530. Used on Ampco and Metpar Metal Partitions.

Shipped with mounting screws.

A=1-7/16"

Short Description

Top Partition Hinge For 1-1/4" Round Edge Post Or Pilaster

Chrome plated Zamac die cast construction. The outside dimensions of the hinge are 1-1/4" deep by 2-1/2" high by 1-7/16" wide. The U mounting channel is 2-1/8" high by 1-1/4" deep with a slot depth of 11/16". The mounting holes are 1-1/2" apart on center. The lug projects out 1-3/32" by 13/32" thick with a 3/8" diameter bushing. Also know as a Bathroom Stall Pivot Hinge - Top 1-1/4". Manufacture part # 4530. Used on Ampco and Metpar Metal Partitions.

Shipped with mounting screws.

A=1-7/16"

Availability In Stock
Manufacturer Ampco Toilet Partition, Metpar Toilet Partition
