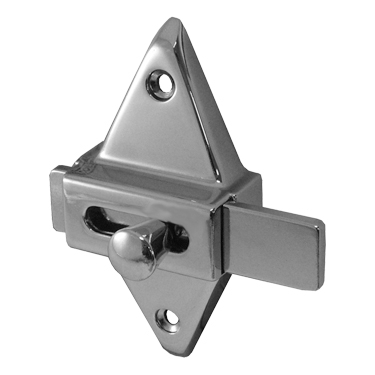

American Sanitary Slide Bolt Latch
American Sanitary Slide Bolt Latch Chrome Plated.
Zamac die cast construction, polished chrome finish. Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch. Manufacture part # 5020.
Shipped with mounting screws.
American Sanitary Slide Bolt Latch Chrome Plated.
Zamac die cast construction, polished chrome finish. Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch. Manufacture part # 5020.
Shipped with mounting screws.
| Part # | 9AM500 |
|---|---|
| Availability | In Stock |
| Manufacturer | American Sanitary Toilet Partition |
| Short Description | American Sanitary Slide Bolt Latch Chrome Plated. Zamac die cast construction, polished chrome finish. Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch. Manufacture part # 5020. Shipped with mounting screws. |
| Description | American Sanitary Slide Bolt Latch Chrome Plated. Zamac die cast construction, polished chrome finish. Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch. Manufacture part # 5020. Shipped with mounting screws. |
