Truth Entrygard Dyad Window Operator.

Common numbers found on this operator are 30636, 30637, and 20544 for the old style,
31368, 20810, and 45275 for the new style.  Call or email for quantity "Discount Codes".

For link off-set up version order Wi1562

See attached file of what the Original Version looked like

Left hand shown.

Truth Split Arm Window Operator 15.26

To determine hand of operator, if your sash lock (window lock), is on the left, you would use a left hand operator. And if your sash lock is on the right, you would order the right hand operator. Ships with matching handle.

White and Bronze only

We only have the Traditional Housing for the Right Hand Bronze operator.

Two Hole 1-3/8" Window Handle 9/32" Lockup Most Popular

This window handle is constructed of cast white bronze with a brushed nickel finish. The handle has a 1-3/8" hole spacing with 9/32" lock up dimension. This window handle is one of our most popular.

Right Hand shown in Picture

Truth Entrygard Dual Arm Operator. We would expect you to find 20755 on the linkage arm, which measures 3-3/4" overall length. Other common numbers we would expect to find are 31538, 31539, 30841, 30842, 30472, 30470, and 20755.  Call or email for quantity "Discount Codes".

To determine hand of operator, if your sash lock (window lock), is on the left, you would use a left hand operator. And if your sash lock is on the right, you would order the right hand operator.

3-3/4" link dimension, offset up. For offset down order Wi1520

Order Wi1510 if your link dimension is 4-7/16" stamped 20810.
Order Wi1515 if your link dimension is 2-7/8" stamped 20748.

Left hand shown.

PART # HAND
WI1516R RIGHT HAND
WI1516L LEFT HAND

Truth Entrygard Dual Arm Operator

Truth Two Hole 1-1/2" Window Handle

Truth 25.31 Two Hole Cam Handle die cast construction with a powder coated painted finish. We find the numbers 45086 on the right hand handles, and 45085 on the left hand handles.

Right Hand shown in picture.

The Adams Rite 4580 cam is used on the the 4500 and 4900 Dead Latch Paddles.  The 4580-500 is for Left Hand, and the 4580-600 is for Right Hand Doors.

LCN Door Closer Fusible Link Arm

Adjustable nut allows door closer arm to lock when the preselect position is reached. Fusible Link will hold door until heat melts the "Link" and then the door will shut. Used on Fire Doors to control a spreading fire.

Specify your current closers model number when ordering.
Not all of the LCN closers have the same shape spindle on the door closer
cylinder. The LCN Part #'s on this Fusible Link Arm is: 4010-3049FL, 4020-3049FL, 4110-3049FL

The Von Duprin 55NL Cam is one of the handed parts in the housing, the other is the Arm.  If you need to change the hand of a housing, you just need to order the other hand Cam.

The Cam shown in the Picture is Right Hand

Von Duprin Part #'s 050355-Right Hand, 050356-Left Hand.

Jackson 1085 Lever Arms

Replacement Lever Arm for the Jackson 1095 Active Housings.   This arm will only work on the 1095 Active Case!  Handing is determined by standing inside and looking out, if the arm in on the right hand side of the door, it is a right hand lever that you would order.

Jackson Part # RH 30-1247/LH 30-1248

Angle Base Window Handle Kaiser

Cast white bronze with a brushed nickel finish

Used on Kaiser Windows

Angle Base Kawneer Window Handle 1-1/4"

Cast white bronze, with brushed nickel finish.

Used on Kawneer Windows.

Truth Entrygard Dual Arm Operator. We would expect you to find 20810 on the linkage arm, which measures 4-7/16" overall length. This is the most common size we find in use. Other common numbers we would expect to find are 31538, 31539, 30841, 30842, 30472, 30470, 20810, or 20544. Also known as a TH-23076 or TH-23077.

4-7/16" link dimension, offset up. For offset down, order Wi1561.

Order Wi1516 if your link dimension is 3-3/4" stamped 20755.
Order Wi1515 if your link dimension is 2-7/8" stamped 20748.

MOST POPULAR SIZE

To determine hand of operator, if your sash lock (window lock), is on the left, you would use a left hand operator. And if your sash lock is on the right, you would order the right hand operator.

PART # HAND
WI1510R RIGHT HAND
WI1510L LEFT HAND

Truth Entrygard Dual Arm Operator

Roto Casement Operator

This Roto Casement Operator features a hole spacing of 3-1/2" on thee outside mouting holes and 1-7/8" on the two inside mouting holes.  The housing is contructed of die case metal that is electro-statically painted.   The housing is 5-1/2" wide.  The optional handle fits the 5/16" Hex Shaft.

Left Hand Shown in picture

Casement Window Operator 11" Arm

Die cast housing with steel arm. The hole spacing of the window operator housing is 4-3/4" on the outside screws and 3-7/8" on the inside two screws. The arm is 11" from the roller to the center of the window operator housing. This operator uses a 5/16" spline operator, part #Ro169516.

Angle Base Kawneer Window Handle-1-1/4"

Cast white bronze, with brushed nickel finish.

Used on Kawneer Windows.

Truth Entrygard Dual Arm Operator. We would expect you to find 20810 or 20544 on the linkage arm, which measures 4-7/16" overall length. This is the most common size we find in use. Other common numbers we would expect to find are 31538, 31539, 30841, 30842, 30472, 30470, 20810, or 20544.  Call or email for quantity "Discount Codes".

For offset up, order Wi1510.

To determine hand of operator, if your sash lock (window lock), is on the left, you would use a left hand operator. And if your sash lock is on the right, you would order the right hand operator.

Part # Hand
WI1561R Right Hand
WI1561L Left Hand

Truth Entrygard Dual Arm Operator

Angle Base Kawneer Window Handle 1-3/8"

Cast white bronze, with brushed nickel finish.

Used on Kawneer Windows.

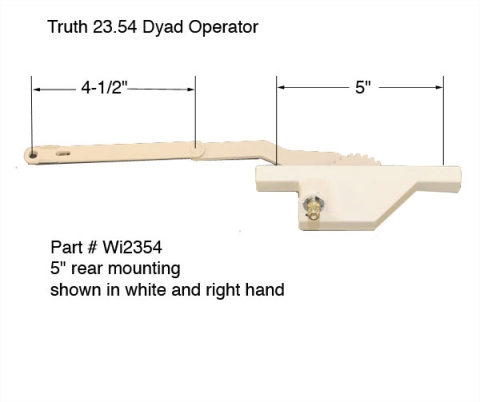

Truth 23.54 Split Arm Window Operator

A common number found on this operator is 30866

4-1/2" long linkage arm, Ships with matching handle.

Project-In Kawneer Window Handle

Cast white bronze, with brushed nickel finish.

Used on Kawneer Windows.

We ship the P4907RP as a replacement.

The Truth 50.60 Encore Dyad Operator has been in production since about 1999.   In the beginning Truth offered the Maxim and the Encore Systems.   The Maxim is being phased out and the Encore is the only one made now.   The Encore will replace all of the Maxim operators, and have the same hole spacings and operation, but they have the interchangeable handle and covers.

The Operator in the Picture is a Left Hand.

Window Operator Handing

LCN Door Closer Spring Cush Arm 3077SC

Optional, parallel arm for abusive applications features solid forged steel main arm and forearm with spring loaded stop in the soffit shoe.

Truth Split Arm Operator.

White and Bronze only. Ships with matching handle.

Common numbers found on this operator is 30866

Project In Window Handle 1-3/8"

This window handle features a 1-3/8" hole spacing with a 7/16" lock up. The mounting holes are located on the back of the handle and are tapped for a standard thread screw. Cast white bronze, with brushed nickel finish.

LCN Door Closer Hold Open Arm

Adjustable nut allows door closer arm to lock when the preselect position is reached.

Specify your current closers model number when ordering.
Not all of the LCN closers have the same shape spindle on the door closer
cylinder. The LCN Part #'s on this Regular Arm is: 1260-3049, 1460-3049, 4010-3049, 4020-3049, 4040-3049

Angle Base Window Handle 1-1/8"

Angle base handle is made of a white bronze casting that is then brushed nickel plated.   Angle base holes are 1-1/8" on center and have a 10-24 thread.

Right Hand Shown in Picture

Truth Encore Dual Arm Operator for Low Profile windows.  Same as the Wi5010, but has a rectangular slide on the long arm instead of the standard models square slide.

TH1112 Offset Pivots are used for both flush face frame installation and 1/8" recessed door applications. Pivots replace most major door manufactures. Suitable for aluminum doors weighing up to 125 pounds. These pivots are engineered and designed for durability, style and are easy to install. To order pivot: For LHRB door order RH pivot For RHRB door order LH pivot Specifications * 3/4" offset pivots for aluminum doors and frames * For flush door / frame and 1/8" recessed door applications * Weather resistant * Aluminum case construction * Vertical adjustment 1/8" * Full race ball bearing and design, provides smooth operation on bottom pivot door portion * No sag, entire weight of doors rests on floor mounted pivot portion * Completely temper proof, yet easily removable, replaceable in unlocked position * All pivots are handed- specify LH, RH * Finish: AL-Aluminum, DU-Duronotic

TH1100 Offset Pivots are used for both flush face frame installation and 1/8" recessed door applications. Pivots replace most major door manufactures. Suitable for aluminum doors weighing up to 125 pounds. These pivots are engineered and designed for durability, style and are easy to install. To order pivot: For LHRB door order RH pivot For RHRB door order LH pivot Specifications * 3/4" offset pivots for aluminum doors and frames * For flush door / frame and 1/8" recessed door applications * Weather resistant * Aluminum case construction * Vertical adjustment 1/8" * Full race ball bearing and design, provides smooth operation on bottom pivot door portion * No sag, entire weight of doors rests on floor mounted pivot portion * Completely temper proof, yet easily removable, replaceable in unlocked position * All pivots are handed- specify LH, RH * Finish: AL-Aluminum, DU-Duronotic

Handing diagram

TH1118-B Offset Pivots are used for both flush face frame installation and 1/8" recessed door applications. Pivots replace most major door manufactures. Suitable for aluminum doors weighing up to 125 pounds. These pivots are engineered and designed for durability, style and are easy to install. To order pivot: For LHRB door order RH pivot For RHRB door order LH pivot Specifications * 3/4" offset pivots for aluminum doors and frames * For flush door / frame and 1/8" recessed door applications * Weather resistant * Aluminum case construction * Vertical adjustment 1/8" * Full race ball bearing and design, provides smooth operation on bottom pivot door portion * No sag, entire weight of doors rests on floor mounted pivot portion * Completely temper proof, yet easily removable, replaceable in unlocked position * All pivots are handed- specify LH, RH * Finish: AL-Aluminum, DU-Duronotic

Jackson 1085 Hinge Case, also the 1095 Jackson inactive Case. Includes everything in the housing.

The housing mounting studs are 6-5/16" on centers

Jackson part # 30-982 Right Hand Body and Arm Assembly
Jackson part # 30-983 Left Hand Body and Arm Assembly

Housing Shown in Aluminum

Truth Window Operator Surface Mount 11"

This Truth Surface Mounted Window Operator is usually used on commercial aluminum windows. It features an 11" long arm, measured from the center of the housing to the center of the metal roller. The outside mounting screw holes are 4-3/4" a part and the inter screws are 3-7/8" on center.

Right Hand Shown, in Aluminum

Right Hand Aluminum Wi36223AL
Left Hand Aluminum Wi36222AL
Right Hand Bronze Wi36223BR
Left Hand Bronze Wi36222BR
Right Hand White Wi36223W
Left Hand White Wi36222W

Fenestra Windows Casement Handle

Stamped steel construction, 2-5/8" center to center mounting holes

Used on steel framed Fenestra Windows

Right Hand Shown in Picture

LCN Door Closer Spring Cush Hold Open Arm 3049SC

Optional, parallel arm for abusive applications features solid forged steel main arm and forearm with spring loaded stop in the soffit shoe. Handle controls hold-open function.

Angle Base 1-3/8" Window Handle Truth

Also known as the Truth 25.39, this handle is constructed of a die cast metal and powder coated to the desired color. The distance between the screws is 1-3/8" on center. The handle measures 3-3/4" long, base measures 2-1/8" long. The number found on the handle is 45086 for the Right Hand, and 45085 for the Left Hand. We also find U.S. Pat. # 4,930,820

Right Hand is shown in picture.

Truth 11" Surface Rear Mounted Operator

This Truth Surface Mounted Window Operator is usually used on commercial aluminum windows. It features an 11" long arm, measured from the center of the housing to the center of the metal roller.

LCN Sentronic Door Closer 4410ME

Standard LCN Sentronic Door Closer 4410ME series closer shipped with a 24V or 120V cylinder (please specify) on a mounting plate, metal cover, regular arm, and wood and machine screw pack. Sized cylinders for interior doors to 4’0”. Functions as full rack and pinion door closer when hold-open is not engaged or current is interrupted. Handed for right or left swinging door. Concealed or exposed electrical connections. Built-in “On/Off” switch controls hold-open function. Interfaces with fire alarm systems.

LCN Sentronic Door Closer 4410ME parts are also available.
