Dor-o-Matic 990/1090/1990/2090 Cross Bar

41" or 48" cross bar is sent, cut to size.  48 inch bars are not in stock, leadtime is 3 weeks

Doromatic part # CBAR or 47285197 for 41" bars and 47286482 for the 48" bars.

The Dark Bronze Cross Bars are a very dark bronze and will be closer to black.

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-matic 1990/2090 Pivot Pin E Ring. This ring is used on the Pivot Pin G199013.

7/16" diameter

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-Matic 990/1990/2090 Lever Arm Pin. This pin is what the spring attaches to.

Doromatic part # PIN.104

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-Matic Lever arm.

Doromatic part # DC15 Lh and DC40 Rh

Order G199015 for Left Hand and G199040 for Right Hand

Left hand lever shown for 1990 and the 2090 inactive case.

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-Matic retaining ring. Used to retain the concealed vertical rods.

Doromatic part # RRING.109

1/2" diameter

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts Breakdown

Dor-o-Matic 1990 and 2090 arm bushing. This bushing goes between the pivot pin (arm axle) and housing.

Doromatic part # BUSH.103 or PB43

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-matic Complete housing assembly for the 990/1990 and the inactive sides of the 1090/2090. Includes all components to replace your current housing. Housing measures 7-1/2" long by 1-3/16" wide, with a 6-1/4" center to center stud mounting.

See diagrams for handing.

Doromatic part #
4270902784 - right hand dark brown
4270902782 - right hand aluminum
4270902785 -right hand black
4270902778- left hand dark brown
4270902782 - left hand aluminum
4270902779- left hand black

1990 parts breakdown

2090 parts breakdown

Dor-o-Matic 990/1090/1990/2090 Cross Bar Screw

Doromatic part # SCREW.1027

1/4-20 x 1" Self Tapping Threads

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-Matic 1990/2090 Set Screw. This set screw goes thru the housing to secure the housing on the mounting studs.

Doromatic part # SCREW.1039 PB38

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-matic 990/1090/1990/2090 Lever Arm Pivot Pin measures 1-1/32" long by 9/32" diameter.

Doromatic Part # PIN.115

Dor-o-Matic 990/1090/199092090 dogging screw. This is the screw that holds down the cross bar when you tighten it.  The thread is 7/16-14.

Doromatic part # SCREW.1022

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-Matic spring retainer. The retainer fits under the housing, by the dog screw and holds one end of the spring. The spring pin holds the other side.

Doromatic part # RETAIN.102

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Doromatic Mounting Stud. Male stud mounts to the door and the housing slides over.

Doromatic part # PB2 and also STUD.101

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-matic cylinder bushing. Fits around the Pinion gear to take up slack and reduce friction.

Doromatic Part # BUSH.102

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts Breakdown

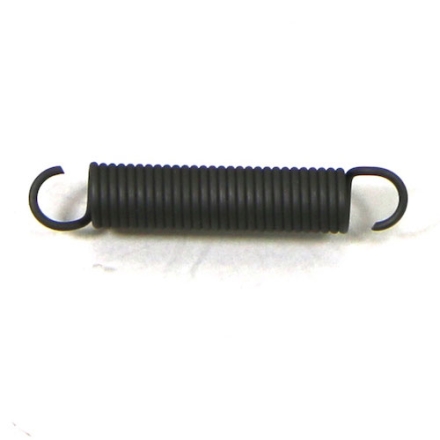

Dor-o-Matic lever arm spring. This spring pulls the cross bar back to the closed postion. The tension spring measures 1-1/4" long by 1/4" diameter.

Doromatic part # SPRING.103

Doromatic Complete 2090 and 1090 Active Case. Includes all of the interior hardware. Just unscrew or loosen the three set screws and remove your old case and install and tighten the three set screws. Housing measures 7-1/2" long by 1-3/16" wide.

4270902740 Left Hand Aluminum Stock
4270902742 Left Hand Dark Brown Stock
4270902743 Left Hand Black * One week lead time
4270902746 Right Hand Aluminum Stock
4270902748 Right Hand Dark Brown Stock
4270902749 Right Hand Black * One week lead time

Doromatic Exit Device 2090 Lever Arm

Right hand dark brown shown in picture

Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-matic 2090 latch link

Dor-o-Matic 1090/2090 Repair Parts Breakdown

Doromatic 2090 / 1090 Back Plate Sub Assembly

Doromatic Part # 4270902974 Right Hand
Doromatic Part # 4270902968 Left Hand

Doromatic Exit Device 2090 Retractor Retaining Ring

Keeps the Retractor in place.

Doromatic part # RRING.102

Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-matic 1090/2090 Assembly Plate. This plate can be used if your current device has pulled the screws out, or you want to mount a new exit on a wood door.

Doromatic part #4270100304

2090 parts breakdown

The Doromatic 1790 rim device is typically used in applications where maintenance is a concern because the rim device has fewer parts and pieces than current exit devices. The result is less maintenance and adjustment. The streamlined design has no openings for chains, reducing the risk for code infringements and offering increased building security by eliminating the possibility of tampering and forced entry through the use of coat hangers and other tools. The Doromatic 1790 may also be used to retrofit a Doromatic 2090 series crossbar device.

Replacement parts are also available

Shipped with all screws and strikes. If you wish to use a key cylinder on the exterior, you will need the 1790 NL/HB Cylinder Assembly, 179CA.

Doromatic 2090 / 1790 Standard Strike

Black matte finish

Dor-o-Matic top strike.

Used on the Dor-o-Matic 1490, 1690, 1990 and 2390 Concealed Vertical Rod Exit and Panic Devices. The plate measures 1" x 1-1/16" with 4 holes. The mounting holes are 11/16" x 11/16" on center. The diameter of the pin is 7/16" and projects out 5/32". Ships with mounting screws and 3 shim plates.

Doromatic part # PB48

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts Breakdown

The design of the Doromatic 1690 is ideal for demanding, high-traffic applications. The vertical rods and latch mechanisms are concealed in the vertical door stile, ensuring trouble-free operation. Cast metal cover plates and end caps hold up to rigorous use. A quick, singlepoint dogging feature in the housing deactivates the device, permitting unrestricted traffic flow. The Doromatic 1690 may also be used to retrofit a Doromatic 1990 Series crossbar device.

Replacement parts are also available

Shipped with all screws and strikes. The 1690NL Cylinder Assembly (169CA) is required if you wish to use a key cylinder on the exterior, SEE RELATED PRODUCTS toward the bottom of this page.

Dor-o-matic 2090 Retractor. This piece retracts the latchbolt when the key is turned. The retractor measures 7/8" diameter by 5/16" gear height. Flange projects up 5/8".

Doromatic part # RETRACT.102

Doromatic 2090 Latchbolt spring. Pushes out the latch bolt.

Doromatic part # SPRING.104

Dor-o-Matic 1090/2090 Repair Parts Breakdown

The Doromatic 2090 provides balanced appearance, dependable performance and economical pricing, making it a popular choice where rim exit devices are required.

Hand: Specify RHR or LHR, not reversible. See "More View"
Left Hand Reverse shown in picture
Latchbolt: 1/2" throw hardened steel.
Dogging Feature: Hex dogging standard.
Sizes: Field adjustable width, 41" crossbar standard, fits
3' 8" door width, extra length crossbars available.
Doors: 1-3/4" thick metal or wood doors, specify if wood door.
Projections: 4-3/8" extended, 2-1/2" depressed.
Stile: 1-3/4" minimum.

Replacement parts are also available

Shipped with all screws and strikes.

Doromatic 1990 Complete Repair Kit-PB20

Kit includes 25 different parts to keep your 990/1990 working smoothly

Dor-o-Matic part # 4270100583

Doromatic 1690 / 1990 ES Top Latch PB131

Doromatic Part # 4270100316

Dor-o-Matic 1690/1990 bottom rod. Connects panic bar to the bottom latch

Doromatic Part # 4270101825 PB25 and GPB25

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts Breakdown

Doromatic Exit Device 1690/1990 Top Rod Latch Assy.

Used on the 1490, 1690 and 1990 Concealed Vertical Rod Devices

Doromatic Part # PB130, and also 4270101806

Dor-o-Matic 1690/1990 Top rod. Connects panic bar to the bottom latch

Doromatic Part # 4270100017 PB24

This rod is 35" tall

Dor-o-Matic 990/1990 Repair Parts Breakdown

Dor-o-Matic 1690 Repair Parts Breakdown

Dor-o-Matic 1990 repair kit. The kit includes the following:
4 Mounting Studs
1 Hex Key 7/32"
1 Allen Key 1/8"
1 Pinion
1 Cylinder Bushing
2 Rod Bushings
1 Retractor
1 Traveller Assy

Doromatic part # 4270902091 or PBX-2

1990 parts breakdown
