Search results for: 'super stainless steel bracket for detex'

Cast Stainless Steel Partition Keeper 1-1/2" Between Screws

Cast stainless steel construction. Keeper base is 2-1/2" high by 1-3/16" wide with a 1-1/2" hole spacing. Strike is 2-1/2" tall by 7/8" deep. The material 1/8" thick. The slot is 13/16" high by 1/4". Also known as a Bathroom Stall Keeper Inswing Flat. Manufacture part # 5183.

Shipped with mounting screws.

Toilet Partition Stainless Steel Continuous Alcove Clip, 71, 14 Gauge, equal.

Stainless Steel Construction 14 gauge (.075" thick). Alcove clip is 2-3/8" wide by 71" long. Holes are typically spaced every 14" vertically and 1-5/8" horizontally. This clip is also known as a Full Length Toilet Partition Continuous Clip. Alcove clip has rounded edge radius. Designed to attach pilasters and panels with same thicknesses by connecting them at the seams and eliminating sightline.

*Fasteners not Included *

Manufacture part # 190269

Cast Stainless Steel Partition Door Stop

Cast stainless steel construction. The strike and keeper measure 2-1/2" high by 1-7/8" deep by 1/8" thick. The stop has a 3/4" projection and is 9/16' deep with a rubber insert. The mounting holes are 1-1/2" on center. Also known as a Bathroom Stall Strike and Keeper Inswing/Outswing Flat. Manufacture part # 5173.

Shipped with mounting screws.

Toilet Partition Stainless Steel Continuous Alcove Clip, 71, 14 Gauge, 1/8" offset.

Stainless Steel Construction 14 gauge (.075" thick). Alcove clip is 2-3/8" wide by 71" long. Holes are typically spaced every 13-1/2" vertically and 1-5/8" horizontally. This clip is also known as a Full Length Toilet Partition Continuous Clip. Alcove clip has rounded edge radius. Designed to attach pilasters and panels with different thicknesses by connecting them at the seams and eliminating sightline.

*Fasteners not Included *

Manufacture part # 189979

Stamped SS Continuous One Ear Bracket 1/2" x 2-1/2" X 57". 18 gauge (.05" thick) stamped stainless steel construction. Base is 2-1/2" x 57" long. Mounting holes are 1-15/32" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 13" or so. Also known as a Bathroom Stall One Ear or One Wing Wall Bracket. Manufacturer part # 2099.

Stainless Steel Torque Head Barrel Nut Shoulder Screw for 1-1/4" - 1-5/8" gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread stainless steel unplated and uses a 6 lobe head torque. Both pieces included.

Toilet Partition Continuous Toilet Partition Hinge 54" With Spring Close Stainless Steel, Lh Outswing, Rh Inswing

Stainless Steel Construction 16 gauge (.060" thick). Hinge is 3" wide when laid flat, by 54" long. Holes are 9/32" diameter, spaced every 10-1/4" or so. Hinge can be raised up 3/8" for emergency entry. Hinge pin is 1/8" diameter. This Continuous Hinge is for Left Hand Outswing, and Right Hand Inswing, see handing diagram under "More Views". Also known as a Full Length Bathroom Stall Continuous Hinge. Manufacture part # 7959.

Stamped SS Continuous Two Ear Bracket 1/2" X 2-1/2" X 41". 18 gauge (.05" thick) stamped stainless steel construction. Base is 3" x 41" long. Mounting holes are 2-3/8" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 13". Also known as a Bathroom Stall Two Ear or Two Wing Wall Bracket. Manufacturer part # 2059.

The Continuous Hinge Stainless Steel, 57", Left Hand In swing, Right Hand Outswing is constructed of 14 gauge (0.75" thick) stainless steel.  The internal spring makes this a self closing hinge 14 Gauge with 1/4" Pin. 9" centers with 6 holes on each side.

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 3-15/16" with the mounting screws are 2-3/16" on center. Leg project out 2-1/2" with the thru hole at 2-1/8" from the base. Also known as a Bathroom Stall Wall Bracket and Two Wing Bracket. Manufacturer part # 1839.

Shipped with screws

Stainless Steel #12 X 2-1/2" Screw 6 Lobe(T-27), 1/2" diameter head, also known as a 91909. This uses a Torx bit to drive screw.

Toilet Partition Continuous Toilet Partition Hinge 54" With Spring Close Stainless Steel, Rh Outswing, Lh Inswing

Stainless Steel Construction 16 gauge (.060" thick). Hinge is 3" wide when laid flat, by 54" long. Holes are 9/32" diameter, spaced every 10-1/4" or so. Hinge can be raised up 3/8" for emergency entry. Hinge pin is 1/8" diameter. This Continuous Hinge is for Right Hand Outswing, and Left Hand Inswing, see handing diagram under "More Views". Also known as a Full Length Bathroom Stall Continuous Hinge. Manufacturer part # 7969.

Stamped SS One Ear Bracket 3/4" Panel 1-1/2" X 2-1/2"

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 2-5/32" with the mounting screws are 1-11/32" on center. Leg project out 2-1/2" with the thru hole at 2-1/8" from the base. Also known as a Bathroom Stall Wall Bracket and One Wing Bracket. Manufacturer part # 1649.

Shipped with screws

Stainless Steel #12 X 2" Screw 6 Lobe(T-27), 1/2" diameter head, also known as a 91919. This uses a Torx bit to drive screw.

Double sided door pulls in a cast stainless steel finish. The overall width is 4-3/4" x 1" deep. The center screws are 3-1/2". This manufacturer number is 54403. This kit includes both handles and screws for 1" thick doors.

Occupancy Indicator Latch Handle is constructed of cast stainless steel with a satin finish. Latch handle is designed for 3/4" Doors and is through mounted to the occupancy indicator. Features a 4-1/2" length handle that is tapered at one end to engage with keeper for locking. Features emergency unlatching access on front of indicator. Shipped with fasteners for mounting occupancy indicator to door and pilaster. Known as manufacturer part number 4993.

Stainless Steel Torque Head Barrel Nut Shoulder Screw for 1/2" - 3/4" Gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread, stainless steel unplated and uses a 6 lobe  head torque. Both pieces included.

Stainless Steel #14 x 5/8" Screw 6 Lobe(T-27), 7/16" diameter head, also known as 92199. This uses a Torx bit to drive screw.

Toilet Partition Continuous Toilet Partition Hinge 57-1/2" With Spring Close Stainless Steel
Rh Inswing or Lh Outswing See Diagram

16 gauge (.060" thick) stainless steel with 4 springs. 3" wide when laid flat x 57-1/2" long. 1/8" diameter hinge pin. Mounting screws are located every 11" or so. Can be raise up 3/8" for emergency entrance. Also known as a Bathroom Stall Piano Hinge, or Full Length Stainless Steel Continuous Piano Hinge. Manufacture part # 7659.

Shipped with all the fasteners

Toilet Partition Continuous Toilet Partition Hinge 57-1/2" With Spring Close Stainless Steel
Lh Inswing or Rh Outswing See Diagram

16 gauge (.060" thick) stainless steel with 4 springs. 3" wide when laid flat x 57-1/2" long. 1/8" diameter hinge pin. Mounting screws are located every 11" or so. Can be raise up 3/8" for emergency entrance. Also known as a Bathroom Stall Piano Hinge, or Full Length Stainless Steel Continuous Piano Hinge. Manufacture part # 7669.

Shipped with all the fasteners

Stainless Steel Double Door Pull made for 3/4” and 1” thick doors. Measurements for the handle 6-5/8" width, 5-1/2" hole to hole spacing, 5" interior opening and 2" height. Constructed of stainless steel with though bolts for mounting back to back on partition doors.Commonly known as part number 189373. This double door pull kit comes with fasteners and Torx Bit(T-20) for 3/4" and 1" thck doors.

Stainless Steel #10 x 5/8" Long Screw 6 Lobe(T-27), 7/16" diameter head, Also known as 90969. This uses a Torx bit to drive the screw.

Toilet Partition Stainless Steel Continuous Hinge, 71-1/2" Rh Inswing, Lh Outswing, 16 Gauge, 1/8" Pin

Stainless Steel Construction 16 gauge (.060" thick). Hinge is 3" wide when laid flat, by 71-1/2" long. Holes are spaced every 11" or so. The hinge pin is 1/8" diameter, and the mounting holes are 9/32" diameter. This hinge is also known as a Full Length Toilet Partition Continuous Hinge. The Bathroom Stall hinge can be raised up 3/8" for emergency entry. See "More Views" for handing information.

Manufacture part # 7759

Toilet Partition Heavy Duty Vault Hinge Set Stainless Steel For 3/4" Or 1" Thick Doors

Stainless steel construction. For 3/4" to 1" thick doors and 3/4" to 1" posts and pilasters. Also known as a Bathroom Stall Roller Bearing Hinge Set. Used by all of the Toilet Partition manufactures on there Solid Plastic (HDPE) Restroom dividers. Manufacture part # 7813.

Shipped with screws.

Stainless Steel Torque Head Barrel Nut Shoulder Screw for 1-3/16" - 1-3/8" gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread stainless steel unplated and uses a 6 lobe head torque. Both pieces included.

Stainless Steel Torque Head Barrel Nut Shoulder Screw for 7/8" - 1-3/16" gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread stanless steel unplated and uses a 6 lobe head torque. Both pieces included.

Toilet Partition Stainless Steel Continuous Hinge, 71-1/2"Lh Inswing ,Rh Outswing ,16 Gauge ,1/8" Pin

Stainless Steel Construction 16 gauge (.060" thick). Hinge is 3" wide when laid flat, by 71-1/2" long. Holes are spaced every 11" or so. The hinge pin is 1/8" diameter, and the mounting holes are 9/32" diameter. This hinge is also known as a Full Length Toilet Partition Continuous Hinge. The Bathroom Stall hinge can be raised up 3/8" for emergency entry. See "More Views" for handing information.

Manufacture part # 7769

Toilet Partition Stainless Steel Continuous Hinge, 71", Non-Handed, 14 Gauge, 1/4" Pin

Stainless Steel Construction 14 gauge (.075" thick). Hinge is 3" wide when laid flat, by 71" long. Holes are typically spaced every 14". The hinge pin is 1/4" diameter, and the mounting holes are 9/32" diameter. This hinge is also known as a Full Length Toilet Partition Continuous Hinge. Hinge had rounded edge 3/8" radius and is cam (gavity) self closing. Designed to be zero degree hold so that door will close flush with partition surface. The Bathroom Stall hinge can be raised up 3/8" for emergency entry.

*Fasteners not Included *

Manufacture part # 160799

Black Occupancy Indicator Latch Handle is constructed of cast stainless steel with black finish. Latch handle is designed for 3/4" Doors and is through mounted to the occupancy indicator. Features a 4-1/2" length handle that is tapered at one end to engage with keeper for locking. Features emergency unlatching access on front of indicator. Shipped with fasteners for mounting occupancy indicator to door and pilaster. Known as manufacturer part number 4995.

Toilet Partition Stainless Steel Continuous Hinge, 71", Non-Handed, 14 Gauge, 1/4" Pin

Stainless Steel Construction 14 gauge (.075" thick). Hinge is 3" wide when laid flat, by 71" long. Holes are typically spaced every 14". The hinge pin is 1/4" diameter, and the mounting holes are 9/32" diameter. This hinge is also known as a Full Length Toilet Partition Continuous Hinge. Hinge had rounded edge 3/8" radius and is cam (gavity) self closing. Designed to be 20 degree hold so that door will close and rest at 20 degress from being flush with partitions surface but can be pulled flush. The Bathroom Stall hinge can be raised up 3/8" for emergency entry.

*Fasteners not Included *

Manufacture part # 160809

Toilet Partition Alcove Clip Set, 2 Pieces, For 1" To 1-1/4" Panel Stainless Steel Plated

These clips are 1-1/2" tall x 2-1/4" wide. The screws are 1-1/2" on center, with 1/4" diameter holes. The clip is constructed of cast stainless steel material. This part is also know as Bathroom Stall Alcove Clip Set, or Toilet Partition Alcove Clip. The manufacturers part number is 8343. These clips are sold in sets with the fasteners. They are used to connect a 1" panel to a 1-1/4" panel.

Toilet Partition Continuous Hinge 54" With Cam Close Stainless Steel. The hinges must be mounted flat when door is shut. For inside swing the hinges are mounted on the inside of the stall. For the outside they must be mounted on the outside.

Stainless Steel Construction, 14 gauge (.075" thick). Hinge is 3" wide when laid flat, by 54" long. Holes are spaced every 13" and are 9/32" diameter and 5 sets of holes. The hinge is self closing by a cam action, which is made possible by angle cuts on the continuous hinge leafs. Cam features Zero Degree Closing. Can be raised up 3/8" for emergency entry. This hinge is also known as a Bathroom Stall Full Length Continuous Hinge. This hinge is non handed. Manufacture part # 130209, 7599, 125319, 650-9402. This hinge is known as 7599.

Toilet Partition Continuous Hinge, 57" Long Non Handed,14 Gauge Stainless Steel ,1/4" Diameter Pin, Cam Close. The hinges must be mounted flat when door is shut. For inside swing the hinges are mounted on the inside of the stall. For the outside they must be mounted on the outside.

This is the most Heavy Duty Continuous Full Length Hinge we sell. 14 gauge (.075" thick) stainless steel construction with a 1/4" diameter hinge pin. The hinge leafs are angle cut so your door will close with the camming action. The hinge is 3" wide when laid flat, and 57" long. Screws are spaced 11" apart and the holes are 9/32" diameter and has 6 sets of holes. Hinge can be raised up 3/8" for emergency entry. Also known as a Bathroom Toilet Stall Full Length Continuous Hinge. Manufacturer part #7789, 160029, 650-9400.

Toilet Partition Continuous Hinge 54" With 20 Degree Cam Close Stainless Steel. The hinges must be mounted flat when door is shut. For inside swing the hinges are mounted on the inside of the stall. For the outside they must be mounted on the outside.

Stainless Steel Construction, 14 gauge (.075" thick). Hinge is 3" wide when laid flat, by 54" long. Holes are spaced every 13" and are 9/32" diameter and 5 sets of holes. The hinge is self closing by a cam action, which is made possible by angle cuts on the continuous hinge leafs. Cam features 20 Degree Closing for ADA Doors. Can be raised up 3/8" for emergency entry. This hinge is also known as a Bathroom Stall Full Length Continuous Hinge. This hinge is non handed. Manufacture part # 130219, 7598, 125319, 650-9402.

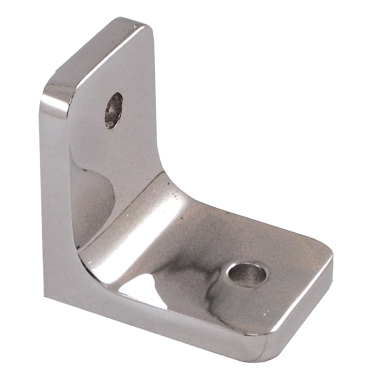

Toilet Partition Angle Bracket Chrome Plated 1 3/4" X 1 3/4"

Constructed of stainless polished finish with chrome plated zamac die casting. Base is 1-3/4" x 1-3/8", projects out 1-3/4". Two screw holes are 1/4" diameter, and are located 1-1/4" from opposing face. Sometimes called Bathroom Stall Angle Bracket. Sold individually, and shipped with required screws. Manufacturer part number 2015.

Partition panel bracket kit for 1" thick panel, One eared bracket that is chrome plated. All bracket kits include security screws to mount the brackets. Also known as 615050.
