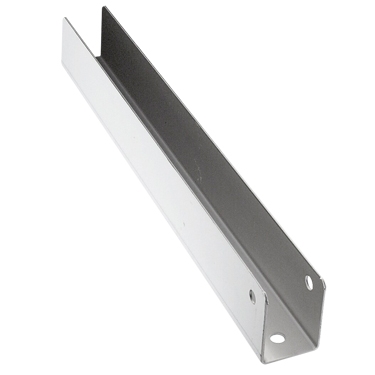

Stamped SS Continuous 'U' Bracket 1/2" x 1-3/8" X 57". 18 gauge (.05" thick) stamped stainless steel construction. Base is 1-1/8" x 57" long. Legs project out 1-1/2" with the thru hole at 1-1/8" from the base. Mounting and thru bolts every 13" or so. Manufacturer part # 2669. Screws included with bracket.

If your toilet partition or bathroom stall wall bracket is cast with the number 1920 on the back, then you have the “U” Wall Bracket for 1″ thick toilet partition panels. The wall bracket is usually mounted on the wall or the pilaster to mount the toilet partition stall panels. This bracket is 1-1/4″ wide x 1-3/8″ tall, with the through hole located at 2-1/8″ from the back. If features 2 holes with a 1/4″ diameter, with two of them on the base. The bracket is made of a die cast material that is then polished chrome plated. This bracket is sometimes called a Toilet Partition or Bathroom Stall X Long “U” Bracket, or X Long “U” Wall Bracket.

Coat Hook & Bumper 3-1/8" Projection X 2-1/8" High Cast Stainless Steel Construction

Cast stainless steel construction. Coat hook bumper projects out 3" and has a rubber insert. The hook projects out 1-7/32". The coat hook bumper base is 1-7/16" wide by 2-1/4" high with a hole spacing of 7/8". Also known as a Bathroom Stall Hook. Manufacture part # 4003.

Chrome Plated "U" Bracket 1" X 1-1/2" X 1-3/8" . If your toilet partition or bathroom stall wall bracket is cast with the number 1910 on the back, then you have the “U” Wall Bracket for 1″ thick toilet partition panels. The wall bracket is usually mounted on the wall or the pilaster to mount the toilet partition stall panels. This bracket is 1-1/4″ wide x 1-3/8″ tall, with the through hole located at 1″ from the back. If features 4 holes with a 1/4″ diameter, with two of them on the base. The bracket is made of a die cast material that is then polished chrome plated. This bracket is sometimes called a Toilet Partition or Bathroom Stall “U” Bracket, or “U” Wall Bracket.

Chrome Plated U Bracket For 3/4" X 1-1/2" X 1-3/8. If your toilet partition or bathroom stall wall bracket is cast with the number 1890 on the back, then you have the U Bracket for 3/4″ thick toilet partition panels. The wall bracket is usually mounted on the wall or the pilaster to mount the toilet partition stall panels. This bracket is 1″ wide x 1-3/8″ tall, with the through hole located at 1″ from the back. If features 4 holes with a 1/4″ diameter, with two of them on the base. The bracket is made of a die cast material that is then polished chrome plated. This bracket is sometimes called a Toilet Partition or Bathroom Stall U Bracket, or “U” Wall Bracket.

Chrome Plated "U" Bracket For 7/8" X 1-1/2" X 1-3/8. If your toilet partition or bathroom stall wall bracket is cast with the number 1900 on the back, then you have the “U” Wall Bracket for 7/8″ thick toilet partition panels. The wall bracket is usually mounted on the wall or the pilaster to mount the toilet partition stall panels. This bracket is 1-5/32″ wide x 1-3/8″ tall, with the through hole located at 1″ from the back. If features 4 holes with a 1/4″ diameter, with two of them on the base. The bracket is made of a die cast material that is then polished chrome plated. This bracket is sometimes called a Toilet Partition or Bathroom Stall “U” Bracket, or “U” Wall Bracket.

Aluminum U Shape Bracket 1/2" X 1-3/8" X 57". Constructed of extruded anodized aluminum. Base is 3/4 wide by 57" long, with screw holes every 13" or so. They have a clearance of 1/2" for 1/2" thick panels. Sometimes known as Bathroom Stall Continuous U Bracket. The manufacturers part numbers are 2664. These brackets are shipped with all the needed fasteners.

Toilet Partition U Bracket For 1" Thick Panel Cast Stainless Steel

Cast stainless steel construction. Bracket base is 1-3/8" x 1-1/4" with two mounting screw holes. Bracket legs project out 1-3/8" with the thru hole at 1" on center from the bottom of the base. Also known as a Bathroom Partition Stall U-Bracket or Wall Bracket 1". Manufacture part number 1913

Shipped with mounting screws

If your toilet partition or bathroom stall wall bracket is cast with the number 1940 on the back, then you have the “U” Wall Bracket for 1-1/4″ thick toilet partition panels. The wall bracket is usually mounted on the wall or the pilaster to mount the toilet partition stall panels. This bracket is 1-1/2″ wide x 1-3/8″ tall, with the through hole located at 1″ from the back. If features 4 holes with a 1/4″ diameter, with two of them on the base. The bracket is made of a die cast material that is then polished chrome plated. This bracket is sometimes called a Toilet Partition or Bathroom Stall “U” Bracket, or “U” Wall Bracket.

Toilet Partition Bracket One Ear For 3/4" Panel Aluminum

Constructed of extruded anodized aluminum. Base is 1-1/2" x 2-5/8", with 1-3/8" hole spacing. 2-3/4" projection on the legs. Legs are 3/4" apart, and is designed for 3/4" thick panels. Also known as a Bathroom Stall One Ear Wall Bracket or One Wing Wall Bracket. The manufacturers part numbers are 1644, 650-2852, and 650-2858. Shipped with all the fasteners.

Toilet Partition Two Ear Wall Bracket For 3/4" Panel Cast Stainless Steel

Cast stainless steel construction. Base is 1-1/2" x 3" with 2-7/32" hole spacing. Bracket walls are 1/8" thick. The legs project out 2-1/2" with the thru holes at 2-1/8" from the bottom of the base. Also known as a Bathroom Stall Two Ear Wall Bracket, or Two Ear 3/4". Manufacture part # 1623

Shipped with mounting screws.

Chrome Plated Two Ear Urinal Bracket For 1-1/4" X 1-1/2" X 3-1/2

This bracket is constructed of zamac die cast material that is then polished chrome plated. The base is 1-1/2" wide x 4" long, with two screws 3" on center. The legs project out 3-1/2" with the thru screws at 3-1/8" and 2-1/8" from the base. The 6 holes are 1/4" diameter. This bracket is also known as a Toilet Partiton Bracket, Bathroom Stall Bracket, Two Ear Extra Long Bracket, Two Wing Bracket, Urinal Screen Bracket X-Long. The manufacturers part # are 1330, and 650-6449. The bracket includes all the fasteners.

This bracket is for a 1-1/4" thick panel

If your toilet partition (bathroom stall) wall bracket is stamped 1650, then chances are you have the One Ear Wall Bracket for 7/8″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 2-1/8″ long with 1-1/8″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket is made of a die cast material that is then chrome plated. The bracket sometimes goes by the name Bathroom Stall One Ear Bracket, Toilet Partition One Ear Bracket, Single Leg Bracket or Wall Bracket.

Chrome Plated Two Ear Urinal Bracket For 1" X 1-1/2" X 3-1/2

This bracket is usually used on Urinal Screens, which are the walls between men's urinals, to hold the partitions to the wall. The bracket is made of a zamac casting that is then chrome plated. The bracket base measures 1-1/2" x 4", with a 3" center to center hole spacing. The bracket projects out 3-1/2", with the mounting holes at 2-1/8" and 3-1/8" from the base. The holes used to mount the bracket to the wall and to the urinal are 1/4" diameter. The 1280 Bracket is sometimes called a Bathroom Stall Bracket, Toilet Partition Bracket, Two Wing Bracket, or Urinal Screen Bracket.

For 1" thick panels

Toilet Partition Two Ear Wall Bracket For 7/8" Panel Stamped Stainless Steel

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 3-13/16" with the mounting screws are 2-13/16" on center. Leg project out 2-1/2" with the thru hole at 2-1/8" from the base. Also known as a Bathroom Stall Wall Bracket and Two Wing Bracket. Manufacturer part # 1639.

Shipped with screws

Toilet Partition Continuous 'L' Wall Bracket 2-3/4" X 57-1/2" Aluminum

Extruded aluminum construction. Base is 1-3/8" and the leg projects out 2-3/4". These are sold individually. It is also known as a Bathroom Stall Continuous L Wall Bracket. The manufacturers part # is 2684.

Partition U Bracket For 3/4" Thick Panel Cast Stainless Steel. Cast stainless steel construction. Bracket base is 1-3/8" x 1" with two mounting screw holes. Bracket legs project out 1-3/8" with the thru hole at 1" on center from the bottom of the base. Also known as a Bathroom Partition Stall U-Bracket or Wall Bracket 3/4". Manufacture part number 1893. Shipped with mounting screws.

If your toilet partition (bathroom stall) wall bracket is stamped 1620, then chances are you have the Two Ear Wall Bracket for 3/4″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 3″ long with 2-7/32″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket is made of a die cast material that is then chrome plated. The bracket sometimes goes by the name Bathroom Stall (toilet partition) Two Ear Bracket or Wall Bracket

Toilet Partition U Bracket For 7/8" Thick Panel Cast Stainless Steel

Cast stainless steel construction. Bracket base is 1-3/8" x 1-5/32" with two mounting screw holes. Bracket legs project out 1-3/8" with the thru hole at 1" on center from the bottom of the base. Also known as a Bathroom Partition Stall U-Bracket or Wall Bracket 7/8". Manufacture part number 1903

Shipped with mounting screws

Toilet Partition Wall Bracket 'U' For 1" Panel, 3"H x 1-3/8"L

Extruded aluminum construction. The base is 3" long x 1-5/16" wide. The legs project out 1-3/8" and are 1" apart, for use with 1" panels. The six mounting holes are 1/4" diameter. Also known as a Bathroom Stall U Wall Bracket Extra Long. Manufactures part number is 2304. Shipped with all the fasteners.

Toilet Partition One Ear Wall Bracket For 3/4" Panel Cast Stainless Steel

Cast stainless steel construction. Base of the bracket is 2" x 1-1/2", with 1-1/8" hole spacing. Bracket legs project out 2-1/2" with the screws at 2-1/8" on center from the base. The four holes are 1/4" diameter. Also known as a Bathroom Stall One Ear Wall Bracket or One Ear 3/4". Manufacture part # 1643.

Shipped with mounting screws.

Stamped SS One Ear Bracket 3/4" Panel 1-1/2" X 2-1/2"

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 2-5/32" with the mounting screws are 1-11/32" on center. Leg project out 2-1/2" with the thru hole at 2-1/8" from the base. Also known as a Bathroom Stall Wall Bracket and One Wing Bracket. Manufacturer part # 1649.

Shipped with screws

Toilet Partition Two Ear X- Long Urinal Wall Bracket For 1" Panel Cast Stainless Steel

Cast stainless steel construction. Base is 1-1/2" x 4" with 3" centers on the mounting holes. The bracket legs project out 3-1/2" with the thru hole at 3-1/8" from the back of the base. Walls are 1/8" thick. Also know as a Bathroom Stall Partition Urinal Screen Bracket - Two Ear Extra Long 1". Manufacture part # 1283.

Ships with mounting screws.

If your toilet partition (bathroom stall) wall bracket is stamped 1630, then chances are you have the Two Ear Wall Bracket for 7/8″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 3-1/2″ long with 2-3/4″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket is made of a die cast material that is then chrome plated. The bracket sometimes goes by the name Bathroom Stall (toilet partition) Two Ear Bracket or Wall Bracket.

Stamped SS Continuous Two Ear Bracket 1/2" X 2-1/2" X 41". 18 gauge (.05" thick) stamped stainless steel construction. Base is 3" x 41" long. Mounting holes are 2-3/8" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 13". Also known as a Bathroom Stall Two Ear or Two Wing Wall Bracket. Manufacturer part # 2059.

Toilet Partition Aluminum Bracket 'U' For 1" Thick Panel

Constructed of extruded anodized aluminum. The base measures 1-5/16" wide by 1-1/2" tall. The screw holes on the base are 5/8" on center. The legs project out 1-5/16". The bracket is also known as a Bathroom Stall U Bracket, Wall Bracket or Toilet Partiton U Bracket. The manufacturers part numbers is 1914. Shipped with mounting screws.

Toilet Partition Urinal Screen Bracket Chrome Plated

This bracket is for any thickness panel. The bracket is 2 separate pieces. The base is 1-1/2" x 1-1/2". The base mounting hole is 1" from the inside face of the leg face. The bracket projects out 3-1/2", and the holes are at 3-1/8" and 2-1/8" from the mounting face. The brackets are made of a zamac die cast material and polished chrome plated. This bracket is also known as a Two Piece Bracket - X-long Two Holes, Toilet Partition Bracket, or Bathroom Stall Extra Long Bracket. The manufacturers part number is 1320 or 650-6434. The bracket is shipped as two pieces plus all of the fasteners.

Toilet Partition Urinal Screen Bracket Cast Stainless Steel. This bracket is for any thickness panel. The bracket is 2 separate pieces. The base is 1-1/2" x 1-1/2". The base mounting hole is 1" from the inside face of the leg face. The bracket projects out 3-1/2", and the holes are at 3-1/8" and 2-1/8" from the mounting face. The brackets are made of Cast Stainless Steel. This bracket is also known as a Two Piece Bracket - X-long Two Holes, Toilet Partition Bracket, or Bathroom Stall Extra Long Bracket. The manufacturers part number is 1323. The bracket is shipped as two pieces plus all of the fasteners.

Toilet Partition Bracket One Ear For 1" Panel Aluminum

Constructed of extruded anodized aluminum. The base is 1-1/2" high by 2-5/8" wide, with mounting holes 1-3/8" on center. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs are 1" apart, and is designed for 1" thick panels. This bracket is also known as a One Ear Wall Bracket, One Wing Wall Bracket, Toilet Partition One Ear Bracket, or Bathroom Stall One Ear Bracket. The manufacturers part number is 1764. The bracket ships with all the required fasteners.

Aluminum Continuous Two Ear Bracket 1/2" X 2-1/2" X 57-1/2". Constructed of extruded anodized aluminum. Base is 3-3/4" wide by 57-1/2" long, with screw holes every 13" or so. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs have a clearance of 1/2" for 1/2" thick panels. Sometimes known as Bathroom Stall Continuous Two Ear Wall Bracket. The manufacturers part numbers are 2674. These brackets are shipped with all the needed fasteners.

If your toilet partition (bathroom stall) wall bracket is stamped 1640, then chances are you have the One Ear Wall Bracket for 3/4″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 2″ long with 1-1/8″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket is made of a die cast material that is then chrome plated. The bracket sometimes goes by the name Bathroom Stall One Ear Bracket, Toilet Partition One Ear Bracket, Single Leg Bracket or Wall Bracket.

Slotted Head Bolt 8-32 X 1/2"

Is your Toilet Partition Bracket stamped 1310, if it is you have a one ear urinal bracket. The bracket is made from a zamac die casting that is then polished chrome plated. It sometimes goes by the name Toilet Partition One Ear Urinal Screen Bracket, Urinal Wall Bracket, 1310 Wall Bracket, 650-6410 wall bracket, or just Wall Bracket. The base is 1-1/2" wide x 2-3/4" long with a 1-1/2" on center hole spacing. The legs project out 3-1/2" with the mounting holes at 3-1/8" from the base. The holes are 1/4" diameter.

For use on 1-1/4" thick panels

Toilet Partition Continuous 'U' Wall Bracket For 1" Thick Panel 57" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 1-1/8" x 57" long. Legs project out 1-1/2" with the thru hole at 1-1/8" from the base. Mounting and thru bolts every 13" or so. Also known as a Bathroom Stall Continuous U Wall Bracket. Manufacturer part # 2369.

Screws included with bracket.

Toilet Partition One Ear Bracket For 7/8" Panel Stamped Stainless Steel

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 2-5/16" with the mounting screws are 1-13/32" on center. Leg project out 2-1/2" with the thru hole at 2-1/8" from the base. Also known as a Bathroom Stall Wall Bracket and One Wing Bracket. Manufacturer part # 1659.

Shipped with screws
