Floor Mounted Door Stop FS18

Features:

• Security Door Stops designed for use in high vandalism areas.
• Molded from flame resistant, resilient material around a heavy-duty stud.
• Once grouted in concrete, leaves no exposed fasteners to be tampered with or removed.
• Ideal for jail or security cell areas where floor mounted stops are required.
• FS18L also ideal for concrete wall applications.
• Finish: Black, 2" Diameter

FS18S 1-1/2" Height
FS18L 3" Height

Wall Mounted Door Holder / Stop WS20

• Constructed in cast brass or aluminum.
• Replaceable rubber bumpers feature off-set shoulder and threaded shank
  that screws into body of holder.
• Hinged strike furnished matches body material and finish.

Furnished wood screws for drywall mounting.

Wood Door Automatic Flush Bolt FB41

H.B. Ives FB41 Series are sold has Top, Bottom or in Pairs (top and bottom). Fully automatic, inactive door is latched when active door closes, bolts retract when active door is opened. Top Bolt has no spring tension. They are non handed, but the top and bottom bolts are different. The body size is 1" wide, 8-1/2" tall and 2" deep, the bolts have a 3/4" throw with a 7/8" vertical adjustment.

Ives Part #'s
FB41P - Pairs
FB41T - Top
FB41B - Bottom

5" Kickdown Door Holder / Stop FS555

Features:

• Units provide an economical method to hold open doors.
• Cast of durable iron.
• Non-marring rubber shoes have corrugated bottoms to provide secure grip. Rubber shoe is securely fastened with screw. When worn, shoes are easily replaced.
• FS555 for door-to-floor clearances up to 3".

Made by H.B. Ives

For use on metal frames featuring
pneumatic design that, once installed,
forms an air pocket to absorb sound and
reduce noise of door closing.

Diameter: 1/2"
Thickness: 1/8"

5" Kickdown Door Holder / Stop FS452

Features:

• Units provide simple hold and release, activated with a touch of the foot.
• Cast brass or aluminum construction.
• Stainless steel spring.
• Non-marring rubber shoes have corrugated bottoms to provide secure grip.
• Shoes are easily replaced when worn.
• FS452-5 has a door-to-floor clearance up to 3".
• Packed with sheet metal screws.

Ives Part # FS452

Door Holder / Stop Rubber Shoe

Replacement Rubber Shoe
5/8" insert diameter
1" base diameter
7/8" overall height

Ives Part # HRT or FSPART.1075

Wall Mounted Door Stop WS33

• Constructed in a durable cast brass and then brushed chrome plated.
• Replaceable rubber bumper with offset shoulder screws into cavity on body to prevent loss or theft.
• Sloping design discourages vandalism

WS33 is furnished with wood screws for drywall mounting.

Door Stop / Holder Rubber Shoe

Replacement rubber shoe
1/2" insert diameter
1" base diameter
1" height

Ives Floor Mounted Door Stop FS434 Rubber Only

Replacement rubber shoe for the FS434.  Rubber measures 2-1/4" high by 1-7/16" wide by 5/8" thick.

Ives Part # 09-318

Rubber Shoe For GJ1154M and GJL444-555 Kickdown Door Stop / Holder

Replacement rubber shoe
5/8" insert diameter
1" base diameter
8-32 threaded screw

Ives Wall Mounted Door WS11X

• Constructed in heavy duty cast brass.
• Hexagon section on unit aids in fastening unit when expansion shield is used.
• Replaceable rubber bumpers features off-set shoulder and threaded shank
  that screws into body of unit.

Furnished with a threaded stud and expansion shield for
masonry type mounting. 2" diameter base by 3-3/4" projection.

Crash Chain Door Stop CS115

• Specially designed for full-size exterior doors.
• Tear resistant, grey vinyl cover.
• Heavy duty compression spring assembled to both ends of chain
  and end brackets.
• Packed with sheet metal screws.
• Cast Brass brackets with solid, welded steel chain.

Available in 20-1/2", 25-1/2" and 30-1/2" lengths. Length is determined
by the location of your door closer

PART # LENGTH
GCC205 20-1/2"
GCC255 25-1/2"
GCC305 30-1/2"

Kickdown Door Stop / Holder Rubber Shoe

Rubber Shoe for old style GJL444/555 and old style style GJ44's

1" base diameter
13/16" over all height
5/8" outside thread diameter

Gravity Door Coordinator Nylon Wheel and Screw

Nylon wheel measures 7/8" outside diameter by 3/8" inside diameter by 1/4" thick. Screw measures 5/8" overall lenth by 3/8" shaft diamter by 1/4-26 thread with a 1/2" hex head.

Ives part # CORPART.1024

• Use with 7212, 7212V or 7222 3/4 Offset Pivot
• Handed
• Vertical adjustment 3/16", include positive locking.

Handing diagram

• Use with 7212, 7212V or 7222 3/4 Offset Pivot
• Handed
• Vertical adjustment 3/16", include positive locking.

Handing diagram

• Non Handed
• Flush Mounted, No Inset
• 48" Maximum Door Width
• Beveled or Square Edge Doors, 83" long, cut to length

For Doors Weighing up to 450 pounds without reinforcing,
600 pounds with reinforcing

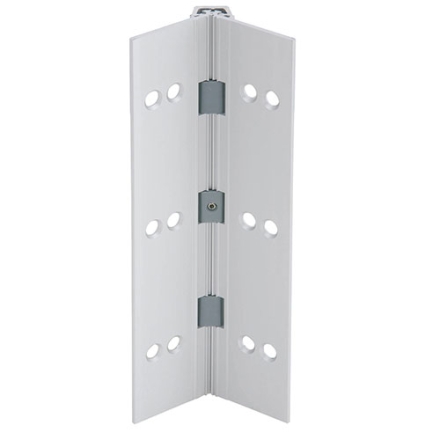

Continuous Full Surface Geared Hinge

• Non Handed
• Narrow Frame
• 1/16" Door Inset
• 48" Maximum Door Width
• Beveled or Square Edge Doors

83" inches long, cut to length
For Doors Weighing up to 600 pounds

Ives Roller Bumper Offset Ives RB470

RB471
Features:

• Constructed in heavy-duty cast brass.
• RB470 used where two doors open against each other to prevent damage

to the doors or hardware.

Ives Roller Latch RL32

The Ives Roller Latch RL32 is constructed of Brass and Plated to your desired finish.  The body measures 1-1/8" wide by 2-1/4" high and 2-1/4" deep.  The roller is constructed of Nylon, and has an adjustable projection up to 1/2".  Fits a standard heavy-duty cylindrical lock cutout.

Plunger Type Holder / Stop FS1153

This plunger type door holder manufactured by H.B. Ives features a contemporary yet economical method of positive Hold-Open.  It is constructed in sturdy cast aluminum for years of service.  The spring operated plunger activates with minimal pressure, releasing instantly with a light tap on the plat-form lever.  The plunger offers a 1-5/8" throw for all types of doors.  The ribbed non-marring rubber shoe is securely fastened to unit with a screw and is easily replaced when worn.

Aluminum finish only

Ives Part # FS1153

Ives Roller Bumper Straight Arm 6" Ives RB472

Features:

• Constructed in heavy-duty cast brass.
• RB472 is ideal for use in situations where doors meet each

other at approximate right angles (back to back).

Roller Bumper Straight Arm 4" RB471

Features:

• Constructed in heavy-duty cast brass.
• RB471 is ideal for use in situations where doors meet each

other at approximate right angles (back to back).

Ives Plunger Type Holder FS1154

Features:

• Constructed from heavy-duty cast brass or bronze.
• Plunger and internal parts are plated steel and provides a 1-1/4" throw for all types of doors.
• Plunger is easily activated with minimal pressure, releasing instantly with a light tap on the platform lever.
• Round non-marring rubber shoe is securely fastened with a screw in flanged cup to prevent movement or loss. When worn, shoes are easily replaced.

Ives Part # FS1154

• Surface Bolt has 1-3/16" throw for maximum security.
• Strong tension springs prevent creep.
• Ideal for all types of doors.
• Available 8"
• Units packed with standard screws for added security.
• Units packed with both a universal top strike (US) and
a mortise bottom strike (MS).
• Constructed of heavy duty steel.
