Ives Roller Latch RL1130

The Ives Roller Latch RL1130 is a combination of the RL30 and an Angle Stop.  Tension is easy to adjust with the two tension screws on the face plate.

Ives Roller Latch RL32

The Ives Roller Latch RL32 is constructed of Brass and Plated to your desired finish.  The body measures 1-1/8" wide by 2-1/4" high and 2-1/4" deep.  The roller is constructed of Nylon, and has an adjustable projection up to 1/2".  Fits a standard heavy-duty cylindrical lock cutout.

Ives Roller Latch RL30

The Ives Roller Latch RL30 is constructed of Forged Brass and Plated to your finish.   Furnished with a Nylon Roller.   Body measures 1" wide by 3-3/8" high by 1-11/16" deep. The roller has a maximum projection of 3/8" and is easily adjustable.

Wood Door Constant Latching Flush Bolt FB61P

The Ives FB61P is used on the inactive leaf of wood fire doors.   The latch remains extend until the active door is opened.   When the active door is opened the latches retract, and extend when the active door is closed.  The bodies measure 1” wide by 8-1/2” tall and 2” deep.  The bolt throw is 3/4” with a 7/8” vertical adjustment, and has a 3/4” backset.   This package comes with the top and bottom flush bolts with screws and strikes.

90 minute UL Rated.

Ives Part # FB61P

Ives RL32 Nylon Roller RLPART.1045

This replacement Nylon Roller and Rivet Package is for the Ives RL32 Roller Latches.  The Roller measures 3/4" high by 5/8" diameter.  The Rivet measures 15/16" long and is threaded on one side.

Ives Part # RLPART.1045

Ives RL30 and RL1152 Nylon Roller RLPART.1025

This replacement Nylon Roller and Rivet Package is for the Ives RL30 and RL1152 Roller Latches.  The Roller measures 3/4" high by 5/8" diameter.  The Rivet measures 1-1/16" long and is threaded on one side.

Ives Part # RLPART.1025

Metal Door Automatic Flush Bolts FB31P

Fully automatic-inactive door is latched, bolts are extended when active door closes, door is unlatched, bolts retract when active door is opened. The Ives FB31P Body is 1” wide by 6-3/4” long and 2” deep. Bolt throw is 3/4” with a 7/8” adjustment with a 3/4” backset,  standard rod is 12” which is measured from the center of latch body to the bolt tip.

Rods are also available in 18”, 24” and 36”, call for pricing.  We ship the 12” rods, and this set would include the top and bottom latches.

3 Hour UL Listed

Ives Part # FB31P

• Designed for use on all Type 161 Cylindrical Locks (ANSI 156.2 Series 2000)
  Monolock and Unilock.
• No exposed fasteners on face of unit.
• Unique design provides maximum security, virtually eliminating the
  opening between door and frame at latch point.
• Available in 13 Gauge Stainless Steel or 12 Gauge Steel.

1-1/2" Wide x 7" High
Stud center to center: 4-1/2"

Wood Door Automatic Flush Bolt FB41

H.B. Ives FB41 Series are sold has Top, Bottom or in Pairs (top and bottom). Fully automatic, inactive door is latched when active door closes, bolts retract when active door is opened. Top Bolt has no spring tension. They are non handed, but the top and bottom bolts are different. The body size is 1" wide, 8-1/2" tall and 2" deep, the bolts have a 3/4" throw with a 7/8" vertical adjustment.

Ives Part #'s
FB41P - Pairs
FB41T - Top
FB41B - Bottom

• Ideally suited for use with rose or escutcheon 2-3/4" wide or less.
• For use with Type 86 Mortise and Type 161 Cylindrical Locks
  (ANSI 156.13 Series 1000 and ANSI 156.2 Series 4000).
• No exposed fasteners on face of unit.
• Unique design provides maximum security, virtually eliminating the
  opening between door and frame at the latch point.
• Available in 13 Gauge Stainless Steel or 12 Gauge Steel.

2-1/2" Wide x 9-1/2" High
Stud center to center: 8-1/2"

• Narrow design unit for use on rose or escutcheon 3-1/2" or less.
• For use with Type 86 Mortise and Type 161 Cylinder Locks
  (ANSI 156.13 Series 1000 and ANSI 156.2 Series 4000).
• No exposed fasteners on face of unit.
• Unique design provides maximum security, virtually eliminating the opening
  between door and frame at the latch point.
• Available in 13 Gauge Stainless Steel or 12 Gauge Steel

1-1/2" Wide x 9-1/2" High
Stud center to center: 8-1/2”

Ives Double Prong Ceiling Hook Chrome Plated

Chrome plated brass construction.

2" height

This replacement tip is used on the WB11, WB12, WS20 and WS33.
5/8" insert diameter
7/8" head diameter
1" overall length

Door Silencers For Wood Doors

For use on Wood Doors. Insert into 1/4" hole in door frame.

Height: 3/4"
Diameter: 3/8"
Thickness: 1/8"

Two Way Catch CL21, Bronze construction, chrome plated. Body - 3/4" Wide x 3" High x 3/4" Deep,. Strike - 3/4" Wide Hex x 1-1/2" High.

Ives part # CL21

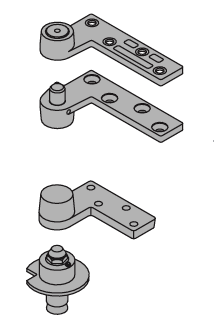

• Use with 7212, 7212V or 7222 3/4 Offset Pivot
• Handed
• Vertical adjustment 3/16", include positive locking.

Handing diagram

Ives Roller Bumper Straight Arm 6" Ives RB472

Features:

• Constructed in heavy-duty cast brass.
• RB472 is ideal for use in situations where doors meet each

other at approximate right angles (back to back).

• Handed
• Top, header mount
• Bottom, base plate mount
• Use with 1-3/4" minimum door thickness, with 1/8" bevel in 2"
• Maximum door load 200 pounds
• Vertical adjustment range 3/16", with positive locking

Handing diagram

Wall Mounted Door Holder / Stop WS20

• Constructed in cast brass or aluminum.
• Replaceable rubber bumpers feature off-set shoulder and threaded shank
  that screws into body of holder.
• Hinged strike furnished matches body material and finish.

Furnished wood screws for drywall mounting.

Wall Mounted Holder/Stop WS445

• Constructed in cast of brass or aluminum.
• Unit functions as a stop but serves as a Hold-Open device when hook is manually engaged in strike.
• Unit requires manual disengagement to release Hold-Open.
• Replaceable resilient, non-marring rubber tip.

WS445 is packed with expansion shield and lead shield for masonry type mounting.

Ives Floor Mounted Door Holder FS41

Features:
• Automatic door holders ideal for heavy-traffic situations that require a simple,
fool-proof, Hold-Open device.
• Forged from brass.
• Unit is activated automatically when door is opened. A firm pull on door releases
the mechanism.
• Strikes accommodate different door to floor clearances.
• Model numbers are determined by strike/door-to-floor clearances.
• Holder position on door is adjustable.

Door to Floor Clearance 9/16" to 1-1/16"
Holder Dimensions 3" Wide x 3-11/16" High

Wall Mounted Door Holder / Stop WS45

• Constructed of cast brass, bronze or aluminum.
• Spring loaded roller rides up the face of the strike, seating itself on the strike, holding the door firmly in the open position.
• A heavy rubber pad cushions the shock and absorbs the sound.
• With unit mounted on door and the strike on wall, vertical adjustment is available on body.
• The strike is adjustable 45 degrees left or right, both adjustments easily accomplished at time of installation or at a later date.

WS45 strike is furnished with wood screws for drywall mounting.

• Designed for use with the bottom bolt of all flush bolts.
• Spring-loaded plunger returns to floor or threshold level anytime
  flush bolt is retracted, eliminating need to clean standard
  floor strikes.
• Strike hole is 3/4" Diameter and 1-1/8" Deep

DP1 Face Plate: 1-7/16" Diameter
Body: 1-3/16" Diameter x 1-7/8" Deep

4" Kickdown Door Holder / Stop FS455

Features:

• Units provide simple hold and release, activated with a touch of the foot.
• Cast brass or aluminum construction.
• Non-marring rubber shoes have corrugated bottoms to provide secure grip and a shank which forms its own thread when screwed into threaded cavity of holder.
• When worn, shoes are easily replaced.
• Door-to-floor clearances of 2" or less.

Made by H.B. Ives

Door Holder / Stop Rubber Shoe

Replacement Rubber Shoe
5/8" insert diameter
1" base diameter
7/8" overall height

Ives Part # HRT or FSPART.1075

• Non Handed
• Flush Mounted, No Inset
• 48" Maximum Door Width
• Beveled or Square Edge Doors, 83" long, cut to length

For Doors Weighing up to 450 pounds without reinforcing,
600 pounds with reinforcing

Wall Mounted Door Stop WS33

• Constructed in a durable cast brass and then brushed chrome plated.
• Replaceable rubber bumper with offset shoulder screws into cavity on body to prevent loss or theft.
• Sloping design discourages vandalism

WS33 is furnished with wood screws for drywall mounting.

Replacement Rubber Door Stop Tip

Grey rubber door stop tip.

Ives Roller Bumper Offset Ives RB470

RB471
Features:

• Constructed in heavy-duty cast brass.
• RB470 used where two doors open against each other to prevent damage

to the doors or hardware.

Ives Double Prong Hook

Heavy Duty chrome plated zamac Double Prong Hook.

3" Projection
2-1/4" Height

Ives Sweep Lock07

The Ives Sweep Lock are made of solid brass and plated to your desired finish.   The base is 15/16" x 2-9/16", and the Strike is 5/8" x 2-9/16".  The center to center distance on the screws 1-15/16".

Ives Part # 07

Rubber Shoe For GJ1154M and GJL444-555 Kickdown Door Stop / Holder

Replacement rubber shoe
5/8" insert diameter
1" base diameter
8-32 threaded screw

Replacement Roller For Roller Bumper

Replacement wheel for the Roller Bumpers and Gravity Type Coordinators.
15/16" diameter wheel
7/16" wide wheel
3/16" diameter hub
Comes with replacement axle

Ives Floor Mounted Door Stop FS434 Rubber Only

Replacement rubber shoe for the FS434.  Rubber measures 2-1/4" high by 1-7/16" wide by 5/8" thick.

Ives Part # 09-318
