Partition Door Stop 2" Projection

Chrome plated Zamac die cast construction. The door stop base is 2-1/8" diameter with a 1-19/32" hole spacing. The stop projects out 2" with a rubber insert on the end of the stop. Also known as Bathroom Stall Door Stop. Manufacture part # 4120.

LCN Door Closer Parallel Arm Shoe

This is the shoe that LCN uses on some of there door closers for the parallel arm mounted door closers. A parallel arm closer is a door closer that has the arm parallel to the door when the door is closed. This part is also known as the 1260-62PA, 1460-62PA, 4030-62PA, and 4040-62PA. Ships with mounting screws.

Magnet Door Stop

Hands-free magnetic door stop/holder. All you need to do is open the door and a strong maget will keep it open until you close it. Mounts horizontally or vertically. Includes fasteners plus 1 concrete and 3 hollow wall anchors.

Not for use on doors with spring hinges or door closers.

Sico Plastic table glide, for use on heavy table have a 1" outside diameter leg.

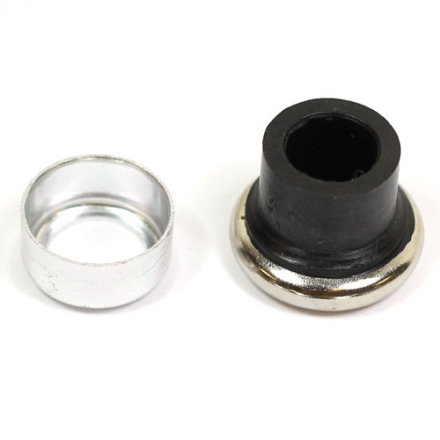

Irwin Glide With Metal Cap

for 1/2" outside diameter tubing

product includes metal base and nickel plated tubing collar

Metal Swivel Glide with a chair leg round tubing measurement of 1/2" I.D. X 11/16" O.D..  This glide has a Ferrule cup to help grab the chair leg. It also features a  Nylon Base. Used on American Desk Chairs and various other manufacturers. The outside base diameter of this chair glide is 1 1/4".

Toilet partition continuous door stop for powder coated steel partitions, this has a slight round edge for attaching. The length is 57" and is used on a 1-1/4" slight round edge pilaster for mounting. Used with 1" doors and has a concealed turn latch with the pin coming out the center edge of the door. The hole spacing for the slot is 28-1/2" dead center of unit. The slot for the bolt to lock to is 7/16" wide x 5/8"ht. This helps with blocking the door gaps on the locking side of the door. This is made of brushed aluminum material and is used with in or out swing doors. Also known as Hadrian partitions part number 560058.

Partition Door Kit Inswing 1" Door & Post Cast Stainless Steel. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 11303.

Swivel Glide 9/16" O.D. X 7/16" I.D. W Ferrule-Nylon Base. Measurements are for the chair leg. Heywood Wakefield replacement chair feet with nylon base. Base is 1 1/4" in diameter. Metal base glides are very popular in schools and institutions and move easily across smooth or carpeted floors.  Metal base glides are nickel plated and are extremely durable, but when they do wear out, they will scratch the floor.  The glide freely swivels beyond 30 degree angle. Glide grips leg with outside holding clip, meaning it grabs the outside of the leg, see more views for picture of outside holding clip.

Current style Global chrome plated door catch includes screws for mounting. This is used with the 9g600 latch in ss. Product part number is 40-8212360. This part has a 3/8" gap for the catch and is 2-1/8" in length, 1-5/8" hole spacing and is 3/4" wide.

The International Door Closer 3010-S Side Load Arm is used with the 200, 300 and 500 Series Concealed Overhead Door Closer for Center Hung Doors.   The arm is constructed of cast iron and measures 10" long, and 7/16" thick.   The package includes all the mounting screws.

Ives Floor Mounted Door Stop FS434

Features:

• Burnished wrought steel.
• Soft, resilient gray rubber.
• For undercut doors up to 1-1/2".
• Packed with screws and plastic anchors.

Overall height 2-5/8"
Base size 1-1/2" W x 2-3/4" L

Corbin Russwin DC3210 Door Closer

The mid-priced, cost-effective choice for high-traffic situations. Corbin Russwin DC3000 Series Door Closers fulfill security and life safety requirements by ensuring reliable latching for access control and fire code compliance, along with ease of operation and precise adjustability for barrier-free code compliance. Ideal for virtually all door openings and draft conditions in both new construction and renovations.

Fits on the same bracket as the 100, 110, 120, 2800, 2810 and 2820 Corbin Russwin Door Closers

Idea for interior doors.

Chrome plated inswing door kit for square edge doors and posts. For 1" doors and 1-1/4" post. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 11000.

Global Partitions Ordering Online Solid Phenolic Doors are all Solid Phenolic color thru or black core Partitions manufactured by Global Partitions, see color chart below. For other factory colors please call for pricing. Color Thru is 10 days and Black Core ship in 5 Days, 2-4 days travel. Includes SS Vault Hinges, latching and keeper bumper. 58" ht Doors***
Global Solid Phenolic Color Chart

Global Partitions Laminate "U" Trim Door Insert For Top Or Bottom 1" Door
Chrome plated Zamac die casting construction.Large hole is 3/4" diameter, small hole is 3/8" diameter. Hole in the U is 9/32" and counter sunk.Insert measures 1" wide by 2-9/32" deep by 2-3/16" high. Also known as a Bathroom Stall Door Insert Top/Bottom 1". Used on Accurate and Global Toilet Partitions.
also known as 9HAP15, manufacture part # 1680

Ives Floor Mounted Door Holder FS40

This floor mounted door holder has been around since the 1960's. It used to go by the name Glynn Johnson GJF40A or F40A, and was brought over to the H.B. Ives line in the 1990's. Many schools and hospitals have this door holder in use today. It features: Automatic door holders ideal for heavy-traffic situations that require a simple, fool-proof, Hold-Open device. Forged from brass. Unit is activated automatically when door is opened. A firm pull on door releases the mechanism. Strikes accommodate different door to floor clearances. Model numbers are determined by strike/door-to-floor clearances. Holder position on door is adjustable.

Door to Floor Clearance 1/2" or less
Holder Dimensions 3" Wide x 3-11/16" High

Sanymetal Partitions Door Stop For Inswing/Outswing Flat

Polished chrome plated Zamac construction. The strike and keeper measure 2-1/2" high by 1-7/8" deep by 1/8" thick. The stop has a 3/4" projection and is 9/16' deep with a rubber insert. The mounting holes are 1-1/2" on center. Also known as a Bathroom Stall Strike and Keeper Inswing/Outswing Flat. Manufacture part # 5170.

Shipped with mounting screws.

Partition Door Stop 2" High Cast Stainless Steel

Cast stainless steel construction. The door stop base is 2-1/8" diameter with a 1-19/32" hole spacing. The stop projects out 2" with a rubber insert on the end of the stop. Also known as Bathroom Stall Door Stop. Manufacture part # 4123.

Current style Global stainless steel door catch includes screws for mounting. This is used with the 9g700 latch in ss. Product part number is 8262360. This part has a 3/8" gap for the catch and is 2-1/8" in length, 1-5/8" hole spacing and is 3/4" wide.

The Aluminum Vinyl Door Shoe constructed of extruded aluminum and black vinyl.  This shoe is sold in 36 and 48 inch lengths and comes with #6 x 3/4 inch stainless steel sheet metal screws.

Provides hold-open function with templated stop/hold-open points.
Handle controls hold-open function.

Specify your current closers model number when ordering. Not all
of the LCN closers have the same shape spindle on the door closer
cylinder. This LCN Arm is known as these part numbers: 1260-3049CNS, 1460-3049CNS, 4040-3049CNS, 4110-3049CNS

Handing diagram

Cast stainless steel outswing door kit for square edge doors and posts. For 1" doors and 1-1/4" post. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 21003.

LCN Sentronic Door Closer 4410ME-3351 On/Off Switch Assy

Board measures 1-1/8" x 3".   Red plug is a 3 prong plug, white plug is a 2 prong plug.  Specify voltage, 24 or 120 volts

LCN Part # 4410ME-3351

Double Door Latch -- Rests firmly against the center post. Shown with optional lock. Lock just prevents theft.

Corbin Russwin DC8210 Door Closer
Applications
High-quality products and innovative designs are the foundation for the long
history and reputation of Corbin Russwin Architectural Hardware. That tradition
continues with the Grade 1 DC8000 Series door closer, the perfect choice for
high-use openings and doors that must meet ADA requirements. A variety of
arms, finishes and quality features make the easy-to-install DC8000 ideal for
schools, office buildings, health care facilities and retail complexes.

Glynn-Johnson 410 Series Overhead Door Holder/Stop Concealed Mounting

The perfect combination of form and function, Glynn-Johnson 410 series holders and stops offer effective door control and a low-profile design. Each model is constructed so that the channel is encased in the door and the jamb bracket is mortised in the frame. When the door is open, the arm and jamb bracket are visible. Conversely, when the door is in the closed position, the entire holder is completely concealed.

The 410 fits in a mortised channel on top of the door, if your doors are not mortised on the top of the door, you would have to mortise them out.  Replaces the older version GJ310, GJ320 and GJ330 series.

GJ410 Catalogue

Double Door Latch for doors without a center post. Shown with out lock. Optional lock is just to prevent theft.

Single Right Door Latch -- Rests firmly against door jamb. Shown without lock. Optional lock prevents theft.

Durabilt Locker Door Jamb.

INTERNATIONAL DOOR CLOSER 1804BC - FIXED SPRING CLOSER

• Factory tested to meet or exceed ANSI 156.4 Grade 1
• Narrow design permits installation on most modern glass and aluminum doors without adapters
• Two Adjustment Valves: Closing and Latching speeds controlled by separate regulating valves, adjustable after installation.
• Standard application for regular arm, Top Jamb installation and Parallel arm installation.
• Slim Plastic Cover or Full Cover (optional)
• Ranges of Sizes
  Back-Check: 1802, 1803, 1804, and 1805
• 5 year warranty
• All Weather Fluid

3/4" X 9-1/16" Hole Spacing

PLACE AN ORDER HERE FOR THE 1804BC-P

Ives Floor Mounted Door Stop FS434 Rubber Only

Replacement rubber shoe for the FS434.  Rubber measures 2-1/4" high by 1-7/16" wide by 5/8" thick.

Ives Part # 09-318

Door Finger Protector - Exterior Push Side

This model is specifically designed for exterior doors on the push side of the door. This patented Finger-Gard product is designed for both exterior and interior doors and thus will operator in very cold and very hot tempetures. Flexible to minus 40 degrees. They are made of a special rubber that is resistant to harsh sunlight. They will allow the door to swing up to 180 degrees. This product is available in Brown or White, 78" or 83" lenghts

Our part # on this is GFG5 for the 78" length, and GFG5+ for the 83" length.
