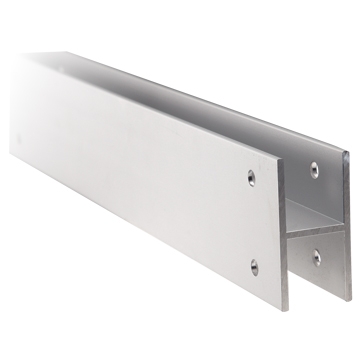

Hadrian Partitions Aluminum Headrail for 1" thick material Type A used on overhead braced floor mounted Solid Plastic Partitions. The headrail goes over the top of the pilaster which is 1" for the headrail to fit over the top of the pilaster. The slot is for 1/4" curtain hook. The headrail bolts to the pilaster for stability at the top. Overall dimension is 1-1/4"x1-3/4"ht. Also known as part number 620060, 620074.

Also known as Part# 9HR60SP, 9HR74SP and 9HR96SP.

Toilet Partition Aluminum Square Post 1-3/4" X 10'

Extruded anodized aluminum. 1-3/4" x 1-3/4" x 10' long. Also known as a Bathroom Stall Aluminum Square Post. Manufacture part # 40-5443400G. Oversized part, has to ship Truck.

1525LF Master lock,1-1/2" vertical shackle.
Keyed controlled, combination only.
Master key sold separately.We will need your master key number if adding to your existing system.

1-2 week lead time

Door Pull Offset 1" Diameter PH-4000

1" Diameter Solid Aluminum Round 3-1/4" Offset Door Pull, usually used on aluminum frame glass doors. This handle offers three different mounting options, one is surface mounted, where the handle is mounted over a mounting stud and then you tighten the set screw to hold the handle in place. The second method is thru bolted, the bolt goes all the way thru the door. And the third is back to were you have two handles mounted back to back.

Projection 3 -1/4"
Door Clearance 2 -1/4"
Center To Center 9". 10' and 12"
Anodized Finishes Aluminum or Dark Brown
Mounting Hardware Included

Aluminum Toilet Partition Slide Bolt Latch 3-1/2" Screws

Clear anodized aluminum construction. Base is 4-1/2" by 2" by 1/8" thick and projects out 1-5/8". Latch bolt is 1" wide by 3-1/8" long by 1/4" thick, and has a 1" throw. This Bathroom Stall Latch is usually used on Solid Plastic (HDPE) Toilet Partition's. Manufactures part # are 5054, 5058 and 650-8543. Also known as Toilet Partition Locks.

Shipped with mounting hardware.

aluminum bleacher clips 3-1/2".The grooves are 3" for the outer groove and 2" apart are the inner grooves. Includes bolt and nut which are zinc cadmium plated.

Stamped SS Continuous 'U' Bracket 1/2" x 1-3/8" X 57". 18 gauge (.05" thick) stamped stainless steel construction. Base is 1-1/8" x 57" long. Legs project out 1-1/2" with the thru hole at 1-1/8" from the base. Mounting and thru bolts every 13" or so. Manufacturer part # 2669. Screws included with bracket.

Threaded stem metal base glide, thread is 1/4-20, base diameter 1 1/6", and stem length is 1/2". Glide is furnished with nut.  This non swivel leveler stops wobbling on uneven floors.

Padlock Staple for Lockers

Stamped steel construction with zinc plating, .087" thick. Made in the USA.

Handless Window Fastener 1-3/8"

Cast white bronze with a brushed nickel finish

8" Kickdown Door Holder / Stops Grand Standard

No roll pin at pivot point
Mallable with a pair of pliers
Rubber shoe held on by a screw
American Made
Zinc plated steel

Made by Grand Specialties 608z

Another feature is their well constructed shoe can be adjusted down as the rubber wears making the holder last way longer than their competitors. Another use for them is as a door floor lock if mounted on the other side of the door. Once kicked down there's no entry possible unless you slide a flat item under the door to lift the door holder leg out of the way and push the door open. It can be opened from the inside as normal with your foot or hand. A very inexpensive security lock.

12" Kickdown Door Holder / Stop Grand Standard

No roll pin at pivot point
Mallable with a pair of pliers
Rubber shoe held on by a screw
American Made
Zinc plated steel

Another feature is their well constructed shoe can be adjusted down as the rubber wears making the holder last way longer than their competitors. Another use for them is as a door floor lock if mounted on the other side of the door. Once kicked down there's no entry possible unless you slide a flat item under the door to lift the door holder leg out of the way and push the door open. It can be opened from the inside as normal with your foot or hand. A very inexpensive security lock.

Made by Grand Specialties 612z

Two person latch bar 1962-1970 18-1/16"length

Republic Steel Locker Handle Lift #11 Right Hand (Lift Only). Our replacement Republic Storage Handles are based on the version they produced in the 1970″s, which means more material on the legs (lugs). And our handles are made in the U.S.A. in Wisconsin. The extra material makes them much more heavy duty then the ones they are producing today. We sell the Republic Storage #11 Locker Handle three ways, just the lift, just the case or the complete assembly. The case and the assembly come with the mounting screws. The Republic Storage #11 handle, also goes by Republic Steel #11 handle, and Berger #11 handle. The #11 handle has been produced since the 1962-1965.

Full Surface 4-1/2" Door Hinge-3 per box

Full Surface, steel construction, five knuckle, two bearing butt hinge.  Sold 3 in a box with wood and machine screws.   Available in Brushed Chrome and Paint Primed.  Ships from California.

Nova 1 Plug-In provides a 3 prong 6’ cord to give consumers some flexibility on placement of unit. Designed for 110-120v ground outlets with 3 prongs and with the unit measuring 9”x9.7”x4.2”, it makes this a compact and easy unit to install. Known as World Dryers part number WHD-883.

• Economic/Entry Level Dryer
• Automatic Operation Infrared Sensor
• Surface Mounted
• Low Sound Level
• Compact Design
• Durable Die Cast Aluminum with White Epoxy Enamel Finish
• 110-120v
• Provided with 6’ cord.
• 2 yr Limited Warranty

Toilet Partition Continuous "H" (Alcove) Bracket For 1" Thick Panels Aluminum

Constructed of extruded anodized aluminum. Channel is 2-1/2" high by 1+" wide by 54" long, for use with 1" panels. Thru holes are 1-1/2" on center. Holes are 1/4" diameter. Thru holes are every 13" or so. Sometimes known as Bathroom Stall Continuous Alcove Bracket or Toilet Partiton Alcove Bracket. The manufacturers part numbers are 2858, and 650-1862-54. These brackets are shipped with all the needed fasteners.

American Sanitary Top Hinge Pin For Laminate Partitions

Threaded steel construction. The top pin measures 3/8" diameter by 3-1/4" long with 5/16-18 threads. It has a screw driver flat slot on one end. Also known as a Bathroom Stall Door Top Hinge Pin. Manufacture part # 98584.

General Top Hinge Pin For Laminate Partitions

Threaded steel construction. The top pin measures 3/8" diameter by 3-1/4" long with 5/16-18 threads. It has a screw driver flat slot on one end. Also known as a Bathroom Stall Door Top Hinge Pin. Manufacture part # 98584.

Interkal Bleacher Gearmotor 1/2 hp, 3 phase, 460 volts, 12 RPM and known as 652566 or k01151g600. 1 week delivery.

VIRCO SLED BASED GLIDES Fits 1" outside diameter tubing. Glide has 3/4" base diameter. Stem diameter is 1/4" x 9/16" high.

Toilet Partition Continuous 'L' Wall Bracket 2-3/4" X 57-1/2" Aluminum

Extruded aluminum construction. Base is 1-3/8" and the leg projects out 2-3/4". These are sold individually. It is also known as a Bathroom Stall Continuous L Wall Bracket. The manufacturers part # is 2684.

Toilet Partition One Ear Hinged Wall Bracket 1-1/4"

Hinge is 16 ga (.060") thick, Bracket is 14 ga (.075") thick. The one ear hinged bracket is Riveted and welded together. Bracket is 3" high x 2-1/2" deep for a 1-1/4" panel. This bracket is ideal for applications were the Pilaster and Panels are not at a 90 degree angle. Also known as a Bathroom Stall HInged Wall Bracket. Manufacture part # 111369

Concealed Partition Latch Keeper Bumper 1" Square Edge Cast Stainless Steel

Cast stainless steel construction. The strike and keeper measures 2-1/2" tall by 1-15/16" wide by 1-17/32 deep. The mounting holes are 1-1/2" on center. The stop measures 7/8" wide by 17/32" deep with a rubber insert bumper. Also known as a Bathroom Stall Strike and Keeper Inswing/Outswing 1". Manufacture part # 5733.

Shipped with mounting screws.

Double sided door pulls in a chrome finish. The overall width is 4-3/4" x 1" deep. The center screws are 3-1/2". This manufacturer number is 54400. This kit includes both handles and screws for 1" thick doors.

ASI Headrail is designed for use with Global and Accurate Partitions. This headrail was introduced in May of 2023 and offers a lower profile than the previous design which is no longer available. The ASI Headrail comes in three headrail thickness options: 3/4", 1" and 1-1/4". Options for length are 65" or 98" which can be cut down to size needed. Being constructed of extruded mluminum, allows for the headrail to be durable and easily customizable. Headrails are use to help stability restroom toilet partitions and give a finished look. Installed a top of pilasters or also used to connect a back wall to a pilaster. Often used in conjuction with ASI Headrail Retrun Kit (9A8448).

Known as Manufacturer Part# 8440651, 8440981, 8460651, 8460981, 8450651 and 8450981.

Also known as Part# 9A846534, 9A849834, 9A84651, 9A84981, 9A8465114, and 9A8498114.

Stamped SS One Ear Bracket 3/4" Panel 1-1/2" X 2-1/2"

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 2-5/32" with the mounting screws are 1-11/32" on center. Leg project out 2-1/2" with the thru hole at 2-1/8" from the base. Also known as a Bathroom Stall Wall Bracket and One Wing Bracket. Manufacturer part # 1649.

Shipped with screws

Plastic chair tip for 5/8" diameter round tubing chair legs. Protect your floors against scratches and marks. These chair tips are available in tan, gray and black in a variety of sizes. Chair tips help prevent chair legs from coming through and damaging your floors. For Krueger Chairs, Tables and other furniture where the leg has a 5/8" outside diameter.

Available in Tan, Gray, and Black

Cubicle Track Carrier 2-1/2"L x 3/8"W

Republic Steel Locker Handle #11 Assembly Right Hand. Comes with lift,case and screws.Our replacement Republic Storage Handles are based on the version they produced in the 1970″s, which means more material on the legs (lugs). The extra material makes them much more heavy duty then the ones they are producing today. We sell the Republic Storage #11 Locker Handle three ways, just the lift, just the case or the complete assembly. The case and the assembly come with the mounting screws. The Republic Storage #11 handle, also goes by Republic Steel #11 handle, and Berger #11 handle. The #11 handle has been produced since the 1962-1965. Also known as 70107, 2040, 70035, rs1107, lr306.

Partition Door Pull 3-1/2" Between Screws Chrome Plated

Chrome plated Zamac die cast construction. The pull measures 4-3/4" wide and projects 1" with a hole spacing of 3-1/2". The mounting holes are threaded for a 10-24 screw. Also known as a Bathroom Stall Door Pull. Manufacture part # 5400.

Friction Ring Single Wheel Caster - 2-1/2" Wheel - 3/8" Stem Diameter, 1" stem length, 2 1/2" wheel diameter. Zinc finish with black rubber wheel. Available with tread for carpet or non carpet.

KK5431 hard tread for carpet

KK5432 soft tread for non carpet

Lock Bar Plastic Clip, Used with Penco, Republic and Wilson lockers. Replaces old Spiral Pin. Also known as 4630, 74003, pn3304, lp8831. The dimensions are 1/2" head, for 3/16" hole on lock bars to keep them vertical.

If your toilet partition (bathroom stall) wall bracket is stamped 1620, then chances are you have the Two Ear Wall Bracket for 3/4″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 3″ long with 2-7/32″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket is made of a die cast material that is then chrome plated. The bracket sometimes goes by the name Bathroom Stall (toilet partition) Two Ear Bracket or Wall Bracket
