ASI Matte Black twin hide a roll toilet paper dispenser is surface mounted. This unit holds two rolls (5-1/4") diameter roughly 1800 sheets. Designed so that when bottom roll is used top roll should drop down in place. Product comes with theft resistant spindles. The product is stainless steel with a matte black powder coated finish. With a matte black finish this product offers a more sophisticated and bold look while being aesthetically appealing to the eye.

Dimensions

6″ x 12″ x 6 1/2″ (152 x 305 x 165 mm)

ASI Matte Black inter-lok frame angle frame mirror is constructed of 3/4"x5/8 roll formed 18 gauge 304 type stainless steel. Product offers welded corners, one piece back plate attached to the frame with theft resistant locking device and  concealed hanging brackets that locks to the top and bottom of frame. The product is stainless steel with a matte black powder coated finish. With a matte black finish this product offers a more sophisticated and bold look while being aesthetically appealing to the eye.

Partitions Toilet Top or Bottom Hinge for plastic laminate doors used for top or bottom for 1 1/4" square edge post. The hinge mounts to the post to support the door. Chrome plated Zamac die cast construction. The hinge measures 2-1/4" high by 1-1/4" deep with a slot depth of 1-5/16" and 1-1/2" between screws on center. Hinge lug projects out 1-11/16" and is 1/2" thick with a 5/8" diameter hole. Also known as a Bathroom Stall Pivot Hinge Top/Bottom 1-1/4". Manufacture part # 3540. Same as 9G631A on our website.

FIAT BOTTOM HINGE FOR 1-1/4" SQUARE EDGE PILASTER POST CHROME PLATED Chrome plated Zamac die cast construction. The hinge measures 2-1/4" high by 1-1/4" wide and the hole spacing is 1-1/2". The U channel is 2-1/4" by 1-1/4" by 1" deep. The lug projects out 1-5/8" by 1/2" thick with a 5/16" diameter bushing. Also known as a Fiat Bathroom Stall Pivot Hinge Bottom 1-1/4". Manufacture part # 3290.

Shipped with mounting screws.

a=1-5/8"

also known as General, American Sanitary, Flush Metal, Fiat Tiolet Partition 91000P, 9AM280, 9FL700

Bottom Partition Hinge For 1-1/4" Round Edge Post Or Pilaster

Chrome plated Zamac die cast construction. The hinge measures 1-1/4" deep by 2-1/8" high by 1-7/16" wide. The U part of the hinge measures 2-1/8" high by 1-1/4" deep with a slot depth of 11/16". The hole spacing is 1-1/2". The lug projects out 1-3/32" and is 1/2" thick with a 5/16" diameter hole. Also known as a Bathrrom Stall Pivot Hinge - Bottom 1-1/4". Manufacture part # 4040. Used on Ampco and Metpar Metal Partitions.

Shipped with mounting screws.

A=1-7/16"

The same as the Falcon / Dor-o-Matic 1690 with Mechanical Electric Latch Retraction. Some of the features are listed below. A power supply is required.

Hand: Field reversible, non-handed.
Centercase and end cap are powder-coated black only.
Strikes: PB48 top.
Latches: Hex bottom latch (standard), RL - rod bottom latch, PL - Pullman bottom latch
Cylinder: Rim, key entry (NL) or hold back (HB) feature available.
Field selectable.
Sizes: 30", 36", 42", and 48".
Doors: 1-3/4" thick metal doors, specify if other.
Projections: 3-3/8" in neutral position, 23/8" in dogged position.
Pushbar height is 2-1/2.
Stile: 1-3/4" minimum.

Replacement parts are also available

Shipped with all screws and strikes.

General Toilet Partition Bottom Hinge For 1-1/4" Sq Edge Pilaster Or Post Chrome Plated

Chrome plated Zamac die cast construction. The hinge measures 2-1/4" high by 1-1/4" wide and the hole spacing is 1-1/2". The U channel is 2-1/4" by 1-1/4" by 1" deep. The lug projects out 1-5/8" by 1/2" thick with a 5/16" diameter bushing. Also known as a General Bathroom Stall Pivot Hinge Bottom 1-1/4". Manufacture part # 3290

Shipped with mounting screws.

a=1-5/8"

Von Duprin 5654 / 5754 Bottom Fitting

Von Duprin 050190  Bottom Mullion Fitting for the 5654 and 5754 Mullions.   The package includes the bottom fitting and all of the fasteners.

Von Duprin part # 050190

The Matte Black Hadrian double door pull is designed to mount through a 3/4" thickness partition door. Constructed of stainless steel to have a matte black finish. Measures 6-3/4" in length with center to center holes spacings of 6-1/8". Designed for outswing and ADA doors. Will require a 7/32" hole to be drilled into door and should be istalled 7" from door edge. Comes with fasteners to mount double pulls through door. Known as manufacturers part number 670112-BLK.

General Partitions Bottom Hinge 1-1/4" Round Edge Post

Chrome plated Zamac die cast construction. Pivot hinge is 2-3/16" tall by 1-1/4" wide. The slot that wraps around the post is 1-1/4" wide and 11-16" deep. The hole spacing is 1-1/2" on center. The lug projects out 1-1/2" and is 1/2" thick. The bushing on the lug is 5/16" diameter. Also known as a Bathroom Stall Pivot Hinge Bottom 1-1/4". Manufacture part # 3010.

Shipped with mounting screws.

A=1-7/6"

Von Duprin 8827 Bottom Vertical Rod Assembly

This bottom vertical rod is used on non fire rated doors. The rod includes the bottom rod connector. The rod only is 31-7/8 inch long

Von Duprin Part #050455
Old Part #101777 and 103234

International Door Closer 3010-DP Bottom Pivot

Adjustable dual purpose bottom pivot set

International Part # 3010-DP

Von Duprin 8827 Bottom Rod Connector.

Connects bottom rod to the bottom latch. The Bottom Rod Connector is included with the Von Durpin Bottom Rod.

Von Duprin Part # 050327
Old Part #960578

ASI Matte Black sanitary waste disposal is equipped with a top lid. This unit comes with 2 pre-cut holes on back for easy wall mounting. The product is stainless steel with a matte black powder coated finish. With a matte black finish this product offers a more sophisticated and bold look while being aesthetically appealing to the eye.

Dimensions

7-7/8″ x 9-11/16″ x 4″ (200 x 246 x 102 mm)

Von Duprin 8827 Bottom Latch And Cover

The Von Duprin 8827 Bottom Latch and Cover in one convenient package. The package includes the Bottom Latch 050461, the Cover 050464, and cover screws and mount screws.

Von Duprin Part # 050467

Single Hole Cam Handle

This handle is only available in the brushed bronze finish, the window handle is constructed of cast red bronze. We find this handle used with Fenestra Windows.

Right Hand S228RH
Left Hand S228LH

Wood locker padlockable cam hasp in black finish. For up to 1-1/8" thick door and a 3/4" hole in the door for mounting. Known as a Hafele 235.17.300 hasp lock.

• Cylinder Length: 1-5/16in.(33mm)
• Padlockable Faceplate Size: 1-13/16in.(46mm)H x 1in.(25mm)W
• Maximum Material Thickness: 1-1/8in.(28mm)
• Hole Diameter:  3/4in. (19mm)

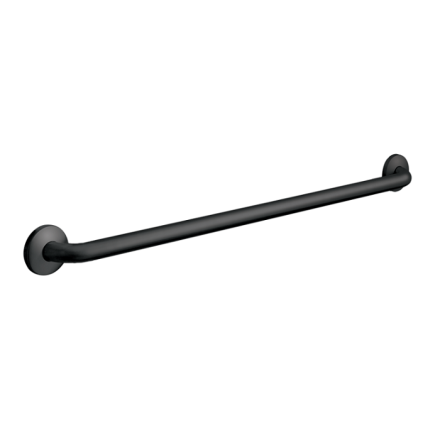

ASI Matte Black grab bars are surface mount and come with conceales snap flange harwdare. This finish is only available in a 1-1/2" diamater bar, constructed from 18 guage stainless steel and ADA Complaint. Uses 2 holes for the mounting plate and 3 dimples for attaching the cover to plate.  The product is stainless steel with a matte black powder coated finish. With a matte black finish this product offers a more sophisticated and bold look while being aesthetically appealing to the eye.

Global Partitions Bottom Hinge For Surface Mount. Chrome plated Zamac die cast construction. Used with powder coated steel and stainless steel partition doors. Pivot hinge is 2-3/16" tall by 1-1/2" wide. The hole spacing is 1-1/2" on center. The lug projects out 1-9/16" and is 1/2" thick. The bushing on the lug is 5/16" diameter. Manufacture part # 3010, 111710. Also used with Flush Metal and General Partitions. Shipped with mounting screws. A=1-9/16". Also used with Accurate Partition doors after January 2013.

Cast Stainless Steel Bottom Hinge for 1-1/4" Sq Edge

Cast stainless steel construction. The hinge measures 2-1/4" high by 1-1/4" wide and the hole spacing is 1-1/2". The U channel is 2-1/4" by 1-1/4" by 1" deep. The lug projects out 1-5/8" by 1/2" thick with a 5/16" diameter bushing. Also known as a General Bathroom Stall Pivot Hinge Bottom 1-1/4". Manufacture part # 3293.

Shipped with mounting screws.

a=1-5/8"

This is a replacement for the Zamac Die Cast hinges for General, American Sanitary, Flush Metal and Fiat Partitions.

Two Hole 1-1/2" Window Handle

This window handle features an 1-1/2" hole spacing and a 1/4" lock up . The handle is cast white bronze construction with a brushed nickel finish

Von Duprin 9927 Bottom Vertical Rod

Ends are included

Von Duprin part # 110574

18" Full Dome 360 Degree Mirror, Light weight and virtually unbreakable. Covers areas up to 300 square feet.

Brackets designed to mount plexiglass/acrylic sheets to desk surface edge when creating separation/barrier. Brackets are adjustable for thickness from 1/8" to 3/8". It is recommended for use of 1/4" Thick material. Sold as a Pair. Made of Aluminum Alloy. Screws and inserts included. Uses a 5mm/3/16" Allen Key(Not Included) to install screws These are available in either Silver or Black Finish. Silver Finish are readily available while Black Finish may have an extended leadtime depending on quantities being ordered.

Measurements

Height: 2-1/2"

Width: 1-3/4"

Depth: 5/8"

Weight:About .9lb

Top to Bottom: 3-5/8"

Plate Width: 1-3/4"

Plate Length: 3"

Plate Height: 3/16"

Gap/Spacing: 1"

Truth Two Hole 1-1/2" Window Handle

Truth 25.31 Two Hole Cam Handle die cast construction with a powder coated painted finish. We find the numbers 45086 on the right hand handles, and 45085 on the left hand handles.

Right Hand shown in picture.

Brackets designed to mount plexiglass/acrylic sheets to desk surface edge when creating separation/barrier. Brackets are adjustable for thickness from 1/8" to 3/8". It is recommended for use of 1/4" Thick material. Sold as a Pair. Made of Aluminum Alloy. Screws and inserts included. Uses a 5mm/3/16" Allen Key(Not Included) to install screws These are available in either Silver or Black Finish. Silver Finish are readily available while Black Finish may have an extended leadtime depending on quantities being ordered.

Measurements

Height: 2-1/2"

Width: 1-3/4"

Depth: 5/8"

Weight:About 1.3lb

Top to Bottom: 3-5/8"

Plate Width: 1-3/4"

Plate Length: 5-3/4"

Plate Height: 3/16"

Gap/Spacing: 1"

Rixson 27 Series Bottom Arm Package 252050

This kit included the Arm Cap & Screw, Offset Arm, Arm Shim, Arm Bearing Washer, and Spindle Shouler Collar.

Rixson Part # 252050

Von Duprin 2227 Bottom Vertical Rod

The length of the bottom vertical rod is set at the factory. All the bottom rods are the same length because of ADA standards. The top rods are field adjustable.

Von Duprin part # 109362

Dor-o-Matic 1690/1990 bottom rod. Connects panic bar to the bottom latch

Doromatic Part # 4270101825 PB25 and GPB25

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts Breakdown

Penco Locker Tops or Bottoms for replacement. They are only used for the very top and Bottom of the lockers and as a divider. Made of 24 gage steel only available in 073 champagne. 4-6 weeks delivery.

Doromatic 1990/1690 Hex Bottom Bolt

Bottom bolt measures 3" long and is constructed of 1/2" hex stock. Threads onto bottom latch. We also call this GPB352.

Doromatic part # 4270101830

Brunswick Bleacher Type A & B Bottom Rivet.

Von Duprin 1654/4754/4854/4954 Bottom Fitting

This is the Bottom Fitting for the 1654, 4754, 4854, and 4954 Von Duprin Mullions. Mounting Screws included.

Von Duprin Part # 050390
