Norton New Style Replacement Door Closer Springs

This is the replacement door closer spring for the Norton 78, and Yale 1900 Door Closers. Spring measures 2-11/16" diameter by 2" tall. This spring is identifiable by the number stamped on the band that holds the spring together. The band will be stamped either B/D 2/4, or E/F 5/6.

Norton 78 B/D and Yale 1902-4 use spring 24BD
Norton 78 E/F and Yale 1904-6 use spring 56EF

Norton Part # 24BD
Norton Part # 24EF

Medart Bleacher Spring Only for 2nd row truck assembly.

Medart Locker Lock Rod Spring Only, 3/8" width of spring, old style. manufactured in the usa. Also known as 51501, 1500, 80006, me5516, lmd931.

Medart Bleacher Spring Retaining Clip, used on row +2 truck assemblies.

Universal Bleacher Spring 13-1/2" long.

Universal Bleacher Spring 3-3/4" long.

The Monarch 4326 Spring Clip is used with the 4841 Spring in the older Monarch Lever Trims

The Von Duprin 373L Lever Control Spring 090091 and 090092 are used on the 371, 373, 375 and 378 Lever Handles.  The spring is used to return the lever to the horizontal position.  Sold in packages of 4 springs.

Von Duprin Part #
090091 Left Hand Reverse
090092 Right Hand Reverse

Horn Bleachers Vertical Push Rod Spring, Push rod spring only.

Window Spring Latch.

This spring latch features 1-3/8" hole spacing. They are used on older transom windows. White Bronze casting, nickel plated and then brushed

Sargent 8700 Top Latch Spring

The Sargent 8700 Top Latch Spring is used on most of the new and older style Sargent Panic Devices.   The springs measures 1-5/8" overall length.

Sargent Part # 97-0300

Von Duprin 88 Spring Tube

Spring tube measures 2-1/4" long by 3/8" diameter, steel construction.

Von Duprin Part # 050476
Old Part #951081

Dor-o-Matic lever arm spring. This spring pulls the cross bar back to the closed postion. The tension spring measures 1-1/4" long by 1/4" diameter.

Doromatic part # SPRING.103

Universal Bleacher Spring

Horn Bleacher Spring.

Corbin Russwin ED4000/ED5000 Lever Spring

Same part as the Corbin Russwin Lever Trim Spring. Used on Yale and Corbin Russwin LHR or RH Doors. The spring has an 1-1/4" OD and 1-1/8" ID.

Yale Part # 60-7000-1225-999
Corbin Russwin # 651F61

Lyon Metal Locker Locking Bar Spring Wire Catch. Used in February 1980 - September 2004. 4-3/8" in length. Known as 6786 Wire Catch 75045, ly6786, ll1742.

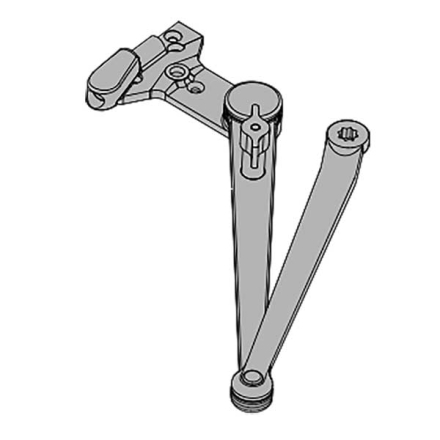

Falcon Spring-n-Stop Hold Open Arm, non handed, extra duty forged parallel arm includes an integral spring stop and non-adjustable forearm assembly for high volume traffic or abusive conditions.

Function is the Doromatic/Falcon Door Closer Model

The Monarch / Dor-O-Matic / Falcon 600339 NL Spring Package converts the 179L , 712L, 712K, 912l and 911K to an NL function.   The NL function is  one were the Lever Handle can not be unlocked and left in the unlocked position when the key is removed.   Spring has a 5/8" diameter.  See attached instructions.

Brunswick Bleacher spring.

Corbin Russwin ED4000/ED5000 Blue Lever Spring

Same part as the Corbin Russwin Lever Trim Spring. Used on Yale and Corbin Russwin RHR or LH Doors. The spring has an 1-1/4" OD and 1-1/8" ID.

Yale Part # 60-7000-1224-999
Corbin Russwin # 651F62

Von Duprin 88 Latch Tail Springs

This is the spring that pushes the latch bolt out. Used on all Von Duprin 88 Rim Devices. The spring measures 2-5/8" long by 3/16" diameter.

Sold in packages of 2.

Von Duprin Part #050393

Doromatic 2090 Latchbolt spring. Pushes out the latch bolt.

Doromatic part # SPRING.104

Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-Matic spring retainer. The retainer fits under the housing, by the dog screw and holds one end of the spring. The spring pin holds the other side.

Doromatic part # RETAIN.102

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

The Dorma 4 Loop Torsion Spring is used on the 9000 Series Exit Device Escutheon Lever Trims. Spring measures 1 inch diameter by 5/16 thick.

Dorma Part # 780367270 or 6000-717-500

Horn Bleacher Spring, Left hand shown in picture.

The Dorma 95059481 Lever Trim Return Spring is used on the 8000 series Lever Handles.   The spring has a 2-3/16" diameter.

Von Duprin 55 Rim Latch Bolt Spring

Von Duprin 55 Rim Device Latch Bolt Spring

1-1/2" long x 3/8" diameter

Von Duprin part # 967502

Sargent 20/30/60/80 Connecting Arm Spring

Push Bar Return Spring

Sargent part # 68-0236

Window Spring Latch

Transom window spring loaded window catch. White bronze casting, brushed nickel finish. This Window Spring Catch features a 1-7/16" hole spacing, and a 1/2" lock up dimension.

Von Duprin 88 Spring Tube Bracket

This bracket holds the hinge case spring tube in place. The screws are included with the bracket.

Von Duprin Part # 050477
Old Part # 969369

Brunswick Bleacher Spring Right Handed. Note Left hand shown in picture.

Von Duprin 992/994 Lever Lift Spring 971573

The spring measures 1-5/8" long with a 7/16" diameter. We find two of these springs per 992 and 994 series lever trims. These springs help support the lever handle and return it to the proper position.

Von Duprin Part # 971573-00
