The heavy-duty 8900 Series non-handed surface applied closer
with adjustable spring power and backcheck positioning adjustment.
The 8900 has intensity adjustable hydraulic backcheck
that will take effect at approximately 65º. The 8900 has two
independent, noncritical adjustment valves to control sweep and
latch closing speeds. The backcheck positioning valve maintains
an effective backcheck range on parallel arm applications. The
8916 will be available with field adjustable spring power from size
1 to 6 for barrier-free requirements.

 FEATURES

• Please note the factory will only sell in quantities of 10.
• Supervisory key control
• Ergonomic dial with grip ring and non-slip coating
• Automatic locking
• 7 pre-set combinations for extended usage
• 3-digit dialing combination with 5-pin tumbler key plug
• Patent pending button guard to protect lock function from overstuffed lockers
• Nut channels for easy installation
• All Built-in Combo Locks have a 10 year warranty from time of shipment
• 72 hour shipping available

APPLICATIONS

• Fits all lift handle gravity latch, multi-point lockers
• Model 1930 is for use with locker door hinged on right; similar in operation to Master Lock 1630

Global Toilet stalls between walls in Powder Coated Metal Between 2 Walls Toilet Partitions. Standard stalls 36"x 60" depth (24" door), ADA stall 60"x60" depth(36" door). All hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.
Color Chart

Chrome Plated Toilet Partition Flat Stop Keeper

Polished chrome plated Zamac construction. The keeper base is 2-1/2" tall by 1-3/32" wide. The latch face measures 2-1/2" tall with a 7/8" projection. The hole spacing is 1-1/2". The slot measures 5/16" by 1-9/16". Also known as a Bathroom Stall Keeper-Inswing Flat. Manufacture part # 5160.

Shipped with mounting screws.

ASI Locker Lock Bar 27" includes lock bar, lifter, trigger, latch clips and coiled springs. For double tier lockers, 72" overall height of locker. The lock bar is what is riding vertically to lock and unlock from the frame of the locker. When a person lifts up on the locker handle it is attached to the lock bar which releases the door from the frame of the locker.

Truth Entrygard Dual Arm Operator. We would expect you to find 20755 on the bottom of the linkage arm, which measures 3-3/4" overall length. Other common numbers we would expect to find are 31538, 31539, 30841, 30842, 30472, 30470, and 20755.  Call or email for quantity "Discount Codes".

To determine hand of operator, if your sash lock (window lock), is on the left, you would use a left hand operator. And if your sash lock is on the right, you would order the right hand operator.

3-3/4" link dimension, offset down. For offset up order Wi1516

Order Wi1510 if your link dimension is 4-7/16" stamped 20810.
Order Wi1515 if your link dimension is 2-7/8" stamped 20748.

Left hand shown.

Complete Stainless Steel in a Corner Partitions, Stainless Steel Overhead braced floor mounted stalls. Standard stalls 36"x 60"depth (24" door), ADA stall 60"x60"depth includes (36" door). Standard chrome plated alloy hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Global Stainless Steel Color Chart

International Door Closer 8052 Delayed Action

Same closer as the 8050 Series or 8051P, but with Delayed Action. Delayed Action is a function of the Door Closer hydrualic cylinder. The hydrualic cylinder will hold the door open for up to 30 seconds to allow physically challenged individuals time to get through the door way. Adjustable spring power with separate valves for closing, latching and delay

International Door Closer model # 8052-P DU or 8052-P AL

Global partitions new style door kits, used September 2021 to current. This door kit includes cast stainless steel hardware, hinges and associated parts, slide latch with indicator and door keeper, coat hook. The adder is for outswing doors that included double door pulls, stainless steel top pin and 2" door stop. All security screws included. Factory part number 8263513 for inswing parts and 8263514 for the adder which is double door pulls and door stop. The hinges have been used for over 30 years.

To order out swing version you must order both parts as pictures shown for complete door kit.

Ordering Online All Solid Plastic (HDPE) Doors Manufactured by Global Partitions, see color chart below. For other factory colors please call for pricing.Special door size, ships from factory after 5 business day, plus 2-4 days travel. Note 24",26",34" & 36 doors are quick ship, 22",28",30" & 32" ship out in 1 week. Doors Includes: Standard Vault Hinges (for 1" pilaster), latching and Bumper Keeper all in aluminum. (actual door size is 3/8" narrower that the opening)Color Chart

General Toilet Partition Keeper Bumper For Square Edge 1-1/4" Thick Posts

Zamac die cast construction and polished chrome plated. The keeper and strike is 2-1/2" tall by 1-7/8" wide. The stop is 17/32" thick and projects out 3/4". The mounting holes are 1-1/2" on center. The locking slot is 7/16" deep. Generally used with concealed latches. Also known as a Bathroom Stall Strike and Keeper - Inswing/Outswing 1-1/4". Manufacture part # 5230.

Shipped with mounting screws.

Inswing Partition Keeper Bumper For Throw Latch For 1-1/4" Sq Post

Zamac die cast and polished chrome plate construction. The strike and keeper measure 2-1/2" high by 1-7/8" wide with a hole spacing of 1-1/2" on center. The stop is 2-1/2" tall by 3/4" wide with a rubber insert. The slot measures 13/16" high by 1/4" deep. Commonly known as a Bathrrom Stall Strike and Keeper Inswing 1-1/4". Manufacture part # 5340

Shipped with mounting screws.

Metpar Partitions Keeper Bumper 1-1/4" Round Edge Post

Polished chrome plate Zamac die casting construction. Strike and Keeper measures 1-1/4" high by 2-3/8" wide by 1-1/4" deep. Stop is 1/2" thick and projects out 1-1/8". The latching slot is 7/32" deep. This Bathroom Toilet Door Keeper is designed for use on 1-1/4" thick round edge posts or pilasters. Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5520.

Shipped with mounting screws.

Partition Inswing Surface Keeper 1-1/2" Between Screws Cast Stainless Steel

Cast stainless steel construction. The keeper base is 2-1/2" tall by 1-3/32" wide. The latch face measures 2-1/2" tall with a 7/8" projection. The hole spacing is 1-1/2". The slot measures 5/16" by 1-9/16". Also known as a Bathroom Stall Keeper-Inswing Flat. Manufacture part # 5163.

Shipped with mounting screws.

The 1/4 HP Single Phase Gear Motor by Irwin is also known as Part # P6000IR.

The Irwin 1/4 HP Single Phase Gear Motor features ¼ horsepower, 115 volts, and 4 amps. It operates at a speed of 12 RPM, which is ideal for the controlled movement required in bleacher systems. This slow and steady pace ensures that the bleachers can be deployed and retracted safely, minimizing the risk of accidents or damage.

One of the standout features of the Irwin 1/4 HP Single Phase Gear Motor is its robust construction. Built to withstand frequent use, the Irwin 1/4 HP Single Phase Gear Motor is made from high-quality materials that enhance its longevity. This means less downtime for maintenance and repairs, allowing facilities to focus on their events rather than equipment issues.

Installation is simple, thanks to the Irwin 1/4 HP Single Phase Gear Motor's user-friendly design. It can be easily integrated into existing bleacher systems, making it a convenient choice for upgrades or replacements. Additionally, the Irwin 1/4 HP Single Phase Gear Motor's compact size allows it to fit into tight spaces without compromising performance.

The 1/4 HP Single Phase Gear Motor by Irwin is a fantastic choice for anyone looking to enhance their bleacher systems. With its reliable performance and durable construction, the Irwin 1/4 HP Single Phase Gear Motor stands out as a top option for schools, gyms, and auditoriums alike. Whether you are setting up for a sports event, a concert, or a community gathering, the 1/4 HP Single Phase Gear Motor by Irwin ensures that your bleachers will function smoothly and safely.

Lastly, remember that investing in quality parts—such as the Irwin 1/4 HP Single Phase Gear Motor—can significantly enhance the performance of your bleachers. The Irwin 1/4 HP Single Phase Gear Motor motor is designed for durability and efficiency, ensuring that your bleachers operate smoothly for years to come.

For any questions or assistance with your purchase of the 1/4 HP Single Phase Gear Motor by Irwin, don’t hesitate to reach out. We are here to help you make certain that your bleachers remain a safe and welcoming space for everyone.

Ordering Online All Solid Plastic (HDPE) Doors Manufactured by Hadrian Partitions, see color chart below. For other factory colors please call for pricing. All doors ship from the factory after 5 business day, plus 2-4 days travel. Note 22", 23", 24", 26",32", 34" & 36" are the opening you have between posts. The doors Include standard 8" wrap hinge sets or up grade to ss cam piano style hinges. All hardware is for 1" thick material, aluminum latching and door stop all in aluminum finish included. (actual door size is 1/2" narrower that the opening).

Hadrian Solid Plastic Color Chart

Hadrian Partition Solid Plastic Instructions

• Narrow design unit for use on rose or escutcheon 3-1/2" or less.
• For use with Type 86 Mortise and Type 161 Cylinder Locks
  (ANSI 156.13 Series 1000 and ANSI 156.2 Series 4000).
• No exposed fasteners on face of unit.
• Unique design provides maximum security, virtually eliminating the opening
  between door and frame at the latch point.
• Available in 13 Gauge Stainless Steel or 12 Gauge Steel

1-1/2" Wide x 9-1/2" High
Stud center to center: 8-1/2”

The Adams Rite EX88 Interlocking Rim Exit Device is designed for heavy duty use on narrow stile aluminium door applications. The EX88 has a unique latch bolt design that interlocks with the frame of the door. This device is non handed, requires a minimum stile width of 2" and will work on aluminum, hollow metal or wood doors.The device is constructed of extruded aluminum with matching metal angled end caps. To order specify your door width, and the color.

FEATURES

• Please note the factory will only sell in quantities of 10.
• Large, all-steel ADA Compliant User Paddle Key for ease of access

• Ergonomic dial with grip ring and non-slip coating
• 7 pre-set combinations for extended usage
• Supervisory key control
• Automatic locking
• Includes 2 User Keys
• Nut channels for easy installation
• 3-digit dialing combination with 5-pin tumbler key plug
• All Built-in Combo Locks have a 10 year warranty from time of shipment
• 72 hour shipping available

APPLICATIONS

• Fits all lift handle gravity latch, multi-point lockers
• For use with locker door hinged on left

Chrome Plated Toilet Partition Keeper Bumper Flat Stop 1-1/2" Between Screws

Polished chrome plated Zamac construction. The strike and keeper measure 2-1/2" high by 1-13/16" deep by 1/8" thick. The stop has a 3/4" projection and is 9/16' deep with a rubber insert. The mounting holes are 1-1/2" on center. The slot is for the concealed latch is 7/8" high by 7/16" deep. Also known as a Bathroom Stall Strike and Keeper Inswing/Outswing Flat. Manufacture part # 5240

Shipped with mounting screws.

Doromatic SC70 Door Closer - Same Hole Spacing as the Norton 7500 and Yale 4400
2-3/8" x 6-3/4" hole spacing

ANSI/BHMA A156.4, Grade 1
■ UL Listed
■ ADA compliant
■ 1-1/2” diameter piston
■ Hinge side, top jamb and parallel arm configuration standard with SC71 Rw/PA
■ Adjustable size 1-6
■ Single piece cast aluminum body
■ Staked valves
■ Separate adjustable general speed, latch speed, backcheck and backcheck position
■ Non-handed for left and right swinging doors
■ 10 year warranty

We ship the SC71 Rw/PA

FEATURES

• Please note the factory will only sell in quantities of 10.
• Large, all-steel ADA Compliant User Paddle Key for ease of access

• Ergonomic dial with grip ring and non-slip coating
• 7 pre-set combinations for extended usage
• Supervisory key control
• Automatic locking
• Includes 2 User Keys
• Nut channels for easy installation
• 3-digit dialing combination with 5-pin tumbler key plug
• All Built-in Combo Locks have a 10 year warranty from time of shipment
• 72 hour shipping available

APPLICATIONS

• Fits all lift handle gravity latch, multi-point lockers
• Model 1930ADA is for use with locker door hinged on right

General Toilet Partition Keeper Bumper For Square Edge 1-1/4" Thick Posts

Zamac die cast construction and polished chrome plated. The keeper and strike is 2-1/2" tall by 1-7/8" wide. The stop is 17/32" thick and projects out 3/4". The mounting holes are 1-1/2" on center. The locking slot is 7/16" deep. Generally used with concealed latches. Also known as a Bathroom Stall Strike and Keeper - Inswing/Outswing 1-1/4". Manufacture part # 5230.

Shipped with mounting screws.

General Toilet Partitions Keeper Bumper For 1-1/4" Inswing Sq Edge Pilaster Or Post

Zamac die casting that is polished chrome plated. The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. The latch bolt slot is 1-9/16" high by 5/16" deep. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for inswinging doors. Also known as a Bathroom Stall Strike and Keeper-Inswing 1-1/4". Manufacture part # 5110

Shipped with mounting screws.

The Dor-o-Matic Falcon 4758959 Soleniod is used on the EL1690, EL1790, and EL2390 Electric Latch Retraction exit devices.  The Solenoid measures 4-1/8 inches long including mouting flange, and has an 1-3/4 inch diameter.  The mounting screw spacing is 1 inch on centers. The Plunger is included and has a 7/8 inch diameter and is 2-15/16 inches long.  We find the number 971687 on the solenoid.

7-1-2025 No longer available.  If you have the 1690 or 1790 you can update your exit to the new mortor 47867200

General Keeper Bumper For Concealed 1-1/4" Round Edge

Polished chrome plate Zamac die casting construction. Strike and Keeper measures 1-1/4" high by 2-3/8" wide by 1-3/4" deep. Stop is 1/2" thick and projects out 1-1/8". The latching slot is 7/16" deep x 3/4" high. This Bathroom Toilet Door Keeper is designed for use on 1-1/4" thick round edge posts or pilasters. Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5510.

Shipped with mounting screws.

Ordering Online All Global Partitions in Powder Coated Panels are Manufactured in the usa. All toilet partition panel's ship in 48-72 hours plus 2-4 days travel. All Hardware Chrome Plated included. Available in 16, 18, 22, 28, 34, 40, 46, 52, 55, 58, 60, 65, 70, 76". Actual width is 1/2" less. (58" Height)
Color Chart

Von Duprin Electric Strike 6114 24VDC

Von Duprin 6100 Series electric strikes are designed for use with Rim devices.  The 6114 has a 3/4” latch bolt throw, 7” face plate length, 1-7/8” width, and projects1-9/16”.  The lock retrofits the Folger Adams FD 310-5.  Other voltages and replacement parts are available.

FSE - Fail-secure.  Requires power to be applied to unlock the strike lip.  On loss of power, the strike lip is locked-Fire Rated

FS - Fail-safe.  Requires power to be applied to lock the strike lip.  On loss of power, the strike lip is unlocked.  Non Fire-Rated.

Alpine Hemlock Commercial Hand Dryer

• 10 second dry time. Faster then other competitive high speed hand dryers
• Hardwired or plug-in for quick installation
• Beautiful design and color
• 95% Savings over the cost of paper towels
• Blue light for users drying efficiency
• 5 Year limited warranty
• Choice of 7 splendid colors

Global partitions new style door kits, used September 2021 to current. This door kit includes chrome plated zamac hardware, hinges and associated parts, slide latch with indicator and door keeper, coat hook. The adder is for outswing doors that included double door pulls, stainless steel top pin and 2" door stop. All security screws included. Factory part number 8513513 for inswing parts and 8513514 for the adder which is double door pulls and door stop. The hinges have been used for over 30 years.

To order out swing version you must order both parts as pictures shown for complete door kit.

Von Duprin 050535 El Solenoid Assy

Discontinued, we do not have any stock remaining.  You would have to order the QEL or QEL-HD Conversion Kit to update your exit to the new Mechanical Electric Latch Retraction:  https://www.robertbrooke.com/von-duprin-qel-baseplate-conversion-kit.html

Screws are 1" on center, the cylinder measures 3" long by 1-3/4" diameter. Used on the 33A, 35A, 98 and 99 exit and panic devices. This Solenoid Assembly is also used on the Doromatic/Falcon EL1690, EL1790 and EL2390

We sometimes find the number 971687, along with 4011 VDC 24

Von Duprin Part Number 050535
Doromatic/Falcon Part # 971687-00

2600 Series Electronic RFID Locks are some of our most secure and versatile electronic locks. They work on all standard single point lockers, box locker, gravity latch/multipoint, wood, phenolic, plastic and laminate lockers. They are designed to meet the same security levels used in Smart cards. Complying with all ADA guidelines for accessibility.

• Unique card key with same security level as used in banking Smart Cards
• Complies with all ADA guidelines for ADA accessibility
• Engineered to work on all standard metal single point, box locker, gravity latch/multipoint lockers
• Wood, laminate, phenolic lockers and casework will require extension kits of 1/2″ or 3/4″ for thicker material
• Supervisory override card and program card capability
• Programmable for both day use and permanent use
• High impact polycarbonate housing
• Ability to track user history
• New user cards available in the event card is lost
• Battery Powered; Requires (4) AA batteries offering life cycle of 10,000 – 20,000 uses depending on model
• Low battery audible warning signal
• External battery powered emergency device offered to allow access to lock if low battery signal is missed and battery life ends
• Permanent use will lock automatically
• Shared use will not lock automatically
• Management codes are 6 digits with default or choice for factory to preset.

OPTIONS:

• Available 1 year warranty from the time of shipment

APPLICATIONS:

• Athletic, student & swimming facility lockers
• Health, fitness, golf & country clubs, day spas, wellness centers; hotel & resort lockers
• Employee lockers

Von Duprin Electric Strike 6112 24VDC

Von Duprin 6100 Series electric strikes are designed for use with Rim devices.  The 6112 has a 3/4” latch bolt throw, 9” face plate length, 1-5/8” width, and an 1-3/4” backbone depth.  The lock retrofits the Folger Adams FA 310-4.  Other voltages and replacement parts are available.

FSE - Fail-secure.  Requires power to be applied to unlock the strike lip.  On loss of power, the strike lip is locked-Fire Rated

FS - Fail-safe.  Requires power to be applied to lock the strike lip.  On loss of power, the strike lip is unlocked.  Non Fire-Rated.

Complete Stainless Steel Free Standing Partitions, Stainless Steel Overhead braced floor mounted stalls. Standard stalls 36"x 60"depth(24" door), ADA stall 60"x60"depth(36" door). Standard chrome plated alloy hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Global Stainless Steel Color Chart

Metpar Toilet Partitions Keeper Bumper For 1-1/4" Inswing Square Edge Pilaster Or Post

Zamac die casting that is polished chrome plated. The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. The latch bolt slot is 1-9/16" high by 5/16" deep. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for inswinging doors. Also known as a Bathroom Stall Strike and Keeper-Inswing 1-1/4". Manufacture part # 5110

Shipped with mounting screws.

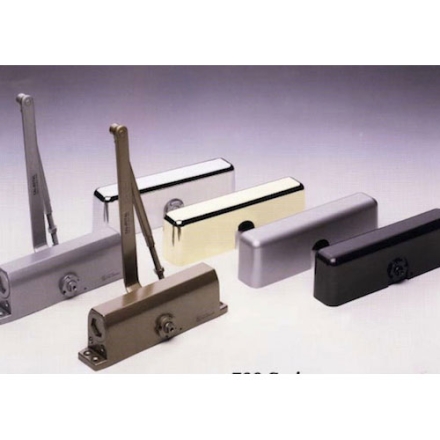

Cal Royal 700 Series Door Closer

Adjustable closing and latching speeds
3/4" x8-3/16" for sizes 2 and 3, and 3/4 x 9-1/16" for size 4 holes spacing
Powder Coated Painted Finishes
5 year warranty
