Dor-o-Matic 1690/1990 Top rod. Connects panic bar to the bottom latch

Doromatic Part # 4270100017 PB24

This rod is 35" tall

Dor-o-Matic 990/1990 Repair Parts Breakdown

Dor-o-Matic 1690 Repair Parts Breakdown

General Toilet Partitions Keeper Bumper For 1-1/4" Outswing Square Edge Pilaster Or Post

Zamac die casting that is polished chrome plated. The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for outswinging doors. Also known as a Bathroom Stall Strike and Keeper-Outswing 1-1/4". Manufacture part # 5210

Shipped with mounting screws.

Doromatic 1990/1690 Hex Bottom Bolt

Bottom bolt measures 3" long and is constructed of 1/2" hex stock. Threads onto bottom latch. We also call this GPB352.

Doromatic part # 4270101830

Toilet Partition Pilaster Anchor 'L' Bracket For 1-1/8"-1-1/4" Thick Pilaster Posts

Zinc plated brackets and screws. Also known as a Bathroom Stall Pilaster Post Anchoring Pack. Package includes all needed screws and brackets.

Toilet Partition Stainless Steel Continuous Hinge, 71", Non-Handed, 14 Gauge, 1/4" Pin

Stainless Steel Construction 14 gauge (.075" thick). Hinge is 3" wide when laid flat, by 71" long. Holes are typically spaced every 14". The hinge pin is 1/4" diameter, and the mounting holes are 9/32" diameter. This hinge is also known as a Full Length Toilet Partition Continuous Hinge. Hinge had rounded edge 3/8" radius and is cam (gavity) self closing. Designed to be 20 degree hold so that door will close and rest at 20 degress from being flush with partitions surface but can be pulled flush. The Bathroom Stall hinge can be raised up 3/8" for emergency entry.

*Fasteners not Included *

Manufacture part # 160809

Toilet Partition Pilaster Anchoring Device

Zinc plated steel construction. For 3/4" thick and larger Pilaster Posts and 3" wide and larger pilaster posts. The brackets are 11/16" wide. Also known as a Bathroom Stall Pilaster Post Anchoring Pack. All the screws are included in the package.

Toilet Partition Wall Bracket One Ear For 1-1/4" Panel Aluminum

Stainless Steel Torque Head Barrel Nut Shoulder Screw for 1-3/16" - 1-3/8" gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread stainless steel unplated and uses a 6 lobe head torque. Both pieces included.

Penco Products door frame assembly are the whole front face of the lockers. Includes door, frame and all latching with handle choice. This takes 6-8 weeks delivery. These doors are standard louvered known as the vanguard lockers. These lockers are typically in the hallways of schools.

color chart

ASI Headrail is designed for use with Global and Accurate Partitions. This headrail was introduced in May of 2023 and offers a lower profile than the previous design which is no longer available. The ASI Headrail comes in three headrail thickness options: 3/4", 1" and 1-1/4". Options for length are 65" or 98" which can be cut down to size needed. Being constructed of extruded mluminum, allows for the headrail to be durable and easily customizable. Headrails are use to help stability restroom toilet partitions and give a finished look. Installed a top of pilasters or also used to connect a back wall to a pilaster. Often used in conjuction with ASI Headrail Retrun Kit (9A8448).

Known as Manufacturer Part# 8440651, 8440981, 8460651, 8460981, 8450651 and 8450981.

Also known as Part# 9A846534, 9A849834, 9A84651, 9A84981, 9A8465114, and 9A8498114.

Torque Head Barrel Nut Shoulder Screw for 1/2" - 3/4" gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread chrome plated and uses a 6 lobe head torque. Both pieces included.

Torque Head Barrel Nut Shoulder Screw for 1-3/16" - 1-3/8" gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread chrome plated and uses a 6 lobe  head torque. Both pieces included.

Toilet Partition Pilaster Anchoring Device for 1" thick or larger.

Zinc plated steel bracket. For 7" wide and larger Pilaster Posts. Also known as a Bathroom Stall Pilaster Post Anchoring Device. Ships with all the hardware and screws shown.

Straightens bent full mortise hinges. Slide cylinder over the butt of the hinge and rotate. Extra long handle provides the torque to bring the hinge back inline.   It measures 19-1/2" long, with barrels on each end of 3/4"  and 1" diameters.

Hadrian Solid Plastic Ada Alcove bathroom partitions floor mounted overhead braced stalls with a smooth surface. Alcove stall includes 36" door, 2 pilasters and panel to make up the balance needed. Partition doors are either in or out swing, the keeper bumper is what changes the door swing in or out. Standard aluminum brackets and hardware included with a choice of stainless steel. Every color Hadrian offers will ship in 5 business days plus 2-4 days travel.

Hadrian Solid Plastic Color Chart

Hadrian Partition Solid Plastic Instructions

Toilet Partition Urinal Screen Bracket Chrome Plated. This bracket is for any thickness panel. The bracket is 2 separate pieces. The base is 1-1/2" x 1-1/2". The base mounting hole is 1" from the inside face of the leg face. The bracket projects out 2-1/2", and the holes are at 2-1/8" and 1-1/8" from the mounting face. The brackets are made of a zamac die cast material and polished chrome plated. This bracket is also known as a Two Piece Bracket - Two Holes, Toilet Partition Bracket, or Bathroom Stall Bracket. The manufacturers part number is 1860 or 650-6437. The bracket is shipped as two pieces plus all of the fasteners.

Partitions Toilet Top or Bottom Hinge for plastic laminate doors used for top or bottom for 1 1/4" square edge post. The hinge mounts to the post to support the door. Chrome plated Zamac die cast construction. The hinge measures 2-1/4" high by 1-1/4" deep with a slot depth of 1-5/16" and 1-1/2" between screws on center. Hinge lug projects out 1-11/16" and is 1/2" thick with a 5/8" diameter hole. Also known as a Bathroom Stall Pivot Hinge Top/Bottom 1-1/4". Manufacture part # 3540. Same as 9G631A on our website.

Von Duprin 33/3547 98/9947 Compression Spring (10)

One of two springs located in the 33/3547 and 98/9947 Top Latch 050492.  Sold in packages of 10.

Von Duprin Part # 090066

LCN SEM7850 Magnetic Door Holder

Toilet Partition Urinal Screen Bracket Cast Stainless Steel. This bracket is for any thickness panel. The bracket is 2 separate pieces. The base is 1-1/2" x 1-1/2". The base mounting hole is 1" from the inside face of the leg face. The bracket projects out 3-1/2", and the holes are at 3-1/8" and 2-1/8" from the mounting face. The brackets are made of Cast Stainless Steel. This bracket is also known as a Two Piece Bracket - X-long Two Holes, Toilet Partition Bracket, or Bathroom Stall Extra Long Bracket. The manufacturers part number is 1323. The bracket is shipped as two pieces plus all of the fasteners.

Von Duprin 050536 HD-EL Solenoid

Electric Latch Retraction for Von Duprin Exit Devices with Hex Key Dogging.  #4 on the diagram below large picture.

Von Duprin part # 050536
Old Part # was 110740

No longer available, the only solution we have at this time is to upgrade to the HD-QEL Base Plate.

The Adams Rite 4580 cam is used on the the 4500 and 4900 Dead Latch Paddles.  The 4580-500 is for Left Hand, and the 4580-600 is for Right Hand Doors.

LCN Sentronic Door Closer 4410ME

Standard LCN Sentronic Door Closer 4410ME series closer shipped with a 24V or 120V cylinder (please specify) on a mounting plate, metal cover, regular arm, and wood and machine screw pack. Sized cylinders for interior doors to 4’0”. Functions as full rack and pinion door closer when hold-open is not engaged or current is interrupted. Handed for right or left swinging door. Concealed or exposed electrical connections. Built-in “On/Off” switch controls hold-open function. Interfaces with fire alarm systems.

LCN Sentronic Door Closer 4410ME parts are also available.

Sweep Lock 1-1/4" NuPrime

This window sweep lock is made of chrome plated die cast material. The hole spacing on this window lock is 1-1/4".  On this sweep latch we find the numbers D209812, D123,676, and Patent Nos. 3,449,862.  We also find NUPRiME by Season-All

The Adams Rite P8700 P8800 Roller Strike is the Standard Strike for the P8000 Series Pullman Latch Exit Devices. The strike measures 2-15/16 by 1-7/16 inches with a 2 inch on center hole spacing.

Adams Rite Part Number 91-0355 or 41-0975-02 Frame Kit.

Toilet Partition Stainless Steel Continuous Hinge, 71", Non-Handed, 14 Gauge, 1/4" Pin

Stainless Steel Construction 14 gauge (.075" thick). Hinge is 3" wide when laid flat, by 71" long. Holes are typically spaced every 14". The hinge pin is 1/4" diameter, and the mounting holes are 9/32" diameter. This hinge is also known as a Full Length Toilet Partition Continuous Hinge. Hinge had rounded edge 3/8" radius and is cam (gavity) self closing. Designed to be zero degree hold so that door will close flush with partition surface. The Bathroom Stall hinge can be raised up 3/8" for emergency entry.

*Fasteners not Included *

Manufacture part # 160799

Ordering Online All Powder Coated Metal 10' Post & Panel Urinal Screen Manufactured by Global Partitions, see color chart below. For other factory colors please call for pricing. All toilet partition's ship in 48-72 hours plus 2-4 days travel. 10' Post/Panel Urinal Screen 1-3/4" square post up to 120" maximum with 58" high panel. Specify - and Part # 9SFCS-XX (where XX is width from the front of post to the wall). Width of screen 16"-76" x 58"ht, All standard chrome plated hardware included.
Color Chart

DryBaby Polyethylene horizontal baby changing station is the industry standard as the most preferred changing position design. Provides bag hooks on both sides when open as well built-in dual liner dispensers. Safety strap designed for being able to make one handed adjustments. Comes with easy step by step installation instructions and is ADA complaint when installed in accordance to instructions provided. Known as World Dryers part number ABC-300H.

• Horizontal Surface Mount Design
• High-Density Polyethylene Material
• Unit Size: 18”x34.5”x4”
• Resistance to Fungi(ASTM G21) and Bacteria(ASTM G22)
• Design for children up to 3.5 years or age and weighing up to 50 lbs, Meets ASTM F2285
• Smooth Opening and Closing Motion with Pneumatic gas shock mechanism
• CPSIA Compliant to applicable sections
• ADA and ANSI Compliant when mounted according to instructions
• Features built in liner dispenser, Liners(ABC-300L)
• Replacement Strap (93-10075)
• 5 yr Limited Warranty

LCN SEM7820 Magnetic Door Holder

The classic look of Doromatic 1990 has a long history of reliable performance. It is equipped with hardened steel latches and adjustable strike to ensure safety, security and quiet operation.

Hand: Field reversible, non handed.
Dogging Feature: Hex dogging standard.Sizes: Field adjustable width, 41" crossbar standard fits 3' 8" x 7'
door, extra length cross bar available.

Replacement parts are also available

Shipped with all screws and strikes.

Adams Rite 91-0993-IP 8700/8800 Strike is used on the rim devices that have the Star Wheel Latching System.  The strike measures 2-3/4" long by 1-3/4" wide and projects out approximately 1/2".   Kit comes with mounting screws and two shims.

Is your Toilet Partition Bracket stamped 1310, if it is you have a one ear urinal bracket. The bracket is made from a zamac die casting that is then polished chrome plated. It sometimes goes by the name Toilet Partition One Ear Urinal Screen Bracket, Urinal Wall Bracket, 1310 Wall Bracket, 650-6410 wall bracket, or just Wall Bracket. The base is 1-1/2" wide x 2-3/4" long with a 1-1/2" on center hole spacing. The legs project out 3-1/2" with the mounting holes at 3-1/8" from the base. The holes are 1/4" diameter.

For use on 1-1/4" thick panels

Stainless Steel Torque Head Barrel Nut Shoulder Screw for 7/8" - 1-3/16" gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread stanless steel unplated and uses a 6 lobe head torque. Both pieces included.

Toilet Partition Continuous 'L' Wall Bracket 2-3/4" X 57-1/2" Aluminum

Extruded aluminum construction. Base is 1-3/8" and the leg projects out 2-3/4". These are sold individually. It is also known as a Bathroom Stall Continuous L Wall Bracket. The manufacturers part # is 2684.

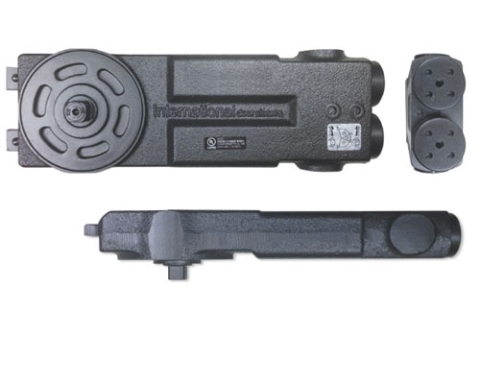

International Door Closer 200 Series Overhead Door Closer

UL Listed
Built in positive back stop and hold open positions.
Two speed control valves: Closing and latching speeds controlled by separate regulating valves, fully adjustable after installation.
Positive centering for alignment and to hold door closed against any normal wind or draft.
Stable hydraulic door check fluid for any climatic operation and constant lubrication.

Hydraulic Cylinder only

2000-B-230 105 with Hold Open
2000-B-231 105 with No Hold Open
2000-B-232 90 with Hold Open
2000-B-233 90 with No Hold Open
