Toilet Partition Aluminum Bracket 'U' For 1" Thick Panel

Constructed of extruded anodized aluminum. The base measures 1-5/16" wide by 1-1/2" tall. The screw holes on the base are 5/8" on center. The legs project out 1-5/16". The bracket is also known as a Bathroom Stall U Bracket, Wall Bracket or Toilet Partiton U Bracket. The manufacturers part numbers is 1914. Shipped with mounting screws.

Complete Stainless Steel Between 2 Wall Partitions, Stainless Steel Overhead braced floor mounted stalls. Standard stalls 36"x 60"depth (24" door), ADA stall 60"x60"depth (36" door). Standard chrome plated alloy hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Global Stainless Steel Color Chart

Stainless Steel Folding Utility Shelf 14-5/8"X5-13/16"

Shelf: Fabricated of #18 ga stainless steel with a #4 satin finish. Leading
edges are radiused and deburred to prevent injury.
Mounting Bracket: Fabricated of #14 ga stainless steel finished to match
shelf. All edges are deburred and have a radius.
Spring: Heavy duty internal spring will allow shelf to return to the up-right
position when not in use.
Overall Size: 14 5/8”L x 5 1/2”W

Corbin Russwin Door Closer 2800 Regular Arm

Used on almost all of your Corbin Russwin door closers since the 1970's.

Part # 688F95

Non swivel glides for round tubing

5/8" outside diameter
7/16", 1/2" and 9/16 inside diameter
1-1/16" base diameter
Nickel plated metal base

Truth 24.10 Casement Window Handle.

Die cast construction, then powder coated to the desired finish.

Aluminum and white in stock, call for other colors.

Swivel Based Chair Glide for round tubing with measurements of 7/8" O.D. X 3/4" I.D. This chair glide does NOT feature a Ferrule, This glide has a clip that holds the glide on by going inside the chair leg. The Chair Glides Base diameter is 1 1/4".

Toilet Partition Pilaster Anchor 'L' Bracket For 1-1/8"-1-1/4" Thick Pilaster Posts

Zinc plated brackets and screws. Also known as a Bathroom Stall Pilaster Post Anchoring Pack. Package includes all needed screws and brackets.

LCN Sentronic Door Closer 4040SE-3436 On/Off Switch

The LCN 4040SE On/Off Switch measures 1" by 1/2" and the button projects up 1" from the base. This component is usually mounted by two way foam tape to isolate if for undesirable shock.

LCN Part # 4040SE-3436

ASI Matte Black liquid soap dispenser is surfaced mounted and holds 48 oz of soap. Refill window is tamper resistant with concealed fastening and offers vandal resistant top hinges filler. The product is stainless steel with a matte black powder coated finish. With a matte black finish this product offers a more sophisticated and bold look while being aesthetically appealing to the eye.

Dimensions

7-1/4” x 6-1/2” x 3-11/16” (184 x 165 x 94 mm)

Spout Projection: 15/16”

Soap Requirements:Proper usage of this dispenser requires, that only soap within the following range for viscosity and pH may be used.

Viscosity Range (mPa·s or cP): 100 – 2.5k

pH Range: 5.5 ~ 8.0

Glynn-Johnson 70 Series Overhead Door Holder Surface Mounted

Glynn-Johnson 70 and 79 series models are constructed primarily of Brass and 300 series Stainless Steel substrates, with several components fabricated of Steel treated to resist corrosion. Models in the 70 series utilize a 1/2"-diameter stainless steel bar, while the 79 series uses a 3/4" stainless steel bar. The bar is always provided in US32D. The spring, washer and nut are provided in a clear zinc finish.

GJ70-79 Catalogue

Bobrick SCRC solid phenolic partition free standing layout with overhead braced floor mounted stalls. Standard stalls 36" x 60" depth (24" door), ADA stall are 60" x 60" depth (36" door). All standard stainless steel hardware included with option of full stainless channels and piano hinges. Doors can be either in or out swing to choose from. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must add Ada to add 24" to a standard stall of 36" to create 60" width, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and add Ada 24". 1080 & 1090 series phenolic ship in 3-4 weeks plus travel time.

Bobrick Phenolic Color Chart

Bobrick 1080 Instructions

Bobrick 1090 Instructions

Intermediate Hinge IP-2202 and IP-2201

Cast aluminum construction with steel bearings and axle. The set measures 3-1/2" tall with an 1-3/8" projection. This hinge is usually used an an intermediate hinge in between the top and bottom hinge.

Manufacture part # IP-2202 and IP-2201
IP-2202 is for Right Hand Doors
IP-2201 is for Left Hand Doors

Wayne Bleacher Floor Shoe, 1/4" x1-7/8" x 3". Hardware included.

Threaded spring clip for round legs. 1/4-20 thread for use with our LA10625 and SLA12525. 7/8" outside diameter and 3/4" inside diameter. 1/4-20 Thread on this spring clip.

Republic Steel st 72" Lock Bar-59-7/8" Length, Latch finger 701730 included, uses 700308-700309 handle assembly.

ASI Matte Black single roll toilet tissue holder is a surface mounted unit. Heavey gauge concealed mounting brackets allow this holder to support a standard rolls of toilet paper and comes with chrome rollers. The product is stainless steel with a matte black powder coated finish. With a matte black finish this product offers a more sophisticated and bold look while being aesthetically appealing to the eye.

Threaded spring clip for round legs. 1/4-20 thread for use with our LA10625 and SLA12525. 3/4" outside diameter and 5/8" inside diameter. 1/4-20 thread on this spring clip.

Bobrick B-35649 surface mounted waste receptacle in a satin finish stainless steel all welded construction. The door is secured to cabinet with a concealed full length stainless piano hinge. Equipped with a cable door swing limit and tumbler lock. Waste bin constructed of heavy gauge stainless steel. The unit is a 12 gallon capacity and is 17-3/8"w x 40-1/8"h x 8-7/8" depth.

Toilet Partition Top Hinge Assembly For 1" Thick Door, 1-1/4" Pilaster Square Edge Chrome Plated

Polished chrome plated zamac die cast construction. Kit includes Top Hinge, Top Hinge Pin, and Top Hinge Door Insert. Top hinge measures 2-1/4" high by 1-1/4" wide with screw spacing of 1-1/2". Mounting lug projects out 1-1/4". Also known as a Bathroom Stall Top Hinge Kit. Manufacture part number 63720.

Screws are also included.

The Matte Black Hadrian Continuous L Bracket is constructed of stainless steel and measures 1-1/2"Wx1-1/4"Hx57-1/2"L. These are not designed to be through bolted together. Designed to be mounted on the inside of a partitions stall so hardware is not visible from the outside. Bracket comes with fasteners to install. Known as manufacturers part number H60358-BLK.

Single prong chrome plated hook projects 3-1/8", 3" diameter, known as 0751.

Stainless Steel Torque Head Barrel Nut Shoulder Screw for 1-3/16" - 1-3/8" gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread stainless steel unplated and uses a 6 lobe head torque. Both pieces included.

Round Black Plastic Chair Tips Round Tubing For 1-1/4" Outside Diameter X 1-1/8" Inside Diameter Chair Legs.

Rocker Type Plastic Chair Tips for Square Tubing with a 1" Outside Diameter X 7/8" Inside Diameter Legs. This tip is used on slated square legs and available in black.

The Cal-Royal 6660 Surface Vertical Rod Device is a Grade 1 exit device.  It is designed for doors that have at least a 3-3/4 inch stile width. The 36 inch device has a 32 inch actual length and can cut down 6" (24 inch actual). The 48 inch device has an actual length of 44 inches and can be cut down 12 inch (34 inch actual).  Devices ships with 938 Strike and all the mounting screws.

The TH1100-HK1 is the perfect solution for existing hinges that have failed, and is a quick and easy fix for compromised door openings.  Deluxe Hinge Kit TH1100-HK1 comes in a package of two hinges, 2 1/4" shims, and 12 one-way mounting screws.   The hinges are non handed, will work on Flush, and 1/8" offset door applications, have a self lubricating pin that rotates on anti-friction bearings, and have a vertical adjustment screw.   They are constructed of an aluminum alloy.

• Handed
• Top, header mount
• Bottom, base plate mount
• Use with 1-3/4" minimum door thickness, with 1/8" bevel in 2"
• Maximum door load 200 pounds
• Vertical adjustment range 3/16", with positive locking

Handing diagram

Irwin Bleacher Wheel. 3/8" axle x 1" Tread x 4" Diameter. 1-3/16" hub. This wheel is also used with Folding bleacher Company & Hussey. Load approx. 125 -140 lbs.

Hadrian Corner Bathroom Stalls in Powder Coated Steel. Also known as Baked Enamel Partitions. Overhead braced floor mounted stalls. Standard stalls are 36"x 60" depth (with 24" door), ADA stalls are 60"x60" depth (ADA with 36" door). All brackets, door kits, headrails and brackets are included to install properly. Doors can be either an in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. All quick ship colors are marked on the color chart with an American flag. The color choices have double stars on them for quick ship when ordering. Any other color is 3 weeks out for delivery.

Hadrian Color Chart

Hadrian Instructions Powder Coated

Hadrian Free Standing Stalls in Powder Coated Steel. Also known as Baked Enamel Partitions. Overhead braced floor mounted stalls. Standard stalls are 36"x 60" depth (with 24" door), ADA stalls are 60"x60" depth (ADA with 36" door). All brackets, door kits, headrails and brackets are included to install properly. Doors can be either an in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. All quick ship colors are marked on the color chart with an American flag. The color choices have double stars on them for quick ship when ordering. Any other color is 3 weeks out for delivery.

Hadrian Color Chart

Hadrian Instructions Powder Coated

Threaded spring clip for round tubing legs. 1/4-20 thread for use with our LA10625 and SLA12525. 1 1/4" outside diameter, 1 1/8" inside diameter.

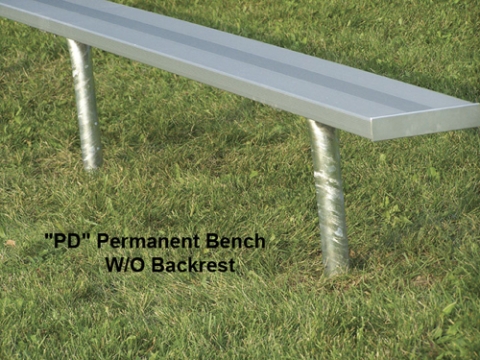

Permanent in ground Mount Aluminum Bench with out backrest with Galvanized Steel Legs. Available sizes are 6', 8' and 12' benches. All Hardware included, 2" x 10" anodized seat planks, 2-3/8" galvanized pipe leg design. Note 12' benches will ship by truck.

Call for Pricing********
