Search results for: 'for 3 split stainless steel bracket for dorma'

Global Partition Complete Solid Phenolic material in a Corner Partition, Overhead braced floor mounted stalls. Standard stalls 36" x 60" depth (24" door), ADA stall 60" x 60" depth (36" door). All Stainless Steel hardware included. Doors can be either in or out swing to choose from. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. Color Thru is 10 days and Black Core ship in 5 Days, 2-4 days travel.
Global Solid Phenolic Color Chart

General Partitions Pintle 5/8" Diameter For Steel Doors

Steel and white nylon construction. The Pintle is 5/8" diameter by 2-1/4" overall length with 5/16-18 threaded end. Also known as a Bathroom Stall Bottom Pintle 5/8" Medium Lift. Manufacture part # 98175.

Shipped with nut and lock washer.

Project In Window Handle 1-3/8"

This window handle features a 1-3/8" hole spacing with a 7/16" lock up. The mounting holes are located on the back of the handle and are tapped for a standard thread screw. Cast white bronze, with brushed nickel finish.

American Seating 540 Classmate Chair Seat 15-3/4" X 17". AMERIFLEX PLASTIC SEAT. 15-3/4" DEEP X 15-3/4" WIDE. SHOWN IN CORAL. Available in CORAL OR PARCHMENT COLORS.

Angle Base 1-3/8" Window Handle-11/16" Drop

Cast white bronze with a brushed nickel finish

Toilet Partition Surface Mounted Black ADA Slide Latch Set W/ Indicator

Stamped stainless steel construction with a Black Finish. Slide lock measures 4-3/16" long by 1-1/8" tall by 15/32" thick. The mounting plate has mounting screws 1-1/4" on center and is 2-15/32" long. The lock projects out 1-3/16" from the face of the door. The indicator is 2" in diameter and 13/32" thick. The keeper is 3/4" wide by 1-7/16" tall by 1/16" thick. Commonly known as a Bathroom Stall Surface Mounted ADA Slide Lock and Toilet Partition Locks. Manufacturer part # 6065. For 1" thick doors.

Shipped with mounting screws.

Cal Royal 700 Series Door Closer

Adjustable closing and latching speeds
3/4" x8-3/16" for sizes 2 and 3, and 3/4 x 9-1/16" for size 4 holes spacing
Powder Coated Painted Finishes
5 year warranty

Scranton Hiny Hider Partition Integral Hinge Pin Kit with heavy duty L brackets for extra strength. This kit includes everything you see in the picture. The long pin is 6" x 1/2" diameter, the smaller one is 3-1/2" x 1/2" diameter. These brackets help to reinforced the hinge pins so they do not break or the door breaking at the top and bottom.

The Matte Black Hadrian Door Kit is designed to work with doors and pilasters that are 3/4" thickness. Hinges, Coat Hook and Latch Keeper are constructed of stainless steel and indicator latch is constructed of zamac with all having a matte black finish. The door kits comes with (2) Hinges, (1)Indicator Latch, (1) Latch Keeper, (1) Coat Hook and fasteners for installing. Hinges are field adjustable so door and swing in or out as well as right or left. Known as manufacturers part number 671000-BLK.

Interkal Bleacher Seat Nose Beam Shoulder Bolt 2-3/4" x 3/8"-16 Thread. The bolt has a shoulder collar of 1/2" diameter x 1-1/4", the thread length is 1-1/8". Used with seat modules to bolt the chair to the frame of the bleachers.

Doromatic 1990/1690 traveler assembly

This bracket connects the rods to the exit device. The traveller measures 4-1/8" long by 7/8" wide by 1/4" deep. Roller has a 3/8" diameter roller.

Doromatic Part # 4270100013 or PB88

A.W. Anderberg 201SS 4 bar window hinge, stainless steel construction.

Usually found on light commercial or residential buildings with hopper windows.

23/32" track width x 1/2" stack height.

If you have a casement window with a 16" track length, please see 222SS Egress Window Hinge.

Sold individually, these hinges are non handed, we recommend that you change both hinges when you are replacing them.

Bobrick Single Robe Hook B-7671 is a bright polished stainless steel finish. The flange is 2" x 2" with the hook 1-5/8" high x 13/16" wide and projects 1-5/8" from wall.

Window Keeper-1-3/8" Hole Spacing

1-3/8" Hole spacing x 13/32" wide x 11/32" lock up

Cast White Bronze construction and nickel plated

Plate Top Single Wheel Caster - Swivel - 3" Wheel, 13/16" X 1-9/16" Hole Spacing, ball bearing swivel. Zinc finish with black rubber wheel. Available with tread for carpet and non carpet surfaces.

KK9B41 hard tread for carpet

KK9B42 soft tread for non carpet surface

Stacking Chair Bumpers 3/4" Diameter, available in Clear Plastic only. 1/4" stem diameter, 7/16" stem length, 3/16" base height, 3/4" base diameter.

Angle Base 1-3/8" Window Handle

1-3/8" center to center hole spacing with 8-32 threaded holes

Cast white bronze construction with brushed nickel plated finish

Two Hole 1-3/8" Window Handle 5/16 Lock Up

This window handle features a 1-3/8" hole spacing wth a 5/16" lock up. The handle as a cast white bronze construction with a brushed nickel finish

Cast Stainless steel inswing door kit for square edge doors and posts. For 1" doors and 1-1/4" post. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 11003.

Ordering Online All Solid Plastic(HDPE) Panels Manufactured by Global Partitions, see color chart below. For other factory colors please call for pricing. All toilet partitions ship in 48-72 hours plus 2-4 days travel. Panels Include 4 standard aluminum Brackets. Available for the following widths 16, 18, 22, 28, 34, 40,46,52, 55, 58, 60, 65, 70, 76". Actual width is 1/2" less. Part # 9TPP-XX (where XX is door opening width) Reinforcing for grab bars available
Color Chart

Two Hole 1-3/8" Window Handle 5/16" Lockup With Ring Pull

This window handle features a 1-3/8" hole spacing, a 5/16" lock up dimension and a ring pull for elevated windows. This handle is cast white bronze construction with a brushed nickel finish.

Right Hand Shown

Single prong chrome plated hook projects 3-1/8", 3" diameter, known as 0751.

3/16" Dog (hex) Key, used on Corbin Russwin Exit devices

3/16" Hex Key

2-1/4" overall length

Corbin Russwin ED4400/5400 Latch Cover

This latch cover is used on the Corbin Russwin ED4400/5400  Surface Vertical Rod Devices.  We stock these in Brushed Stainless Steel, other finishes will take longer.

Corbin Russwin Part # 650F64

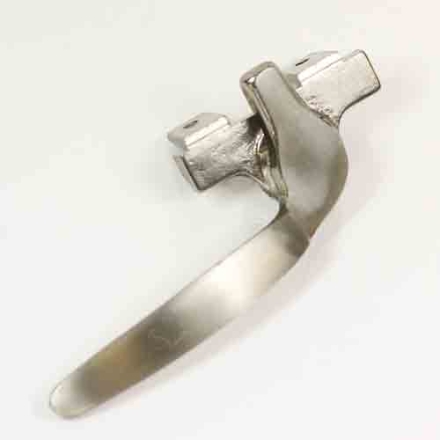

Casement Window Handle-2-3/8"

Cast white bronze with a brushed nickel finish

Friction Ring Single Wheel Caster - 2" Wheel - 3/8" Stem Diameter, 1" stem length, 2" wheel diameter. Zinch finish with black rubber wheel. Chair casters available with hard tread for carpet and soft tread for non carpet.

VERDEdri hand dryer’s are HEPA-Filtered and uses high performance motors last about 3 times longer than competing model. Manufactured to provide 30% quieter sound levels and is optimized to use only 3.16 watt-hr per use(277 VAC use 3.83 watts-hrs per use). Roughly costing the user 32 cents for every 1,000 cycles. Covers for the White, Black and Graphite finish are made from Cast Aluminum and Polished and Brushed are made from Stainless Steel. Known as World Dryers part numbers Q-162A2, Q-962A2, Q-972A2, Q-973A2 and Q-974A2.

• Finish: Black, Graphite Textured, White, Brushed Stainless Steel, Polished Stainless Steel
• Universal Voltage: Uses smart technology to adapt to almost any facilities voltage. Voltage extends from 110-277v(Min. 15 Amp Recommended).
• ADA Complaint, designed to protrudes less than 4” away from wall ensuring walkway and pathway clearance.
• HEPA Filter, Captures 99.97% of particles, 0.3 or larger
• Touchless operation offers a More Hygienic Experience
• Utilizes Anti-microbial technology on treated surfaces to protect from bacteria, mold and fungus growth that can cause staining, odors and product deterioration.
• Features sounds control between three mode settings, to accommodate sensitive spaces.
• Automatic Infrared Sensor, can dry hands in as little as 12 Second Dry Time, 45 second vandal shut-off/lock out feature.
• Unit Size: 14.5”x12.25”x3.9”
• Sound Level: 69 DBA
• Durable and Vandal Resistant
• Replacement HEPA Filter Available (93-10292K)
• Optional: Top Entry Adaptor Kit (17-10504K)
• 10 yr Limited Warranty, 7 yr Motor and Sensor

Used with metal latch finger (303233) to quite latching.

ASI Matte Black Vertical liquid soap dispenser is surface mounted and holds 40 oz of soap. Unit offers tamper resistant refill indicator and bush buton dispensing. Refill manually using hinged door at top with special key(included). The product is stainless steel with a matte black powder coated finish. With a matte black finish this product offers a more sophisticated and bold look while being aesthetically appealing to the eye.

Dimensions

Roval Recessed Hand Dryer, 20199

This high performing hand dryer, with a drying time of less than 15 seconds, has a cover made of 18 gauge stainless steel and uniquely complements the Roval™ Collection with its bowed face and gently radiused edges. 5-year warranty.

FEATURES:

• Quick drying — less than 15 seconds
• Operates automatically using infrared sensor
• Auto-resetting thermostat

Brunswick Bleacher Floor Pad 3/4" X 2" dia. Note hole 3/16", outer 7/16"x1/4" depth

American Seating 540 Classmate Chair Back 6-3/4" X 16-1/2". THE SEAT MEASURES 6-3/4" HIGH X 16-1/2" HIGH. SHOWN IN PARCHMENT. CORAL OR PARCHMENT COLORS available.

Kit includes rod with exposed flanges.

Flanges fabricated of 20ga. stainless steel with a satin finish. Flanges have (3) countersunk 13/64" dia. holes to accept #10 flat or oval head screws furnished by others.

Rod is installed in straight section between two (2) mounting flanges. Rods longer than 60′′ require ceiling hanger Model No 1204-C18.

For use with standard shower curtain model No ’s 1200 or 1200-V having 60′′ length and standard hooks Model No 1200-SHU unit should be installed with rod centerline 74-1/2′′ AFF or 67′′  above tub rim to obtain 6′′ bottom overlap.
