Search results for: 'curtain horn hold rail stall 1 inch'

Hadrian Corner Bathroom Stalls in Powder Coated Steel. Also known as Baked Enamel Partitions. Overhead braced floor mounted stalls. Standard stalls are 36"x 60" depth (with 24" door), ADA stalls are 60"x60" depth (ADA with 36" door). All brackets, door kits, headrails and brackets are included to install properly. Doors can be either an in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. All quick ship colors are marked on the color chart with an American flag. The color choices have double stars on them for quick ship when ordering. Any other color is 3 weeks out for delivery.

Hadrian Color Chart

Hadrian Instructions Powder Coated

Toilet partition round edge pilaster shoe, stamped stainless steel construction. Pilaster Shoe measures 2" to 24" wide by -1-1/4" thick by 3" high. This size pilaster post shoes are split on one end for easy installation. Also known as a Bathroom Stall Pilaster Post Shoe Round Edge. Used for the base of the support system with pilaster mounting.

Metal Swivel Glide for a chair with  1" O.D. X 7/8" I.D. leg. This Metal Glide also has a Ferrule on the top. Metal base swivel glides for round tubing, with 9/16" high ferrule. 1-1/4" base diameter on this glide. Metal base glides are very popular in schools and institutions and move easily across smooth or carpeted floors.  Metal base glides are nickel plated and are extremely durable, but when they do wear out, they will scratch the floor.  The glide freely swivels beyond 30 degree angle. Glide grips leg with outside holding clip, meaning it grabs the outside of the leg, see more views for picture of outside holding clip.

Hadrian Free Standing Stalls in Powder Coated Steel. Also known as Baked Enamel Partitions. Overhead braced floor mounted stalls. Standard stalls are 36"x 60" depth (with 24" door), ADA stalls are 60"x60" depth (ADA with 36" door). All brackets, door kits, headrails and brackets are included to install properly. Doors can be either an in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. All quick ship colors are marked on the color chart with an American flag. The color choices have double stars on them for quick ship when ordering. Any other color is 3 weeks out for delivery.

Hadrian Color Chart

Hadrian Instructions Powder Coated

Hadrian Between Wall Stalls in Powder Coated Steel. Also known as Baked Enamel Partitions. Overhead braced floor mounted stalls. Standard stalls are 36"x 60" depth (with 24" door), ADA stalls are 60"x60" depth (ADA with 36" door). All brackets, door kits, headrails and brackets are included to install properly. Doors can be either an in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. All quick ship colors are marked on the color chart with an American flag. The color choices have double stars on them for quick ship when ordering. Any other color is 3 weeks out for delivery.

Hadrian Color Chart

Hadrian Instructions Powder Coated

Stainless Steel Partition Support Brace U Shape. Used with up to a 1-1/4" Thick Post. Do your Toilet partition panels keep falling out of the bathroom stall wall mounted brackets? If so, the answer might be a Toilet Partition brace or support, which would support the panel and pilaster from falling, or as preventive maintenance to strengthen the compartment. They are also sometimes called Pilaster Support U-Brackets. The we stock 3 versions that are adjustable from 7-1/2″ to 10″, 9-1/2″ to 12″ and 11-1/2″ to 14″, floor to bottom of panel clearance. The bathroom stall brace is made of stainless steel, with a round base of 2-3/8″ and a support bracket that is 1-1/2″ x 2-3/8″. The diameter of the toilet partition support shaft is 1″. If you have any questions on the Toilet Partition Support Braces let us know!
Same as 8503, 85083, 85093. Most common **8503, 9a8503, 9a85083, 9a85093. The U-Shape is for 1-1/4" panel.

Note the most common are 11-1/2" to 14" due to the partitions are mounted 12" off the floor.

Also note quantities of 10 or more not returnable.

Glynn-Johnson 79 Series Overhead Door Holder Surface Mounted

Glynn-Johnson 70 and 79 series models are constructed primarily of Brass and 300 series Stainless Steel substrates, with several components fabricated of Steel treated to resist corrosion. Models in the 70 series utilize a 1/2"-diameter stainless steel bar, while the 79 series uses a 3/4" stainless steel bar. The bar is always provided in US32D. The spring, washer and nut are provided in a clear zinc finish.

GJ70-79 Catalogue

Claridge Map Hook 1" map rail. Plastic Construction.

Norton / Yale Door Closer Hold Open Parallel Bracket

Replacement bracket works with the Norton 1600, 9300, 7500, and 8000 series, along with the Yale 50, 3000, and 4400 series hold open closers.

Norton Part # 1628H
Yale Part # 588

Claridge End Stop 1" for map rail. Plastic Construction.

Sargent Hold Open Arm

Sargent part # 25-H

Toilet partition square edge pilaster shoe, stamped stainless steel construction. Pilaster Shoe measures 2" to 24" wide by -1" thick by 3" high. This size pilaster post shoe is not split on either end. Also known as a bathroom stall pilaster post shoe square edge. Used for the base of the support system with pilaster mounting.

• Available (NHO) non-hold open,
(SHO) selective
hold open. Specify degree (90, or
105°)
• Standard top pivot: 180 included
• Cycolac cement case
• Separate independent valves for closing,
latch and backcheck adjustments
• Built-in positive dead stop prevents door
from swinging beyond the desired
opening degree
• Vertical door adjustment

Less all parts means, only the Cylinder!

Metal Swivel Glide 1" O.D. X 7/8" I.D. W Ferrule-Nylon Base. Nylon based swivel glides are for round tubing chair legs. This swivel base chair glide is for chairs with an outside diameter of 1", inside diameter of 7/8" and the base of this chair glide is 1 1/4". Metal base glides are very popular in schools and institutions and move easily across smooth or carpeted floors.  Metal base glides are nickel plated and are extremely durable, but when they do wear out, they will scratch the floor.  The glide freely swivels beyond 30 degree angle. Glide grips leg with outside holding clip, meaning it grabs the out side of the leg, see more views for picture of outside holding clip.

Standard 4110 series closer shipped with EXTRA DUTY HOLD OPEN arm, standard plastic cover, 4110-201 FIFTH SCREW SPACER and self reaming and tapping screws. Sized cylinders adjustable for interior doors to 5’0” and exterior doors to 4’0”. Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”. Closer mounts parallel arm, specify right or left swinging door. 4111 cylinder meets ADA requirements. The friction hold open arm allows for adjustable stop hold open positions up to 180 degrees.

We ship the 4111 HEDA

Stainless Steel L shape Partition Brace. Do your Toilet partition panels keep falling out of the bathroom stall wall mounted brackets? If so, the answer might be a Toilet Partition brace or support, which would support the panel and pilaster from falling, or as preventive maintenance to strengthen the compartment. They are also sometimes called Pilaster Support L-Brackets. The we stock 3 versions that are adjustable from 7-1/2″ to 10″, 9-1/2″ to 12″ and 11-1/2″ to 14″, floor to bottom of panel clearance. The bathroom stall brace is made of stainless steel, with a round base of 2-3/8″ and a support bracket that is 1-1/2″ x 2-3/8″. The diameter of the toilet partition support shaft is 1″. If you have any questions on the Toilet Partition Support Braces let us know!
Same as 8513, 85183, 85193, 9a6005, 9a85183, 9a85193. Most common 9a6005.

Note the most common are 11-1/2" to 14" due to the partitions are mounted 12" off the floor.

Also note quantities of 10 or more not returnable.

Door Pull Offset 1" Diameter PH-4000

1" Diameter Solid Aluminum Round 3-1/4" Offset Door Pull, usually used on aluminum frame glass doors. This handle offers three different mounting options, one is surface mounted, where the handle is mounted over a mounting stud and then you tighten the set screw to hold the handle in place. The second method is thru bolted, the bolt goes all the way thru the door. And the third is back to were you have two handles mounted back to back.

Projection 3 -1/4"
Door Clearance 2 -1/4"
Center To Center 9". 10' and 12"
Anodized Finishes Aluminum or Dark Brown
Mounting Hardware Included

Claridge Metal Map Hook 1" for 1" map rail. Extruded Aluminum Construction.

Standard 4110 series closer shipped with HOLD OPEN CUSH N STOP arm, standard plastic cover, 4110-201 FIFTH SCREW SPACER and self reaming and tapping screws. Sized cylinders adjustable for interior doors to 5’0” and exterior doors to 4’0”. Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”. Closer mounts parallel arm, specify right or left swinging door. 4111 cylinder meets ADA requirements. The cush hold open arm allows for a stop and hold open positions up to 110 degrees. "T" handle on arm will release door for closing, locking pin can be retracted for normal door closing operation.

We ship the 4111 HCUSH

Replacement arm works with the Norton 1600, 9300, 7500, and 8000 series, along with the Yale 50, 2300, 3000 and 4400 friction hold open arms closers. Norton and Yale use the same arm for there Friction Hold Open arms.

Norton Part # 7701-3
Old Norton Part # 1620-3
Yale Part # 400-3

Dorma RTS88 Series overhead concealed door closer for both
single and double-acting doors. The RTS88 will consist of a steel
cam, rollers, and springs housed in a compact cast iron body.
Closers will be capable of being installed in minimum 1-3/4" x 4"
headers. RTS88 will have maximum door opening to 90º or 105º,
trim conditions permitting. Sweep and latch speed will be
controlled by two noncritical adjustment valves from 90º or 105º
to closed. Built-in pressure relief valve will protect the closer from
abuse caused by forced closing. A mechanical backcheck
combined with a positive stop at 90º or 105º will be provided to
protect the door and frame. The RTS88 closer will be available
with hold open at 90º or 105º, or without hold open. The product
shown here is just the replacement cylinder.

Sargent Hold Open Pa Bracket

Sargent part # 125-PH9

Center Hung Door Closer

• Available (NHO) non-hold open, or (SHO) selective
  hold open. Specify degree (90 or 105°)
• Standard top pivot: 340 included
• Cycolac cement case
• Separate independent valves for closing,
  latch and backcheck adjustments
• Built-in positive dead stop prevents door
  from swinging beyond desired opening
  degree
• Vertical and horizontal door adjustment
• Arm centering adjustment

Cal Royal 7700 Rim Exit Device

For use in institutions, schools, universities, commercial buildings where heavy duty reliable operation is a requirement. ANSI A156.3, Grade 1 heavy duty exit device in surface vertical rod and rim designs. Rail assemblies are heavy duty extruded aluminum body with stainless steel push pad and end caps are made of brass, bronze or stainless steel. Rail travels in direction of the door swing. Trims are thru bolted for additional security. Conforms & Meets ADA Regulations. UL Listed for Panic and ULC10C, UBC 7-2-1777 codes. UL Listed for Fire Exit Hardware. Uncompromising security and safety in single and double fire exit doors. Chassis mounted unit construction. Rim and vertical rod devices are non-handed and easily reversible. Available in many different functions. Lever and escutcheon trims are grade 1 construction with clutch free-wheeling mechanism. Rose and escutcheon covers 161 cut out.

Templating matches the Von Dupin 99 and 98

Glynn-Johnson 81 Series Overhead Door Holder Surface Mounted

Glynn-Johnson 81 series holders and stops provide rugged, heavy-duty door control. The jointed-arm design provides the most effective stop mechanism available. The shock absorber bracket is surface mounted, usually with sex bolts. The jamb bracket is mounted to the stop of the frame, so a minimum of door and frame preparation is required.

GJ80 Catalogue

Scranton products solid plastic corner stalls traditionally called Hiny Hider Partitions are great for moisture and high traffic commercial buildings. All plastc material is 1" thick, doors are self closing by gravity 8" aluminum hinges or a continuous spring piano hinge, all hardware is standard aluminum brackets. Offering only Classic color collect on the website, all textures please submit drawings for us to quote with color you are looking for. All doors and panels are 55" ht, pilasters are 82" ht mounted to the floor and an overhead aluminum headrail running across the top to support the top of the pilasters. Up to 8 standard stalls total or 7 standard and 1 Ada stall. All Scranton partitions colors take 3 weeks from the time you place the order. To have an Ada stall you must select 1 Ada 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an Ada stall & standard stall, you must select 2 standard stalls and 1 Ada stall 24x60.

Scranton Color Chart

Scranton Bathroom Stall Instructions

Norton and Yale Hold Open Loop Assembly

This part is the part that always breaks on the Norton and Yale Friction Hold Open Arms. Cast Iron Construction, powder coated to the desired color.

Norton Part # 7701-13
Old Norton Part # 1620-13
Yale Part # 400-13

International Door Closer 522 Hold Open Arm

This is the New Style Hold Open Arm from International Door Closer. In July of 2014, the old style was discontinued. Look under "More Views" to see the Old Style. Shown in Dark Bronze, ships with all components in the picture.

International part # 522

Hadrian toilet Partition Metal Alcove Stalls in Powder Coated Steel overhead braced floor mounted compartments. The alcove stall includes 36" door, 2 pilasters and panel to make up the distance. Hadrian Partition Doors can be either in or out swing. All partition hardware included with standard chrome hardware for the door kits and brackets. Quick ship toilet partitions ship in 48-72 hours plus 2-3 day travel. All quick ship colors are marked on the color chart with an American flag. The color choices have double stars on them for quick ship when ordering. Any other color is 3 weeks out for delivery.

Hadrian Color Chart

Hadrian Instructions Powder Coated

Hadrian Alcove Channel Instruction

Norton CloserPlus Non Hold Open Arm

This heavy duty Parallel Arm can be used with the Norton 1600, 9300, 8000 and 7500 door closers.

Aluminum is in stock, Dark Bronze is 2-3 week lead time.
Norton Part # 6770-5

The Swivel Glide 5/8" Outside Diameter with Ferrule Outside Holding Clip is used on American Desk, Artco Bell, Carter Craft, Krueger, Peabody and Virco Chairs. Metal base glides are very popular in schools and institutions and move easily across smooth or carpeted floors.  Metal base glides are nickel plated and are extremely durable, but when they do wear out, they will scratch the floor.  The glide freely swivels beyond 30 degree angle. Glide grips leg with outside holding clip, meaning it grabs the out side of the leg, see more views for picture of outside holding clip.  This product will git all 5/8" outside diameter tubing.  The base has an 1-1/4".

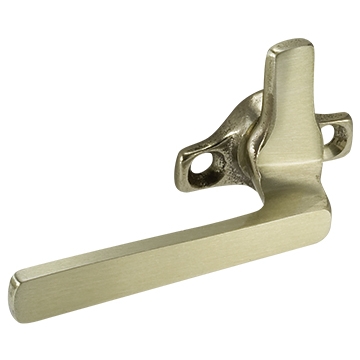

Two Hole 1-3/8" Window Handle 5/16" Lockup

Cast white bronze with a brushed nickel finish

Right Hand Shown.
