Torque Head Barrel Nut Shoulder Screw for 1/2" - 3/4" gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread chrome plated and uses a 6 lobe head torque. Both pieces included.

Torque Head Barrel Nut Shoulder Screw for 1-3/16" - 1-3/8" gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread chrome plated and uses a 6 lobe  head torque. Both pieces included.

Toilet Partition Pilaster Anchoring Device for 1" thick or larger.

Zinc plated steel bracket. For 7" wide and larger Pilaster Posts. Also known as a Bathroom Stall Pilaster Post Anchoring Device. Ships with all the hardware and screws shown.

Straightens bent full mortise hinges. Slide cylinder over the butt of the hinge and rotate. Extra long handle provides the torque to bring the hinge back inline.   It measures 19-1/2" long, with barrels on each end of 3/4"  and 1" diameters.

Chrome Plated Keeper Bumper For 1-1/4" Inswing Round Edge Post

Zamac die cast and polished chrome plate construction. The strike and keeper measure 2-1/2" high by 1-7/8" wide with a hole spacing of 1-1/2" on center. The stop is 2-1/2" tall by 3/4" wide with a rubber insert. The slot measures 1-9/16" high by 5/16" deep. Commonly known as a Bathrrom Stall Strike and Keeper Inswing 1-1/4". Manufacture part # 5310

Shipped with mounting screws.

Hadrian Solid Plastic Ada Alcove bathroom partitions floor mounted overhead braced stalls with a smooth surface. Alcove stall includes 36" door, 2 pilasters and panel to make up the balance needed. Partition doors are either in or out swing, the keeper bumper is what changes the door swing in or out. Standard aluminum brackets and hardware included with a choice of stainless steel. Every color Hadrian offers will ship in 5 business days plus 2-4 days travel.

Hadrian Solid Plastic Color Chart

Hadrian Partition Solid Plastic Instructions

Project In Truth Window Handle-1-1/2"

This window handle features a 1-1/2" hole spacing on centers with a 7/16" lock up dimension. The window handle is constructed of a die cast material that is then powder coated to the finish of your choice. We stock the Bronze color, but other colors are available, call for more information.

Truth 27.31 project in window handle.

Toilet Partition Urinal Screen Bracket Chrome Plated. This bracket is for any thickness panel. The bracket is 2 separate pieces. The base is 1-1/2" x 1-1/2". The base mounting hole is 1" from the inside face of the leg face. The bracket projects out 2-1/2", and the holes are at 2-1/8" and 1-1/8" from the mounting face. The brackets are made of a zamac die cast material and polished chrome plated. This bracket is also known as a Two Piece Bracket - Two Holes, Toilet Partition Bracket, or Bathroom Stall Bracket. The manufacturers part number is 1860 or 650-6437. The bracket is shipped as two pieces plus all of the fasteners.

Cast SS Two Ear Bracket 1" Panel 1-1/2" X 2-1/2"

Cast stainless steel construction. Base is 1-1/2" x 4" with 3" hole spacing. Bracket walls are 1/8" thick. The legs project out 2-1/2" with the thru holes at 2-1/8" from the bottom of the base. Also known as a Bathroom Stall Two Ear Wall Bracket, or Two Ear 1". Manufacture part # 1753

Shipped with mounting screws.

Toilet Partition Urinal Screen Bracket Cast Stainless Steel. This bracket is for any thickness panel. The bracket is 2 separate pieces. The base is 1-1/2" x 1-1/2". The base mounting hole is 1" from the inside face of the leg face. The bracket projects out 3-1/2", and the holes are at 3-1/8" and 2-1/8" from the mounting face. The brackets are made of Cast Stainless Steel. This bracket is also known as a Two Piece Bracket - X-long Two Holes, Toilet Partition Bracket, or Bathroom Stall Extra Long Bracket. The manufacturers part number is 1323. The bracket is shipped as two pieces plus all of the fasteners.

Von Duprin 050536 HD-EL Solenoid

Electric Latch Retraction for Von Duprin Exit Devices with Hex Key Dogging.  #4 on the diagram below large picture.

Von Duprin part # 050536
Old Part # was 110740

No longer available, the only solution we have at this time is to upgrade to the HD-QEL Base Plate.

The Adams Rite 4580 cam is used on the the 4500 and 4900 Dead Latch Paddles.  The 4580-500 is for Left Hand, and the 4580-600 is for Right Hand Doors.

Ives RL30 and RL1152 Nylon Roller RLPART.1025

This replacement Nylon Roller and Rivet Package is for the Ives RL30 and RL1152 Roller Latches.  The Roller measures 3/4" high by 5/8" diameter.  The Rivet measures 1-1/16" long and is threaded on one side.

Ives Part # RLPART.1025

Partition Two Ear Wall Bracket For 7/8" Panel Cast Stainless Steel

Cast stainless steel construction. Base is 1-1/2" x 3-1/2" with 2-3/4" hole spacing. Bracket walls are 1/8" thick. The legs project out 2-1/2" with the thru holes at 2-1/8" from the bottom of the base. Also known as a Bathroom Stall Two Ear Wall Bracket, or Two Ear 7/8". Manufacture part # 1633

Shipped with mounting screws.

Ordering Online All Powder Coated Metal 10' Post & Panel Urinal Screen Manufactured by Global Partitions, see color chart below. For other factory colors please call for pricing. All toilet partition's ship in 48-72 hours plus 2-4 days travel. 10' Post/Panel Urinal Screen 1-3/4" square post up to 120" maximum with 58" high panel. Specify - and Part # 9SFCS-XX (where XX is width from the front of post to the wall). Width of screen 16"-76" x 58"ht, All standard chrome plated hardware included.
Color Chart

ASI Matte Black sanitary waste disposal is equipped with a top lid. This unit comes with 2 pre-cut holes on back for easy wall mounting. The product is stainless steel with a matte black powder coated finish. With a matte black finish this product offers a more sophisticated and bold look while being aesthetically appealing to the eye.

Dimensions

7-7/8″ x 9-11/16″ x 4″ (200 x 246 x 102 mm)

Sargent 281 Powerglide Door Closer

ANSI/BHMA Grade 1 (A156.4)
• Meets Buy American Act
• Ten Year Warranty
• Versatile mounting applications permit
standard, top jamb, parallel and track
installations
• UL and cUL listed for use on fire doors
• Adjustable spring power allows 281
closers a size range of 1 through 6. They
are adjusted to Size 3 before leaving the
factory
• One door closer body for all applications,
non-handed

Replaces the older Sargent 1250 and 1251 door closers, mounting holes will match

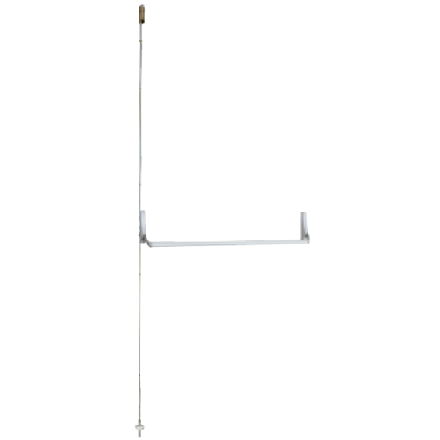

The classic look of Doromatic 1990 has a long history of reliable performance. It is equipped with hardened steel latches and adjustable strike to ensure safety, security and quiet operation.

Hand: Field reversible, non handed.
Dogging Feature: Hex dogging standard.Sizes: Field adjustable width, 41" crossbar standard fits 3' 8" x 7'
door, extra length cross bar available.

Replacement parts are also available

Shipped with all screws and strikes.

Adams Rite 91-0993-IP 8700/8800 Strike is used on the rim devices that have the Star Wheel Latching System.  The strike measures 2-3/4" long by 1-3/4" wide and projects out approximately 1/2".   Kit comes with mounting screws and two shims.

Stainless Steel Torque Head Barrel Nut Shoulder Screw for 7/8" - 1-3/16" gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread stanless steel unplated and uses a 6 lobe head torque. Both pieces included.

Toilet Partition Continuous 'L' Wall Bracket 2-3/4" X 57-1/2" Aluminum

Extruded aluminum construction. Base is 1-3/8" and the leg projects out 2-3/4". These are sold individually. It is also known as a Bathroom Stall Continuous L Wall Bracket. The manufacturers part # is 2684.

International Door Closer 200 Series Overhead Door Closer

UL Listed
Built in positive back stop and hold open positions.
Two speed control valves: Closing and latching speeds controlled by separate regulating valves, fully adjustable after installation.
Positive centering for alignment and to hold door closed against any normal wind or draft.
Stable hydraulic door check fluid for any climatic operation and constant lubrication.

Hydraulic Cylinder only

2000-B-230 105 with Hold Open
2000-B-231 105 with No Hold Open
2000-B-232 90 with Hold Open
2000-B-233 90 with No Hold Open

Toilet Partition Bracket One Ear For 1-1/4" Panel Aluminum

Constructed of extruded anodized aluminum. The base is 2-5/8" wide x 1-1/2" high, with the two mounting screws 1-3/8" on center. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The distance between the legs is 1-1/4". It is designed for 1-1/4" thick panels. The 4 screw holes are 1/4" diameter. This bracket is also known as a One Ear Wall Bracket, 1844 One Ear Wall Bracket, Toilet Partitoin One Ear Bracket, or Bathroom Stall One Ear Bracket. The bracket is shipped with all the mounting screws.

Ordering Online All Plastic Laminate Panels Manufactured by Global Partitions, see color chart below. For other factory colors please call for pricing. All toilet partitions ship in 48 hours, 2-4 days travel. Panels Includes: 4 standard chrome brackets. Available for the following widths - 16, 18, 22, 28, 34, 40, 46, 52, 55, 58, 60, 65, 70, 76". Actual width is 1/2" less. Specify - Part # 9TPL-XX (where XX is door opening width) Reinforcing for grab bars available.

Global Plastic Laminate color chart

Flush Metal Partitions Bottom Hinge For 1-1/4" Round Edge Post

Chrome plated Zamac die cast construction. Pivot hinge is 2-3/16" tall by 1-1/4" wide. The slot that wraps around the post is 1-1/4" wide and 11-16" deep. The hole spacing is 1-1/2" on center. The lug projects out 1-1/2" and is 1/2" thick. The bushing on the lug is 5/16" diameter. Also known as a Bathroom Stall Pivot Hinge Bottom 1-1/4". Manufacture part # 3010.

Shipped with mounting screws.

A=1-7/6"

1652 Master Lock Built in Locks.
Automatic Locking Spring Bolt.
For Single Point Lockers. Spring latch locks automatically.
Bolt moves horizontally
We will need your master key number if adding to your existing system.
1-2 week lead time

1653 Master Lock built in locks.
Automatic Locking Spring Bolt.
For Single Point Lockers. Spring latch locks automatically.
Bolt moves horizontally
We will need your master key number if adding to your existing system.
1-2 week lead time

The Command Access VLP-KIT is a replacement for end of Life Solenoid powered Von Duprin exits. The VLPKIT is a field installable solenoid latch pullback baserail for 36 inch Von Duprin 33/35 and 98/99 series devices.

Monarch Exit Device 912L Lever Trim

The 912L measures 7-1/4" high by 1-3/4" wide and the mounting plate is 5/8" thick.  We ship these with the Dane Lever, which projects out 2-7/8" in the Classroom function.  This lever is for use on the Monarch/Falcon 19 Series.  On the Night Latch function the key locks and unlocks the lever handle, the Key Cylinder is not included.  This lever trim is field reversible, so handing is not needed.  We offer this Lever Trim in Painted Aluminum, Painted Dark Bronze, and Brushed Satin Nickel.

Monarch Part # 912L Dane

Toilet Partition Urinal Screen Bracket Chrome Plated

This bracket is for any thickness panel. The bracket is 2 separate pieces. The base is 1-1/2" x 1-1/2". The base mounting hole is 1" from the inside face of the leg face. The bracket projects out 3-1/2", and the holes are at 3-1/8" and 2-1/8" from the mounting face. The brackets are made of a zamac die cast material and polished chrome plated. This bracket is also known as a Two Piece Bracket - X-long Two Holes, Toilet Partition Bracket, or Bathroom Stall Extra Long Bracket. The manufacturers part number is 1320 or 650-6434. The bracket is shipped as two pieces plus all of the fasteners.

Scranton products solid plastic corner stalls traditionally called Hiny Hider Partitions are great for moisture and high traffic commercial buildings. All plastc material is 1" thick, doors are self closing by gravity 8" aluminum hinges or a continuous spring piano hinge, all hardware is standard aluminum brackets. Offering only Classic color collect on the website, all textures please submit drawings for us to quote with color you are looking for. All doors and panels are 55" ht, pilasters are 82" ht mounted to the floor and an overhead aluminum headrail running across the top to support the top of the pilasters. Up to 8 standard stalls total or 7 standard and 1 Ada stall. All Scranton partitions colors take 3 weeks from the time you place the order. To have an Ada stall you must select 1 Ada 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an Ada stall & standard stall, you must select 2 standard stalls and 1 Ada stall 24x60.

Scranton Color Chart

Scranton Bathroom Stall Instructions

Ordering Online All Powder Coated Metal Pilasters Manufactured by Global Toilet Partitions. All toilet partition pilaster's ship in 48-72 hours plus 2-4 days travel. Includes Floor mount hardware and Stainless Steel Shoes Available for the following widths - 2, 3, 4, 5, 6, 7, 8, 10, 12, 16, 18, 20, 22 and 24". All Pilaster height's are 84".
Color Chart

Intermediate Hinge IP-2202 and IP-2201

Cast aluminum construction with steel bearings and axle. The set measures 3-1/2" tall with an 1-3/8" projection. This hinge is usually used an an intermediate hinge in between the top and bottom hinge.

Manufacture part # IP-2202 and IP-2201
IP-2202 is for Right Hand Doors
IP-2201 is for Left Hand Doors

Penco Locker Double Tier lock bar, for a 60" ht locker, 27" length. Used 1996 - current. Used with the recess handle or the vanguard locker handle (2-piece assembly). Also known as 626574c in gray color. 2 Nylon Latch Clips and springs included.

Handless Window Lock 1-3/8"

This handle has a cast white bronze with a brushed nickel finish construction with a 1-3/8" center to center screw spacing. The handle has a 9/32" lockup, or distance between the base plane and the under side of the tongue. 1/8" allen screw will lock the handle so it can not be opened. This handle is ideal for schools, hospitals, and any other institution that is trying to lower heating and cooling costs by keeping the windows shut.
