The Cal Royal GLSRIM9800 is an Entrance Function Lever Handle for the GLS7700 and GLS9800 Narrow Stile Rim Exits.  The Base measures 1-3/4 inches wide by 8 inch tall, with a 2-3/8 inch thick base.

Non-Swivel Leveler Threaded Stem Glide with metal base. Thread is 5/16-18, Base Diameter is 1 1/4" and the stem length is 1". This glide screws into a 5/16" threaded leg hole to put a selected height. Use this product to stop wobbling on an uneven floor.

American Sanitary Pintle 5/8" Diameter

Steel and white nylon construction. The Pintle is 5/8" diameter by 2-1/4" overall length with 5/16-18 threaded end. Also known as a Bathroom Stall Bottom Pintle 5/8" Medium Lift. Manufacture part # 98175.

Shipped with nut and lock washer.

General Partition Concealed Latch Knob & Cover

Zamac die cast construction with polished chrome plating. Outside diameter of the knob and cover are 1-5/8" with the inner ring diameter of 1-1/4". Also known as a Bathroom Stall Concealed Latch Cover and Knob Assembly. Manufacture part # 1390, 6140.

Ives RL30 and RL1152 Nylon Roller RLPART.1025

This replacement Nylon Roller and Rivet Package is for the Ives RL30 and RL1152 Roller Latches.  The Roller measures 3/4" high by 5/8" diameter.  The Rivet measures 1-1/16" long and is threaded on one side.

Ives Part # RLPART.1025

2-1/4" knob pinned to a straight spindle. The inside kob is attached
with two case hardened set screws. 3/8-18 tread on knob and spindle.

Global Partitions Ordering Online All Solid Phenolic Panels are Solid Phenolic color thru or black core partitions manufactured by Global Partitions, see color chart below. For other factory colors please call for pricing. Color Thru is 10 days and Black Core ship in 5 Days, 2-4 days travel. Panel's Available for the following widths -16", 18", 22", 28", 34", 40", 46", 52", 55", 58", 60", 65", 70", 76". Actual width is 1/2" less. 58"ht panel's 4 stainless steel brackets included.
Global Solid Phenolic Color Chart

Snapglide felt caps to fit over 1 1/4" diameter glides. White in color. Attach to your glides to protect your floors from being scratched. Also reduces noise when students move their chairs around.

Ives Floor Mounted Door Stop FS434 Rubber Only

Replacement rubber shoe for the FS434.  Rubber measures 2-1/4" high by 1-7/16" wide by 5/8" thick.

Ives Part # 09-318

The 460 ADA Flush Pull measures 5 inches by 5 inches  and is made of 1/8 inch material.  The opening size is 3-1/2 inches by 3 inches. The pull is fastened to the door with 10-24 by 5/8 inch security torx with barrel nuts.  The pull is designed for 1-3/4 thick doors, please specify if your door is thicker than 1-3/4 inches.  Available in Brushed and Polished Stainless Steel and also Powder Coated Flat Black and Dark Bronze.

The GS520S Rubber Stair Tread with grit stripping has a 1/4" nose thickness which tapers down to 1/8" at the back.  The nose drops down 1-9/16", and the nose is not adjustable and is not tapered. You have two choices on the Grit Stripping, the Visual Impaired 1-2" wide or 2-3/4" wide grit tape strips. They are designed for interior use.

• For 1-3/4" (44mm) doors standard
• Through-bolted with 3 mortise nuts
• Pulls project 1-1/2" (38mm) from door face
• GTB Design trim will cover a 161 cutout

Folding Bleacher 4" wheel axle. 3/8" axle x 1-13/16" length. This axle is also used with Hussey bleacher Company. Includes clips. Also known as 1001133. The grooves are 1-9/16" between.

Corbin Russwin Adjusting Nut 483F35-8

This Corbin Russwin Adjusting Nut is used on the Corbin Russwin Mortise Lever Locks. It threads into the end of the spindle. 2-3/8" overall length, 9/16" thread length, 1-15/16" bolt length. The threads are 1/4-28.

Corbin Russwin part # 483F35-8

Fiat Partitions Pintle 5/8" Diameter For Steel Doors

Steel and white nylon construction. The Pintle is 5/8" diameter by 2-1/4" overall length with 5/16-18 threaded end. Also known as a Bathroom Stall Bottom Pintle 5/8" Medium Lift. Manufacture part # 98175.

Shipped with nut and lock washer.

Global Partitions Pintle 5/8" Diameter For Steel Doors

Steel and white nylon construction. The Pintle is 5/8" diameter by 2-1/4" overall length with 5/16-18 threaded end. Also known as a Bathroom Stall Bottom Pintle 5/8" Medium Lift. Manufacture part # 98175.

Shipped with nut and lock washer.

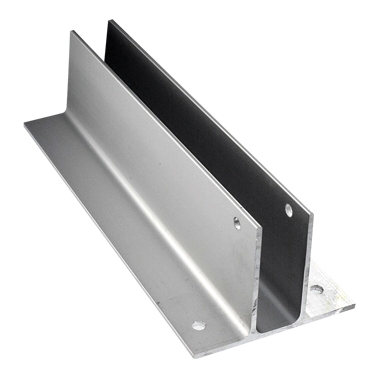

Aluminum Continuous Two Ear Bracket 1/2" X 2-1/2" X 57-1/2". Constructed of extruded anodized aluminum. Base is 3-3/4" wide by 57-1/2" long, with screw holes every 13" or so. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs have a clearance of 1/2" for 1/2" thick panels. Sometimes known as Bathroom Stall Continuous Two Ear Wall Bracket. The manufacturers part numbers are 2674. These brackets are shipped with all the needed fasteners.

Dor-o-Matic 1990 repair kit. The kit includes the following:
4 Mounting Studs
1 Hex Key 7/32"
1 Allen Key 1/8"
1 Pinion
1 Cylinder Bushing
2 Rod Bushings
1 Retractor
1 Traveller Assy

Doromatic part # 4270902091 or PBX-2

1990 parts breakdown

This Barn Door Pull Set features back to back handles that are thru-bolt mounted for a hassle-free setup.  The Grip is 6 inches on centers and is constructed of 3/4 inch round stock, and projects out 2-3/8 inch. The flush pull face dimensions are 2-1/2 by 7 inches. The mortise size of the flush pull are 2 x 7/8 deep x 1/4 inch.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

Monarch Falcon 25-V Vertical Rod Exit Device

The Monarch Falcon 25-V is designed for high-traffic applications were added strength and durability are required.  The device includes all strikes and mounting screws required for installation.  Available in 3' and 4' devices, the 3' device is for doors 30" to 36", the 4' device is for doors that are 37" up to 48" wide.  The vertical rods furnished with this device are for doors up to 7' tall, if your doors are taller, please contact us.

The Berlin bleacher nylon glide P1501BE has an outside diameter of 3/4", a collar outside diameter of 1/2" and a inside diameter of 3/8", with a thickness of 3/8"

Used on chairs and table, so you can use an adjustable height gilde. Used with the LA10625 or SLA12525. 1/4-20 Thread, 1-1/8" outside diameter and 1" inside diameter.

LCN SEM7820 Magnetic Door Holder

The Von Duprin QEL Baseplate Conversion Kit is for use on the 33A, 35A, 98, and 99 exit devices. The size is the size of the exit device.  The 98/99 device 36" would be 33" wide device and the 48" would be for the 45" device.  The 33A/35A the 36" would be for the 35-3/8" wide device and the 48" would be for the 47-3/8" wide device.

Von Duprin Part # 958003 3' Device
Von Durpin Part # 040065 4' Device

Two Hole 1-1/2" Window Handle

This window handle features an 1-1/2" hole spacing and a 1/4" lock up . The handle is cast white bronze construction with a brushed nickel finish

Dor-o-matic 1690 Lock Stile Screw

1/4-20 Phillips Head Screw, a liite less than 1/2" overall length.

Doromatic part # SCREW.1069 or PB114

Dor-o-Matic 1690 Repair Parts Breakdown

Adjustable Height Swivel Glide, Nickel Based for chair legs with a 5/8" outer diameter and a 1/2" inside diameter. The base of this glide is 1 1/4" in diameter. This glide helps level uneven chairs.

Penco Locker Tops or Bottoms for replacement. They are only used for the very top and Bottom of the lockers and as a divider. Made of 24 gage steel only available in 073 champagne. 4-6 weeks delivery.

Low Rise Tip-n-Roll Preferred Aluminum Bleachers 3 and 4 rows high. Aluminum angle under structure 6" rise/row. First row seat 11-1/2" rise with 5" casters with non-marring wheels and non-marring foot pads. We offer for a 3 row high 7'6" wide for a 15 person maximum, 12' for 24 person maximum or a 15' for 30 person maximum. 4 row high bleachers are 7'6" wide for a 20 person maximum, 12' for a 32 person maximum and a 15' for a 40 person maximum seating. Preferred Tip-N-Roll Bleachers have 2 foot planks between rows.

Call for pricing********

Sargent 1130 Door Closer

The Sargent 1130 door closer is a non handed universal door closer. It can be mounted on the left, right, push, pull or top jamb. The hole spacing on this door closer is 3/4" x 9-1/16". We ship the Sargent 1131-RU model.

Intermediate Hinge TH1121 Kawneer Style

Male mounting bracket measures 1-5/16” wide by 2-3/16” high, with a hole spacing of 13/16”.  Female mounting leaf measures 1-7/16” high by 1-9/16”, with a hole spacing of 3/4” center to center. These hinges are non handed.

• Standard top pivot for most offset pivot
sets and floor closers
• Oil-impregnated sintered bronze bearing
• Non-ferrous base metal
• 3/4"(19mm) offset (measured from
centerline of pivot to face of door)
• Furnished with wood and machine screws

Non Handed

Yale Trim Spring Red

Same part as the Corbin Russwin Lever Trim Spring. Used on Yale and Corbin Russwin LHR or RH Doors. The spring has an 1-1/4" diameter.

Yale Part # 60-7000-1225-999
Corbin Russwin # 651F61

Ordering Online All Stainless Steel Floor Mounted Urinal Screens Manufactured by Global Partitions. All toilet partitions ship in 48-72 hours plus 2-4 days travel. All chrome plated hardware included. Stainless Steel Floor Anchored 70" high pilaster and 58" high panel. Specify - Part # 9SFASS-XX (where XX is width from the front of the pilaster to the wall). Width of panels 16"-76" and panel height is 58".

Global Stainless Steel Color Chart

• Attractive, Durable, safe, affordable
• Combines durability with long lasting looks
• Universal Safety instructions
• 4" depth closed, 20" depth open, 34" wide
• Fully hidden gas shock
• Shelf for personal changing items
• Safe strap safety belt
• Molded in hook for purse or diaper bag
• Concave bed
• Includes industrial grade hardware kit for easy installation
• 5 year warrantee
