Standard 4010 series closer is shipped with regular arm, standard plastic cover, and self reaming and tapping screws. Sized cylinders for interior doors to 5’0” and exterior doors to 4’0”. Non-sized cylinder (4011) adjustable for interior doors to 4’6” and exterior doors to 3’6”. Closer mounts hinge side, specify right or left swinging door. 4011 cylinder meets ADA requirements.

Polished Stainless Steel Kick Plate US32

Polished Stainless Steel US32 Kick Plate 16 Ga (.050"). These plates have the same appearance as polished chrome, but are a lot more durable. Custom sizes available starting around $0.37 per square inch depending quantity

Please allow 1 week shipping time

Kick Plates come pre drilled with screws.

Medart Locker Handle Assembly for a Left Handed Locker with hinges on the left facing them. Handle Assembly includes Case, Lift and 1 screw. Also known as 50102, 1001, 80028, me5501, lmd905.

Republic Steel Locker Handle #11 Assembly Left Hand. Comes with lift,case and screws.Our replacement Republic Storage Handles are based on the version they produced in the 1970″s, which means more material on the legs (lugs). The extra material makes them much more heavy duty then the ones they are producing today. We sell the Republic Storage #11 Locker Handle three ways, just the lift, just the case or the complete assembly. The case and the assembly come with the mounting screws. The Republic Storage #11 handle, also goes by Republic Steel #11 handle, and Berger #11 handle. The #11 handle has been produced since the 1962-1965. Also known as 70108, 2045, 70036, rs11108, lr307.

Stainless Steel Kick Plate Brushed 16 Gauge

Brushed Stainless Steel Kick plate US32D 16 Ga (.050")
Custom sizes available starting around $0.23 per square inch depending quantity

Please allow 1 week shipping time

Kick Plates come predrilled with screws.

Napkin / Tampon Dispenser Recess

Fabricated of Type 304 #18 Gauge Stainless Steel With #4 Satin Finish

Holds 30 Sanitary Napkin and 27 Tampon Packages
Multiple Coinage Options Available

Door
: Fabricated of type 304 #18 ga stainless steel with #4 satin finish. Door has 1/2" returns for rigidity.

Body: Fabricated of type 304 #22 ga stainless steel with a #4 satin finish. Adj. Slip Flange: Fabricated of type 304 #22 ga stainless steel, one piece construction with no miters or welds and #4 satin finish. Flange will adjust from a 1" minimum to a 6" maximum wall depth.

Coin Mechanisms: Two independent, trouble free turn knob mechanisms, with an "EMPTY" indicator that does not allow coins to be inserted into mechanism when product has been depleted. Operational with one hand with less than 5 lbs (22.2n) of force without tight grasping. Can be operated with palm, elbow or forearm if user has a physical impairment. (Free,.25,.50)

Standard 4040 LCN series closer shipped with regular arm, standard plastic cover, and self reaming and tapping screws. Non-sized cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0”. Closer mounts hinge side, top jamb, and parallel arm w/PA Shoe on either right or left swinging doors. Closers to meet ADA requirements.

No longer made, the 4040XP will be shipped in its place.

All PR80 Closers are UL listed and warranted for ten years. Parallel Arm Brackets and mounting hardware are included with each closer permitting universal installation for regular, top jamb or parallel arm applications. The closer is supplied with a standard plastic slim style cover.

The closer is sized for 2 to 5 spring tension and will work on doors 24" to 54" Wide and 33 to 264 Lbs. This closer has a hole spacing of 3/4 x 9-1/16 inches.

Dor-o-Matic Lever arm.

Doromatic part # DC15 Lh and DC40 Rh

Order G199015 for Left Hand and G199040 for Right Hand

Left hand lever shown for 1990 and the 2090 inactive case.

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Yale 2300 Door Closer

• Spring size 2, 3, 4, 5
• Separate and independent valve for sweep speed and latch speed
• Adjustable backcheck standard
• Regular, top jamb, parallel mount
• 5-year limited warranty
• ANSI/BHMA A156.4 Grade 3

3/4" x 9-1/16" hole spacing

In April of 2023 Norton Yale have discontinued the 2300 and 9300.  The Norton 1600 will be sent in place of the 2300.   Same Hole Spacing, but adjustable spring tension.

2-1/4" knob pinned to a straight spindle. The inside kob is attached
with two case hardened set screws. 3/8-18 tread on knob and spindle.

Standard new 4030 series closer is shipped with forged regular arm, metal cover and wood/self-tapping machine screw pack. Non-sized (1-4) 4031 cylinder for exterior doors to 36” (914 mm) and interior doors to 48” (1219 mm). Closer mounts hinge side, top jamb, and parallel arm, on either right or left
swinging doors. Closer meets ADA requirements.

Von Duprin 88 Spring Tube Bracket

This bracket holds the hinge case spring tube in place. The screws are included with the bracket.

Von Duprin Part # 050477
Old Part # 969369

Fabricated from B & S 16 ga. (.050). Standard lengths are 36", 42" and 48". Custom capabilities include variations of all of the above parts including frame protectors and vertical rod protectors.
Custom sizes are available!

Screws included for mounting

Finishes

Medart Locker Handle Assembly for a Right Handed Locker with hinges on the Right facing them. Handle Assembly includes Case, Lift and 1 screw. Also known as 50101, 1001, 80027, me5501, lmd904.

Dor-o-matic 1790 Center Case Cover Screw

For devices shipped before September, 2004

Doromatic part # SCREW.1025 or PB324

Dor-o-Matic 1790 Repair Parts Breakdown

Standard 4020 series closer shipped with regular arm, standard plastic cover, and self reaming and tapping screws. Sized cylinders for interior doors to 5’0” and exterior doors to 4’0”. Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”. Closer mounts top jamb (push side), specify right or left swinging door. 4021 cylinder meets ADA requirements.

Sargent Exit Device 90 Series Mouse Trap Spring

Used on the Sargent 9898 Rim Device on the opposite side of the case as the latch bolt.

Sargent part # 98-2159

Oil Rubbed Bronze Kick Plate US10B (Dark Bronze)
The Dark Bronze US10B Plates are Dark Bronze Powder Coat on a Brass Plate
16 Ga (.050")
Custom sizes available starting around $0.49 per square inch depending quantity

Kick Plates come pre drilled with screws.

Please allow 2 week shipping time

2-1/4" knob pinned to a straight spindle. The inside kob is attached
with two case hardened set screws. 3/8-20 tread on knob and spindle.

Doromatic Door Closer Hold Open Arm Only

Doromatic Door Closer Hold Open Arm. Includes everything is the image. Can be used to convert you regular non hold arm to a Hold Open Door Closer. Arm holds the door open when door is rotated open. The hold open postion is adjustable. This is the hold open arm for the SC61 Hw/PA, SC71 Hw/PA, and the SC81 Hw/PA.

Doromatic Part numbers:
SC60 - SC60-3049/PA , SC70 - SC70-3049/PA , SC80 - SC80-3049/PA

Function is the Door Closer Model

Stainless Steel Kick Plate Brushed 14 Gauge

Brushed Stainless Steel Kick plate US32D 14 Ga (.062")
Custom sizes available starting around $0.40 per square inch depending quantity
Same appearance as brushed chrome

Please allow 1 week shipping time

Ships with a Phillips type sheet metal screws

Brushed Bronze Kick Plate US10 (Bronze), also know as 612
Solid bronze plate with in a brushed finish, and is then clear coated.
16 Ga (.050") Thick

This finish was really popular in the 1940 thru the early 1970's. It is an orangish hue brass color. Same appearance as Dull Bronze on finished color chart.

Custom sizes available starting around $0.49 per square inch depending quantity

Ships with a Phillips type sheet metal screws.

Please allow 2 week shipping time

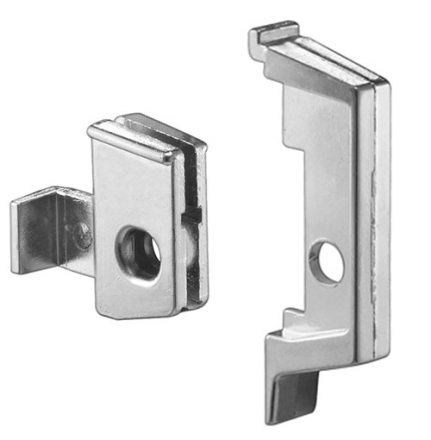

Lyon Metal Tamper Guard Locker Handle Assembly for left handed lockers, facing the locker if the hinges are on the left side then they are a left handed locker. Assembly includes case, lift and 1 screw. Used in September 1981 to Current. Also known as 75015, ly2233, ll1744, 6781and 6783.

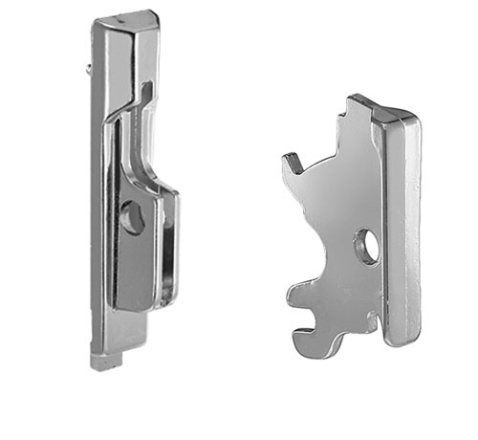

Penco Locker Handle Assembly, includes case, lift and palnut 108642 1972 to current. **Note these do not say Penco on the Lift. Also known as 60101, 4010, 74008, pn3309, lp8809, 8658.

Von Duprin 88 Spring Stop Assembly

This is the piece that holds the hinge case spring in place. It is used on all of the Von Durpin 88 models.

Von Duprin Part # 050451
Old Part #107682

LCN Door Closer Rod And Shoe

This piece fits into the female part of all LCN Regular Arms. The old style had two concave set screws and a ball pressed into the rod. If the door over rotated the ball would pull out of the concave set screws. The new version has a pin holding the rod to the shoe which is designed to fail if the door is over rotated. This piece will work on the LCN 1260, 1460, 4010, 4020, 4030 and 4040 door closers with regular arms. Some of the really old models have multiple threaded holes, so you might have to drill a hole in the female tube. Part #'s 4040-79, 4040-79LR and 4040-79ELR. The 1260, 1460, 4010, or 4020 could replace the 4040 in those part numbers, they are the same.

Our replacement Republic Storage Handles are based on the version they produced in the 1970′s, which means more material on the legs (lugs) and housings. The extra material makes them much more heavy duty then the ones they are producing today. We used to sell the Republic Storage #12 Locker Handle three ways, just the lift, just the case or the complete assembly, however we are no longer able to procure the components individually. The case and the assembly come with the mounting screws. The Republic Storage #12 handle, also goes by Republic Steel #12 handle, and Berger #12 handle. The #12 handle has been produced since the 1965 and is still produced today. Also known as 70102, 2030, 70001, rs1106, lr302.

INTERNATIONAL DOOR CLOSER 1804BC - FIXED SPRING CLOSER

• Factory tested to meet or exceed ANSI 156.4 Grade 1
• Narrow design permits installation on most modern glass and aluminum doors without adapters
• Two Adjustment Valves: Closing and Latching speeds controlled by separate regulating valves, adjustable after installation.
• Standard application for regular arm, Top Jamb installation and Parallel arm installation.
• Slim Plastic Cover or Full Cover (optional)
• Ranges of Sizes
  Back-Check: 1802, 1803, 1804, and 1805
• 5 year warranty
• All Weather Fluid

3/4" X 9-1/16" Hole Spacing

PLACE AN ORDER HERE FOR THE 1804BC-P

Doromatic 2390 Fixed Cover

The Doromatic 2390 Fixed Cover also known as the center case cover. The cover is 1-1/2" wide by 3-7/16" high and projects out 2 inches. The mounting screws are 3" on center.

Doromatic / Falcon Part # COVER.127 or PB341

Shower Curtain - 10 Ga. White Vinyl, Order 8 Hooks Separately - 36"W X 72"H

Flame-resistant, anti-bacterial, 10 gauge white vinyl fabric with standard height of 72". Curtain should be 6" wider than opening up to 54" and 12" wider than opening exceeding 54".

Shower curtain should be attached with hooks (not provided, order separately) to rod (not provided, order separately). Known as 10-1200-V48 by American Specialties.

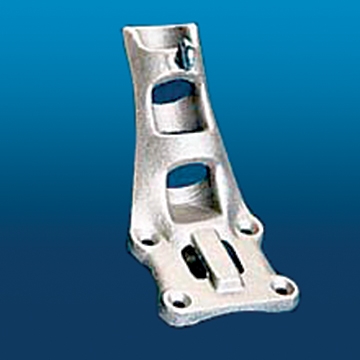

Aluminum Flag Bracket - 1" With Thumb Screw. EWC aluminum bracket, supplied with thumb screw. Displays pole at 45 degrees.

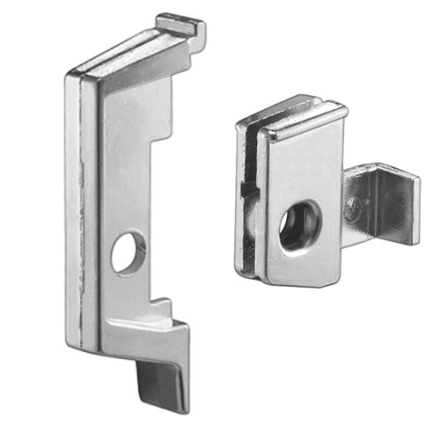

Lyon Metal Tamper Guard Locker Handle Assembly for right handed lockers, facing the locker if the hinges are on the right side then they are a right handed locker. Assembly includes case, lift and 1 screw. Used in September 1981 to Current. Also known as 6781and 6782, 75011, ly2232, ll1741.

Standard duty 2-1/4" knob is factory pinned to swivel spindle
to 1-3/4" door. Spindle has two 3/8" centers. Inside knob has
two case hardened set screws and spindle is threaded 3/8-18

Heavy duty knob set. Replaces the Corbin #1419 with #32 spindle.
Outside knob is pinned to spindle and inside knob is held by
two 5/16" case hardened set screws. Spindle is on 3/8" diameter
center on outside half and inside spindle is threaded 3/8-20

Republic Steel Locker Handle Lift #11 Right Hand (Lift Only). Our replacement Republic Storage Handles are based on the version they produced in the 1970″s, which means more material on the legs (lugs). And our handles are made in the U.S.A. in Wisconsin. The extra material makes them much more heavy duty then the ones they are producing today. We sell the Republic Storage #11 Locker Handle three ways, just the lift, just the case or the complete assembly. The case and the assembly come with the mounting screws. The Republic Storage #11 handle, also goes by Republic Steel #11 handle, and Berger #11 handle. The #11 handle has been produced since the 1962-1965.
