LCN Door Closer Parallel Arm Shoe

This is the shoe that LCN uses on some of there door closers for the parallel arm mounted door closers. A parallel arm closer is a door closer that has the arm parallel to the door when the door is closed. This part is also known as the 1260-62PA, 1460-62PA, 4030-62PA, and 4040-62PA. Ships with mounting screws.

Toilet Seat Cover Refill - 5000

Cal Royal 800 Door Closer

CAL-ROYAL’S FINEST DOOR CLOSER SERIES
MEETING THE HIGHEST INDUSTRY STANDARDS, GRADE 1
HEAVY-DUTY DOUBLE LEVER ARM WITH EXTRA SMOOTH
ACTION FULL FEATURE MULTI-SIZE COMMERCIAL DOOR
CLOSER FOR USE IN OFFICE BUILDINGS, SHOPPING
CENTERS AND OTHER COMMERCIAL

CR801S - SLIM COVER

CR801 - FULL COVER

Please allow one week lead time

Single Left Door Latch -- Rests firmly against door jamb. Shown without lock. Optional lock prevents theft.

Single Right Door Latch -- Rests firmly against door jamb. Shown without optional lock. Lock prevents theft.

Cast S.S. Slide Bolt Latch 5/8" Bar To Door, 3-1/2" Between Screws. Cast stainless steel construction. Base is 4-1/2" tall with a hole spacing of 3-1/2" on center. Latch bolt is 3-3/32" long by 1" wide by 3/16" thick and has a throw of 15/16". The latch projects out 1-9/16". The distance from the back of the base to the underside of the latch bolt is 9/16". Also known as a Bathroom Stall Slide Latch and Toilet Partition Locks. Manufacture part #5053. Shipped with screws. Used by accurate and global.

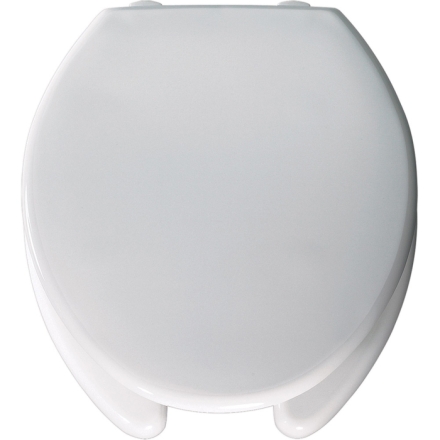

Toilet Seat White Regular W/Cover 16-5/8" x 14-1/2" with cover white

The LCN 1260 Series combines the best features from the previous 1070 and 1370 into a single versatile and economical cast iron closer, with dual mounting capability. The 1260 is adjustable spring sizes 1-5 and mounts to the most common commercial footprint. The 1260 also features a complete line of regular and extra duty arms, LCN’s peel-n-stick installation templates, a convenient spring adjust pointer. The Brass finish is Painted Brass.

We ship the 1261 Rw/PA

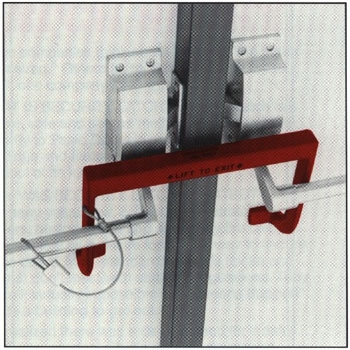

Double Door Latch -- Rests firmly against the center post. Shown with optional lock. Lock just prevents theft.

The Russwin 2800, 2810 and 2820 in no longer available. They have been replaced by the Corbin Russwin DC6210, which has the same hole spacings and arm. You will not have to redrill or modify your door to make the DC6210 work in place of your existing 2800, 2810 or 2820 door closers. The DC6210 has a little bit larger body due to the increased functionality of this closer. This new closer will meet all the ADA requirements.

Uses the same mounting bracket as the 100, and 2800 series.

Older models may have SL72 or MS93 cast on the cylinders. You may also find Clarksdale, MS cast on the cylinder also.

LCN Sentronic Door Closer Arm - 4010SE-3077T

LCN part # 4010SE-3077T

This arm will only work on the 4010SE. If you have another LCN Sentronic Model, we can order the arm you need. For us to do that we would need to know which model you have (4110SE, 4010SE, ect..) and the hand of the door, see diagram. This arm is for a discontinued LCN Door Closer. We can not allow returns, each arm is special ordered.

The arm shown in the picture is a 4040SE arm, the 4110SE arm is the same, but the shaft hole is an oval.

Dor-o-Matic Door Closer Regular Arm Only. This is the standard regular arm for the SC60, SC70, and SC80 Doromatic Door Closers

Doromatic part # SC60 - SC60-3077/PA, SC70 - SC70-3077/PA, SC80 - SC80-3077/PA

Choose Color and Doromatic Falcon Model Number (Function)

The International Door Closer 3010-S Side Load Arm is used with the 200, 300 and 500 Series Concealed Overhead Door Closer for Center Hung Doors.   The arm is constructed of cast iron and measures 10" long, and 7/16" thick.   The package includes all the mounting screws.

The 4040SE Sentronic® is a heavy duty, non-handed, nonsized closer/holder designed to provide single point hold-open for fire and smoke barrier doors. The door is held open until current interruption releases the
holding mechanism and the door closes. Single lever (track) arm closer is specifically designed for interior doors. Choice of finishes, track functions, and installation accessories meet virtually all life safety requirements.

Mills Partitions ADA Concealed Slide Bolt Latch Concealed Chrome Plated

Covers are polished chrome plated. Latch cover plates are 1-3/4" wide by 1-3/8" high. The latch switch is 1-15/32" wide. The latch bolt is 3/8" diameter. The spacing between the cover and the latch 1-1-32". This is a one of a kind latch. Also known as a Bathroom Stall Concealed Latch. Manufacture part # 4230, HDWT T290.

Norton New Style Replacement Door Closer Springs

This is the replacement door closer spring for the Norton 78, and Yale 1900 Door Closers. Spring measures 2-11/16" diameter by 2" tall. This spring is identifiable by the number stamped on the band that holds the spring together. The band will be stamped either B/D 2/4, or E/F 5/6.

Norton 78 B/D and Yale 1902-4 use spring 24BD
Norton 78 E/F and Yale 1904-6 use spring 56EF

Norton Part # 24BD
Norton Part # 24EF

The Jackson 20-330 Series Overhead Concealed Closer has been the leader in the industry for more than 35 years. The closer is manufactured in the U.S.A. under strict ISO 9001 guidelines and is designed to give long lasting, maitenance-free performance. One basic closer mechanism allows for single or double acting, center-hung, or offset applications and is non-handed. The adjustable spring power makes this closer suitable for aluminum, wood or steel doors.

Mechanism only, Spindle Length is 1/2"
See Jackson arms for replacement arms.

LCN Door Closer 4040SE Track Assembly 4040SE-3038

Complete replacement LCN Sentronic Track.
Replaces all Sentronic tracks for the 3130SE, 4010SE, 4110SE and 4040SE Closers.
Track includes the roller, 4040SE-3034 and new mounting screws. The replacement track measures 21-3/4" on center for the mounting screws, which may be different then the 3130SE, 4010SE, 4110SE and older 4040SE Tracks.
Specify voltage, and color when ordering.

LCN Part # 4040SE-3038

Norton Door Closer Rod and Shoe

The Norton Rod and Shoe 7701-11 and 7701-11A come in two different lengths, 8-7/8" anc 12-1/2".  The length is measured from the end of the bar to the center of the eyelet.

Norton Part #'s:
8-7/8" Long  7701-11
12-1/2" Long 7701-11A

Partition Slide Latch 3/8" Bar To Door, 2-3/4" Between Screws Stainless Steel

Cast stainless steel construction. Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/4" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 3/8" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5033.

Shipped with mounting screws.

Cal Royal 900 Series Door Closer

Pull or Push side, or Top Jamb mounting, Meduim Duty Door Closer, Powder Coated Painted Finishes, 5 year warranty

3/4" x 11-1/8" cylinder hole spacing

Cal Royal 900 Series Catalogue

Norton / Yale Door Closer Hold Open Parallel Bracket

Replacement bracket works with the Norton 1600, 9300, 7500, and 8000 series, along with the Yale 50, 3000, and 4400 series hold open closers.

Norton Part # 1628H
Yale Part # 588

Dorma 8616 Door Closer

we ship the Dorma Model # 8616-AF89P

3/4" x 12" hole spacing

Doromatic Door Closer Hold Open Arm Only

Doromatic Door Closer Hold Open Arm. Includes everything is the image. Can be used to convert you regular non hold arm to a Hold Open Door Closer. Arm holds the door open when door is rotated open. The hold open postion is adjustable. This is the hold open arm for the SC61 Hw/PA, SC71 Hw/PA, and the SC81 Hw/PA.

Doromatic Part numbers:
SC60 - SC60-3049/PA , SC70 - SC70-3049/PA , SC80 - SC80-3049/PA

Function is the Door Closer Model

Partition Slide Latch, Cast Stainless Steel With Hole Spacing 1-3/4" X 1-1/2"

Cast stainless steel construction. The latch base is 2-31/32" wide by 1-15/16" high and projects 1-1/8" high. The hole spacing is 1-3/4" wide by 1-1/2" high. The four mounting holes have a diameter of 1/4". The Slide Latch base is 1/4" thick. The latch bolt is 7/8" wide by 3-7/16" long. This toilet stall latch is used on Accurate and Mills Partitions. Also known as a Bathroom Stall Slide Latch. Manufacture part # 6983.

Shipped with mounting screws.

LCN Sentronic Door Closer 4310ME

Standard LCN Sentronic Door Closer 4310ME series closer shipped with a 24V or 120V cylinder (please specify) on a mounting plate, metal cover, Swing-Free arm, track, track roller, and wood and machine screw pack. See 4310ME Series pages 23 & 24 for options. Sized cylinders for interior doors to 4’0”. Functions as full rack and pinion door closer when hold-open is not engaged or current is interrupted with Swing-Free arm engaged. Handed for right or left swinging door. Concealed or exposed electrical connections. Built-in “On/Off” switch controls hold-open function. Swing-Free arm allows door to be moved without door closer resistance. Interfaces with fire alarm systems. LCN Sentronic Door Closer 4310ME part are also available.

LCN Sentronic Door Closer 4410ME

Standard LCN Sentronic Door Closer 4410ME series closer shipped with a 24V or 120V cylinder (please specify) on a mounting plate, metal cover, regular arm, and wood and machine screw pack. Sized cylinders for interior doors to 4’0”. Functions as full rack and pinion door closer when hold-open is not engaged or current is interrupted. Handed for right or left swinging door. Concealed or exposed electrical connections. Built-in “On/Off” switch controls hold-open function. Interfaces with fire alarm systems.

LCN Sentronic Door Closer 4410ME parts are also available.

Surface Mounted Partition Slide Bolt Latch Stainless Steel 3/8" Bar To Door Clearance

Cast stainless steel construction. Latch base is 4-1/2" high with 3-1/2" hole spacing. Latch bolt is 3-3/32" long by 1" wide by 3/16" thick. The latch bolt clearance is 5/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5063.

Shipped with mounting screws.

International Door Closer CI44 Series

1. Recommended for High Traffic doors
2. Rugged Cast Iron Body with forged steel arm
3. Double heat treated steel pinion
4. All weather fluid
5. Non-handed
6. Non-sized adjustable 1-6; standard with Backcheck

Direct replacement for the LCN 4040

General Ada Concealed Latch Cover Knob w/ Offset Pin

Zamac die cast construction with polished chrome plating. Outside diameter of the knob and cover are 1-3/4" with the inner ring diameter of 1-7/32". The ADA Barrier Free Lever is 3-3/4" long. The off set pin has a diameter of 11/32" and 2-11/16". Also known as a Bathroom Stall Concealed Latch Cover and Knob Assembly. Manufacture part # 8190. Typically used with powder coated steel toilet partitions.
